Receiver Dryer: Service and Repair
AR83.30-P-6521EX Remove And Install Desiccant Cartridge

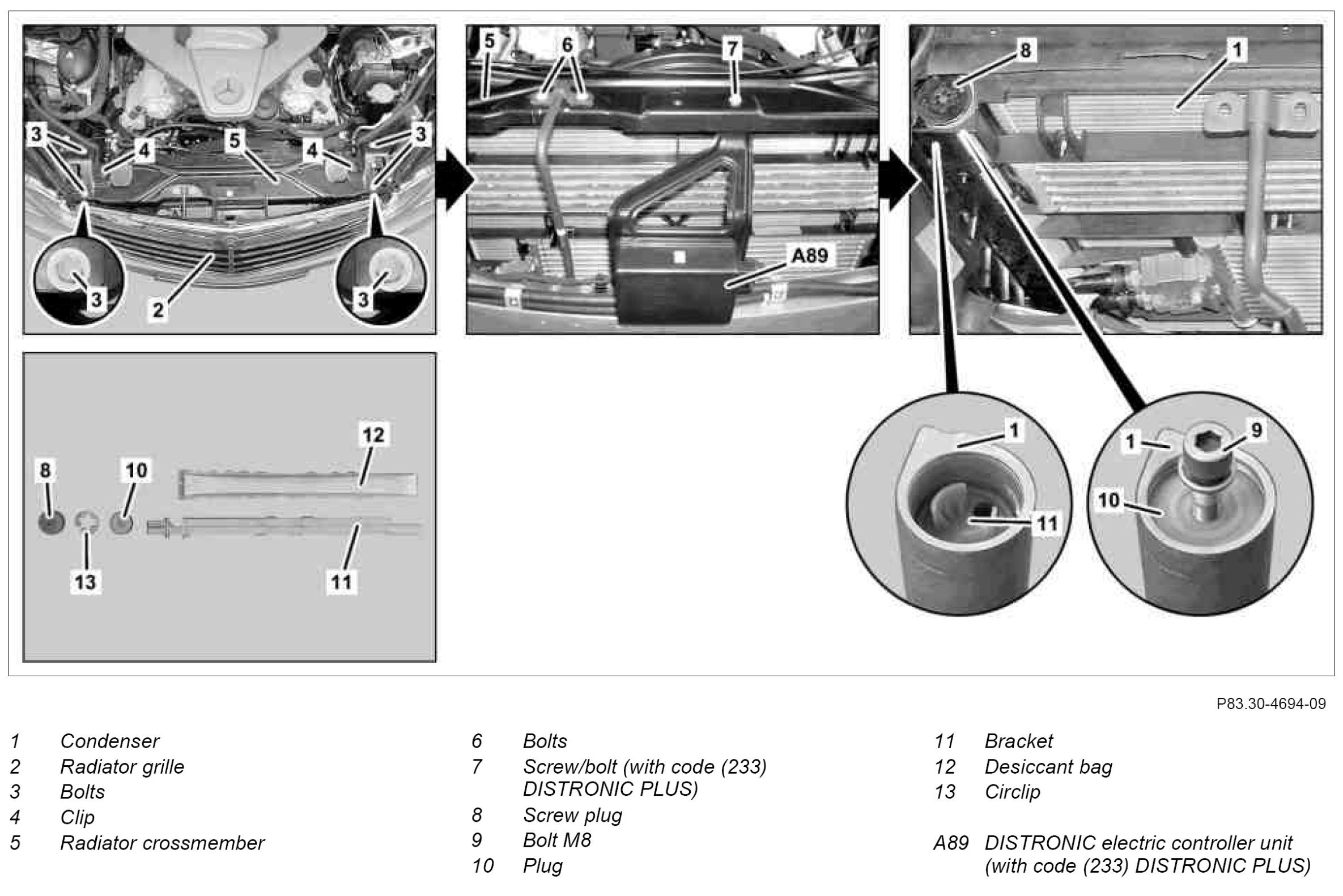

Component Identification:

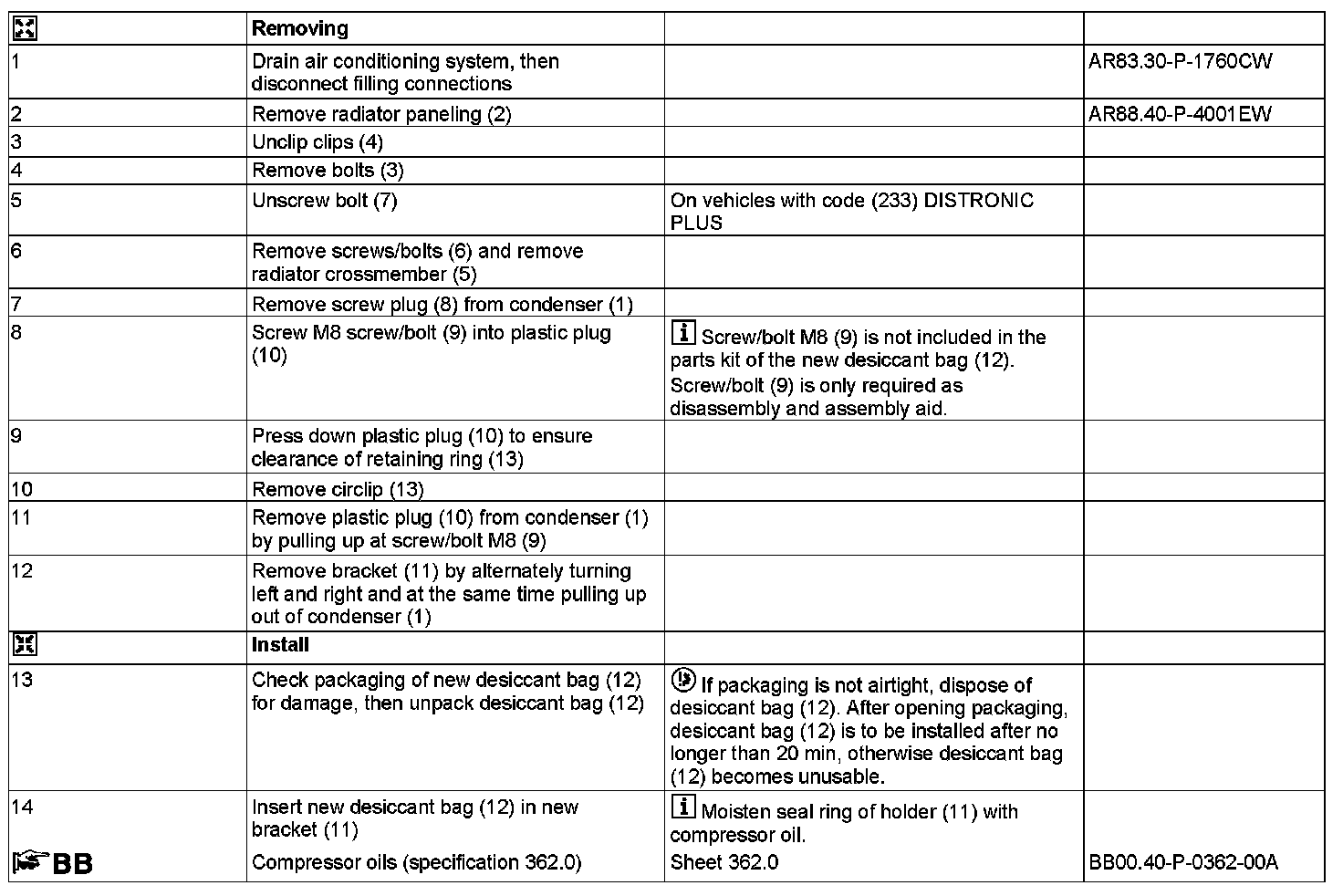

Steps 1-14:

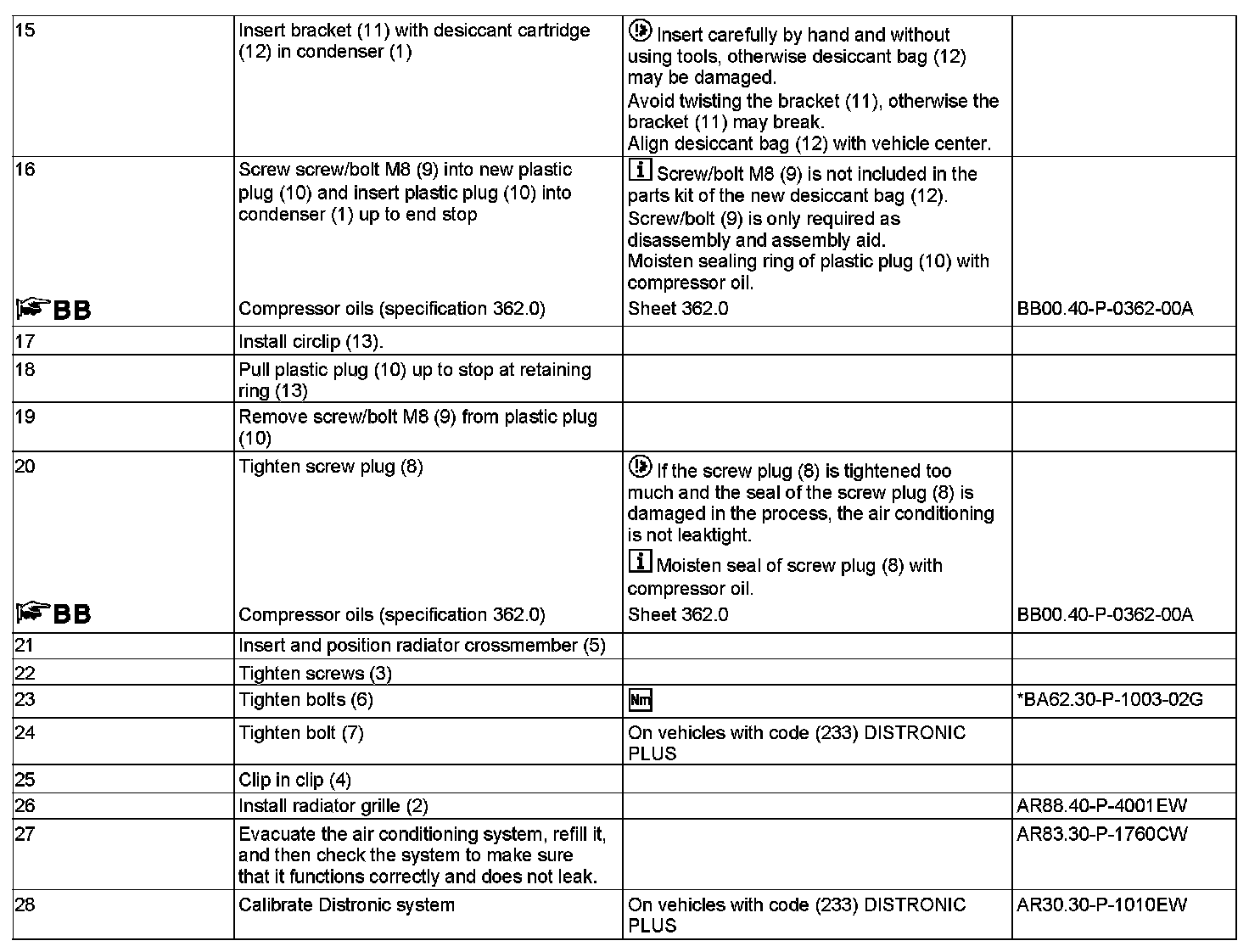

Steps 15-28:

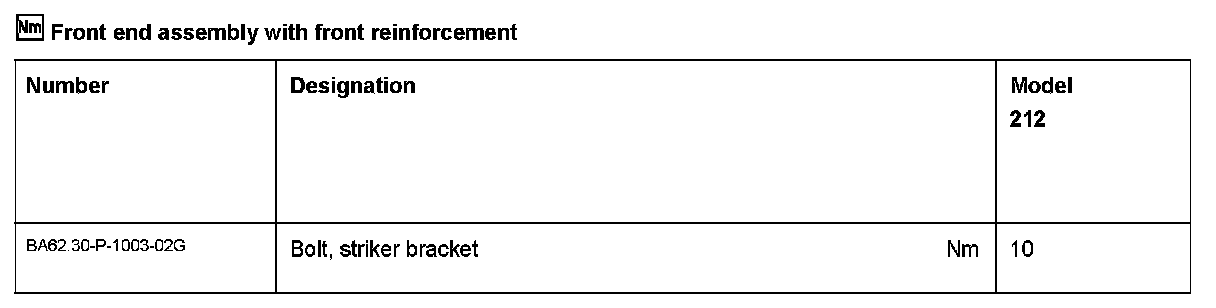

Front end assembly with front reinforcement
Front End Assembly With Front Reinforcement:
AR83.30-P-6521EX Remove And Install Desiccant Cartridge
Front end assembly with front reinforcement
