Condenser HVAC: Service and Repair
AR83.30-P-6540EX Remove/install Condenser

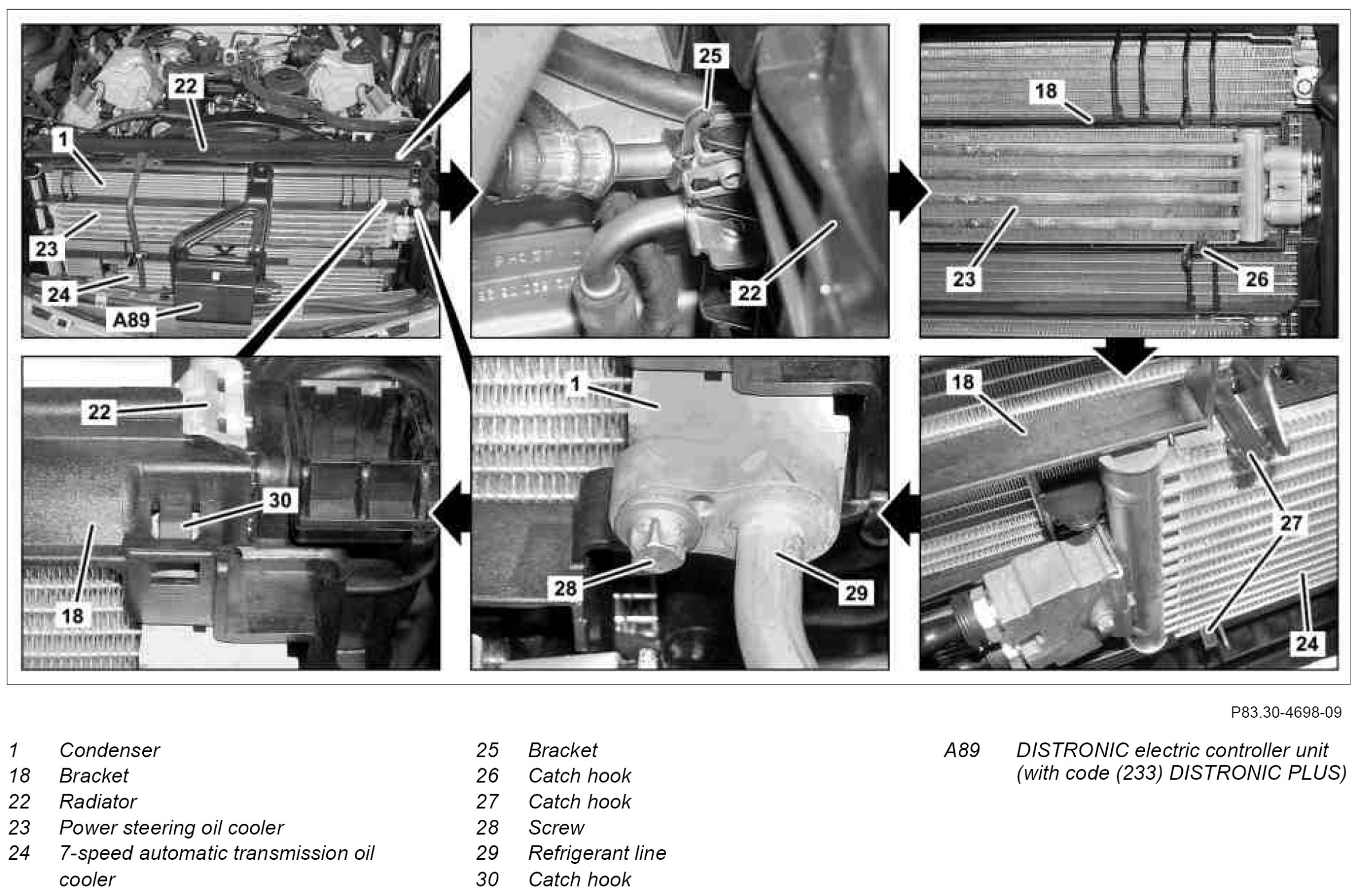

Component Identification:

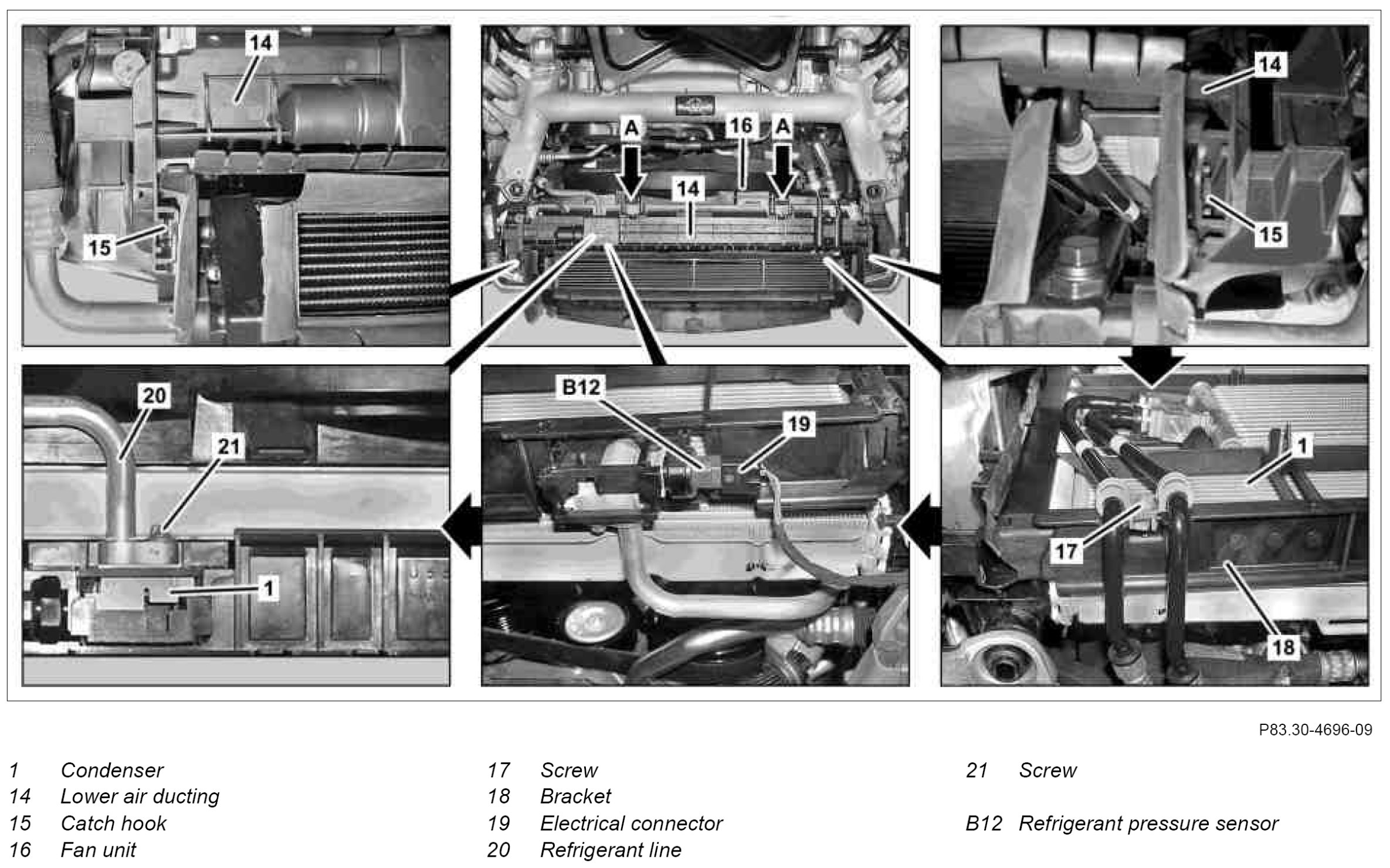

Component Identification:

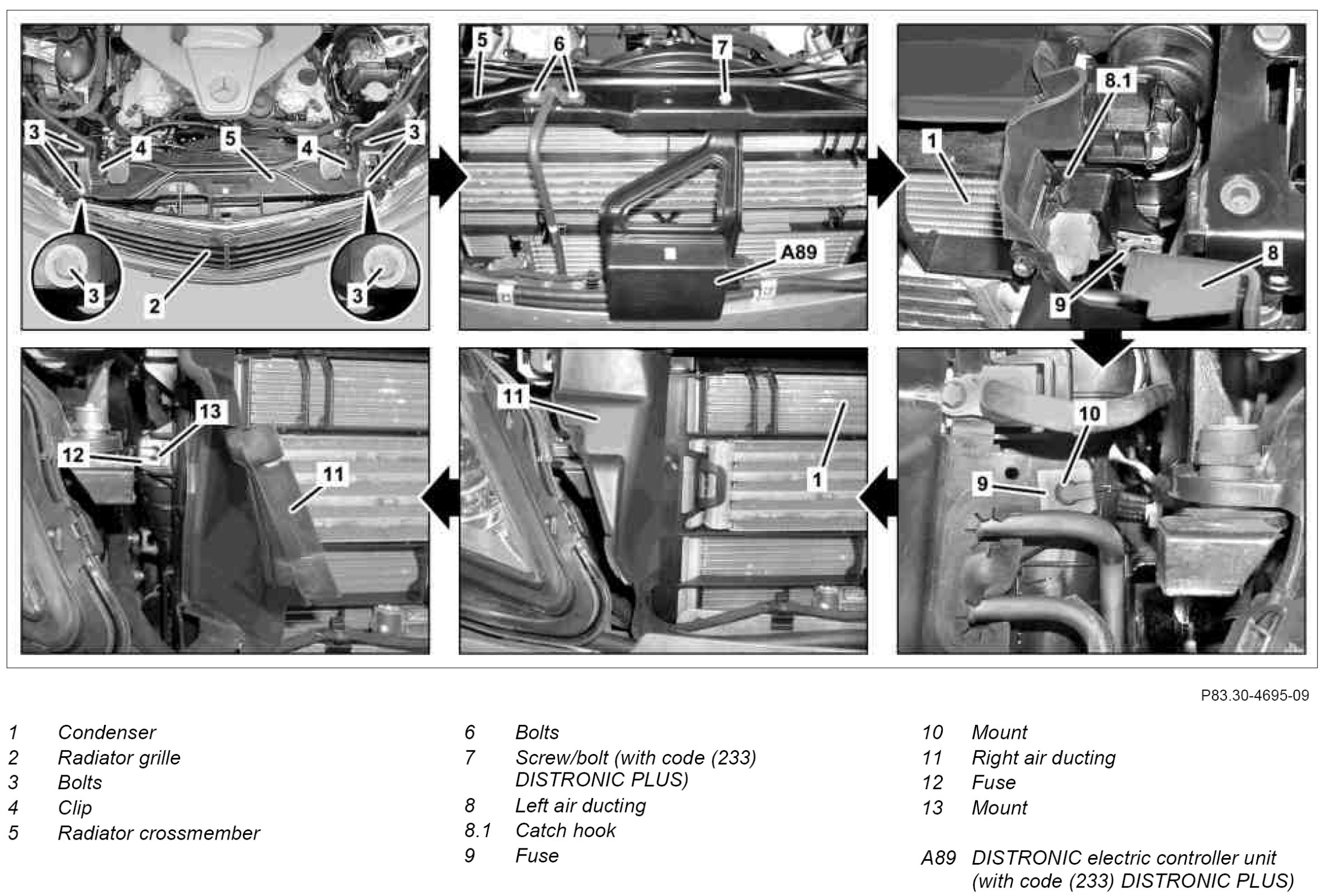

Component Identification:

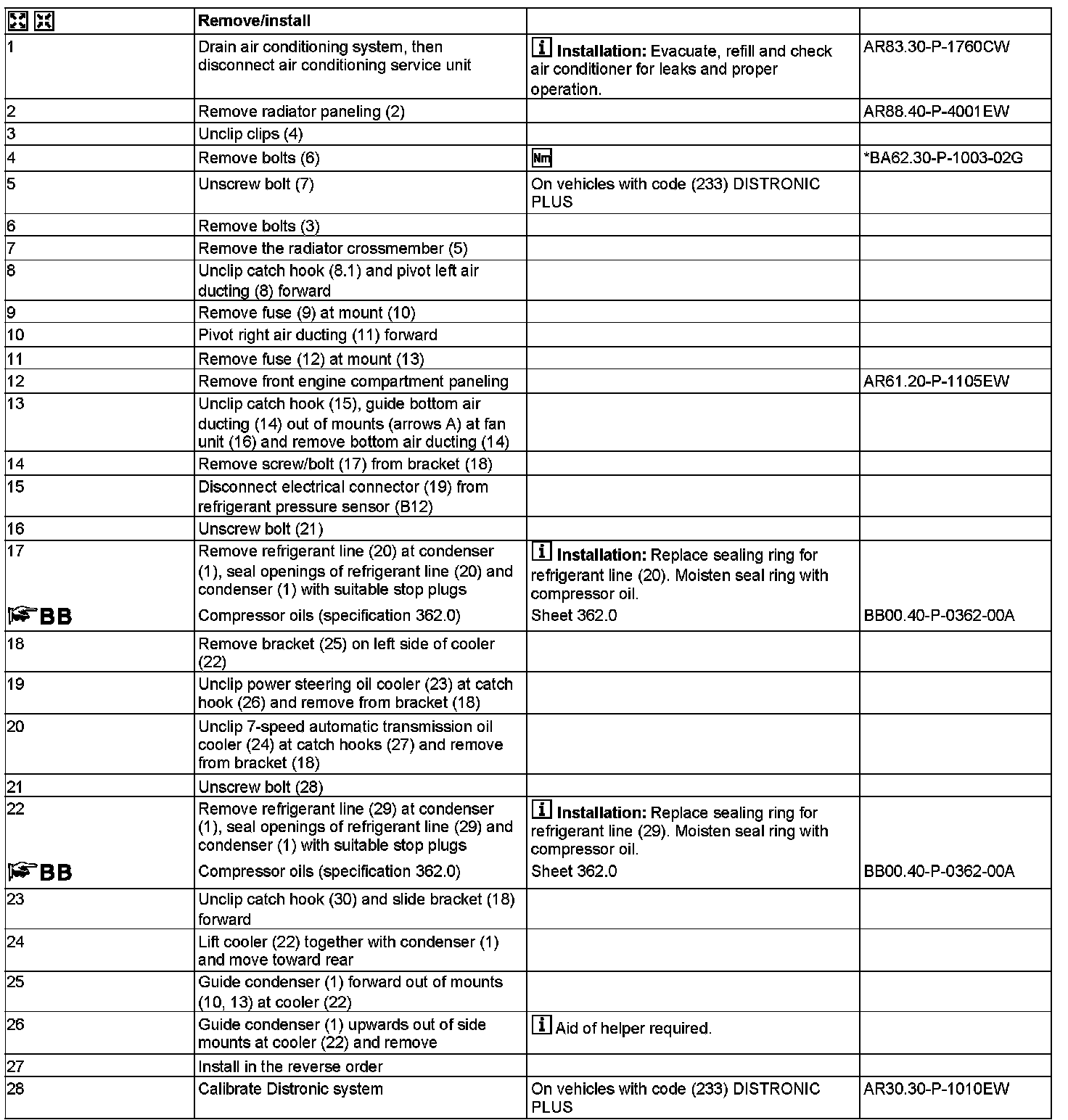

Steps 1-28:

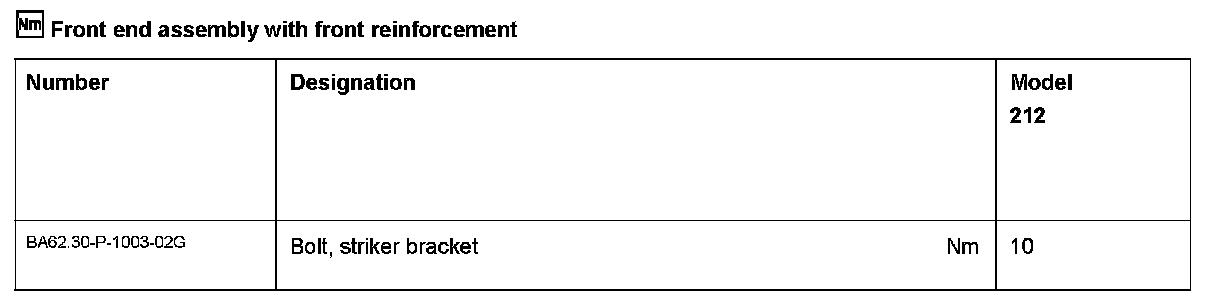

Front end assembly with front reinforcement
Front End Assembly With Front Reinforcement:
