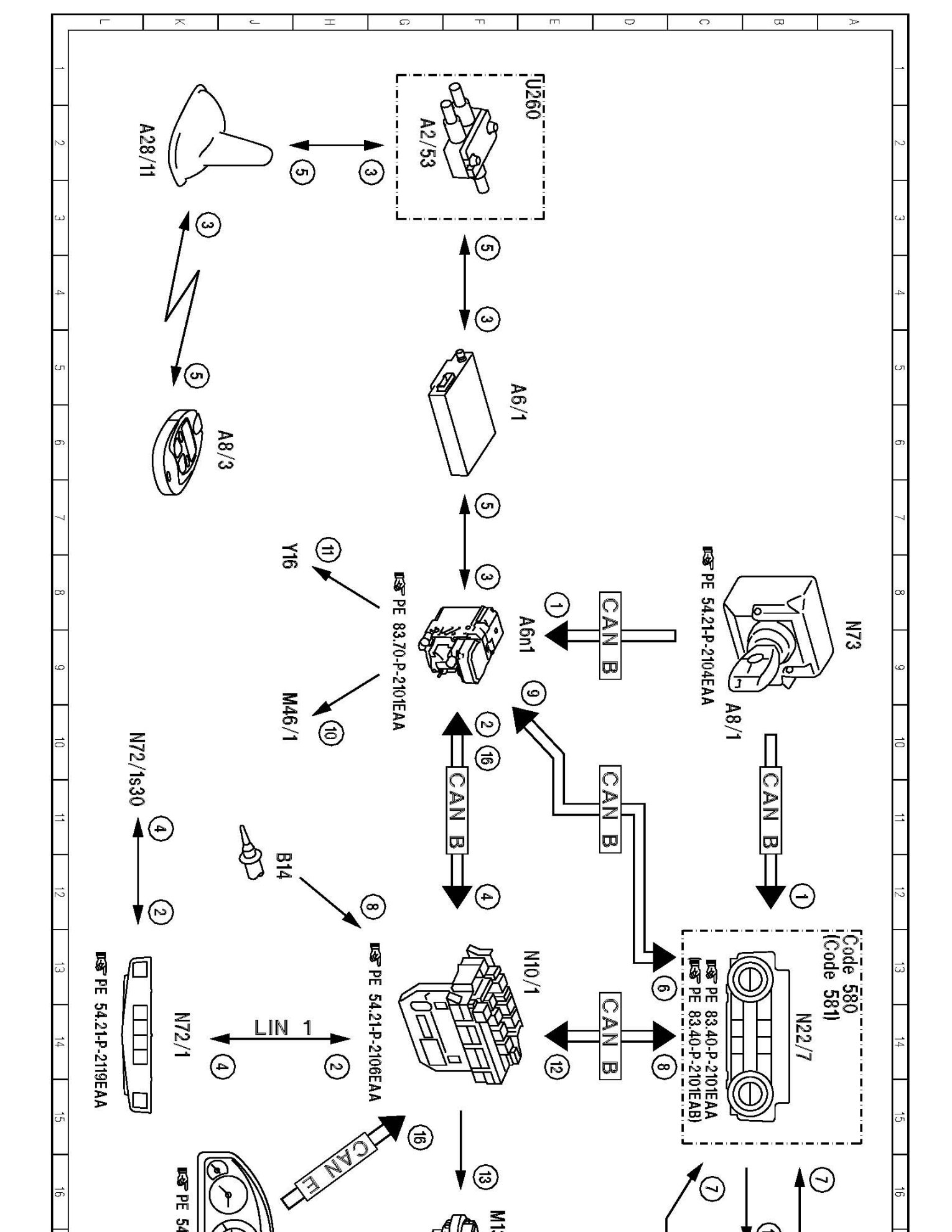

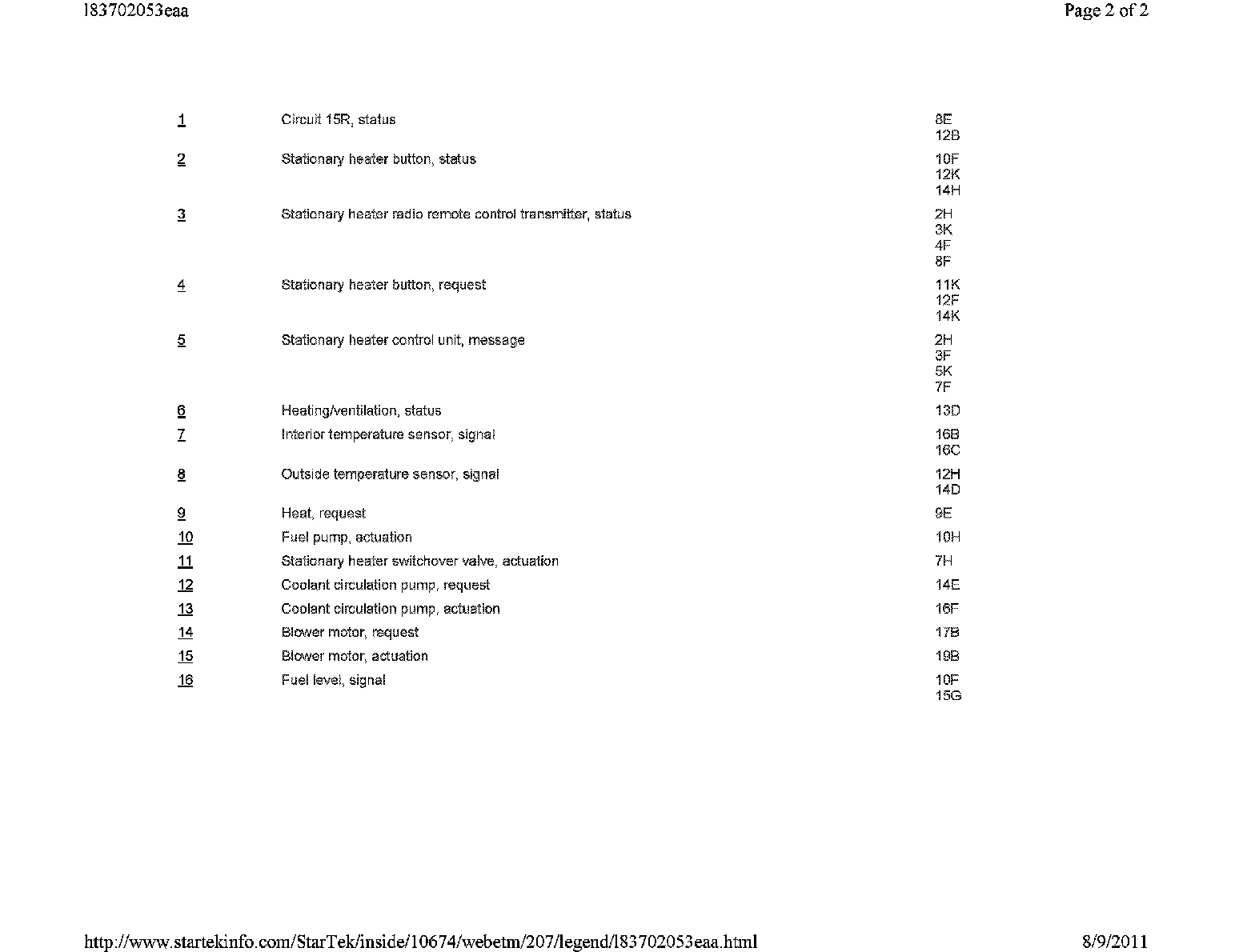

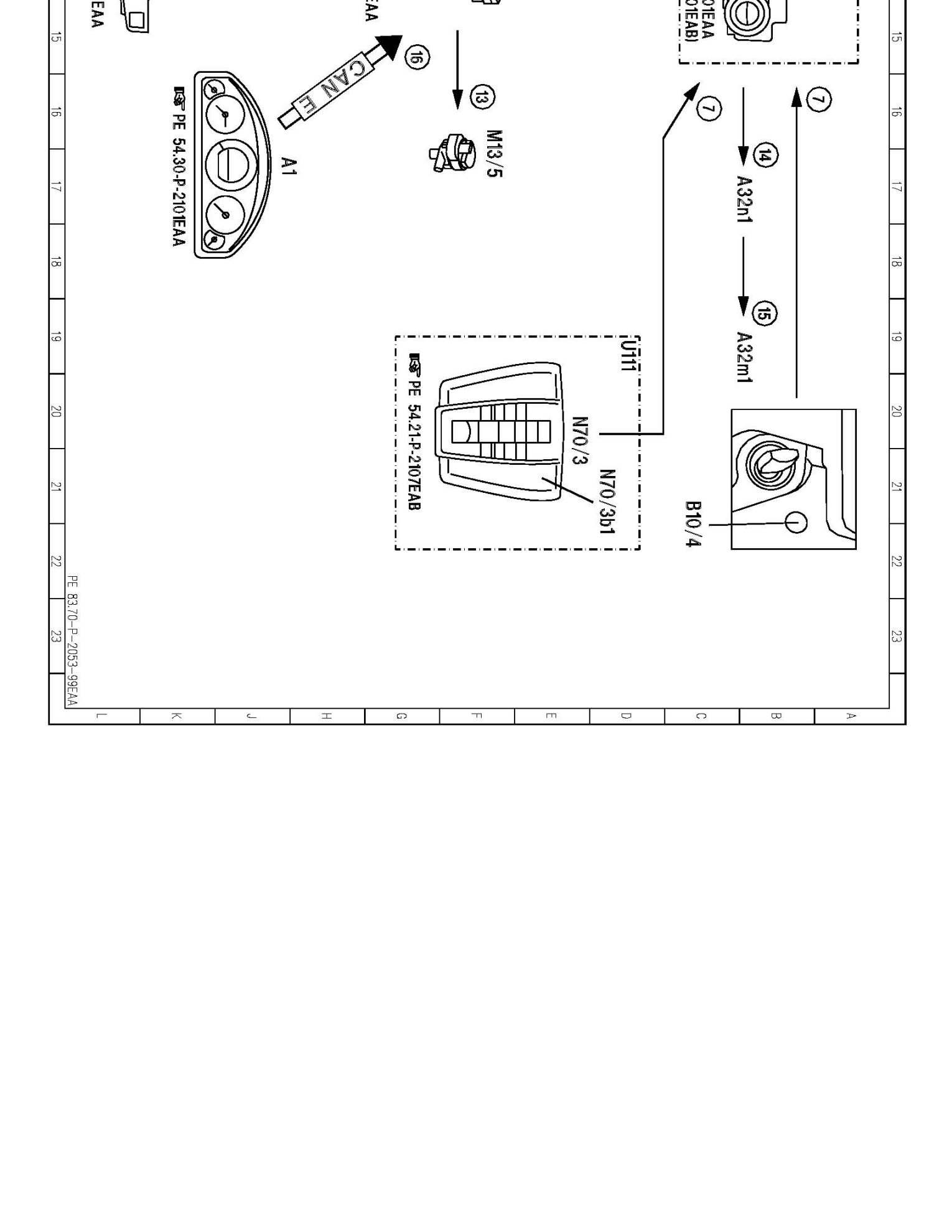

PE83.70-P-2053EAA Electrical Function Schematic, Trigger Immediate Heating Mode




PE83.70-P-2053EAA Electrical Function Schematic, Trigger Immediate Heating Mode
- with CODE (228) Stationary heater
