AR54.15-P-1340EW Remove/Install Rear Prefuse Box
AR54.15-P-1340EW Remove/Install Rear Prefuse Box
AR54.15-P-1340EW Remove/install Rear Prefuse Box

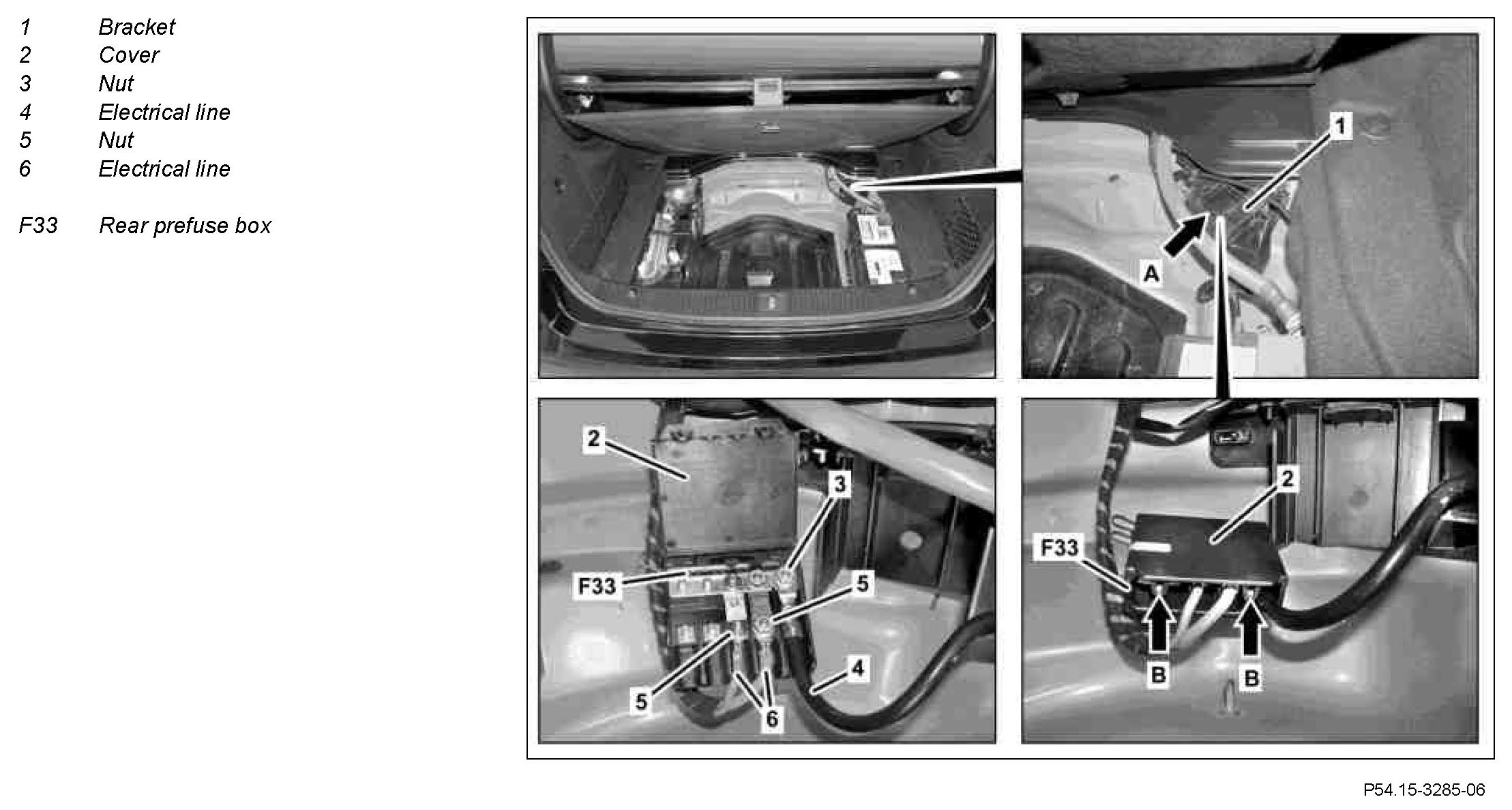

Component Identification:

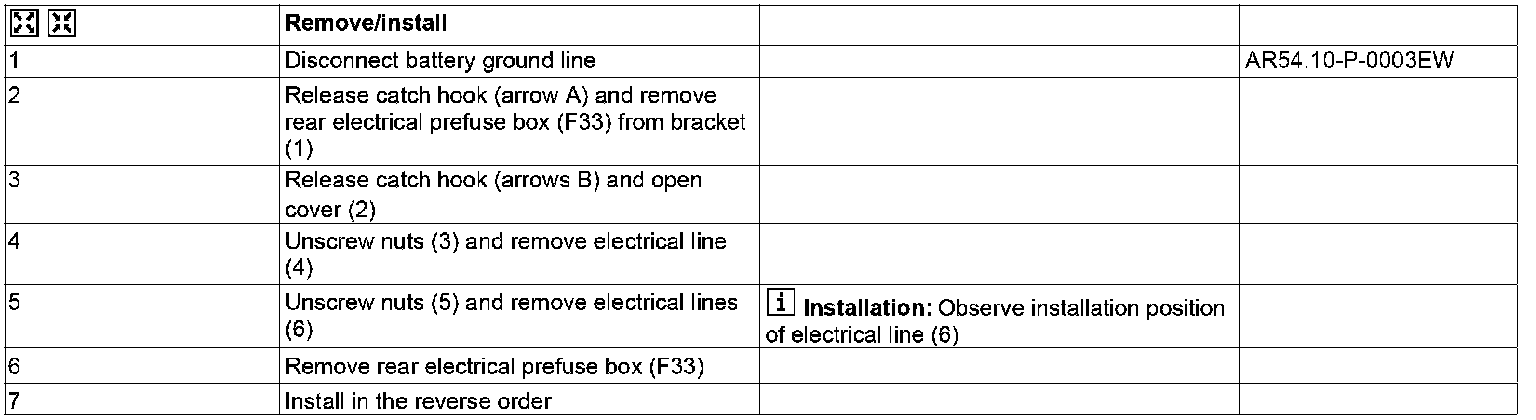

Steps 1-7:
