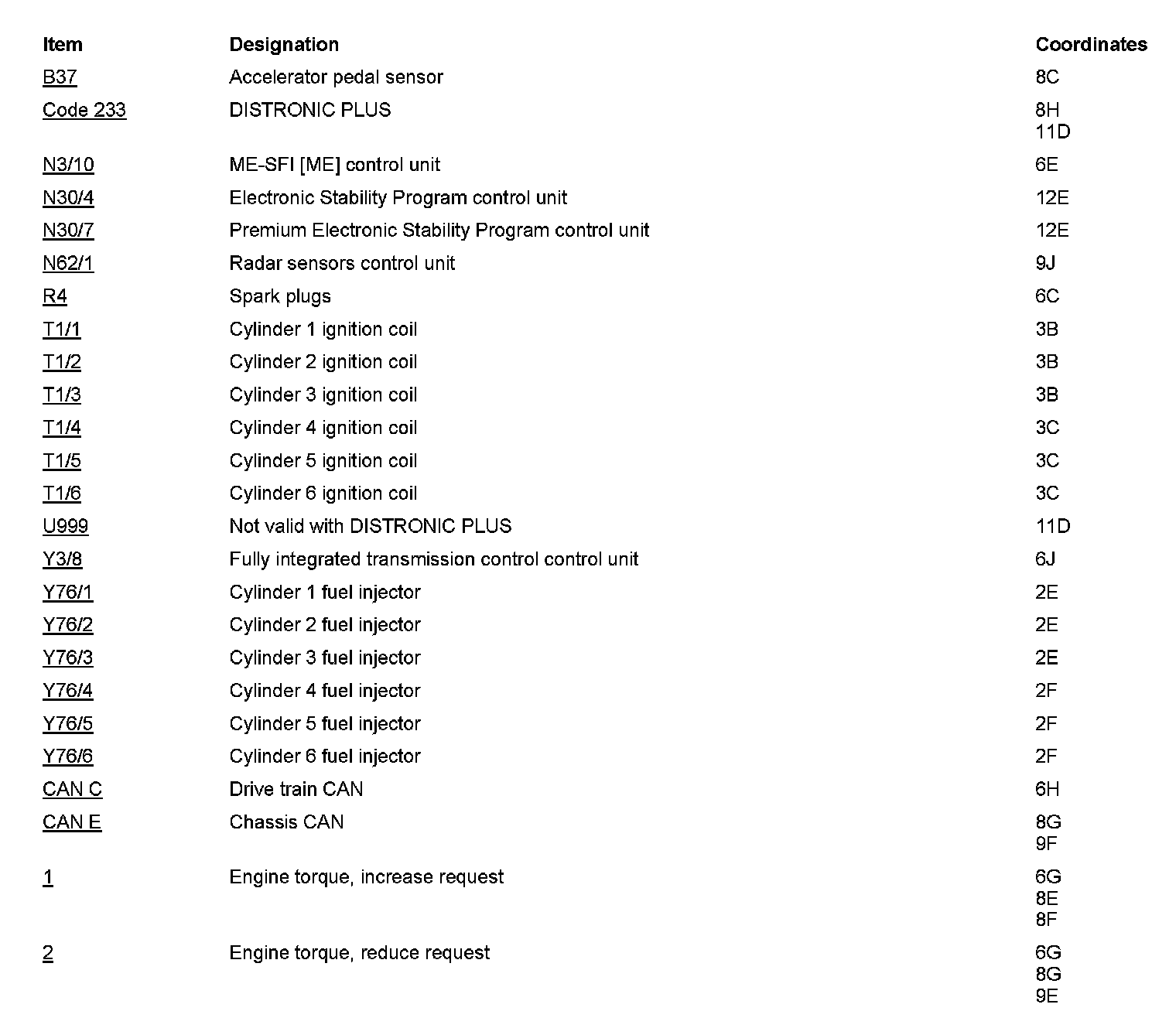

PE07.10-P-2713DAC Electrical Function Schematic For Torque Coordination

PE07.10-P-2713DAC Electrical Function Schematic For Torque Coordination

ENGINE 272.98 in MODEL 212


















































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
