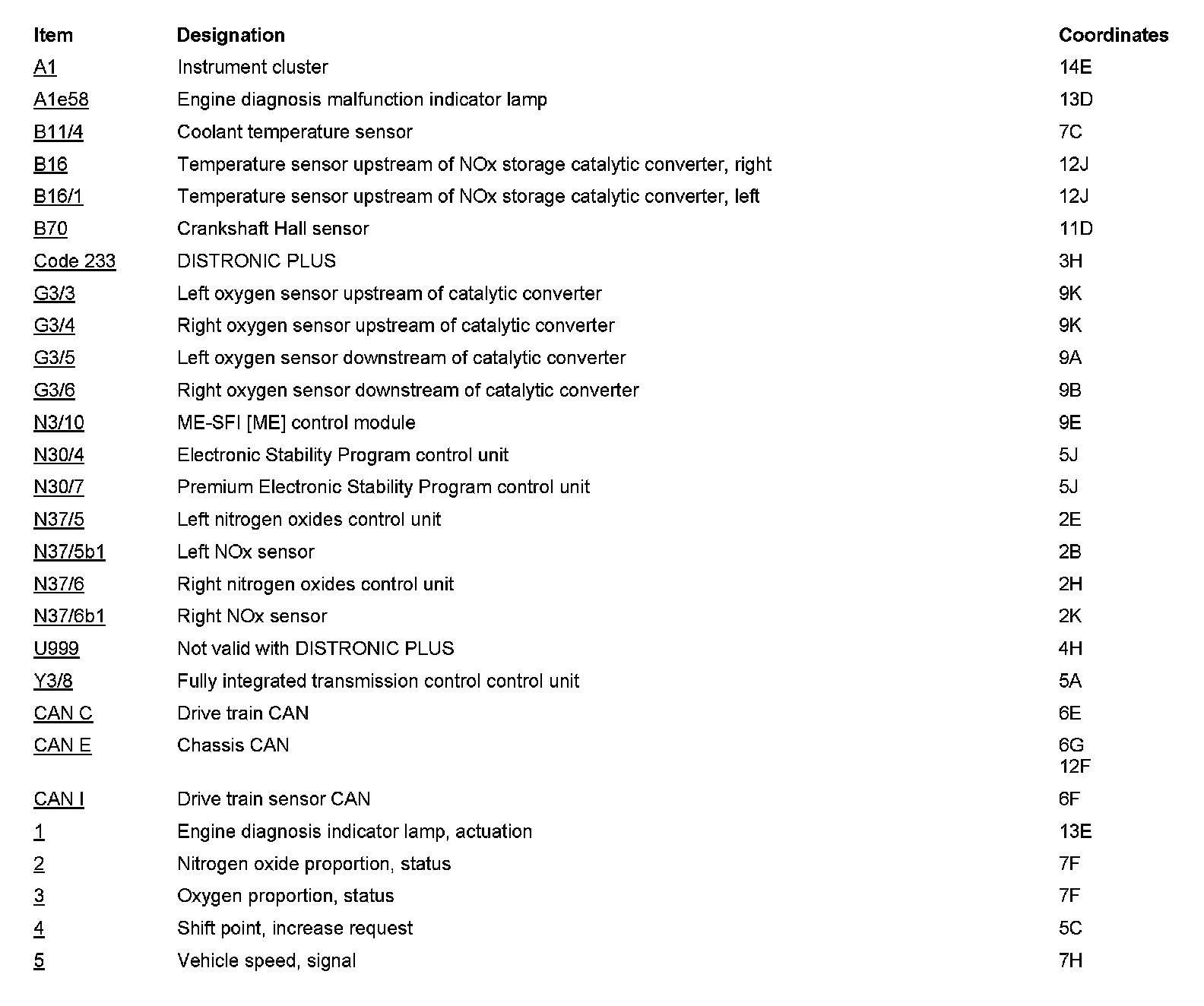

PE14.00-P-2051EAC Electrical Function Schematic For Exhaust Treatment

PE14.00-P-2051EAC Electrical Function Schematic For Exhaust Treatment

ENGINE 272.98 in MODEL 207














































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
