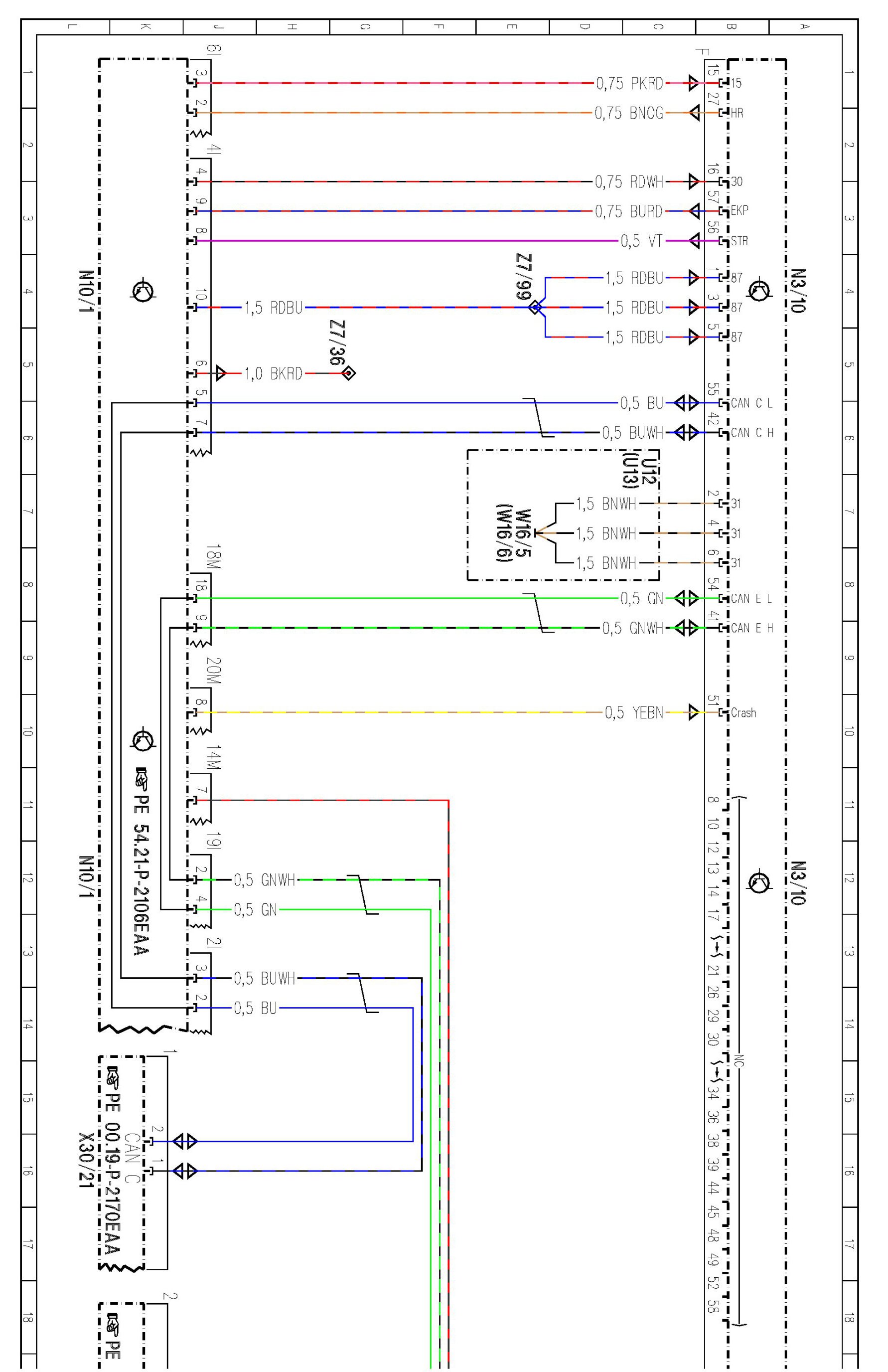

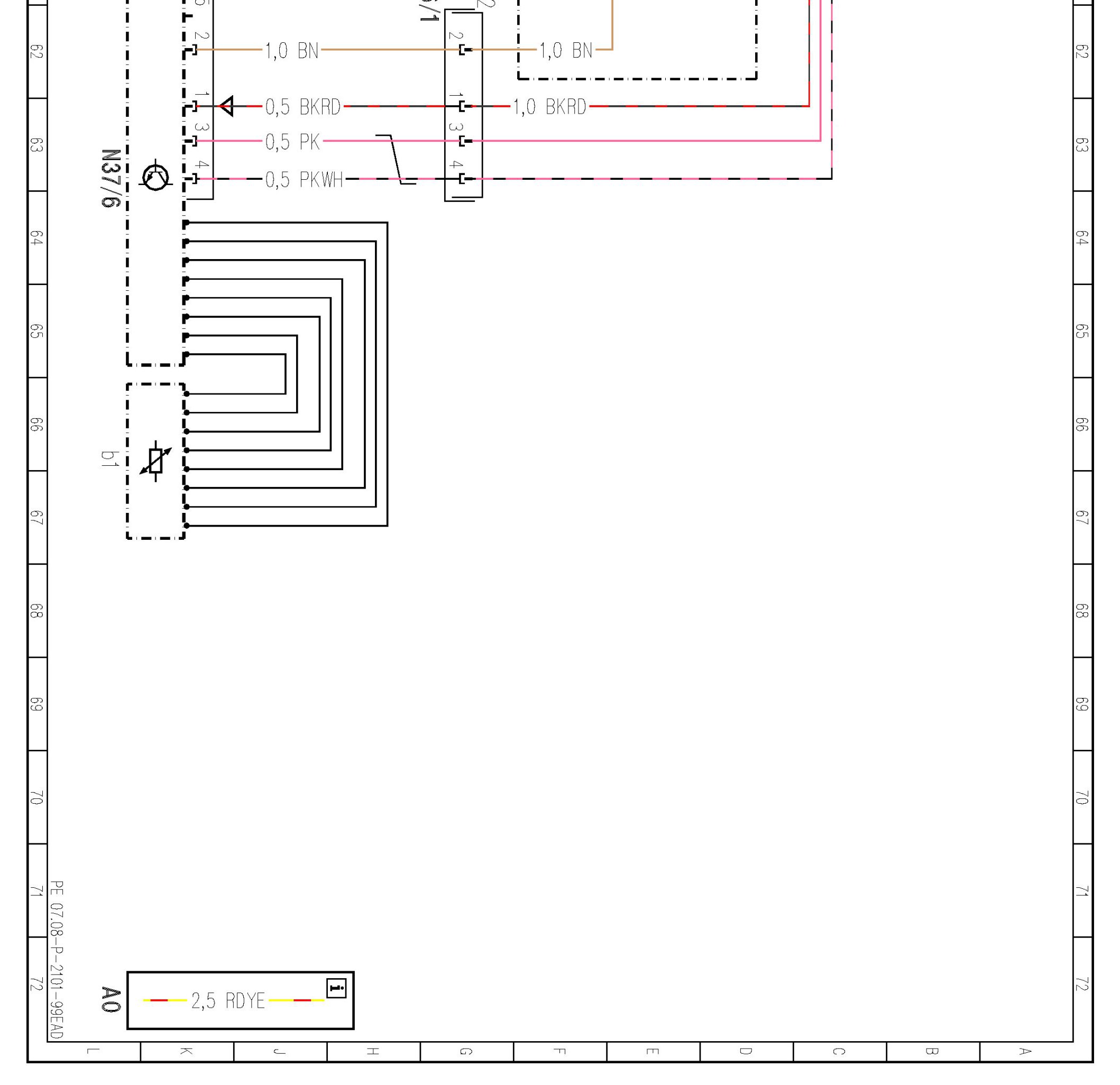

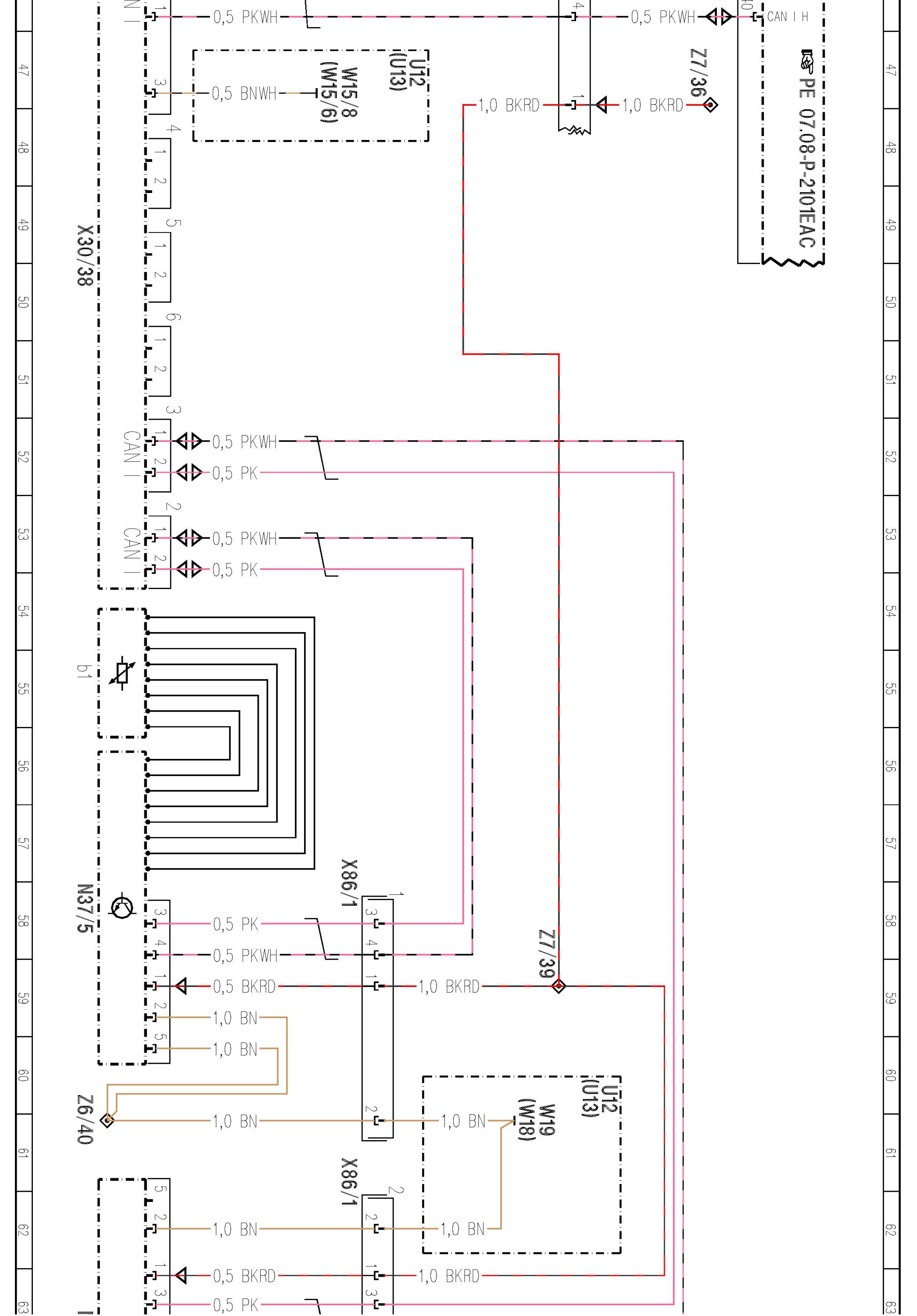

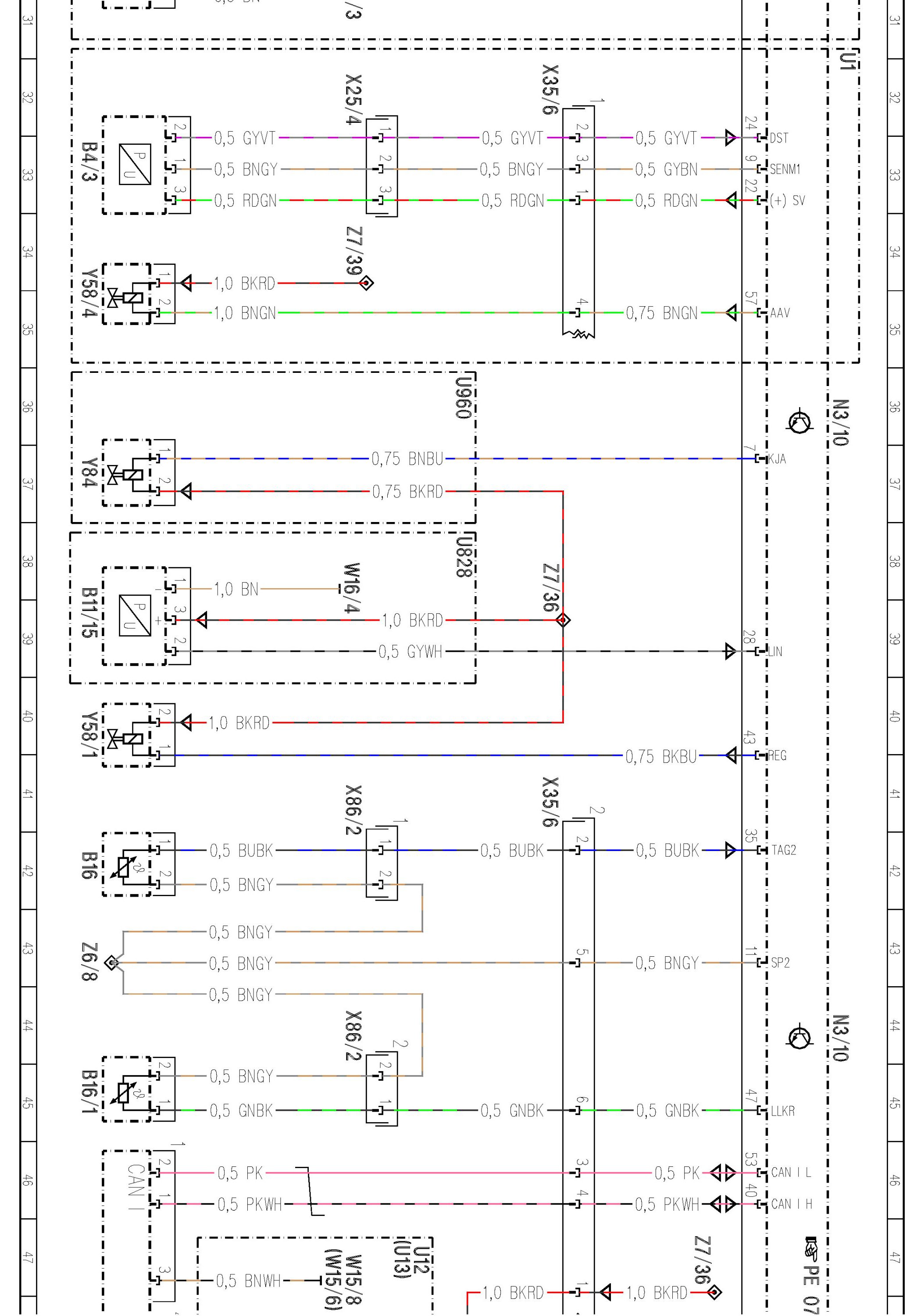

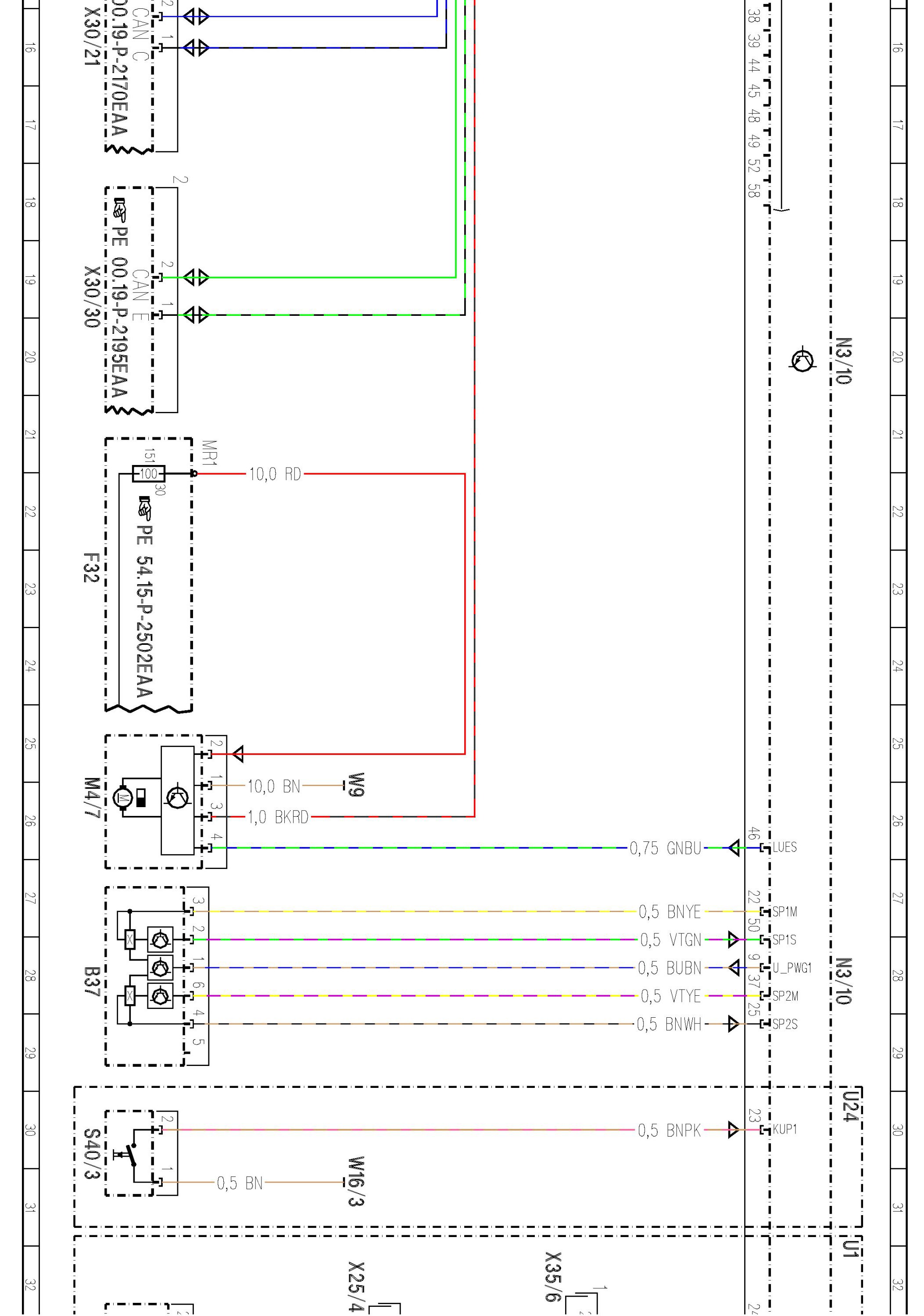

PE07.08-P-2101EAD Gasoline Direct Injection System Control Unit

PE07.08-P-2101EAD Gasoline Direct Injection System Control Unit

ENGINE 272.98 in MODEL 207

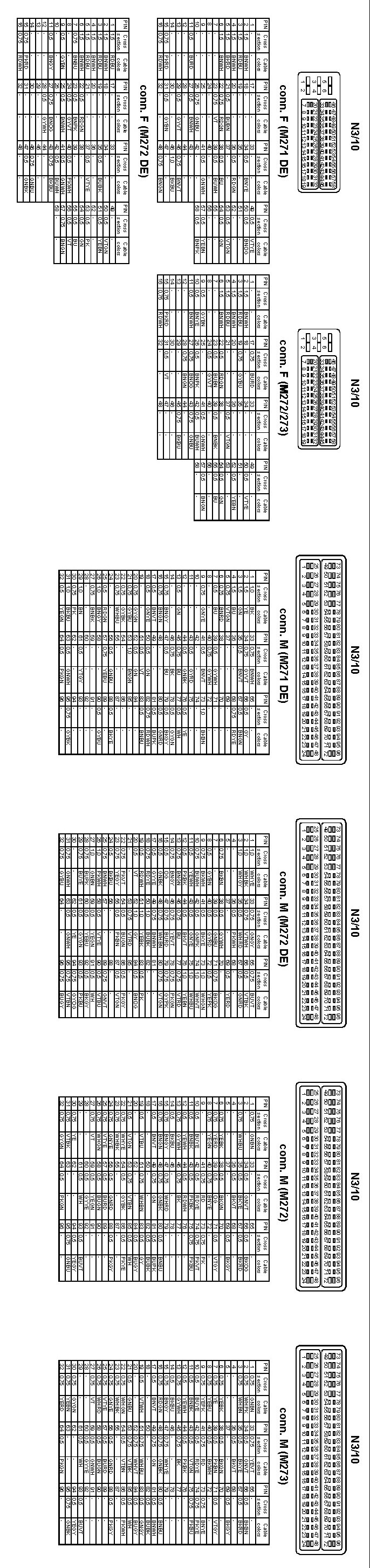

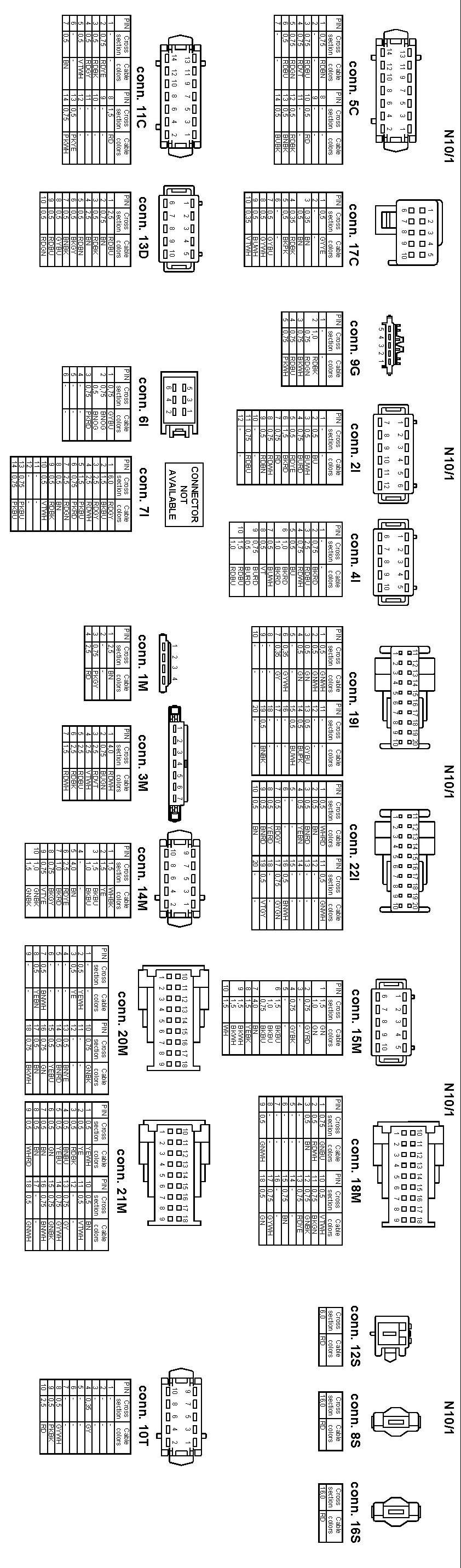

- control unit N3/10, vehicle body side






















































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
