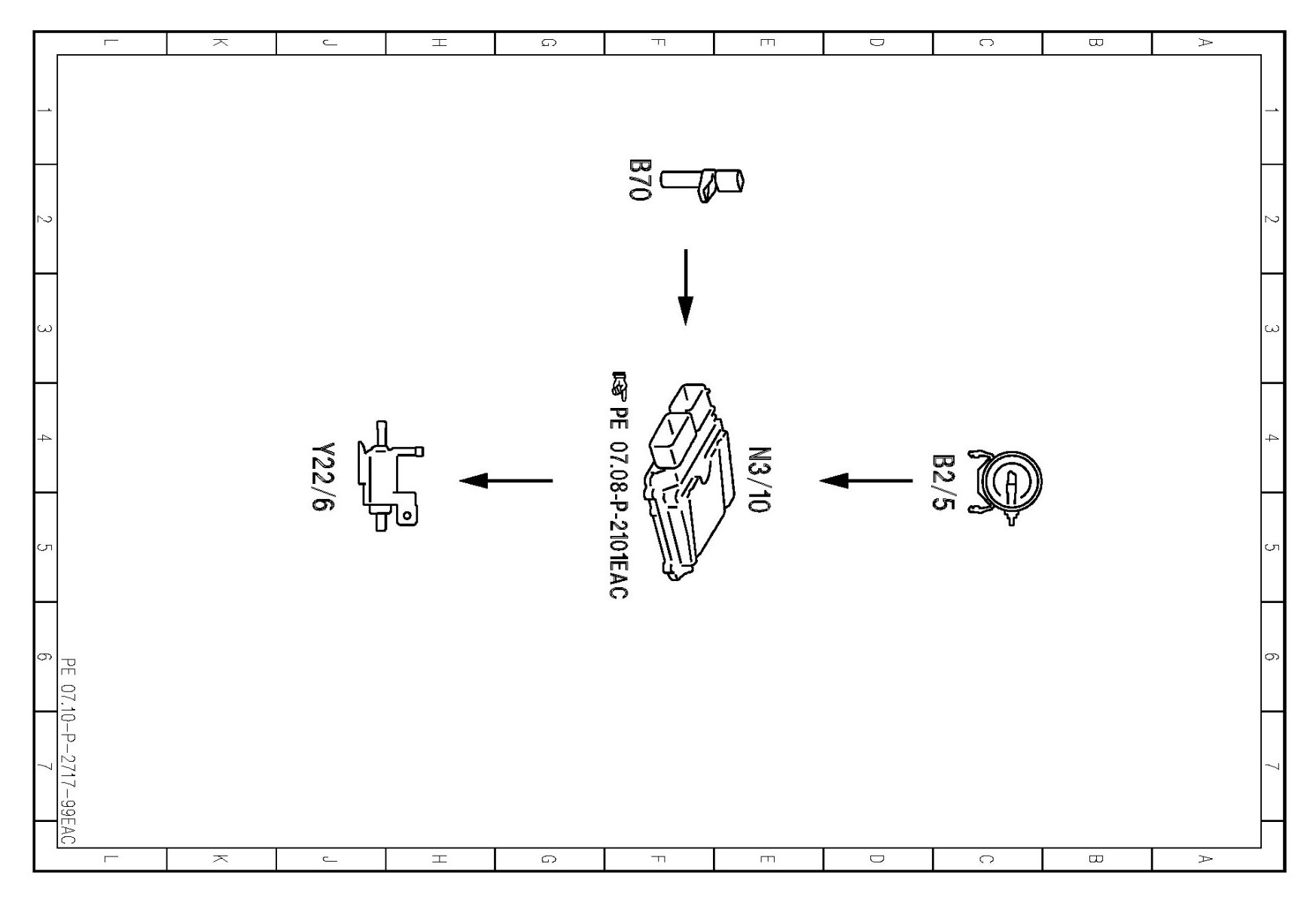

PE07.10-P-2717EAC Electrical Function Schematic For Intake Manifold Switchover

PE07.10-P-2717EAC Electrical Function Schematic For Intake Manifold Switchover

ENGINE 272.98 in MODEL 207














Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
