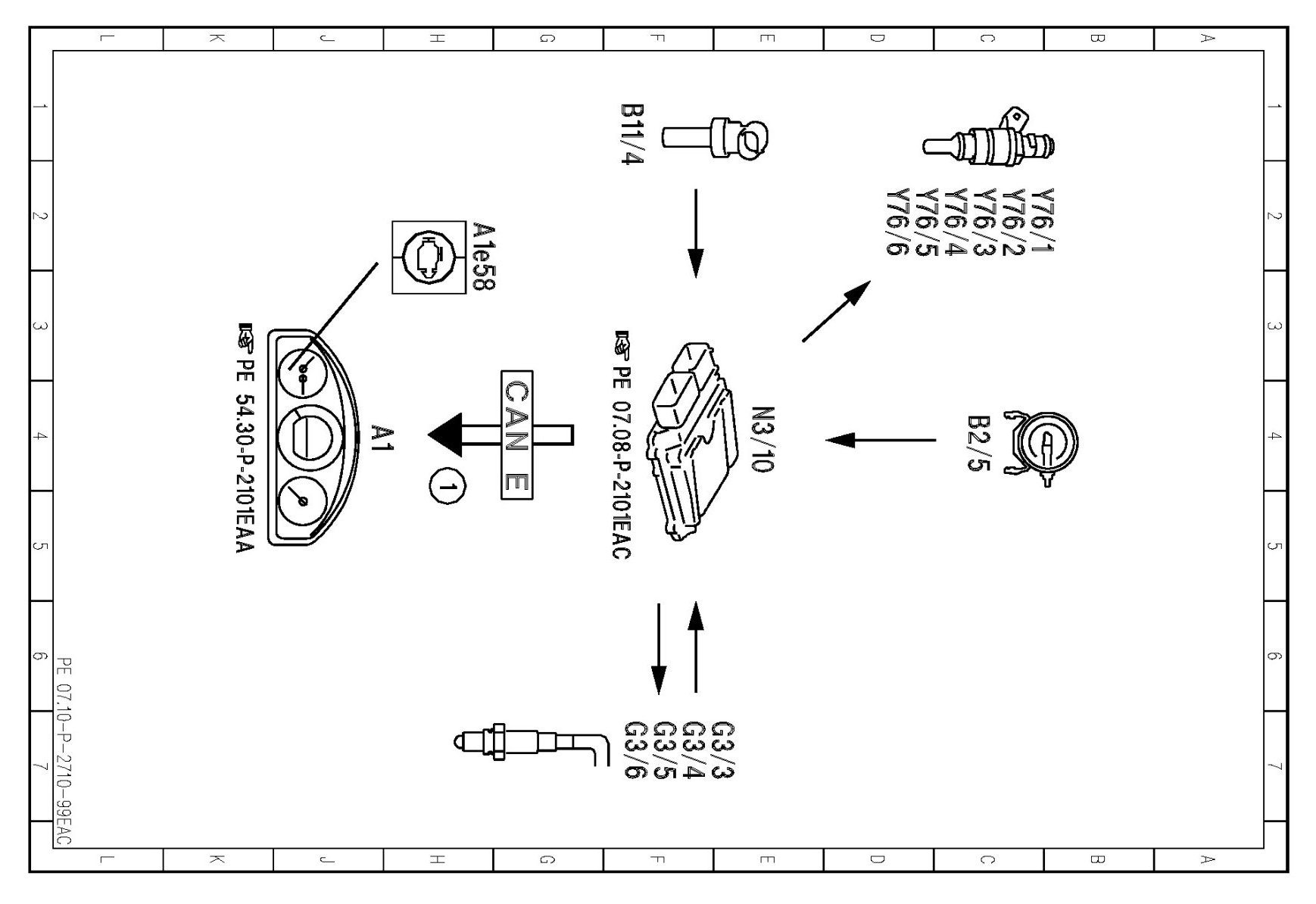

PE07.10-P-2710EAC Electrical Function Schematic For Lambda Control

PE07.10-P-2710EAC Electrical Function Schematic For Lambda Control

ENGINE 272.98 in MODEL 207

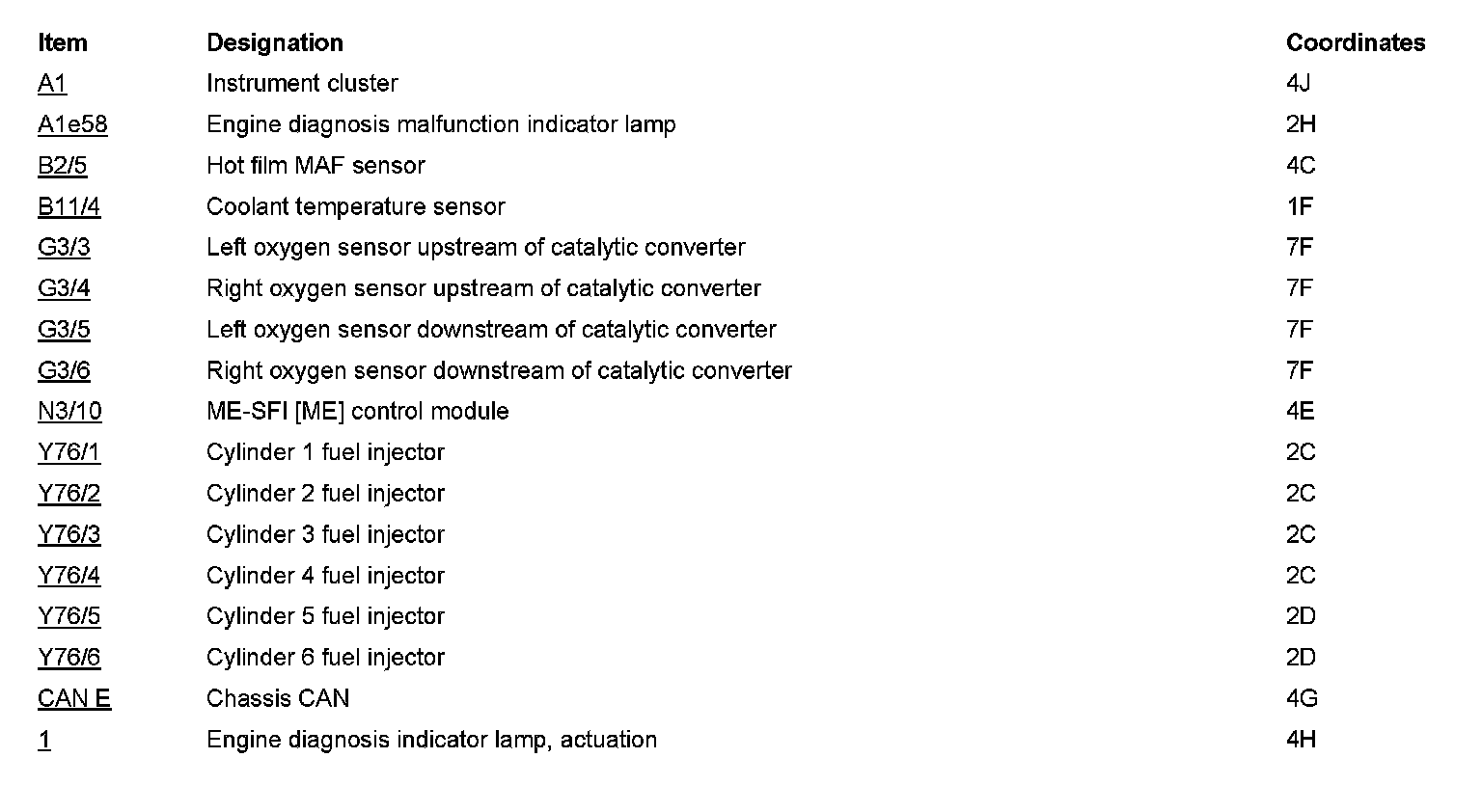

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
