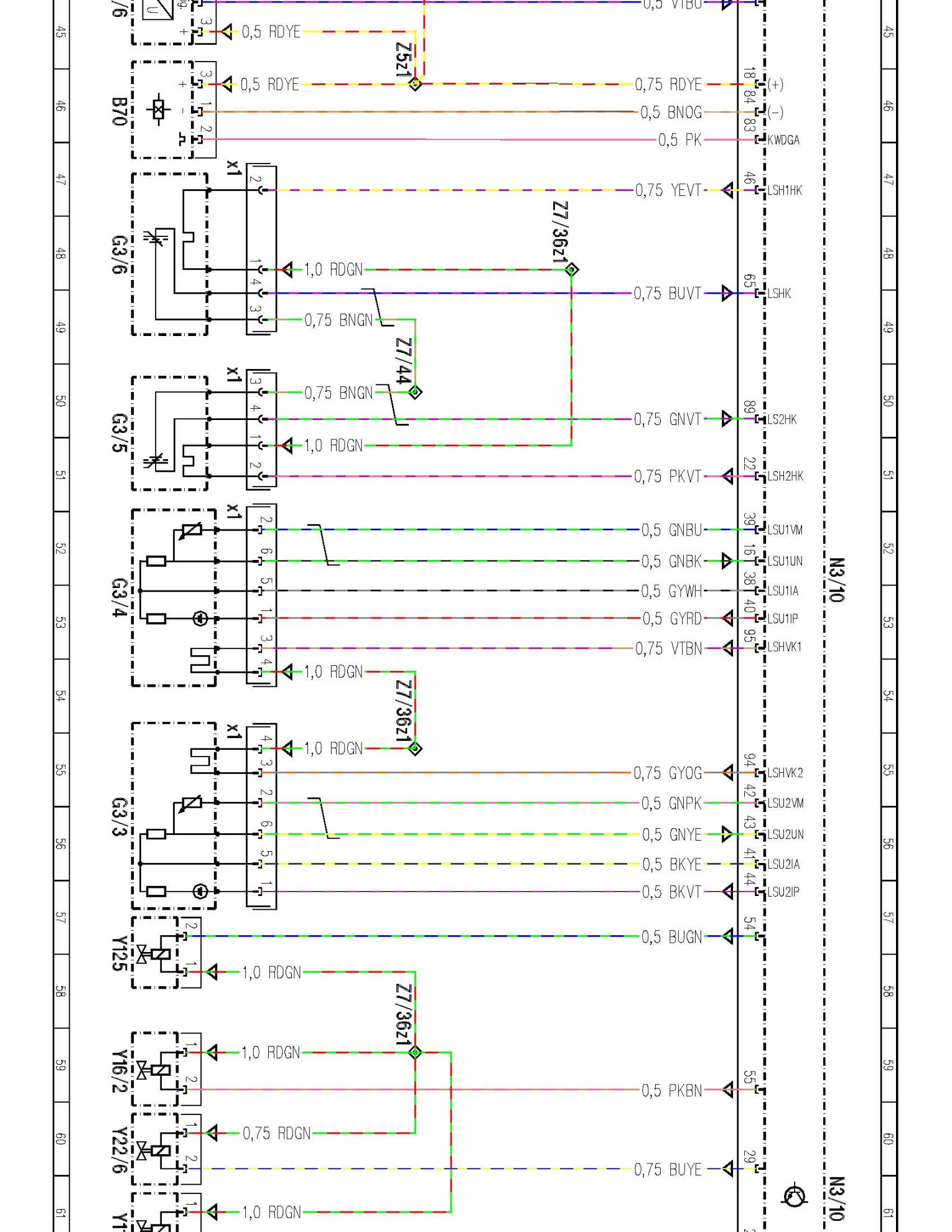

PE07.08-P-2101EAC Gasoline Direct Injection System Control Unit




PE07.08-P-2101EAC Gasoline Direct Injection System Control Unit

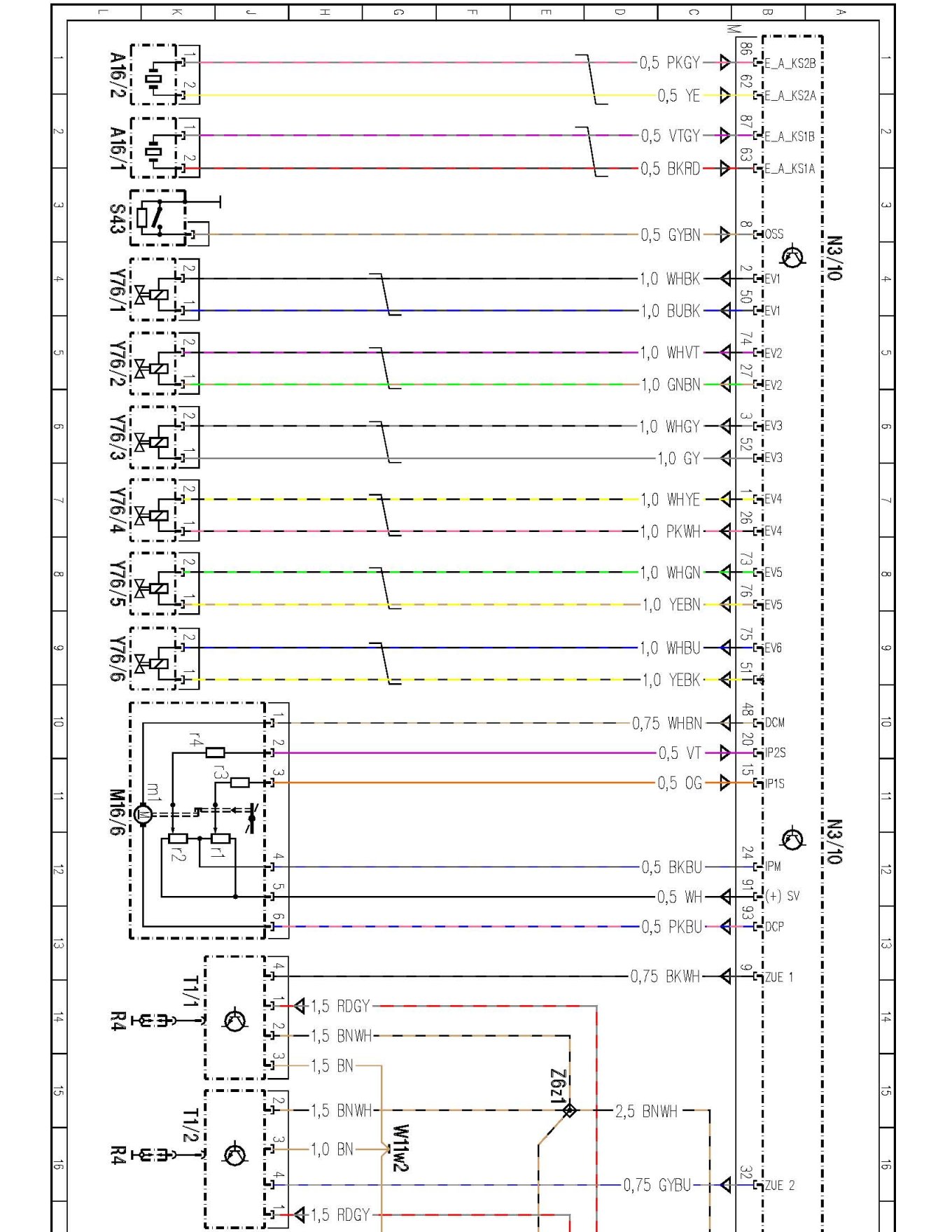

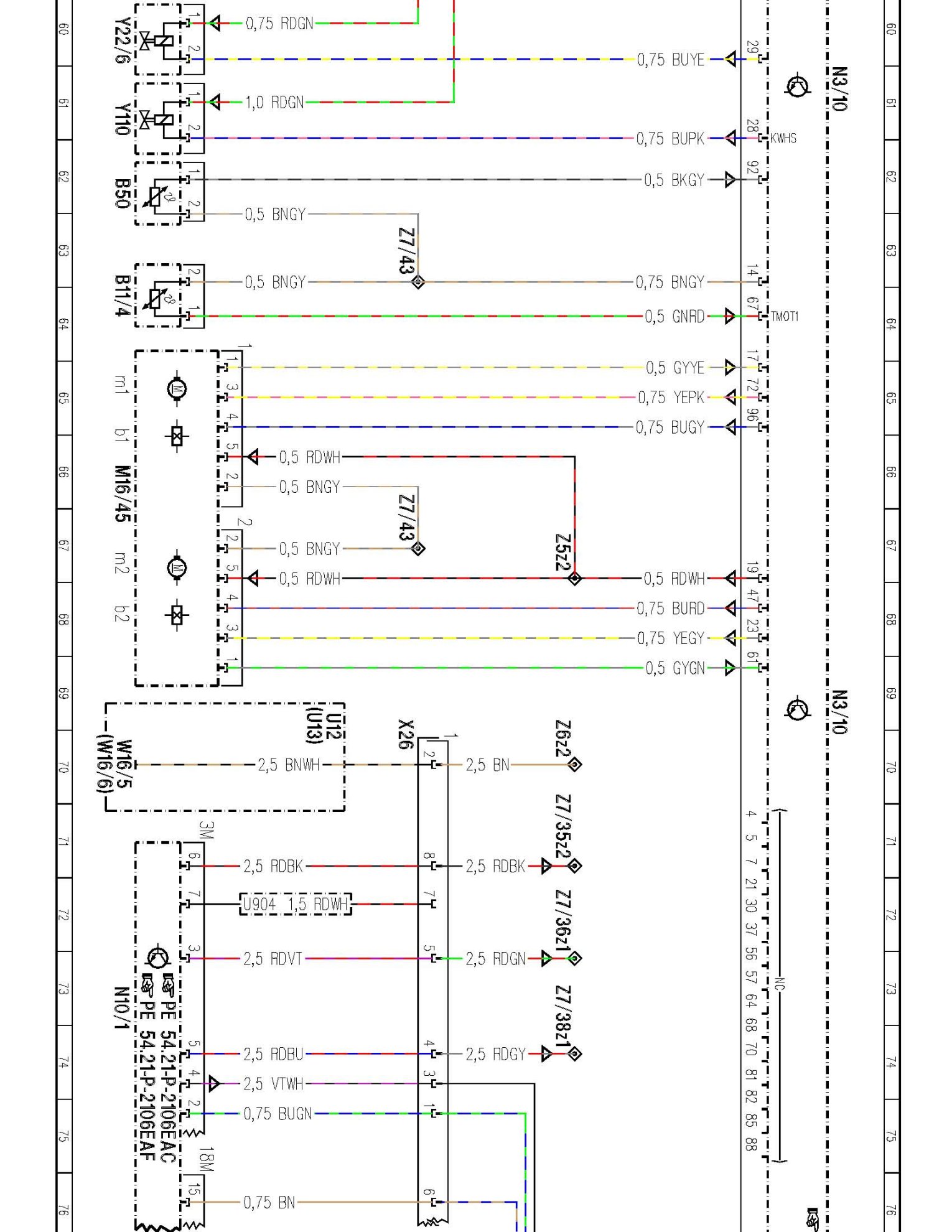

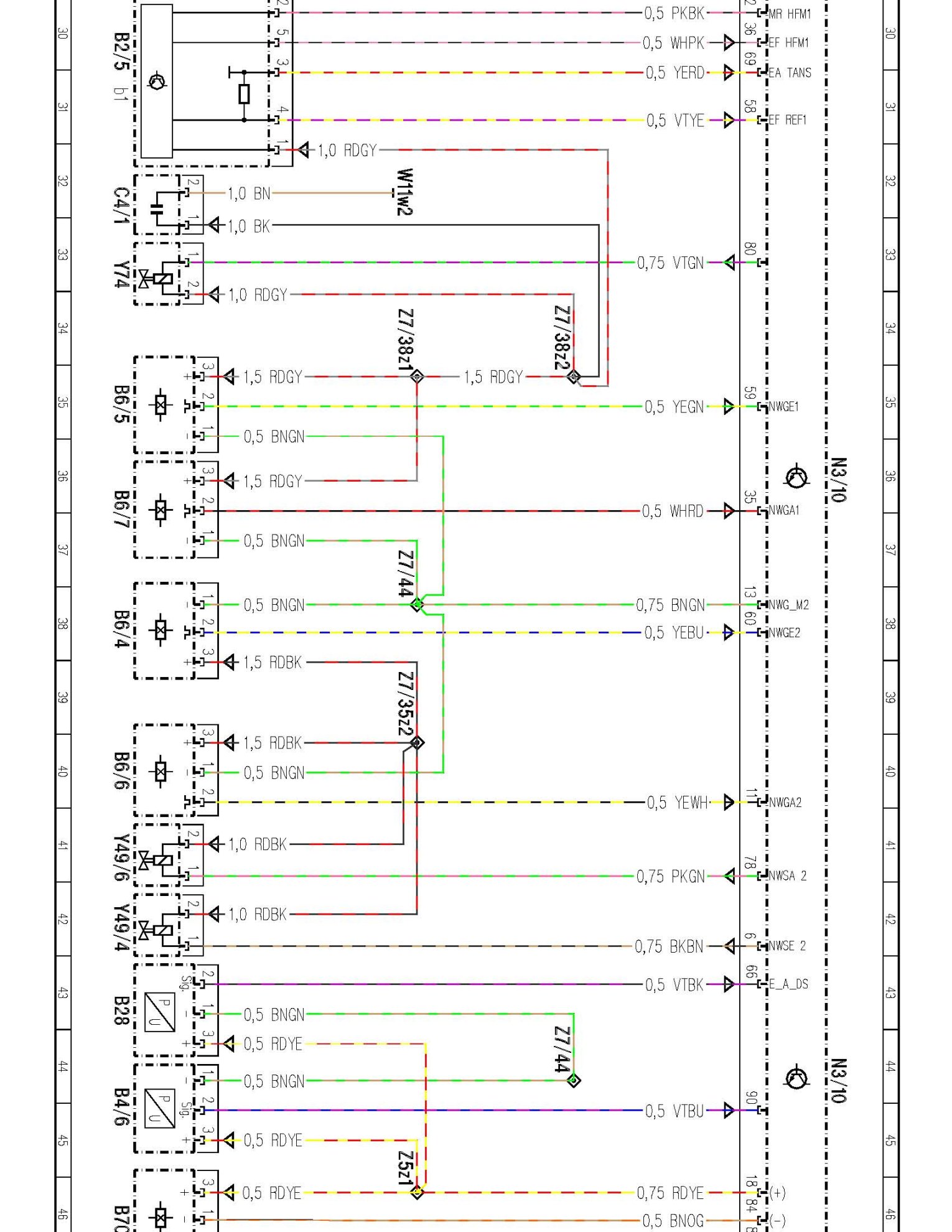

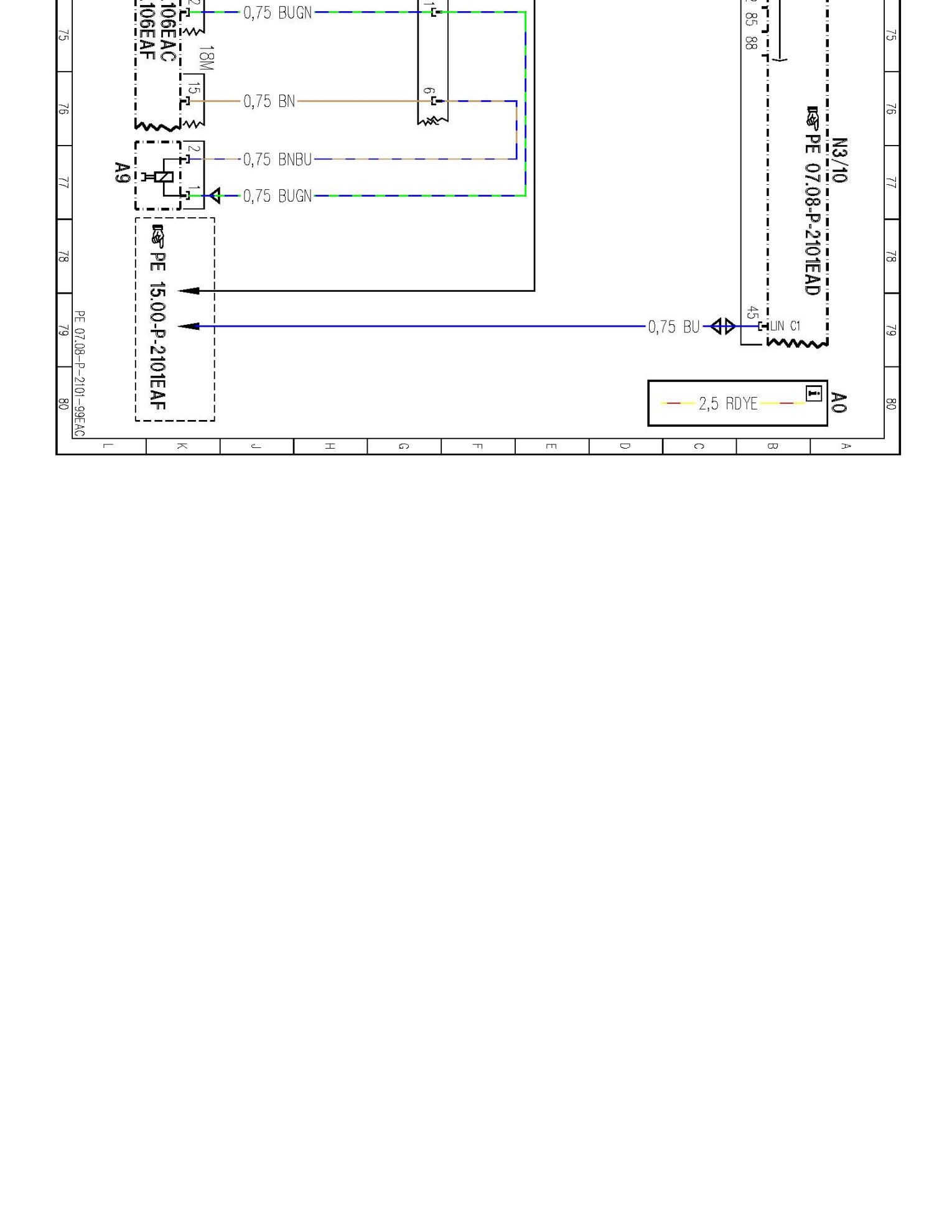

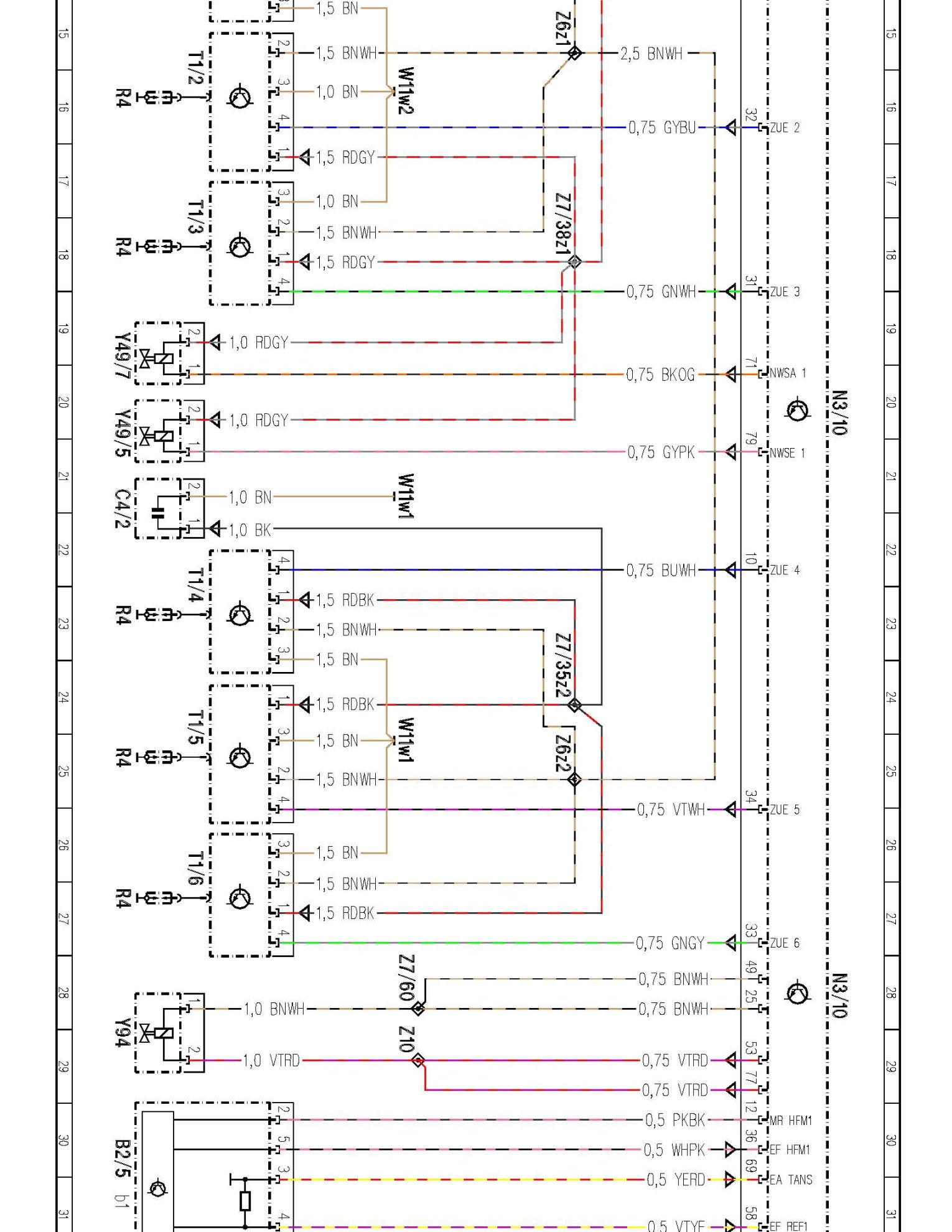

- Control unit N3/10, engine side
