Air Injection Pump: Service and Repair
AR14.30-P-7251EW Remove/install air pump
Component Identification:

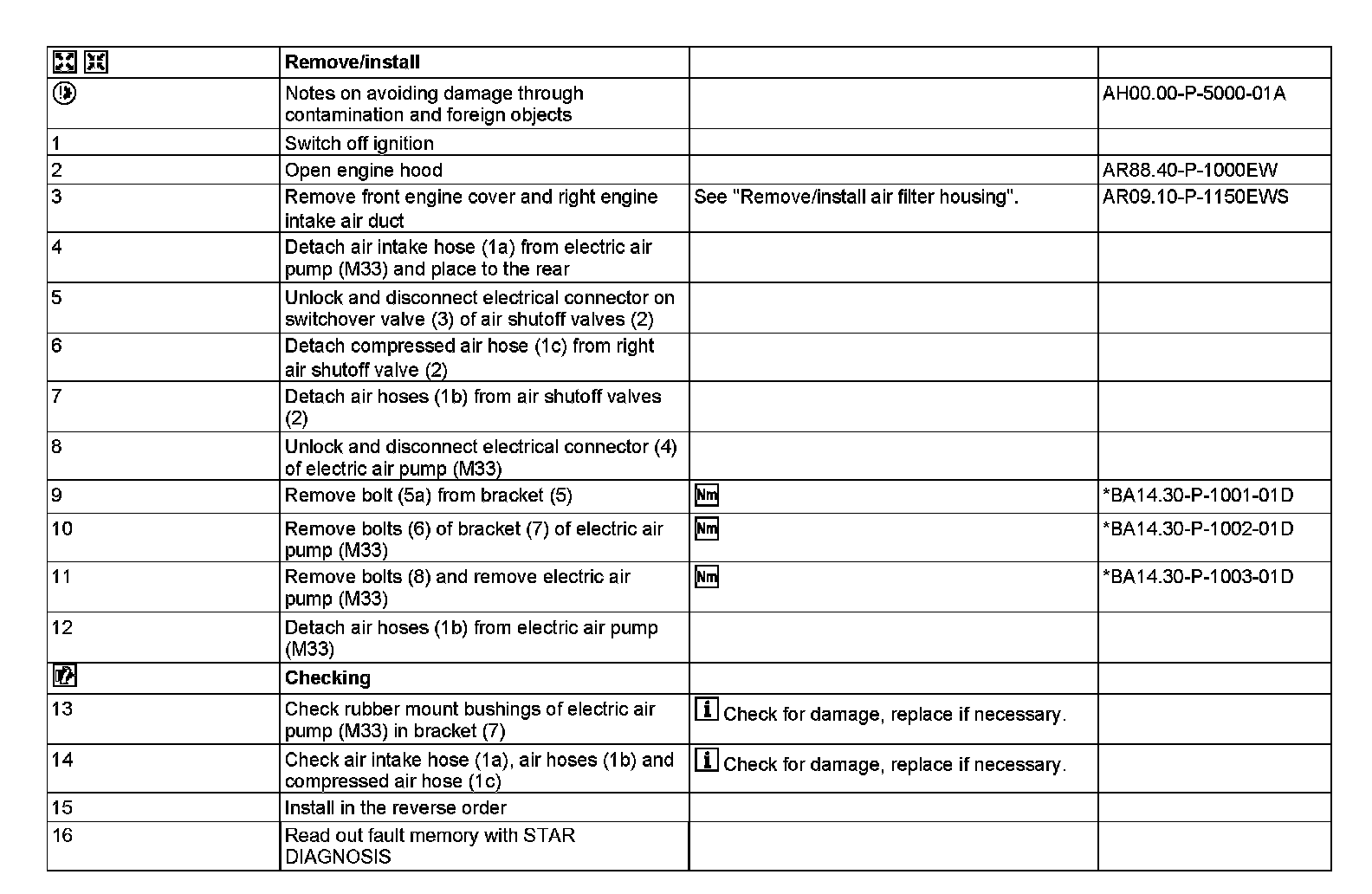

Steps 1-16:

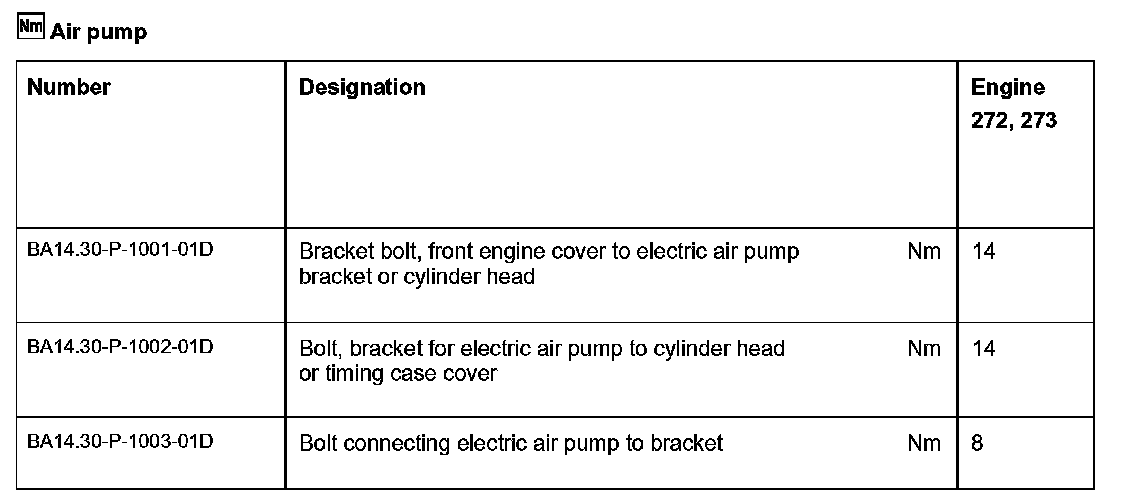

Air pump:
