Air Injection Pump: Service and Repair



AR14.30-P-7251TS Remove/install air pump

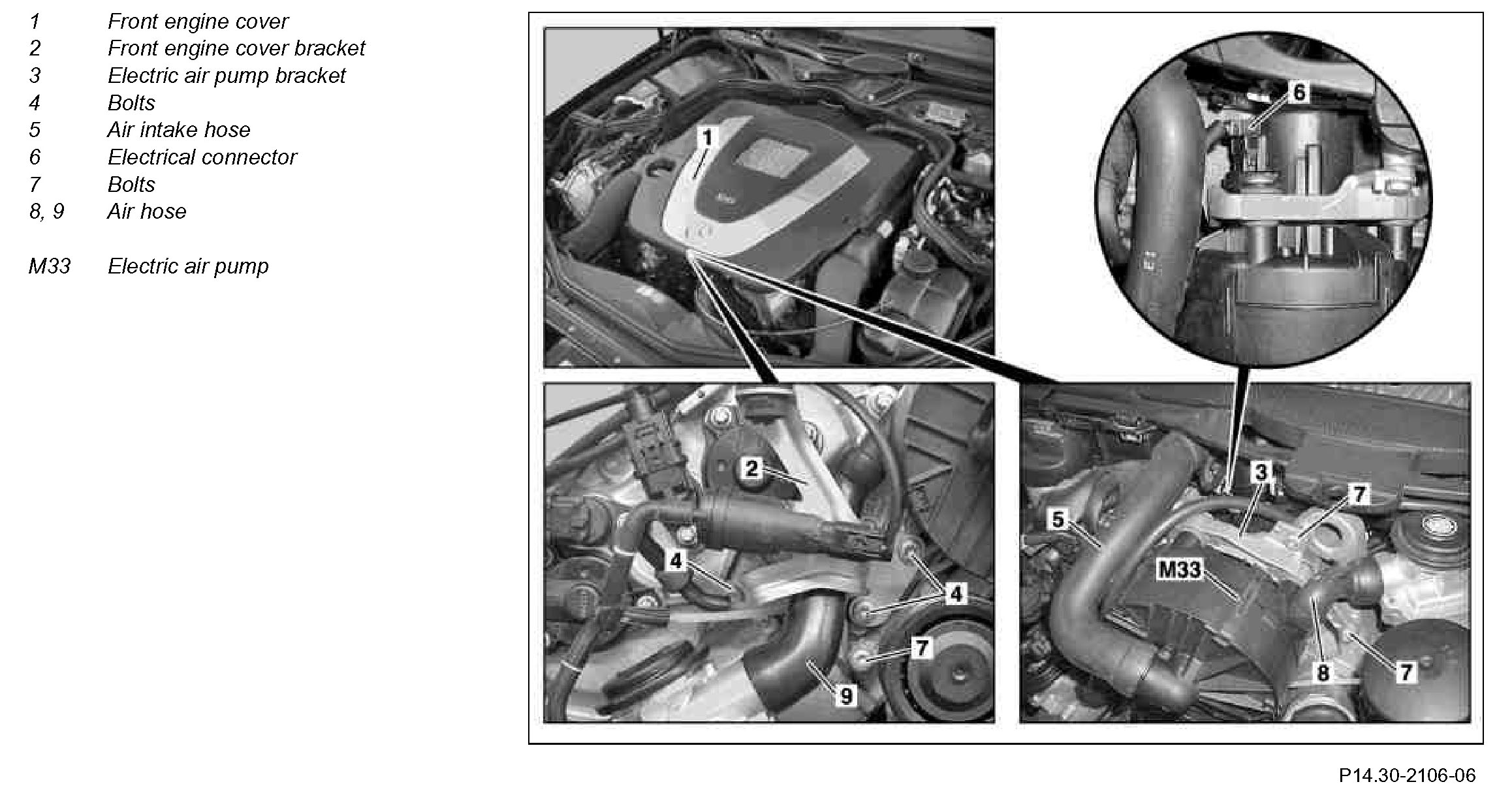

Component Identification:

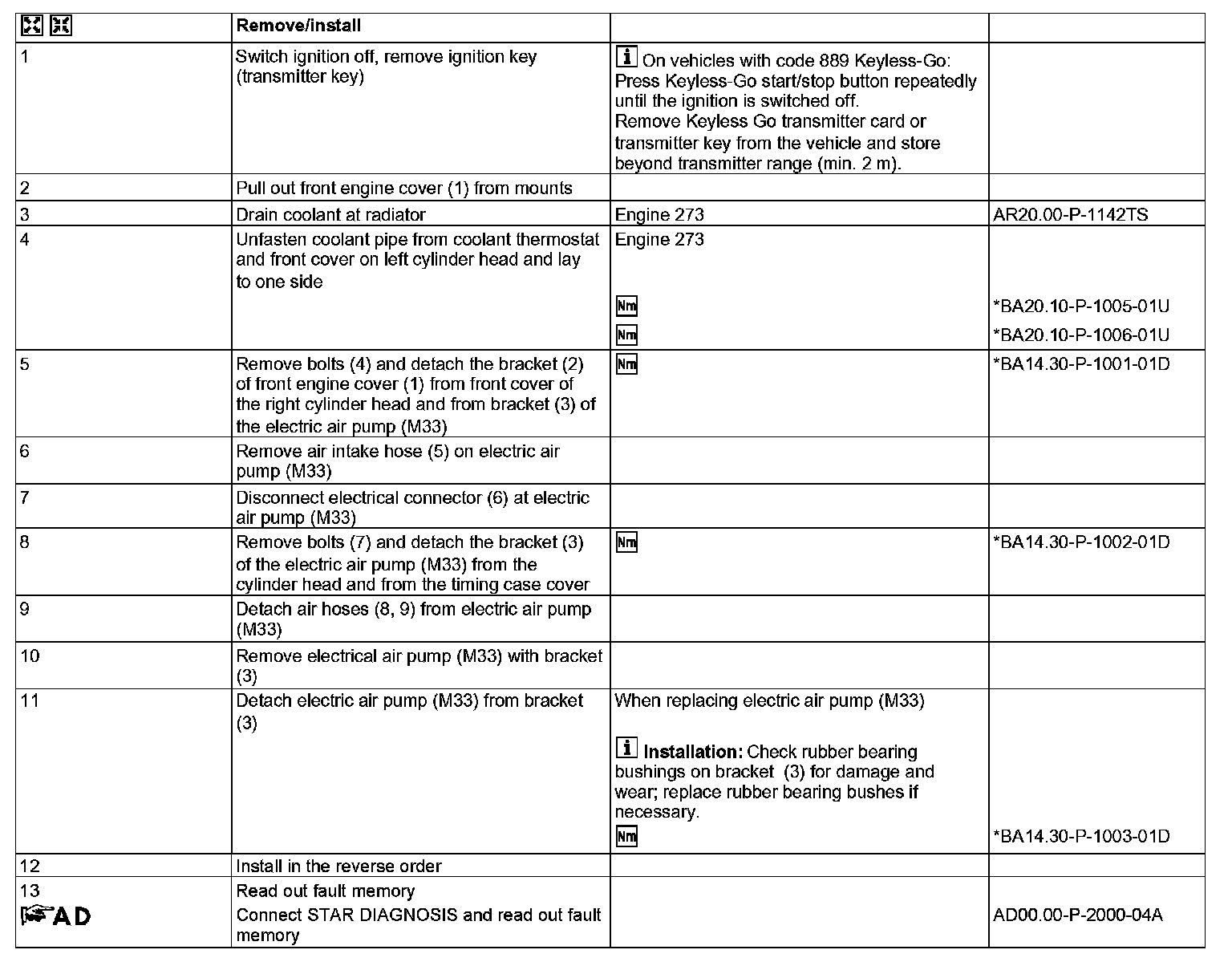

Steps 1-13:




Air pump:

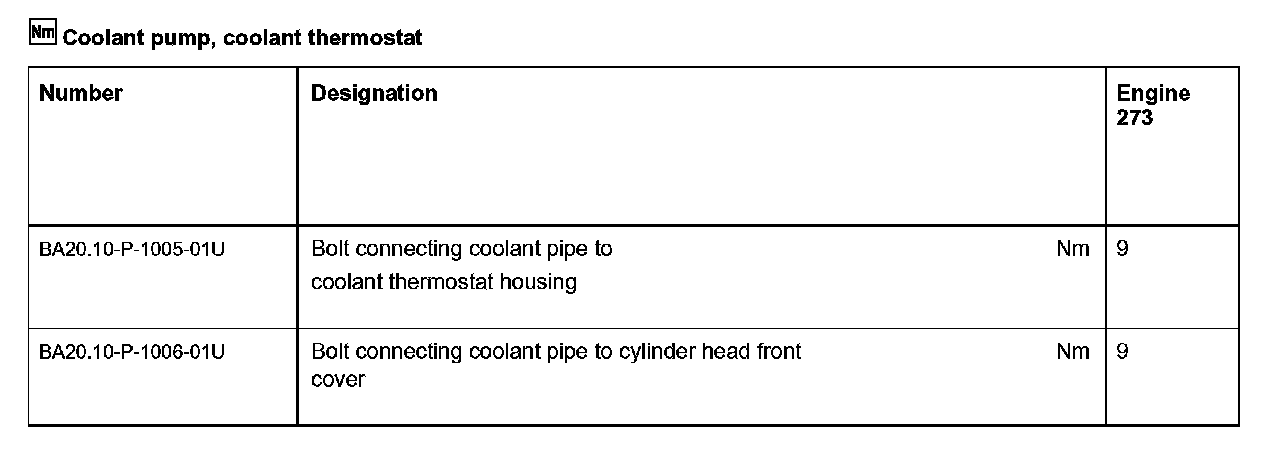

Coolant pump, coolant thermostat:
