Brake Rotor/Disc: Service and Repair
AR42.10-P-0220TX Remove/Install Brake Disc

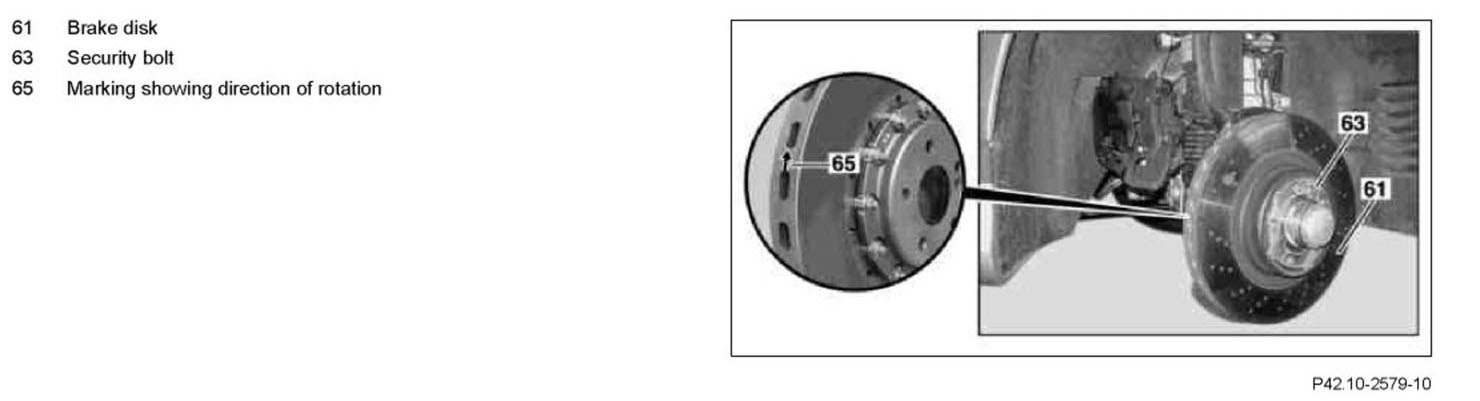

Component Identification:

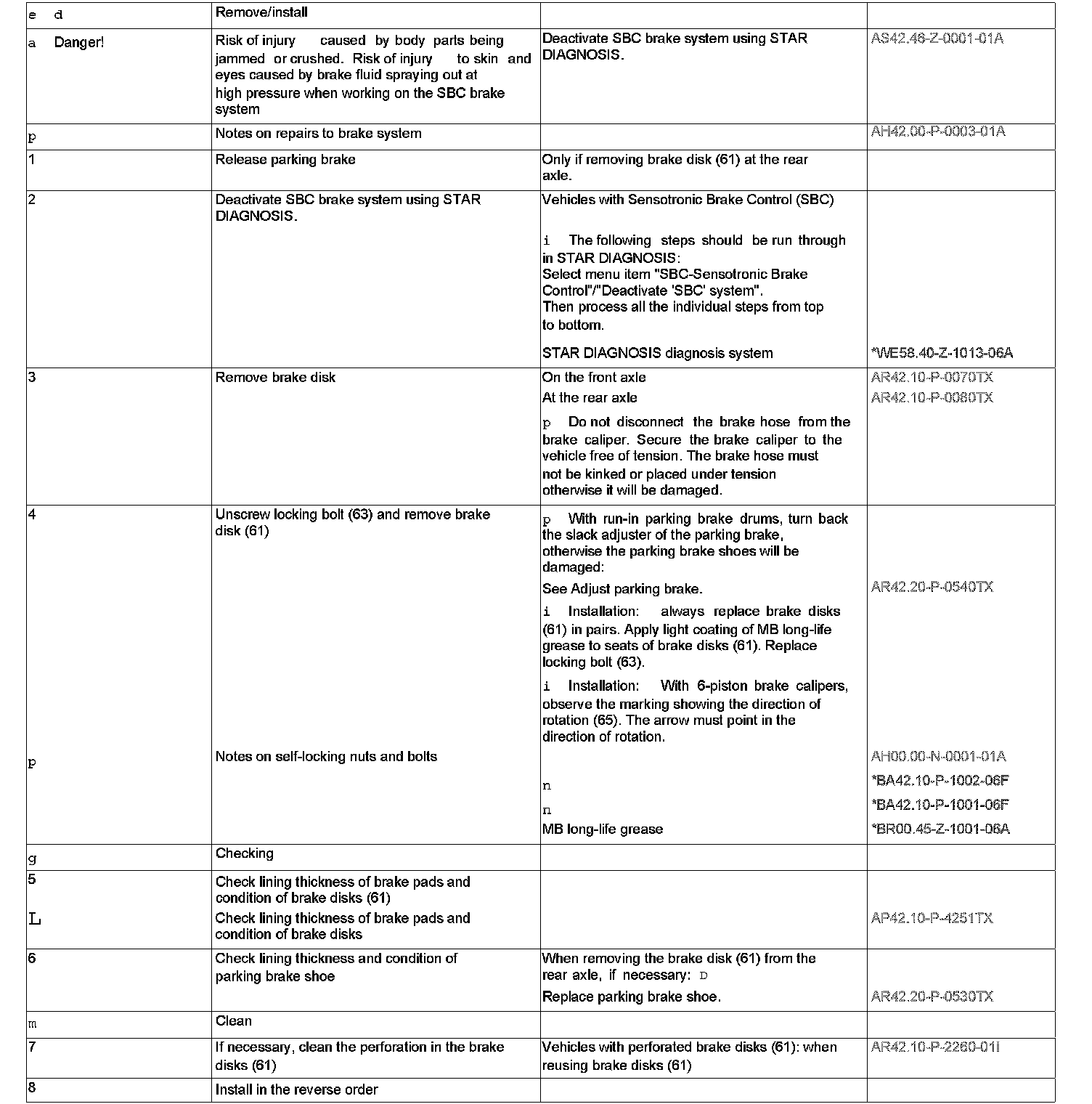

Steps 1 - 8:
Steps 1 - 8:

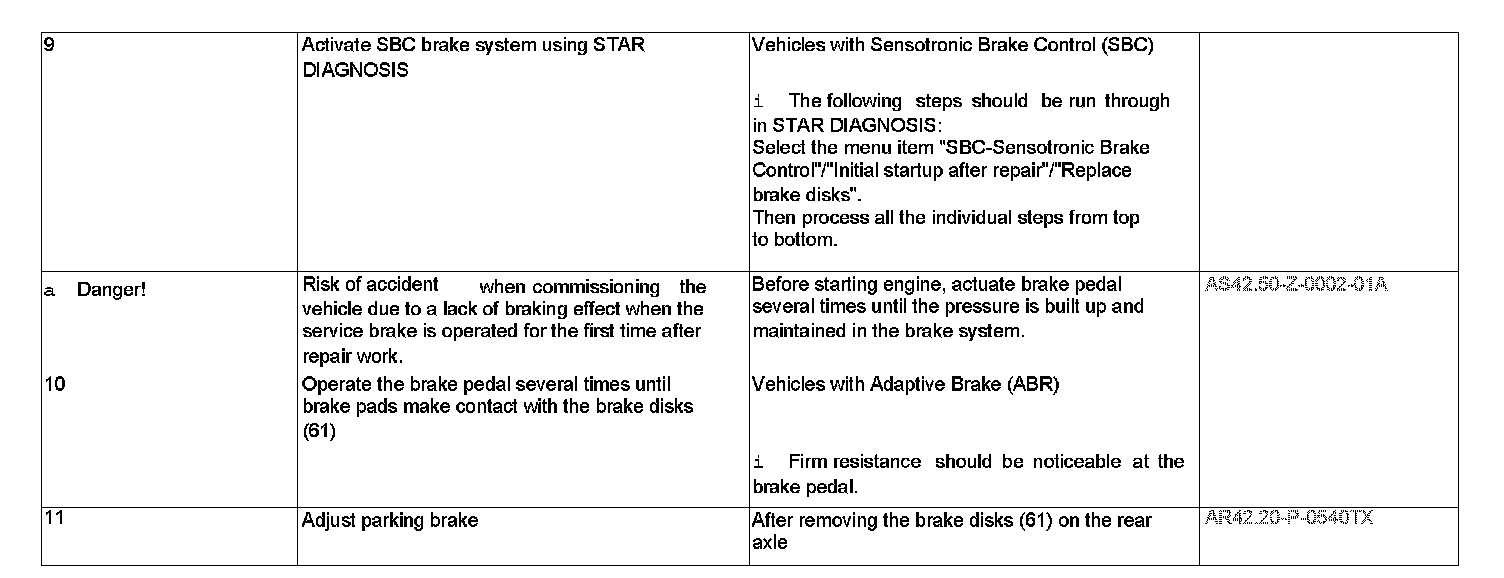

Steps 9 - 11:

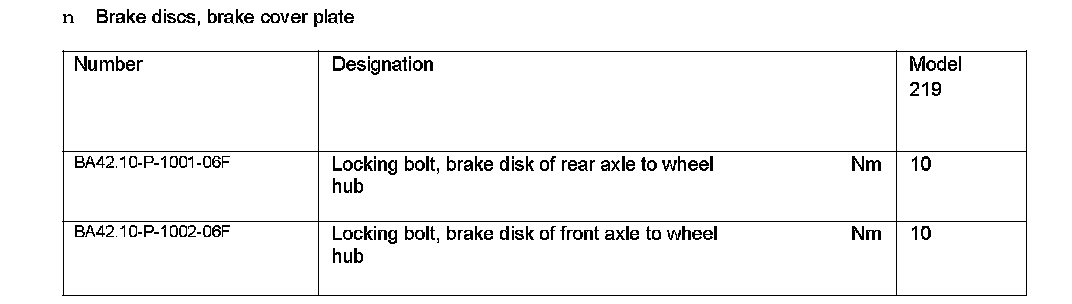

Brake Discs, Brake Cover Plate:

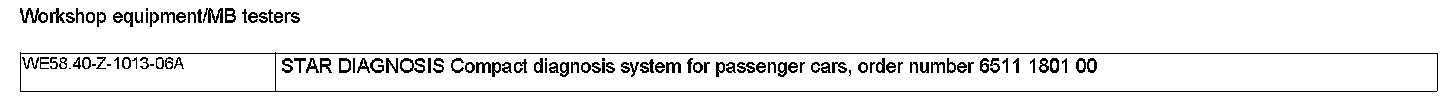

Workshop Equipment/MB Testers:

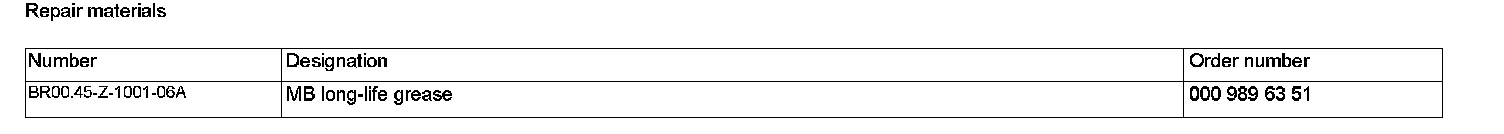

Repair Materials:
AR42.10-P-0220TX Remove/Install Brake Disc
