Intake Manifold: Service and Repair



AR09.41-P-1310HH Remove/Install Charge Air Manifold

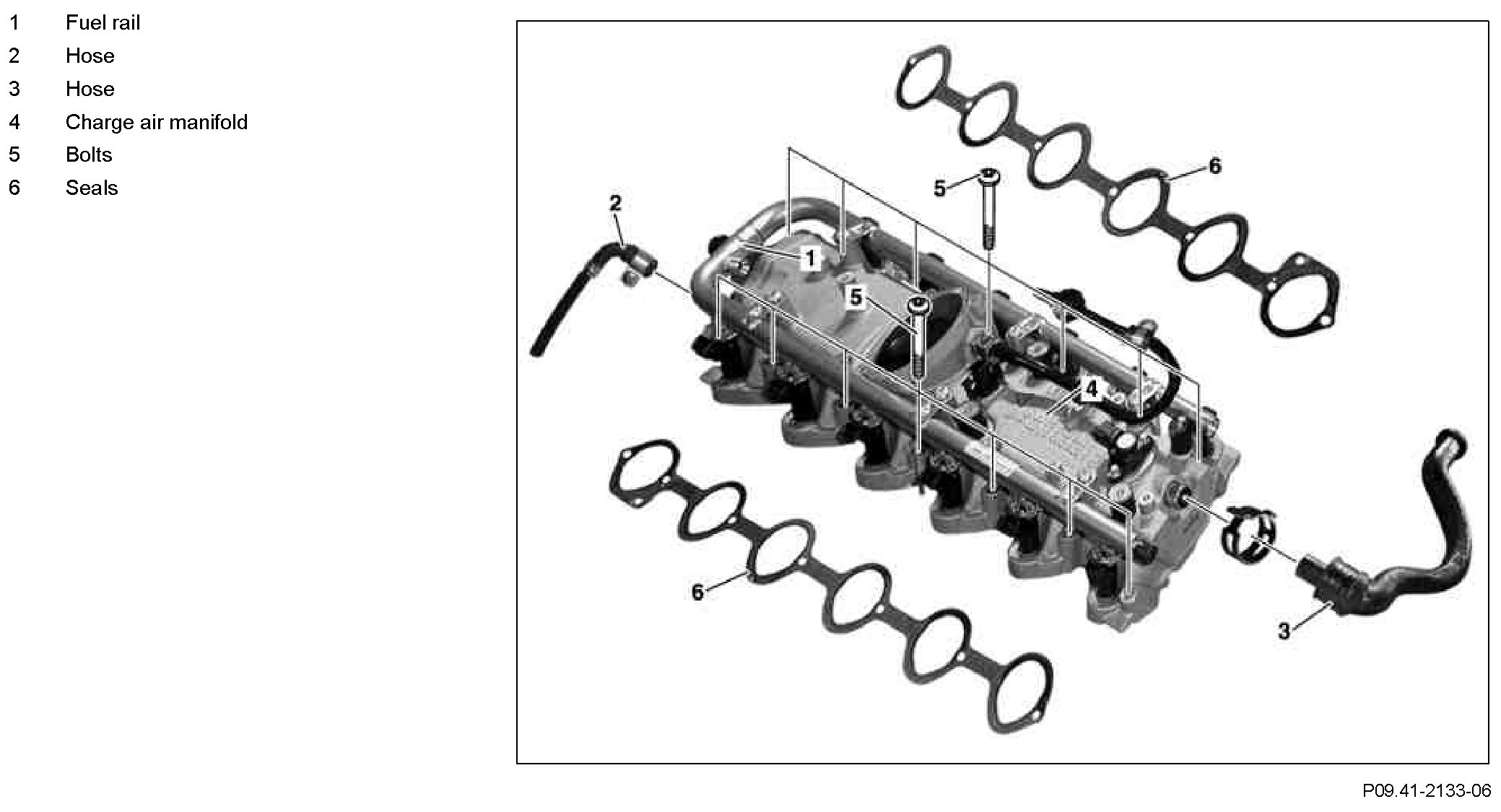

Component Identification:

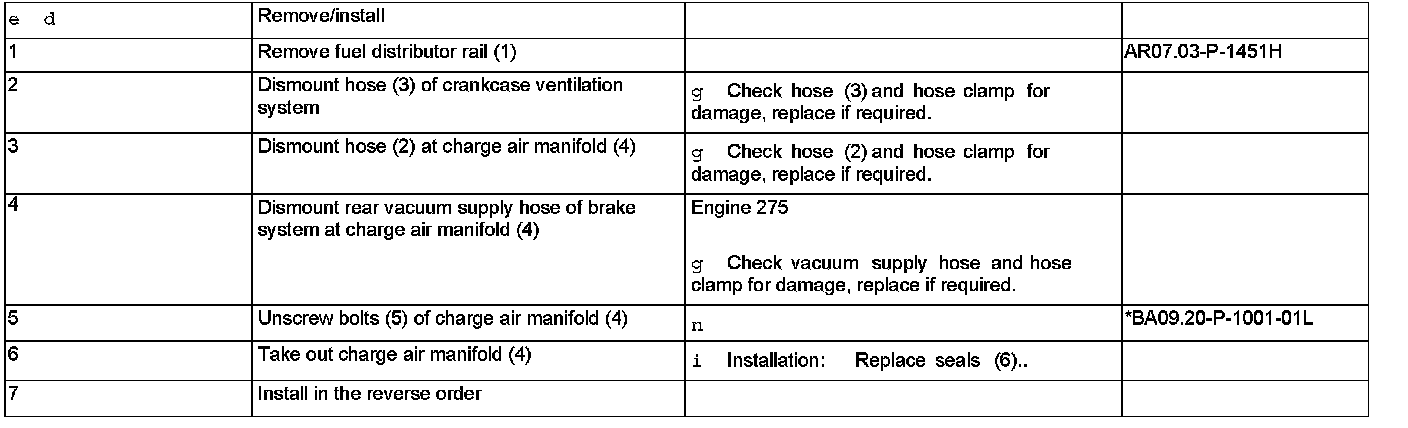

Steps 1 - 7:

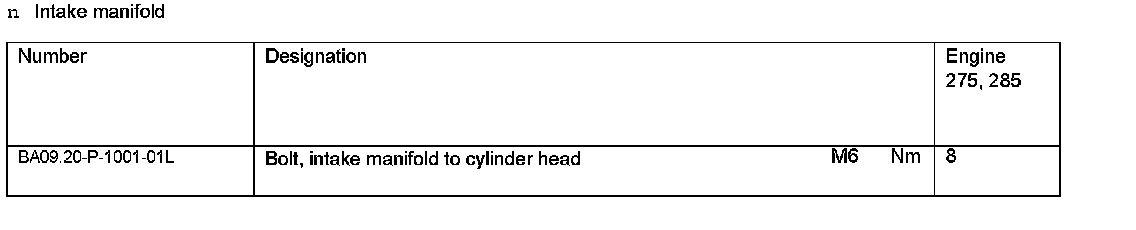

Intake Manifold:
