C 350 4MATIC (204.087) (CAN) V6-3.5L (272.971)
>>
Repair and Diagnosis
>>
Steering and Suspension
>>
Alignment
>>
Specifications
>>
Alignment
>>
AR40.20-P-0261CW Rear Axle Toe
AR40.20-P-0261CW Rear Axle Toe
AR40.20-P-0261CW Rear Axle Toe
Toe

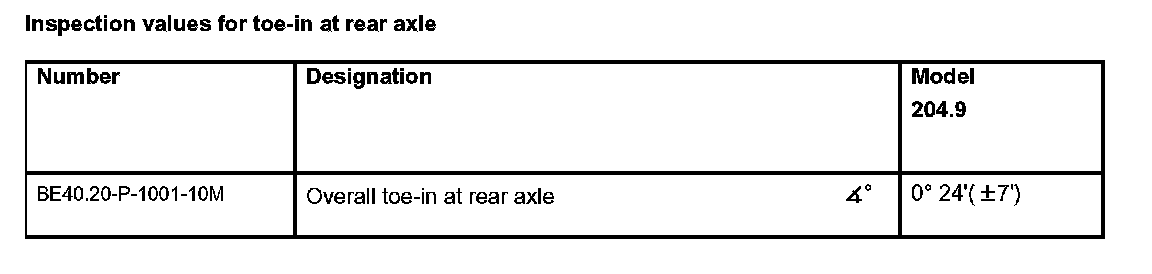

Inspection values for toe-in at rear axle:

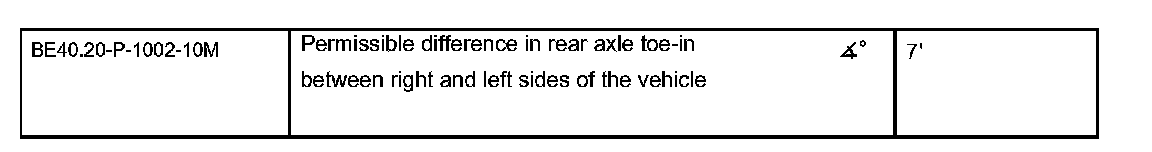

Inspection values for toe-in at rear axle:

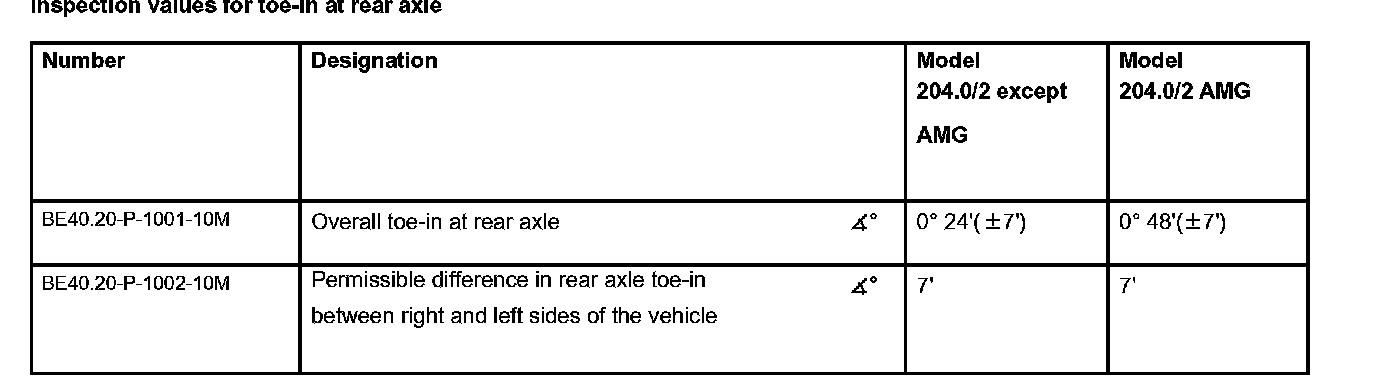

Inspection values for toe-in at rear axle:
