Mercedes Benz
>>
2011
>>
C 250 4MATIC (204.085) (CAN) V6-2.5L (272.911)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Receiver Dryer
>>
Service and Repair
>>
AR83.30-P-6521CW Remove And Install Drier Cartridge
AR83.30-P-6521CW Remove And Install Drier Cartridge
AR83.30-P-6521CW Remove And Install Drier Cartridge

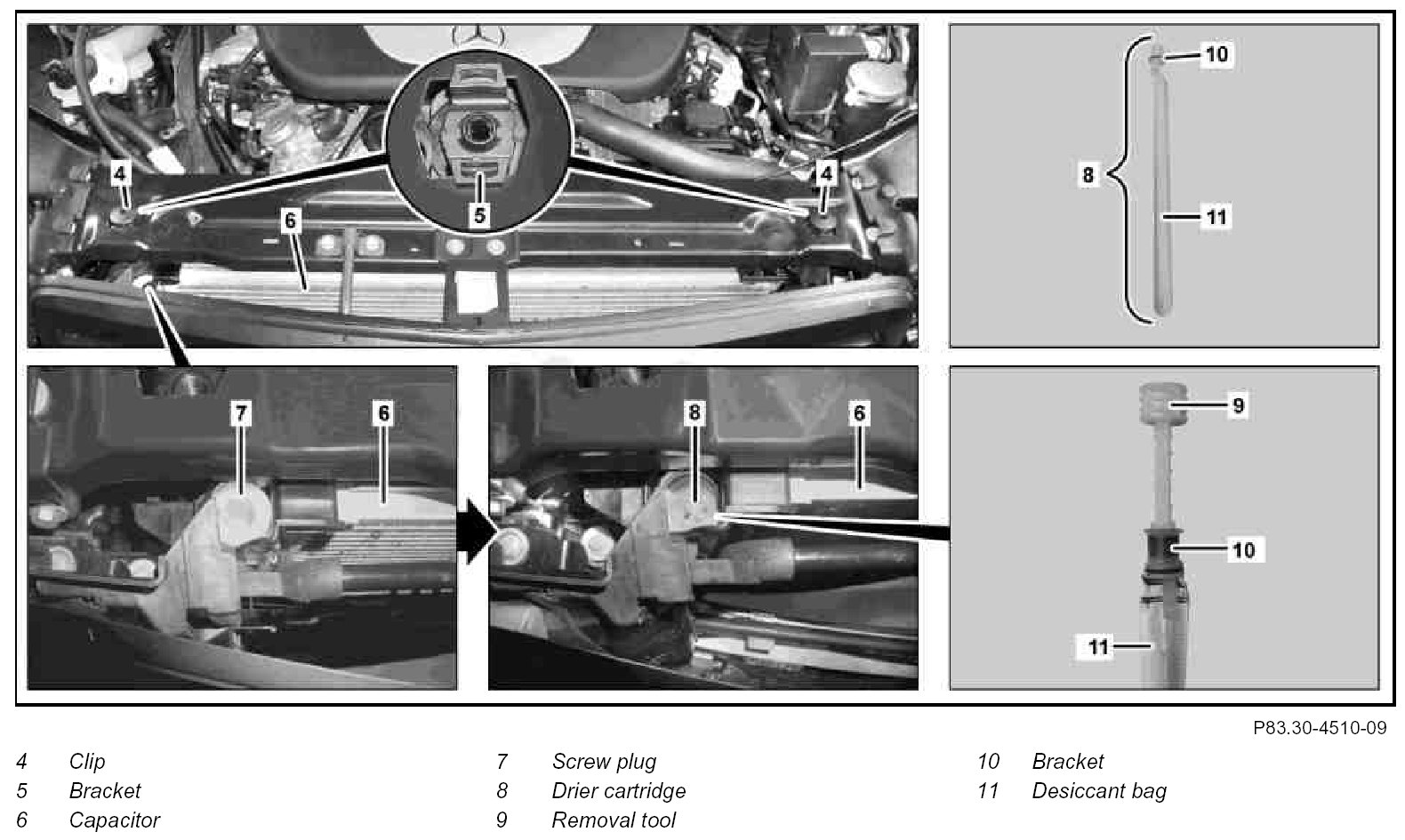

Component Identification:

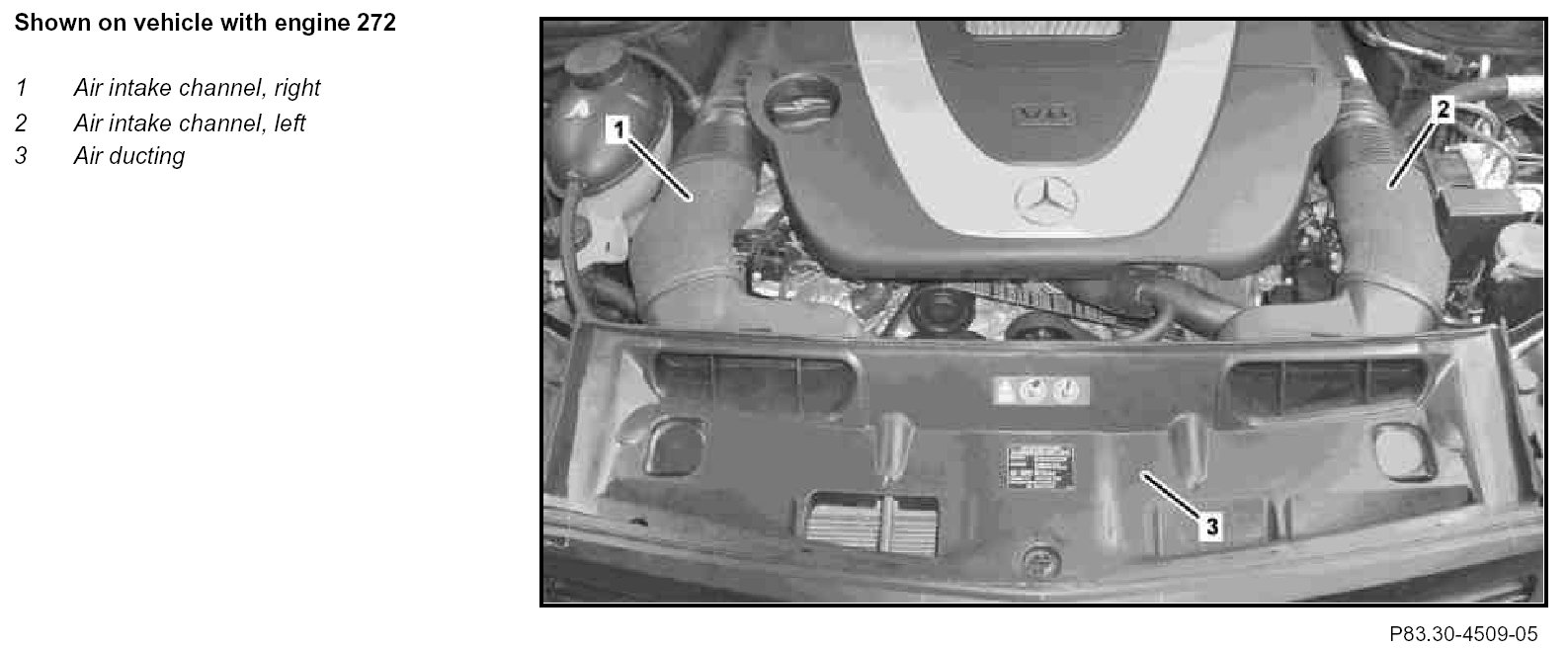

Component Identification:

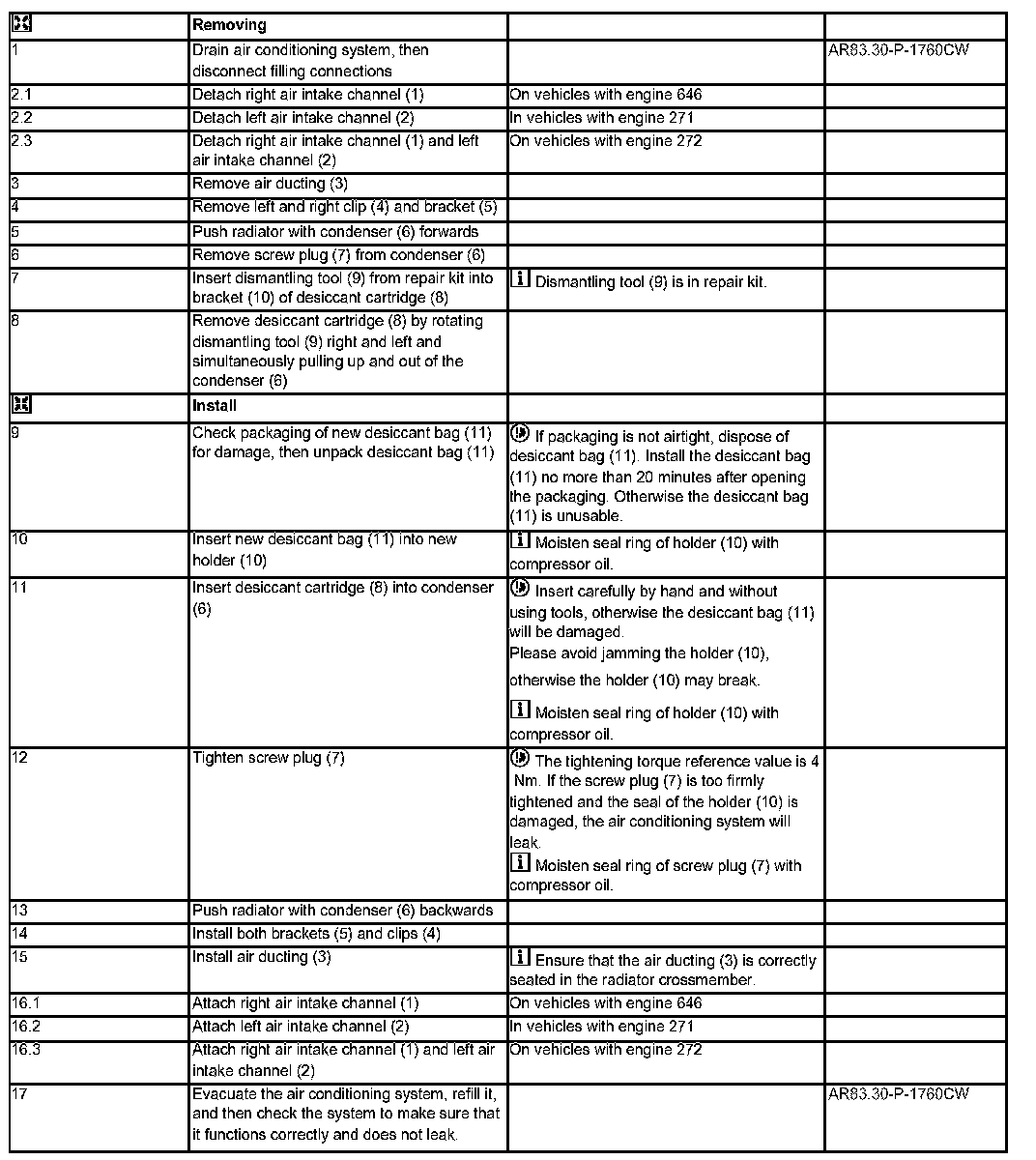

Steps 1 - 17:
