Overhaul
AR68.20-P-2150SY Disassemble/Assemble Center Console
- except CODE (386) Preinstallation for telephone "Handy", UPCI system
- except CODE (388) Telephone "Handy", UPCI system

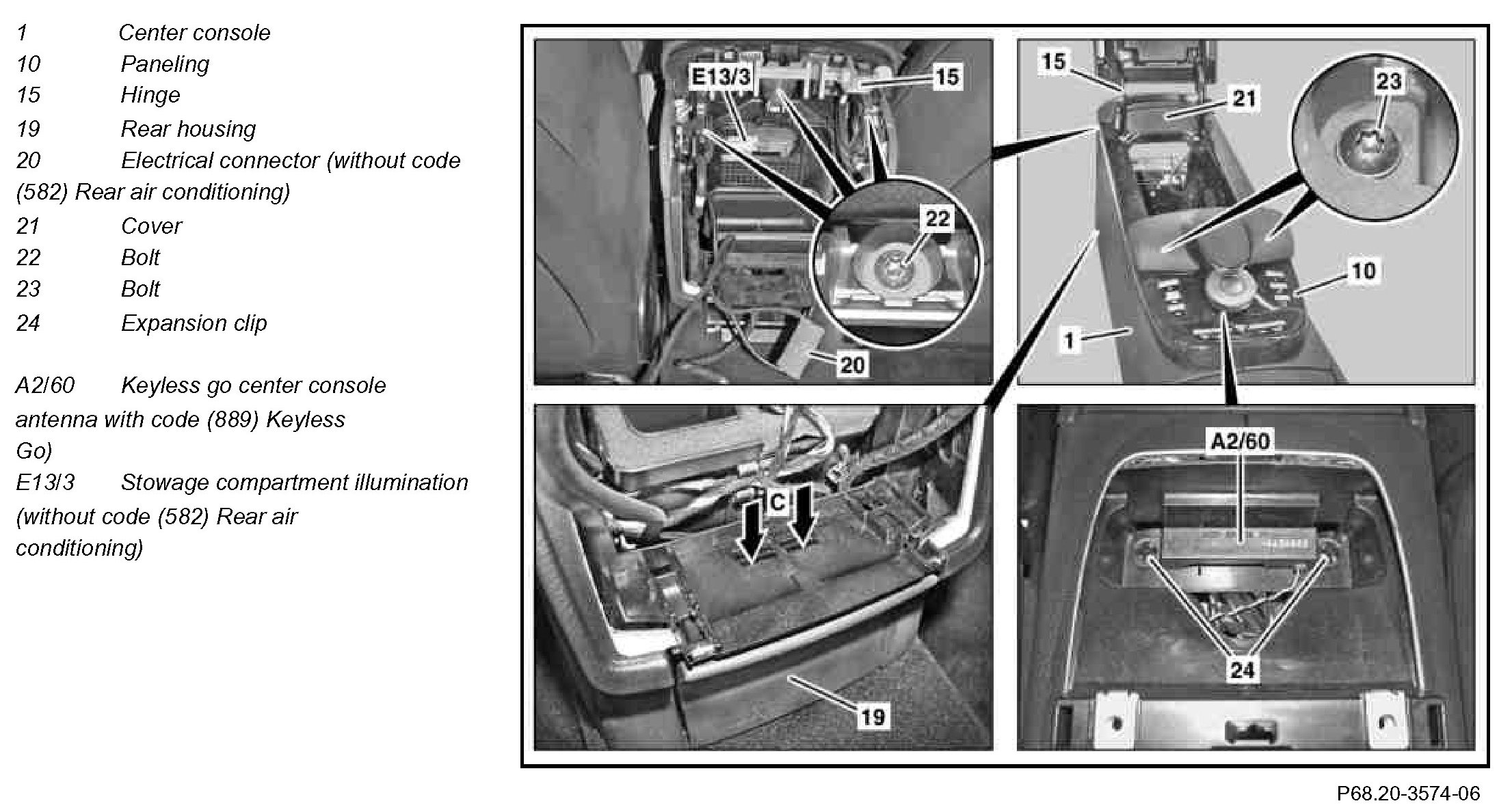

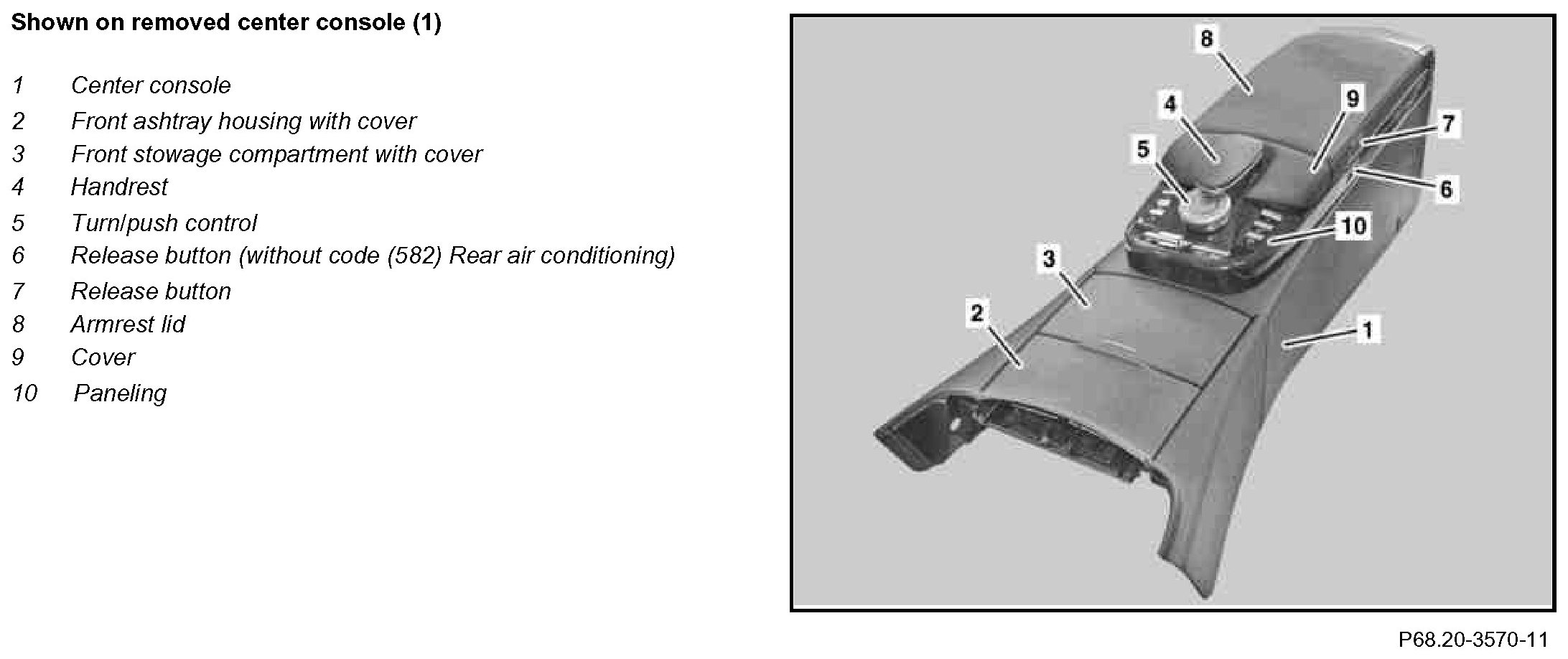

Component Identification:
Component Identification:
Component Identification:
Steps 1 - 15:

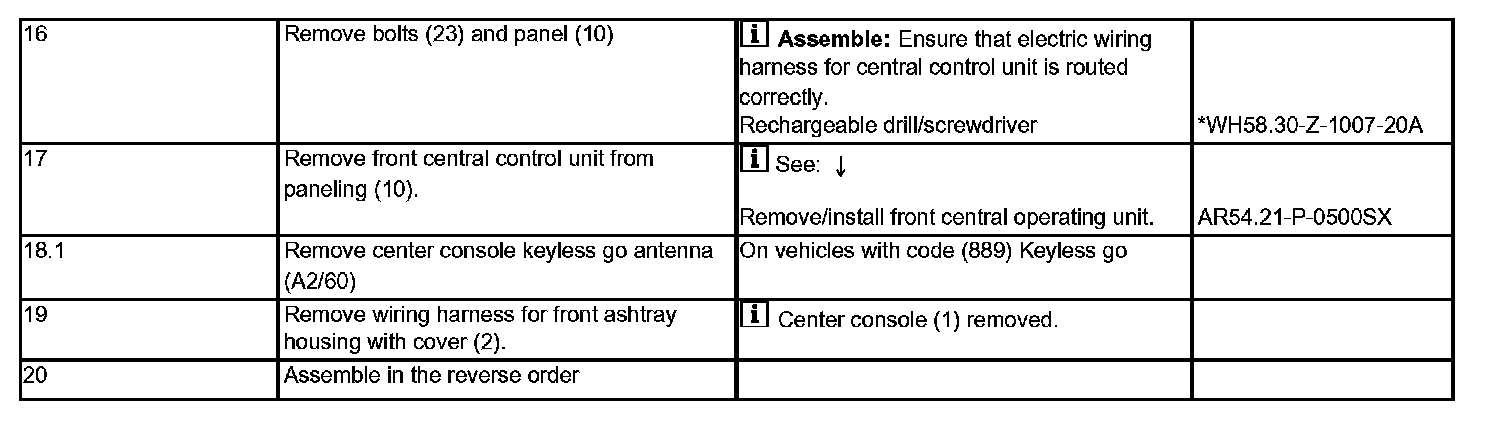

Steps 16 - 20:

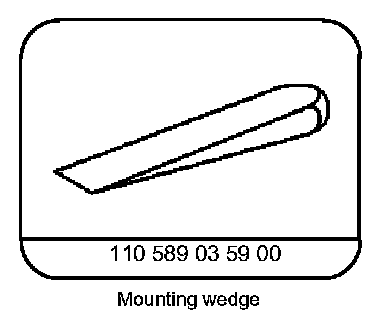

Special Tools:

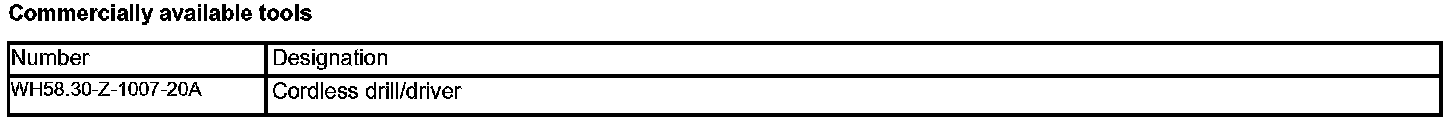

Commercially Available Tools:
