AR61.40-P-1000SXS Remove/Install Underbody Protection



AR61.40-P-1000SXS Remove/Install Underbody Protection
- with CODE (Z07) Top protection

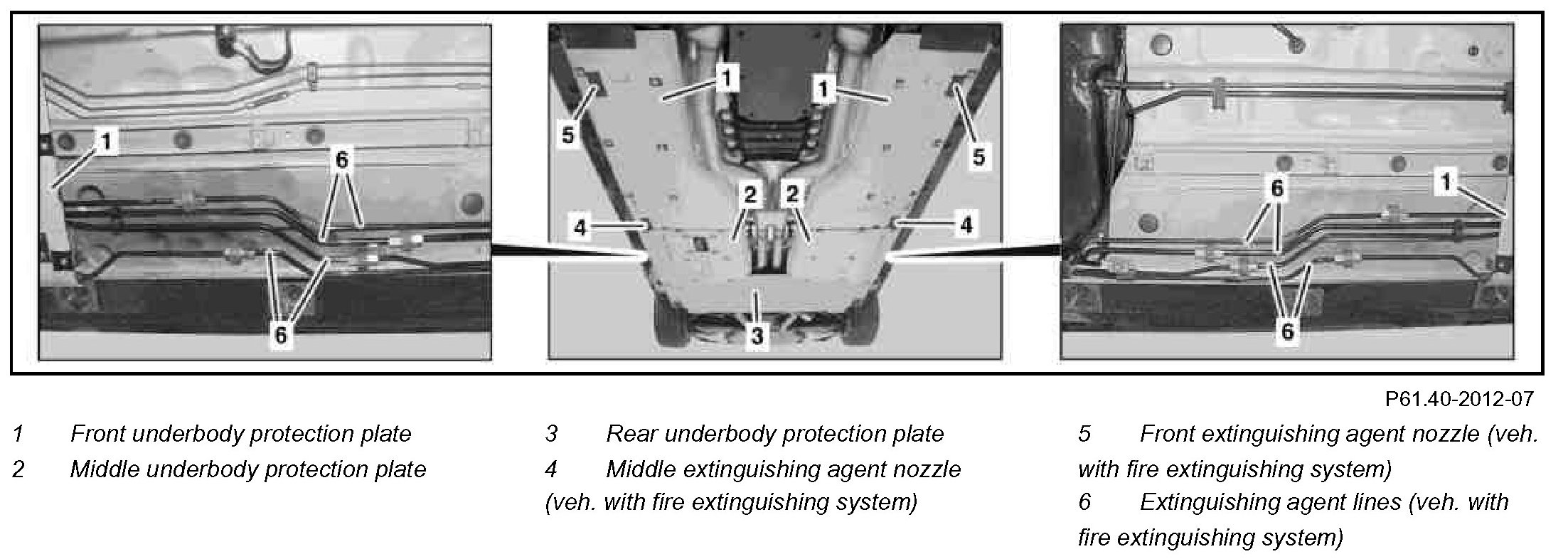

Component Identification:

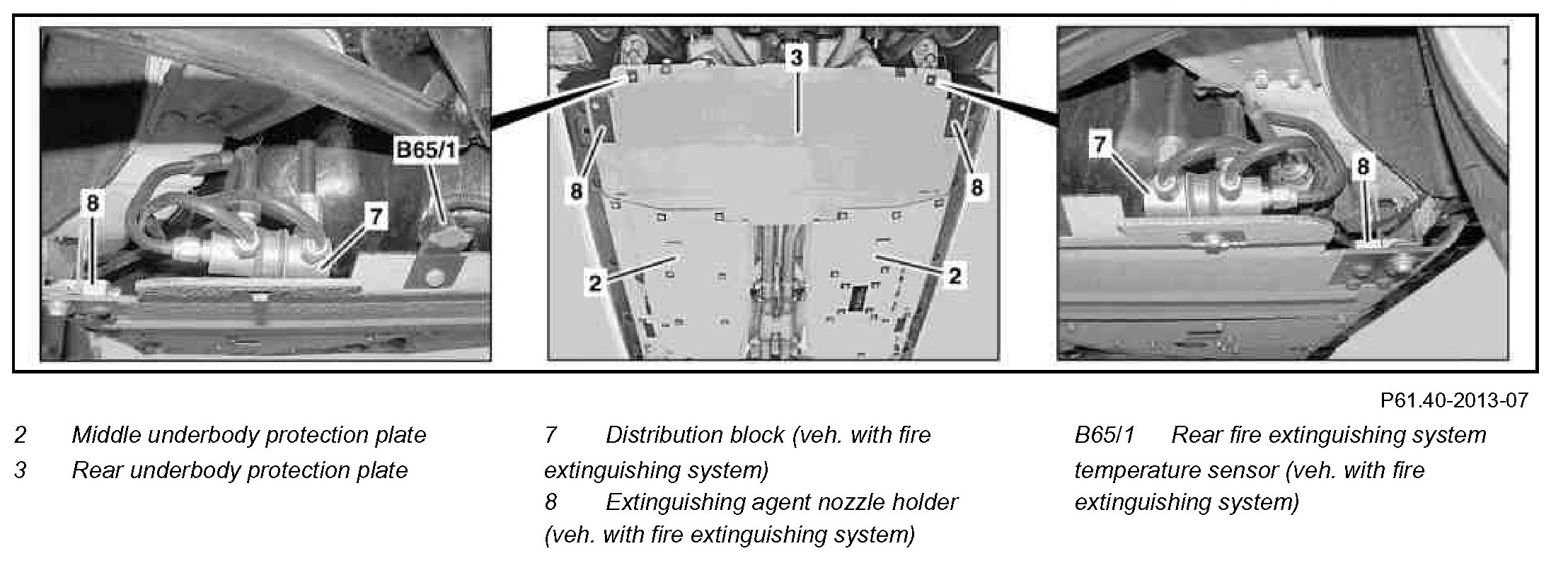

Component Identification:

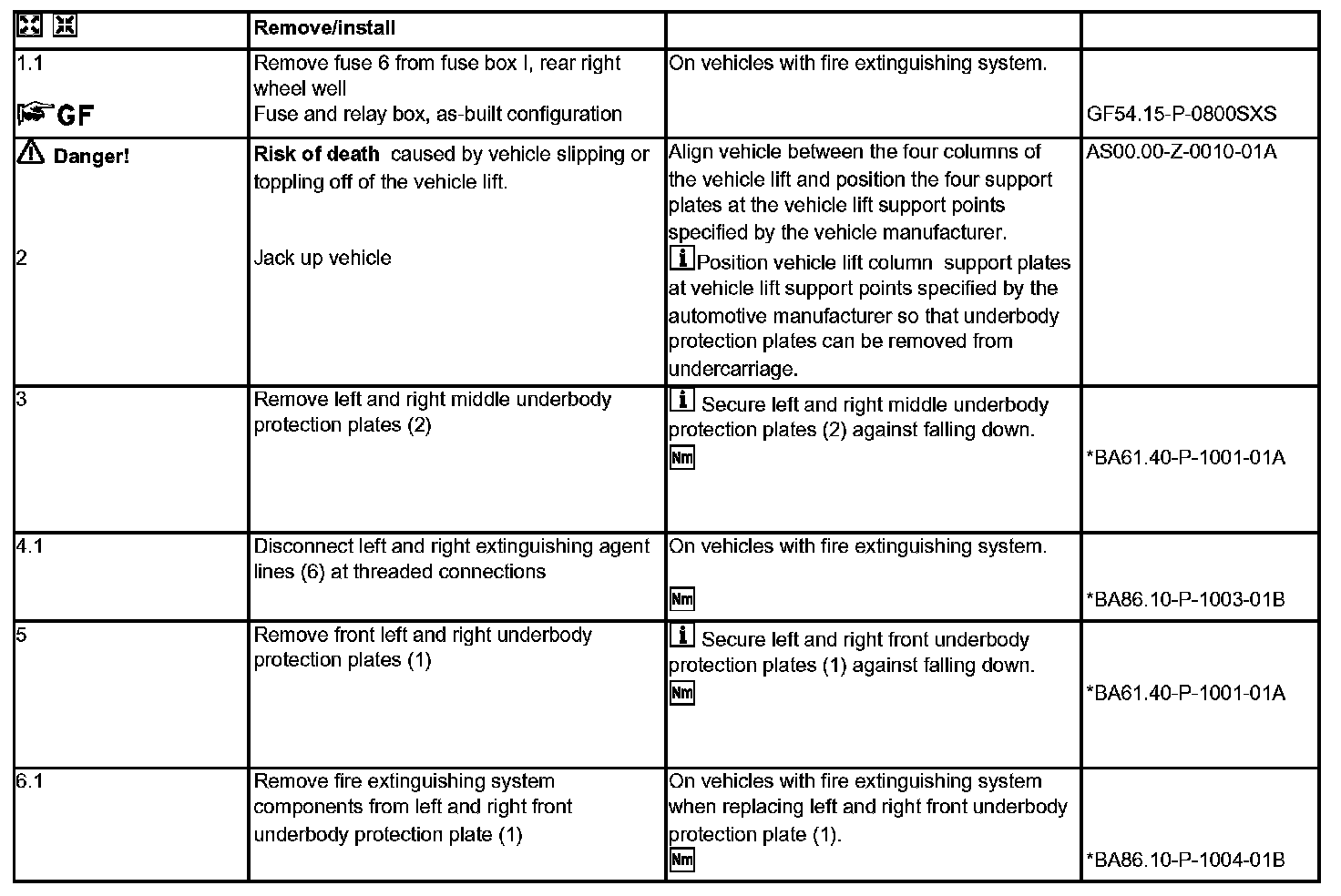

Steps 1.1 - 6.1:

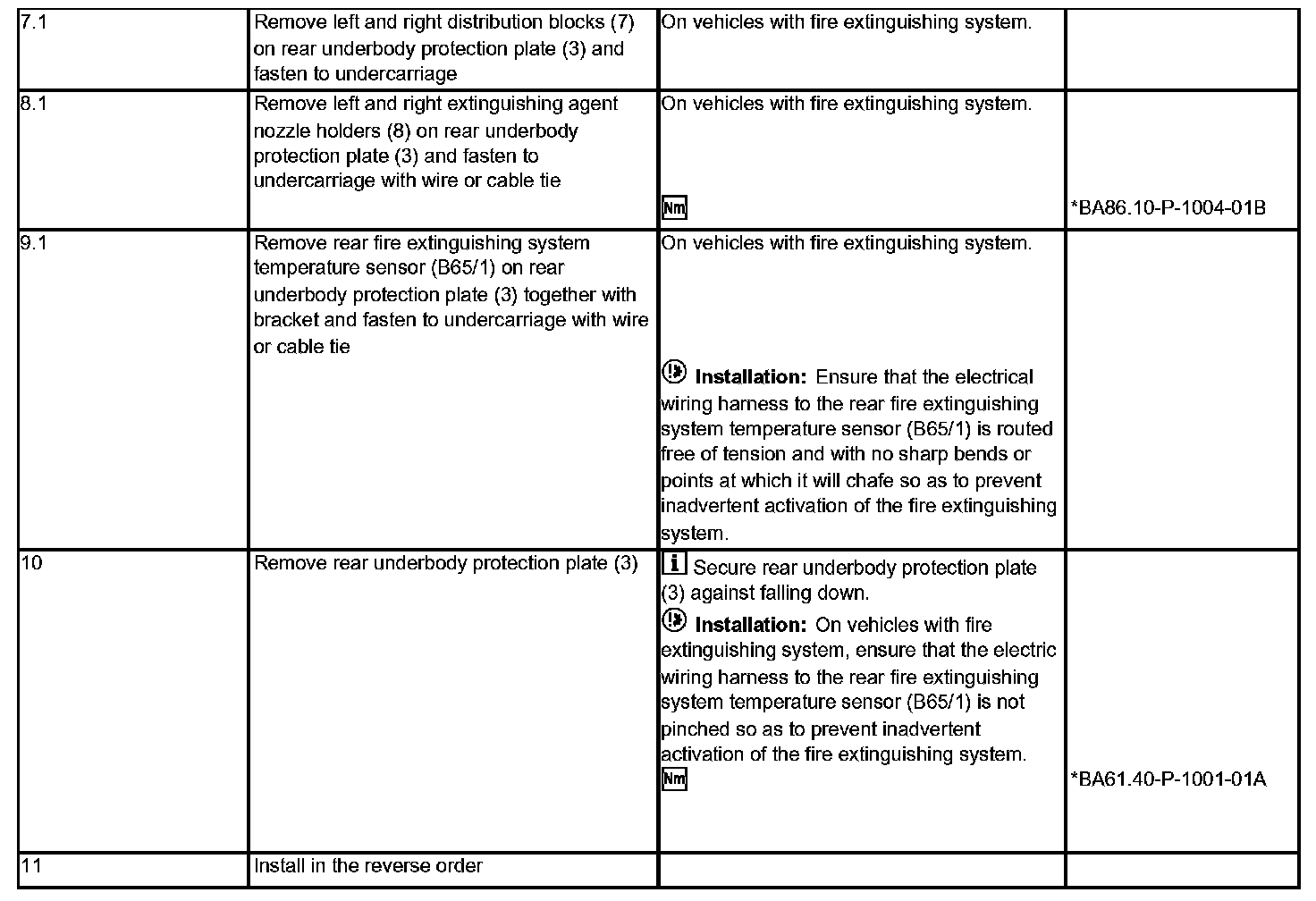

Steps 7.1 - 11:

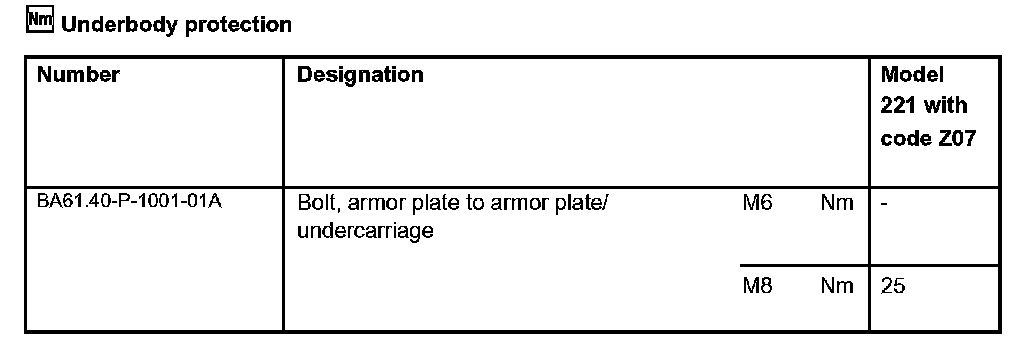

Underbody Protection:

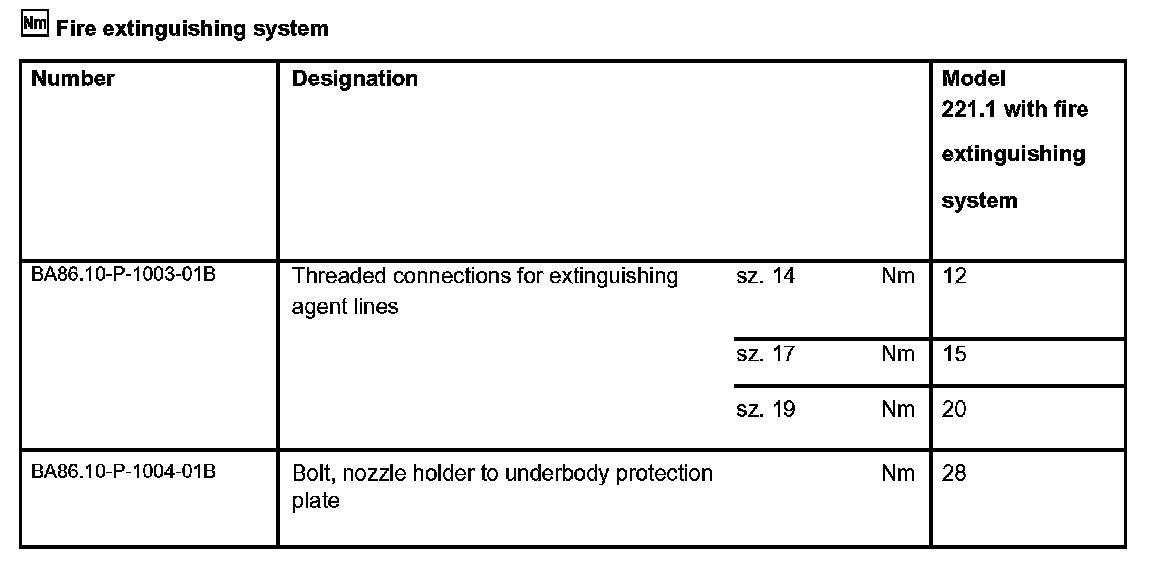

Fire Extinguishing System:
