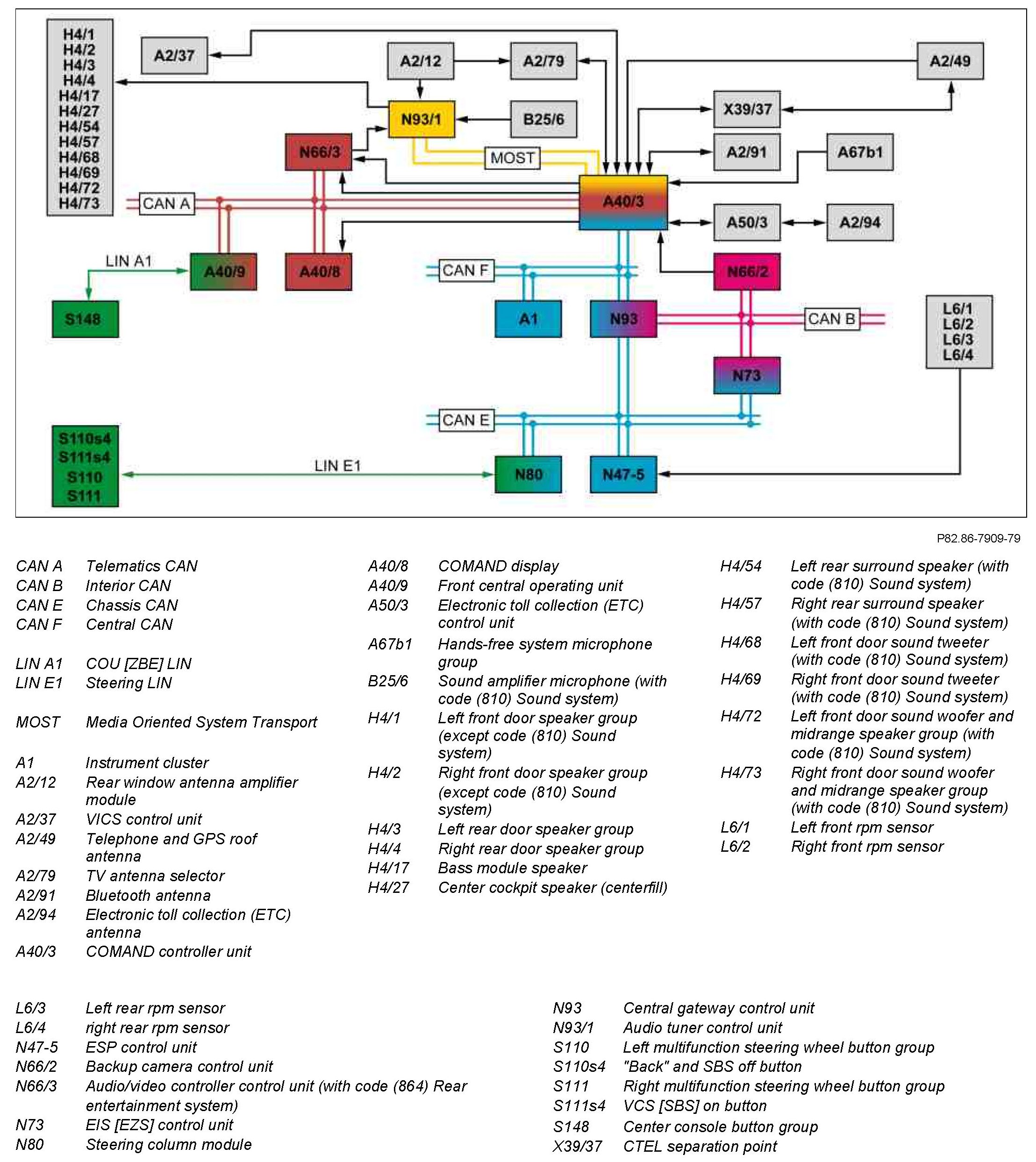

GF82.85-P-0003-11LEJ Cockpit Management and Data System (COMAND) Block Diagram



GF82.85-P-0003-11LEJ Cockpit Management And Data System (COMAND) Block Diagram
- with CODE (529) HIGH Class Japan


Component Identification:
