Brake Signal: Locations
Axle Brake Pressure Sensor, Front

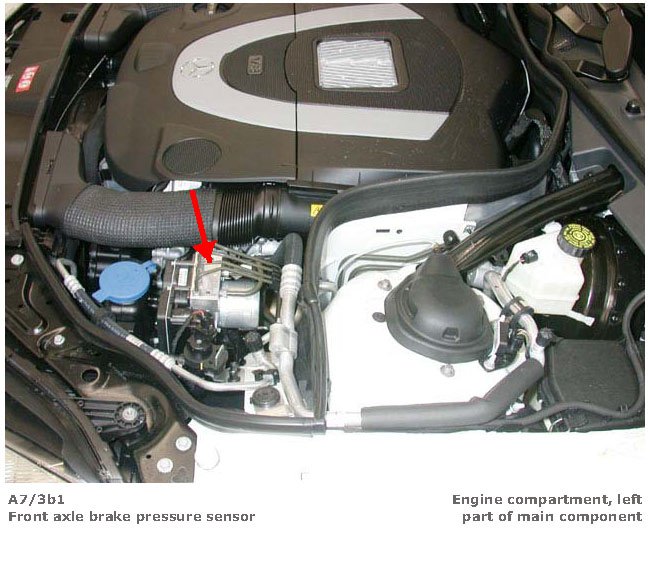

Front Axle Brake Pressure Sensor (View 1):

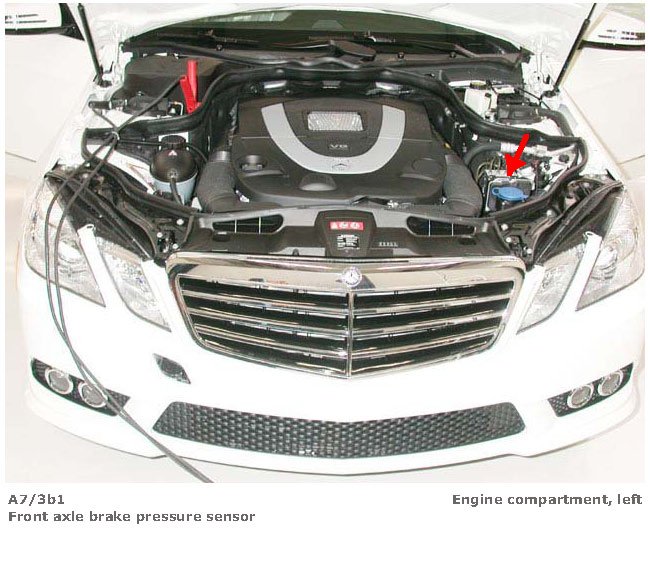

Front Axle Brake Pressure Sensor (View 2):

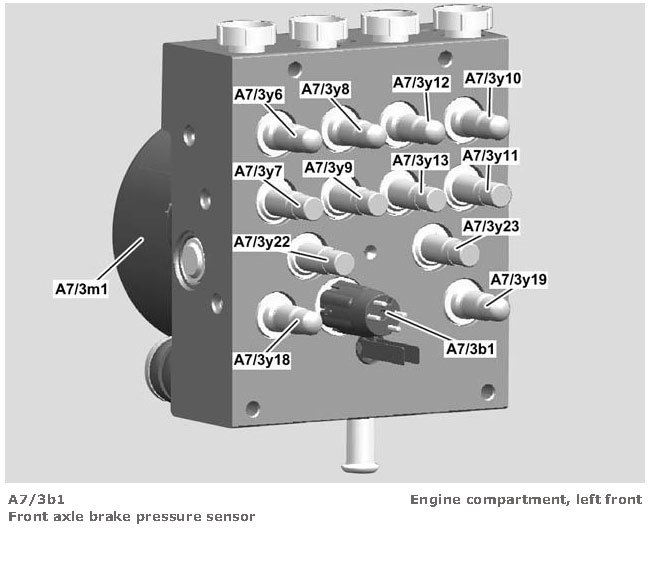

Front Axle Brake Pressure Sensor (View 3):
