Air Injection Control Valve: Service and Repair

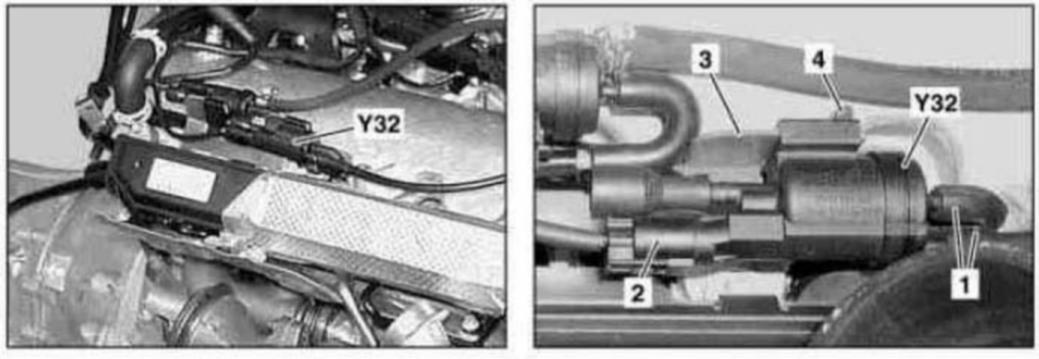

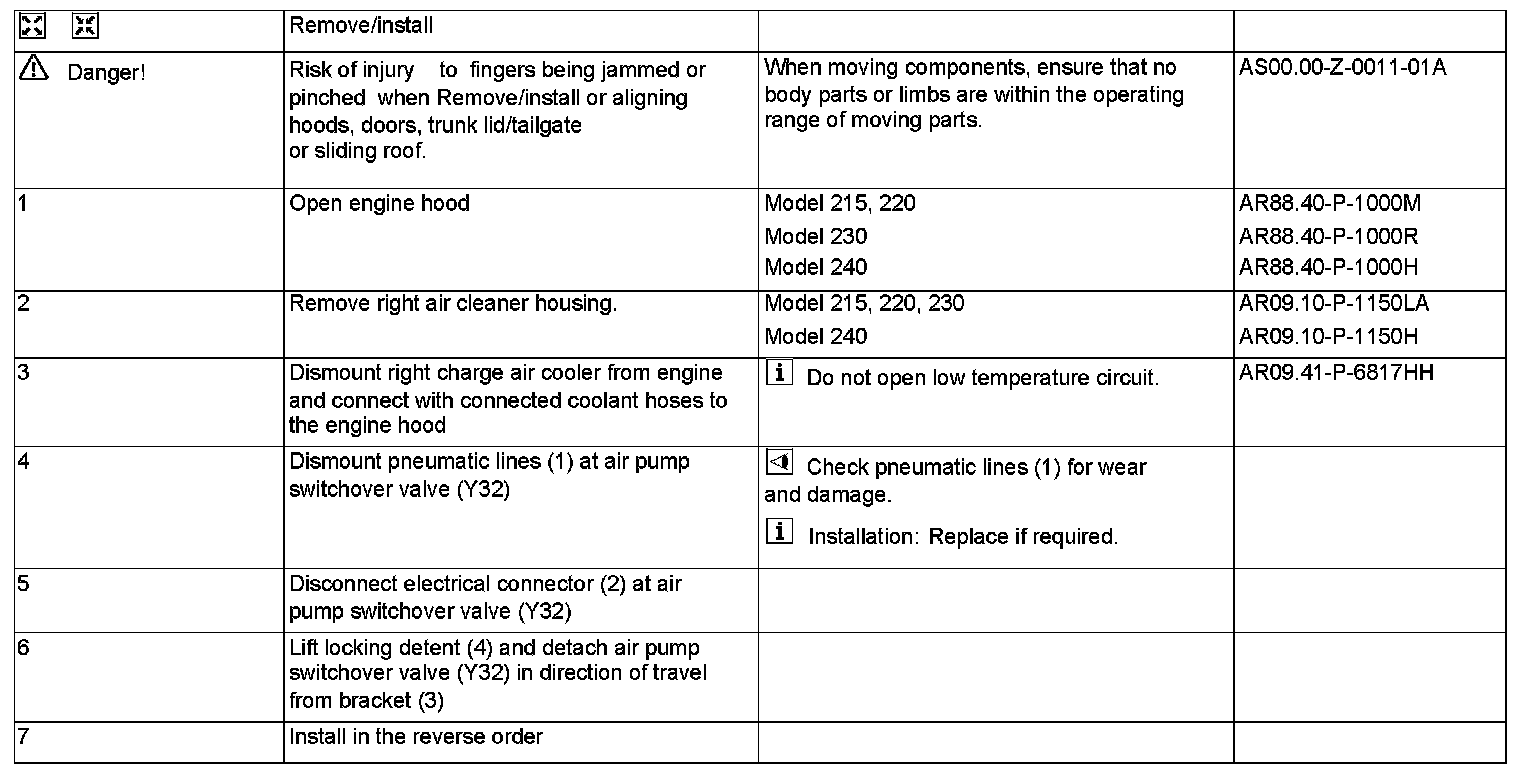

AR14.30-P-7255H Remove/install air pump switchover valve
