Air Injection Pump: Service and Repair
AR14.30-P-7251SX Remove, install air pump

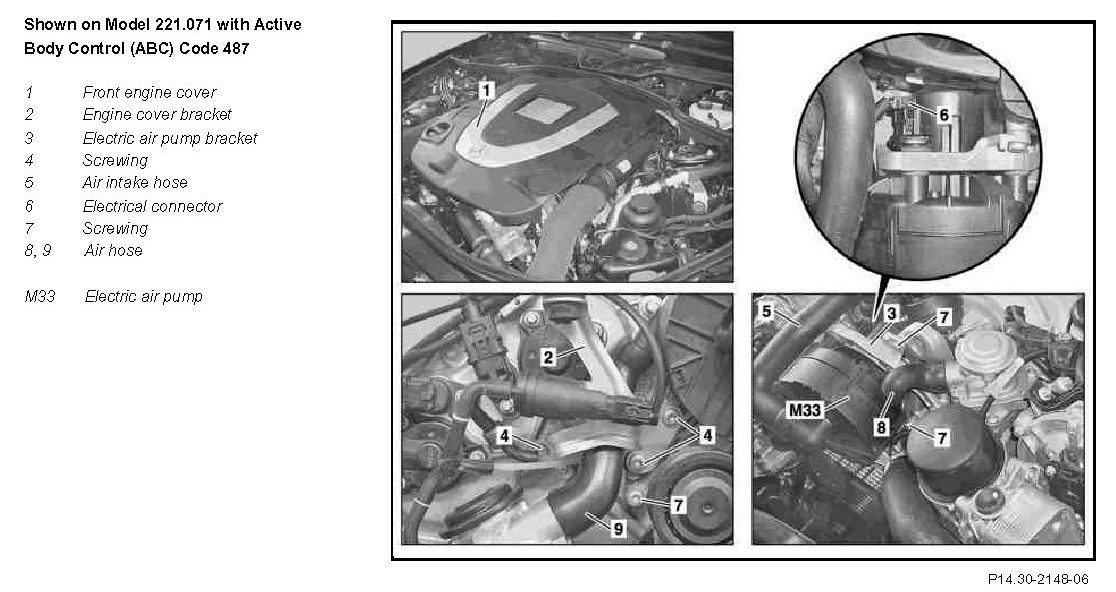

Component Identification:

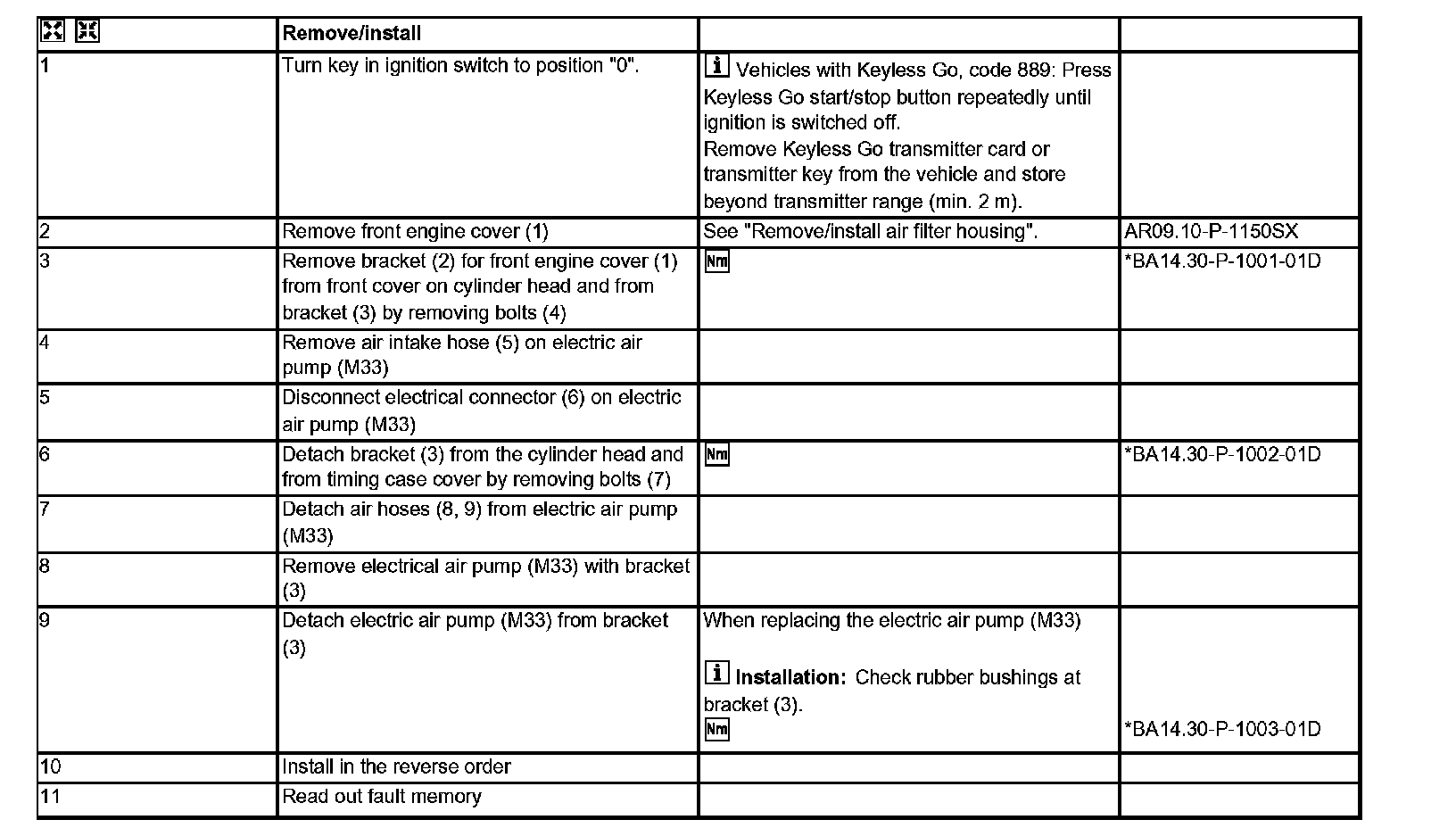

Remove/install Steps 1-11:

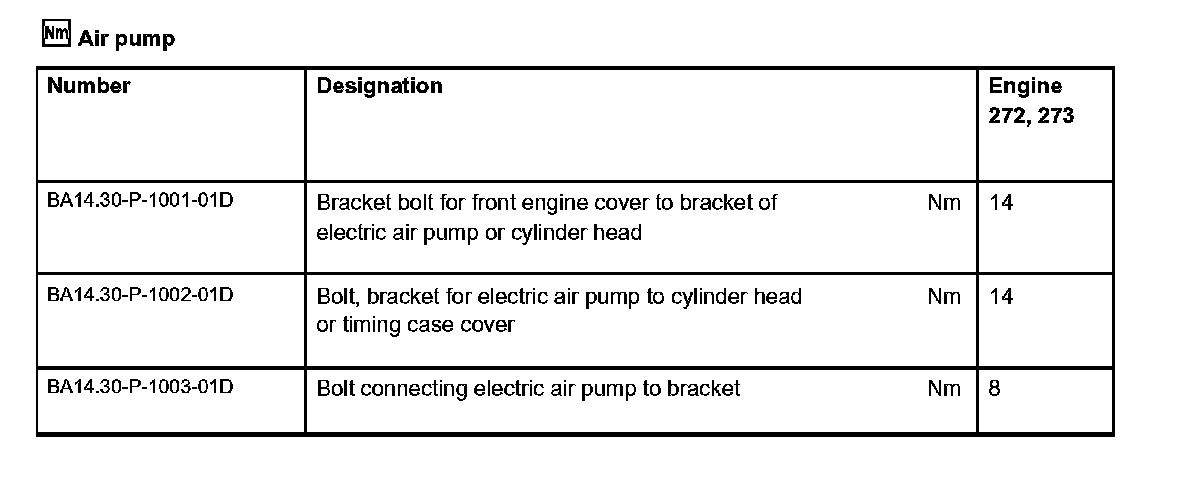

Air pump:
