AR40.20-P-0263CW Front Axle Camber/Caster



AR40.20-P-0263CW Front Axle Camber/Caster

Caster

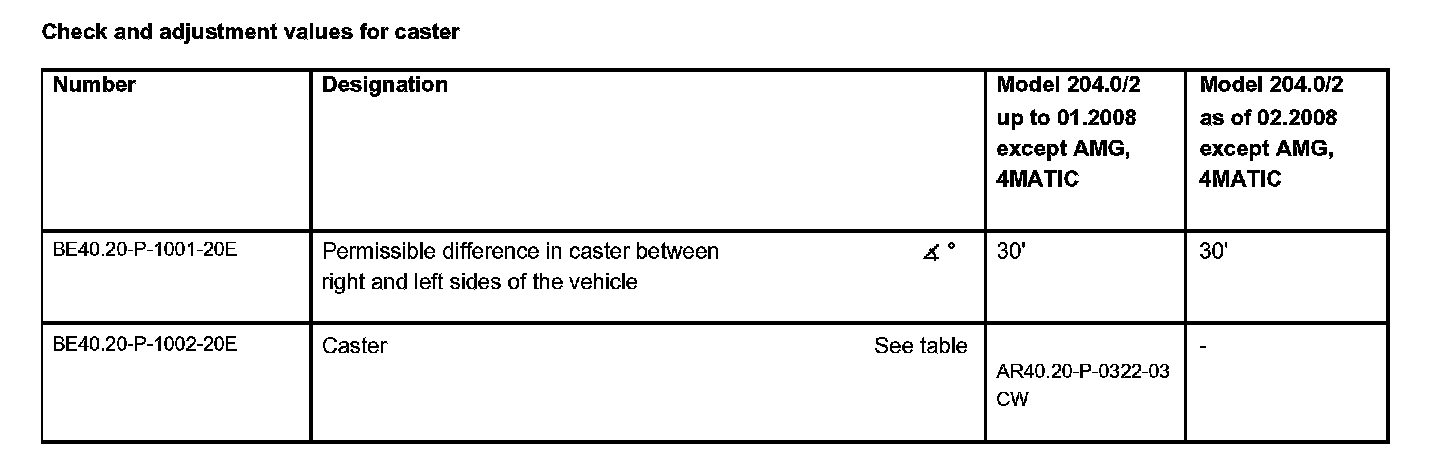

Check and adjustment values for caster:

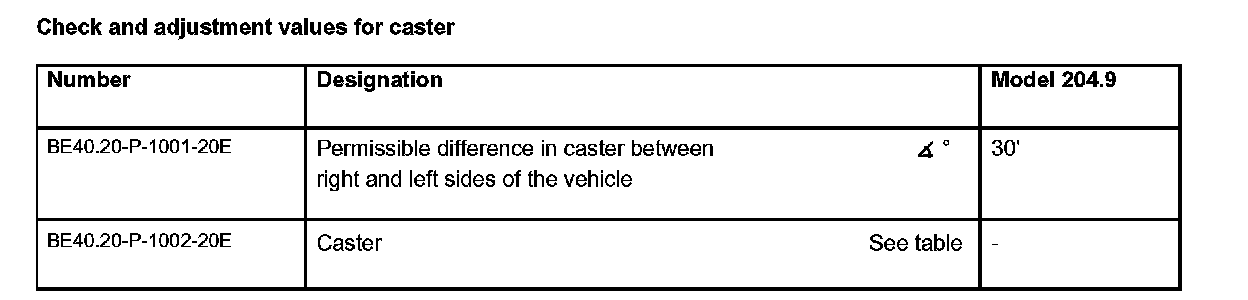

Check and adjustment values for caster:

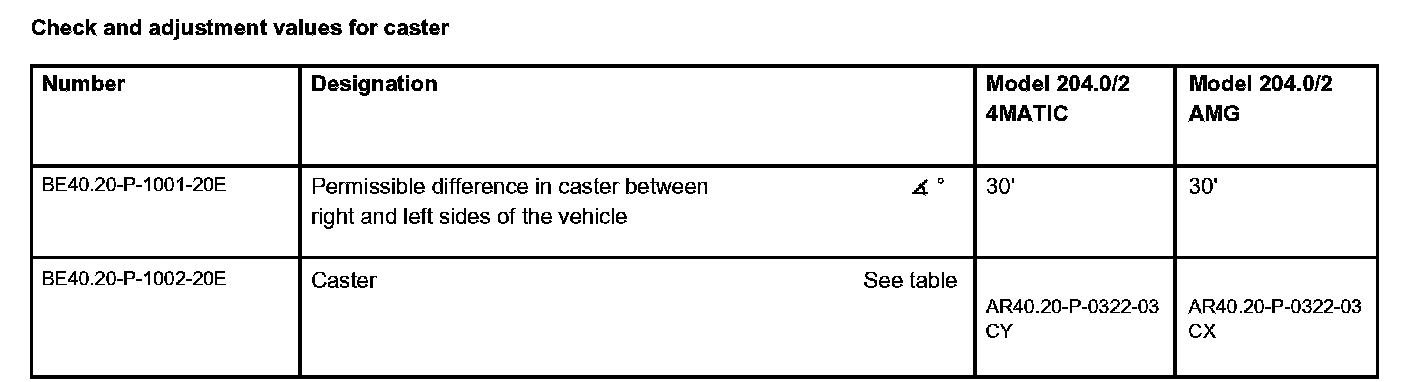

Check and adjustment values for caster:






Camber

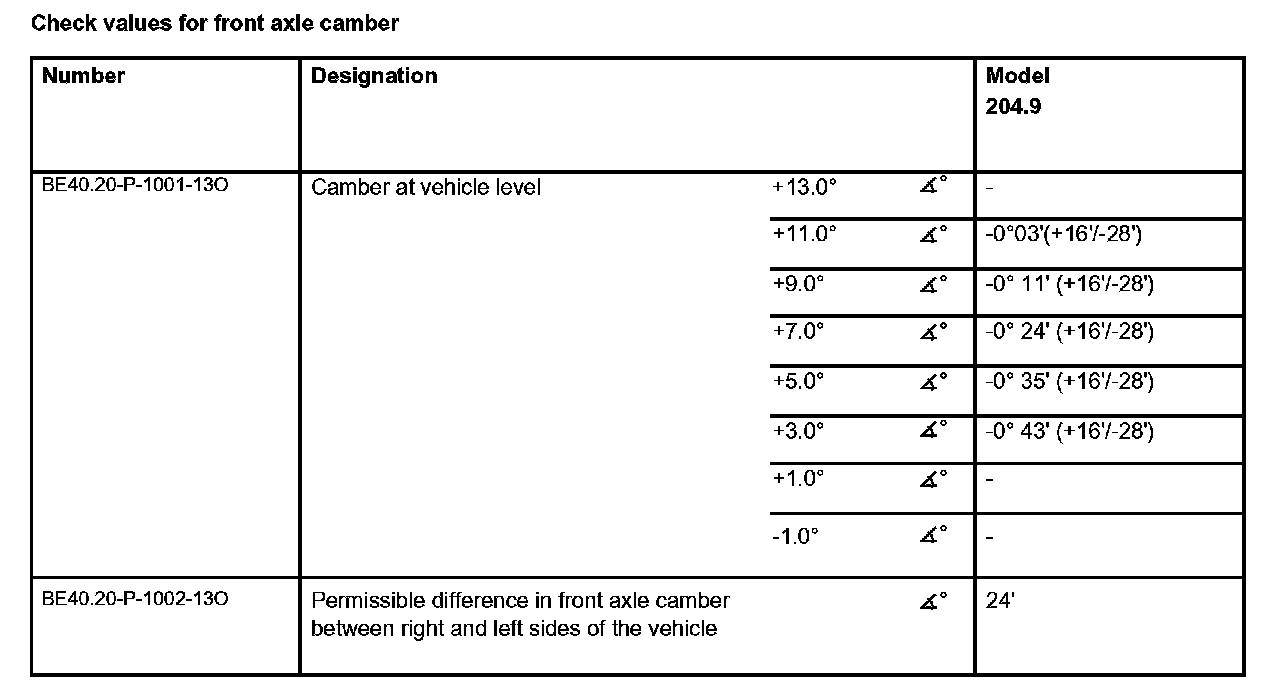

Check values for front axle camber:

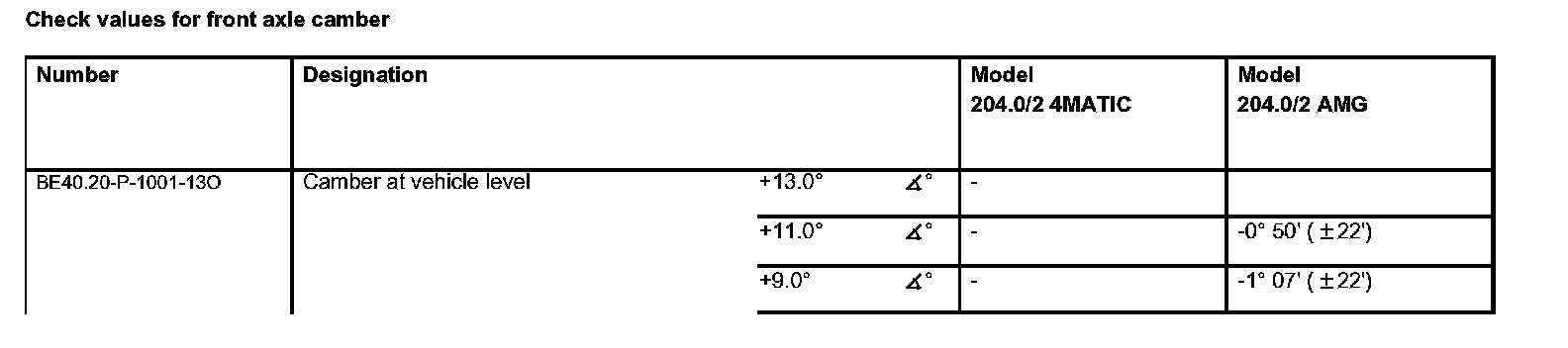

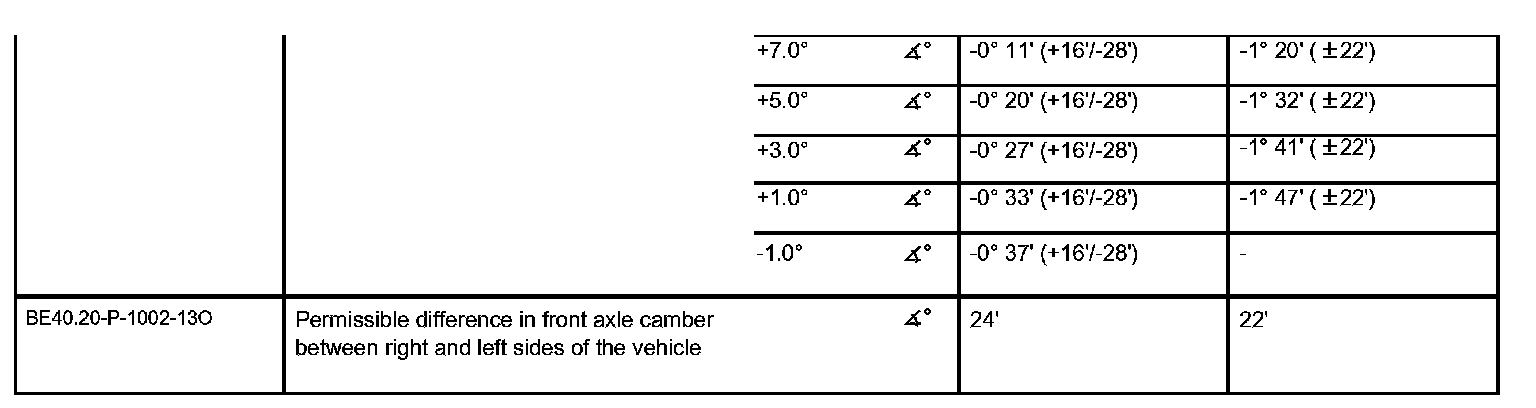

Check values for front axle camber:

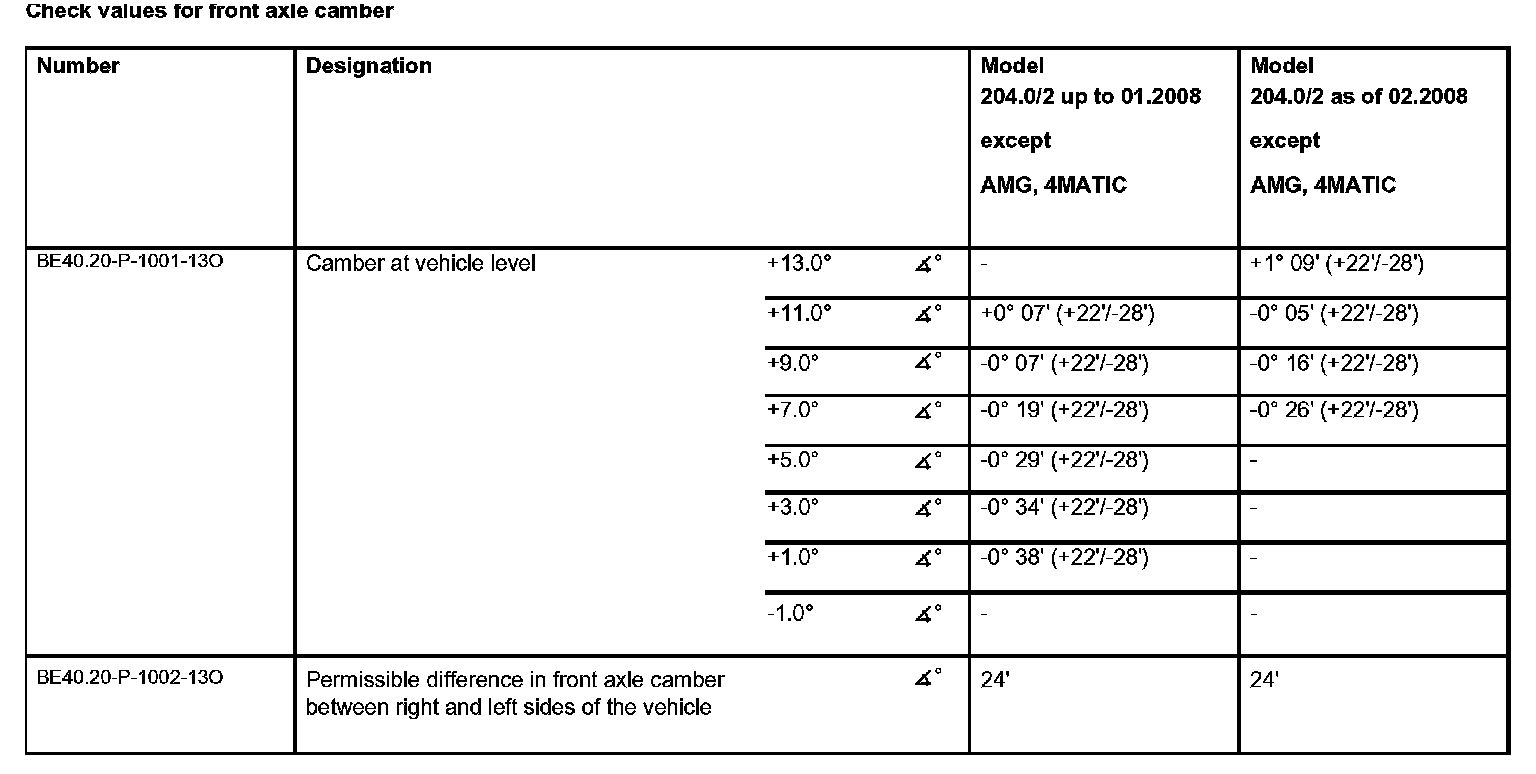

Check values for front axle camber:




Check values for front axle camber:
