BE40.20-P-1000-08A Toe-Out on Turns



BE40.20-P-1000-08A Toe-out on turns

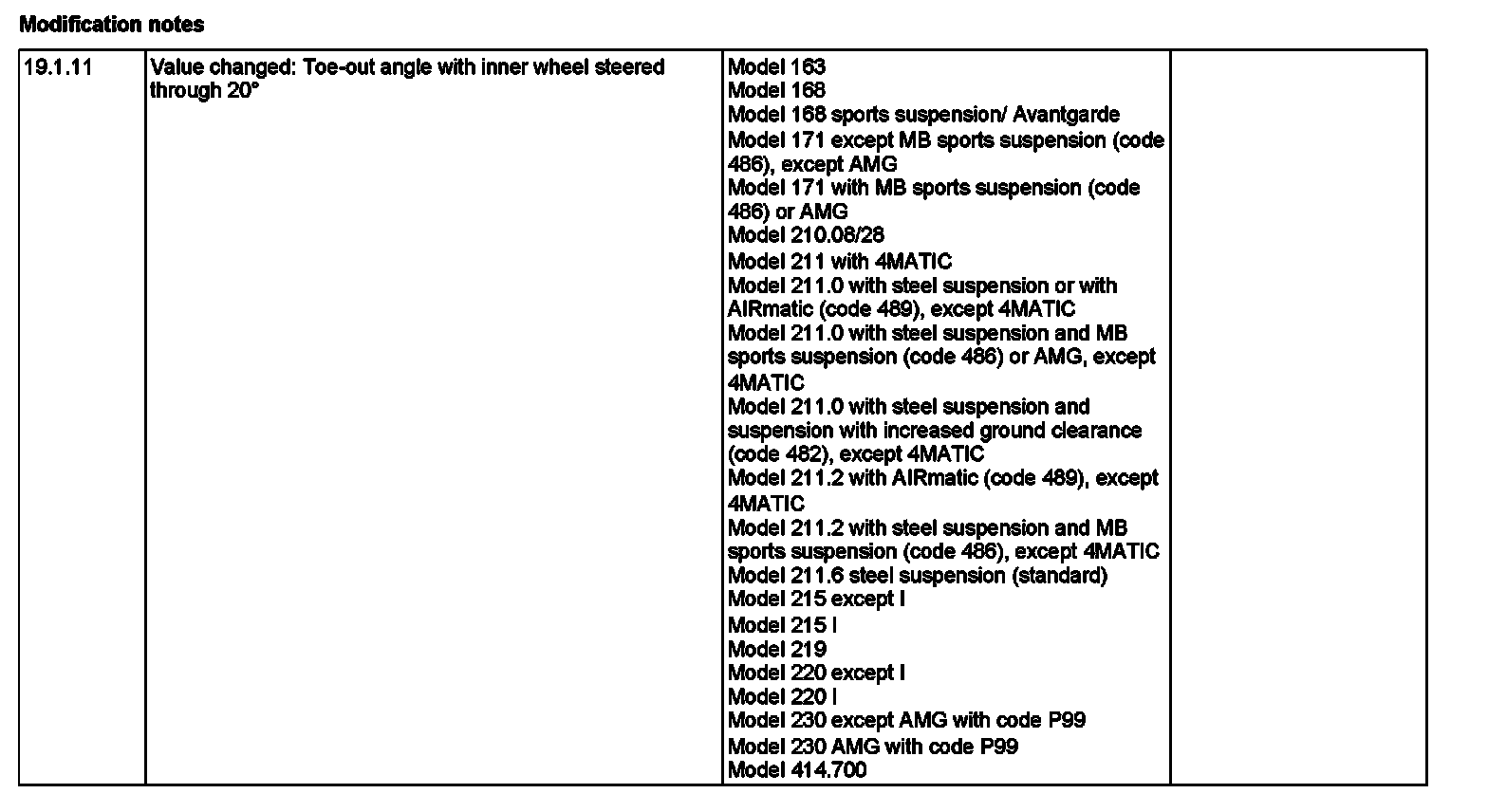

Modification Notes:

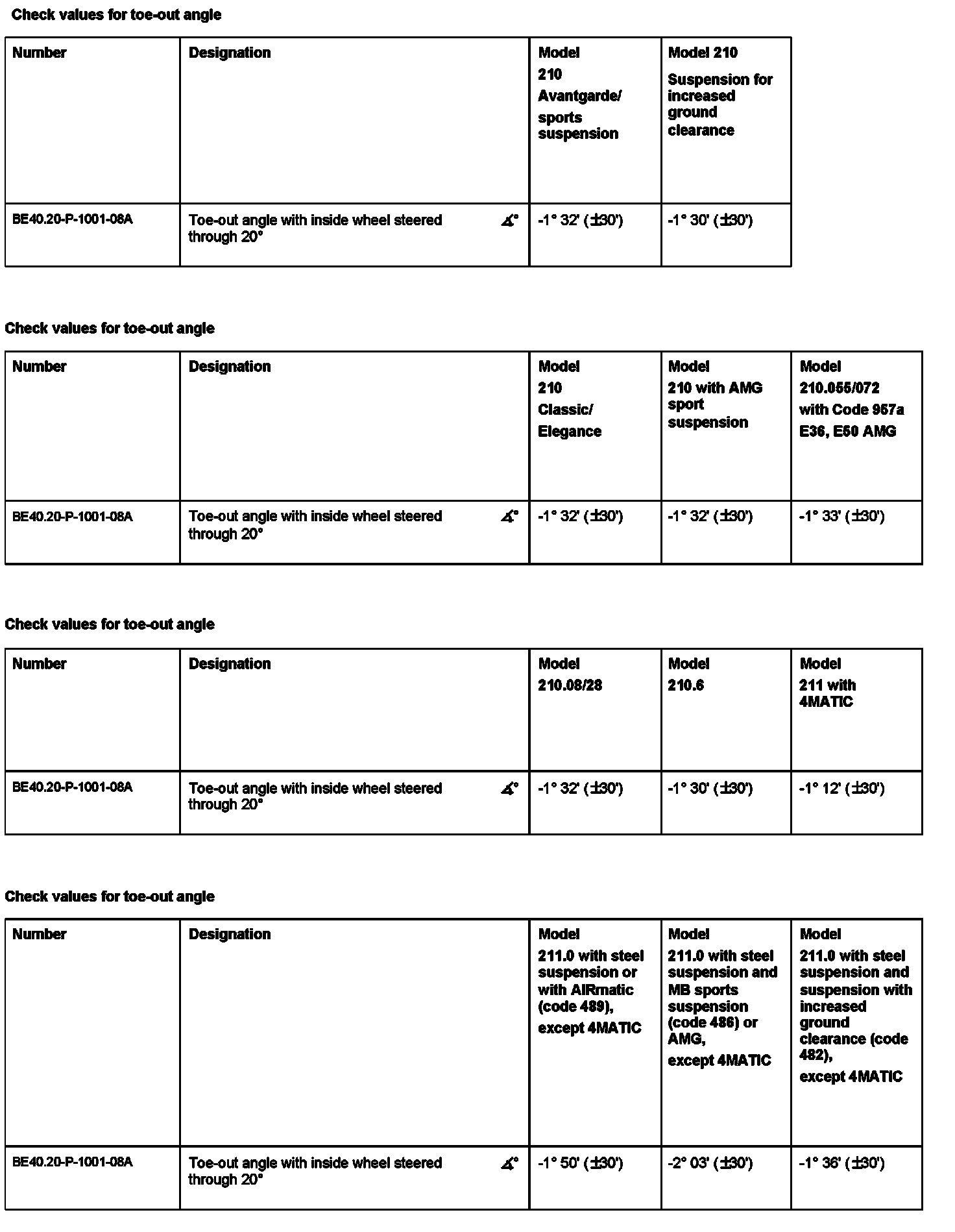

Test Values For Toe-out On Turns:

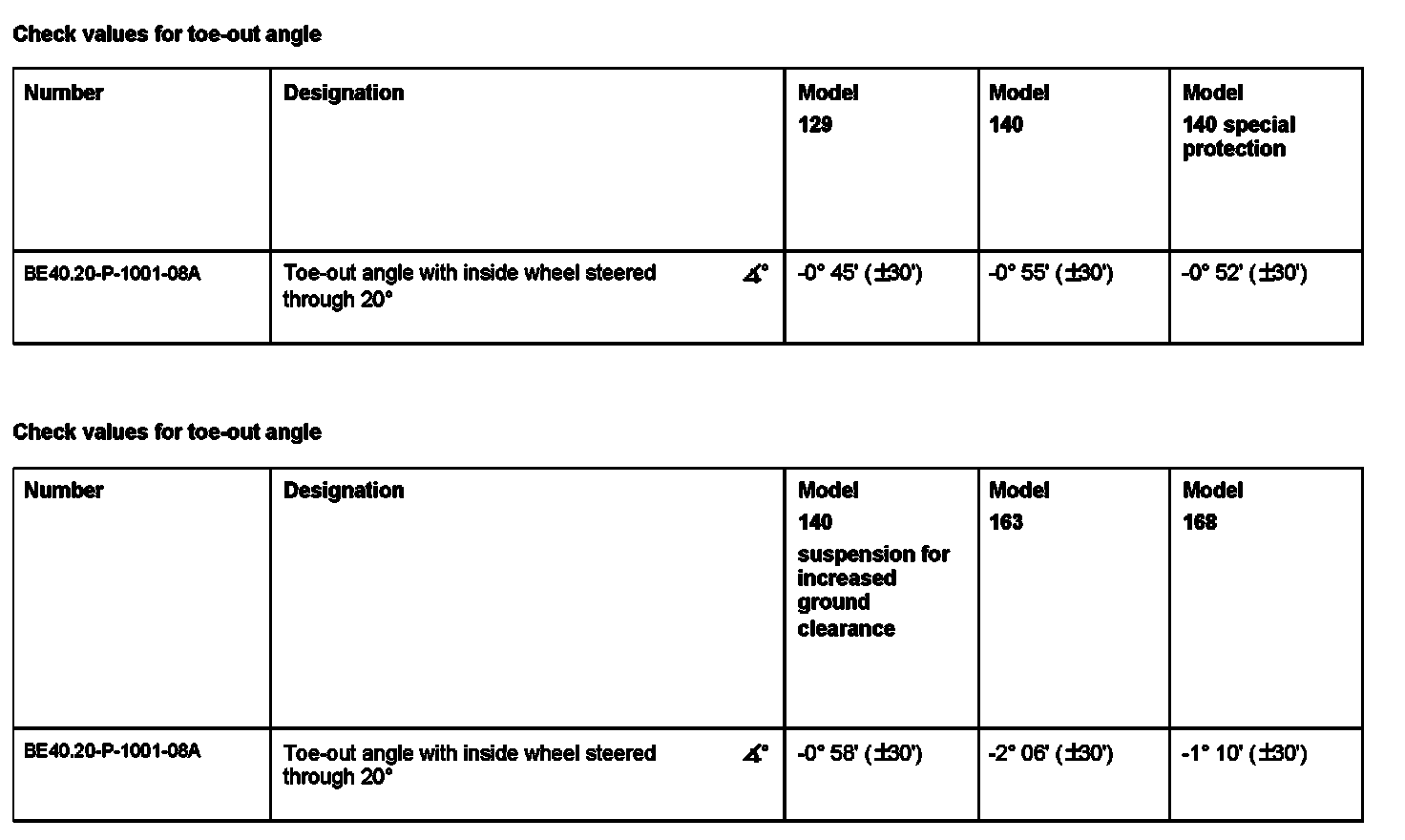

Test Values For Toe-out On Turns:

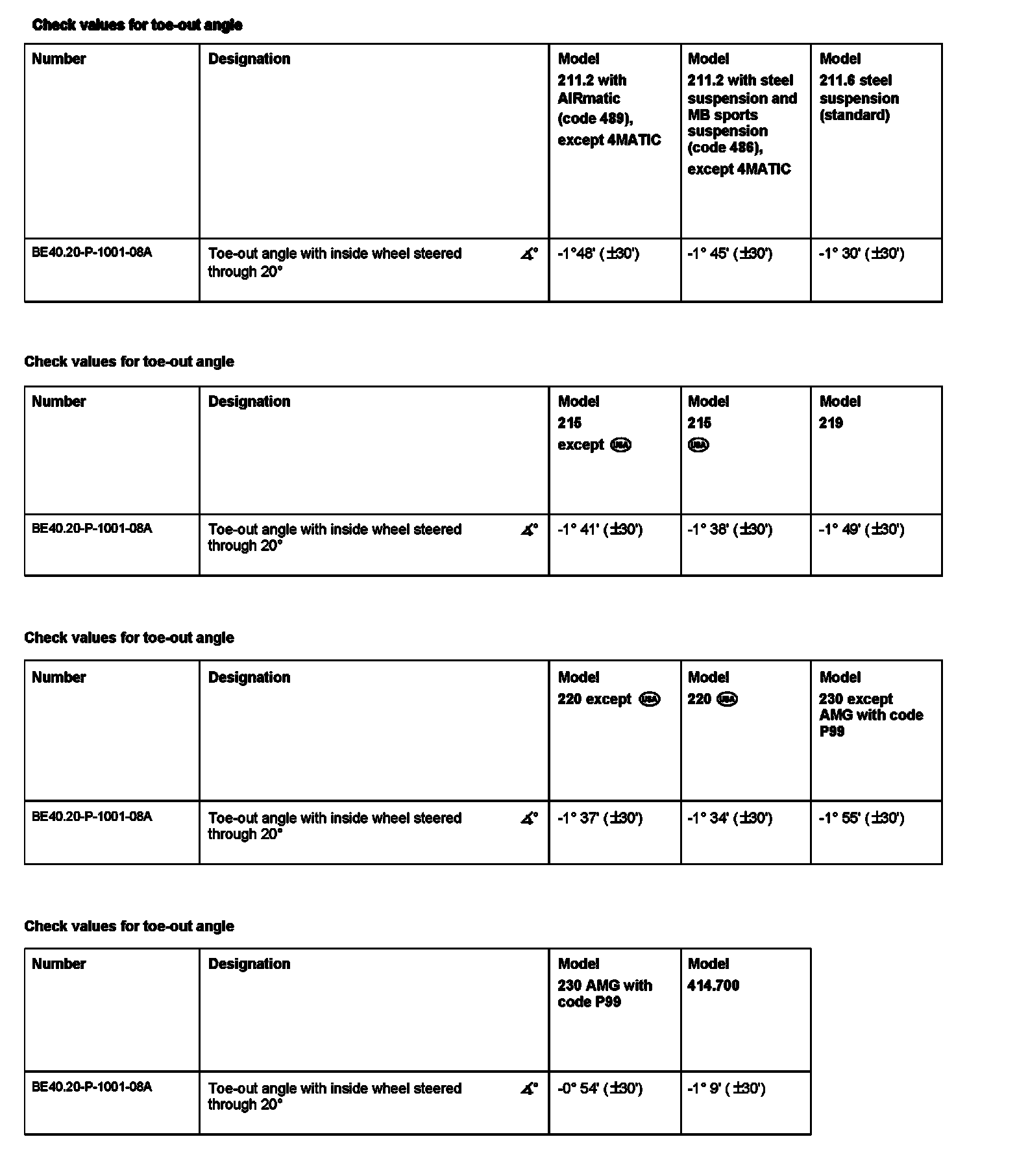

Test Values For Toe-out On Turns:




Test Values For Toe-out On Turns:
