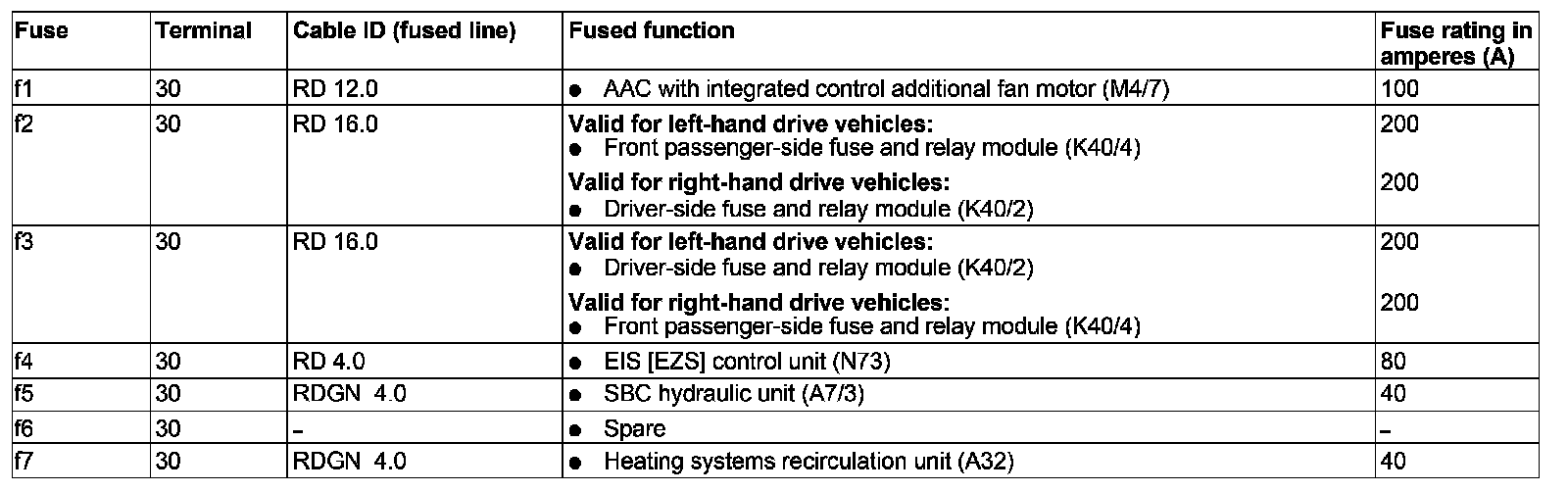

GF54.15-P-1256-07RI Fuse Assignment of Front Prefuse Box
GF54.15-P-1256-07RI Fuse Assignment Of Front Prefuse Box
- except CODE (P99) Special model "AMG Black Series"
- as of model year 09

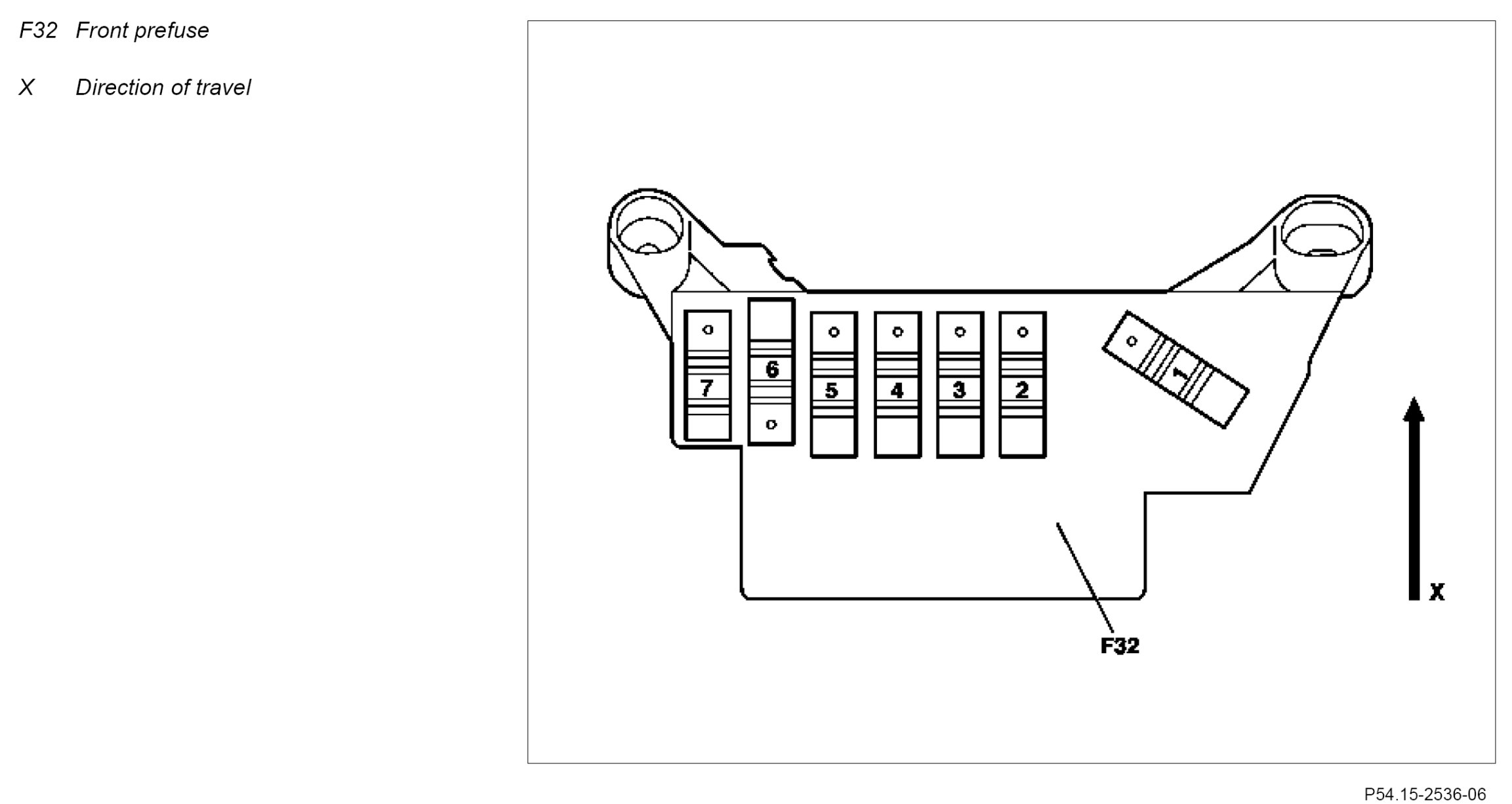

Component Identification:
GF54.15-P-1256-07RI Fuse Assignment Of Front Prefuse Box
- except CODE (P99) Special model "AMG Black Series"
- as of model year 09
