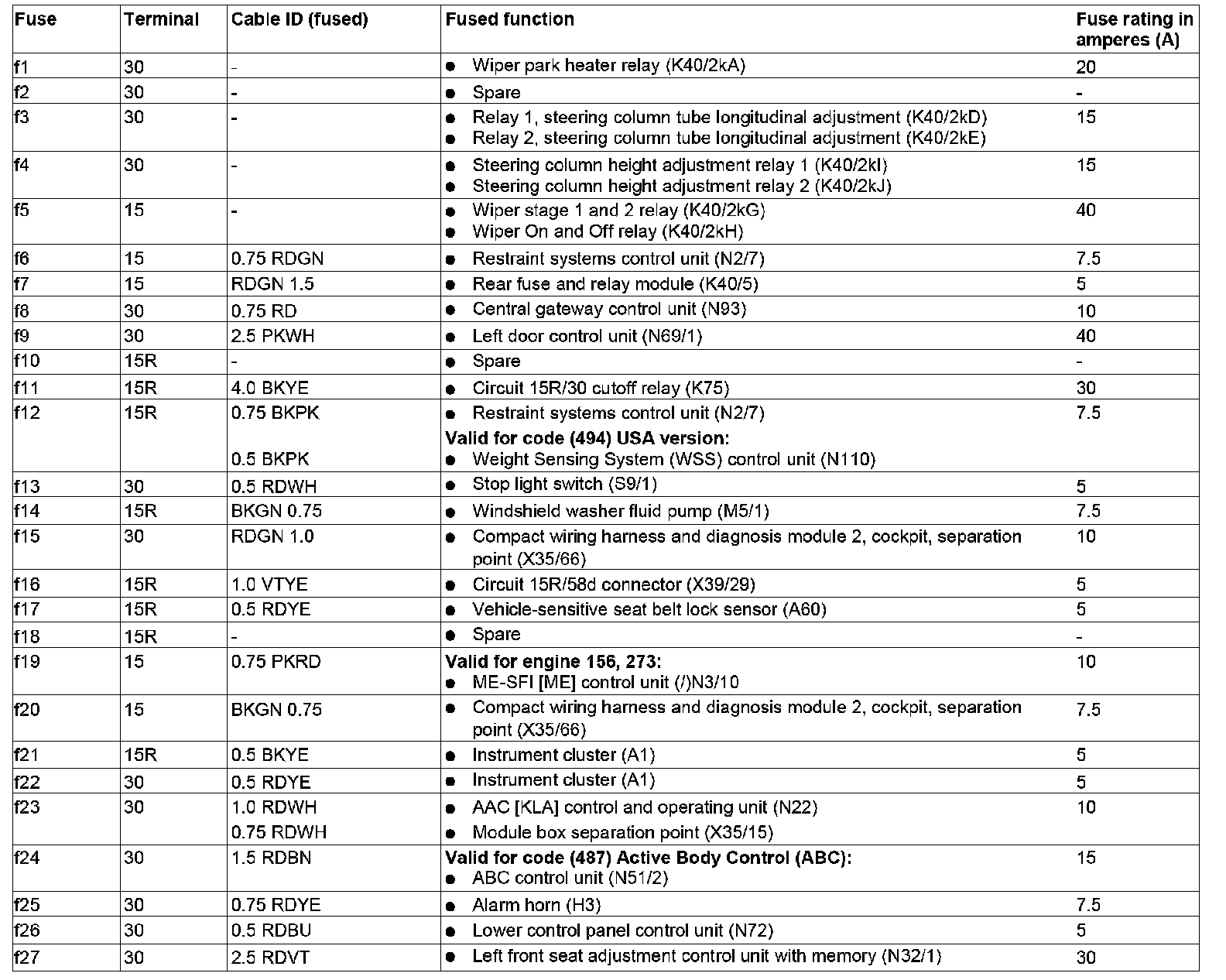

GF54.15-P-1256-03RI Fuse Assignment of Fuse and Relay Box In Left Engine Compartment



GF54.15-P-1256-03RI Fuse Assignment Of Fuse And Relay Box In Left Engine Compartment
- except CODE (P99) Special model "AMG Black Series"
- as of model year 09

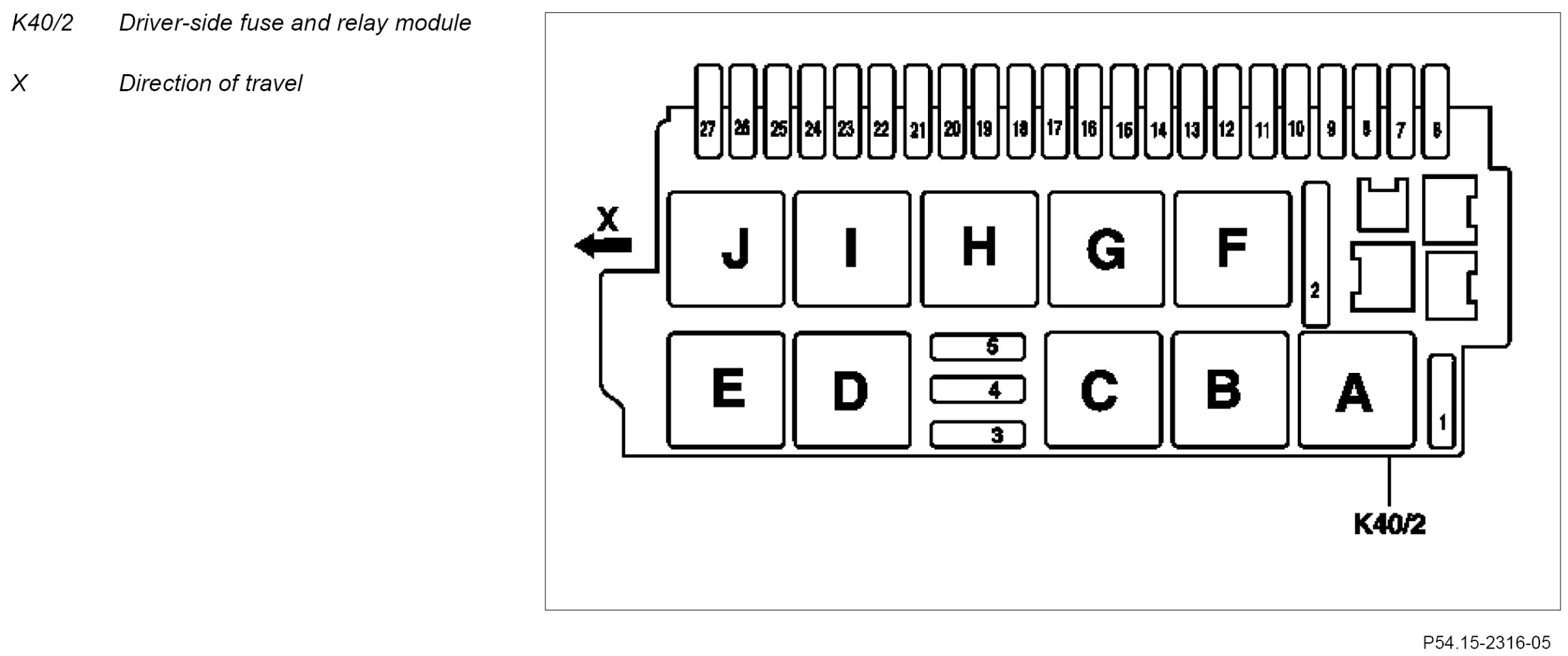

Component Identification:
