AR40.20-P-0261SX Rear Axle Toe
AR40.20-P-0261SX Rear Axle Toe
AR40.20-P-0261SX Rear Axle Toe

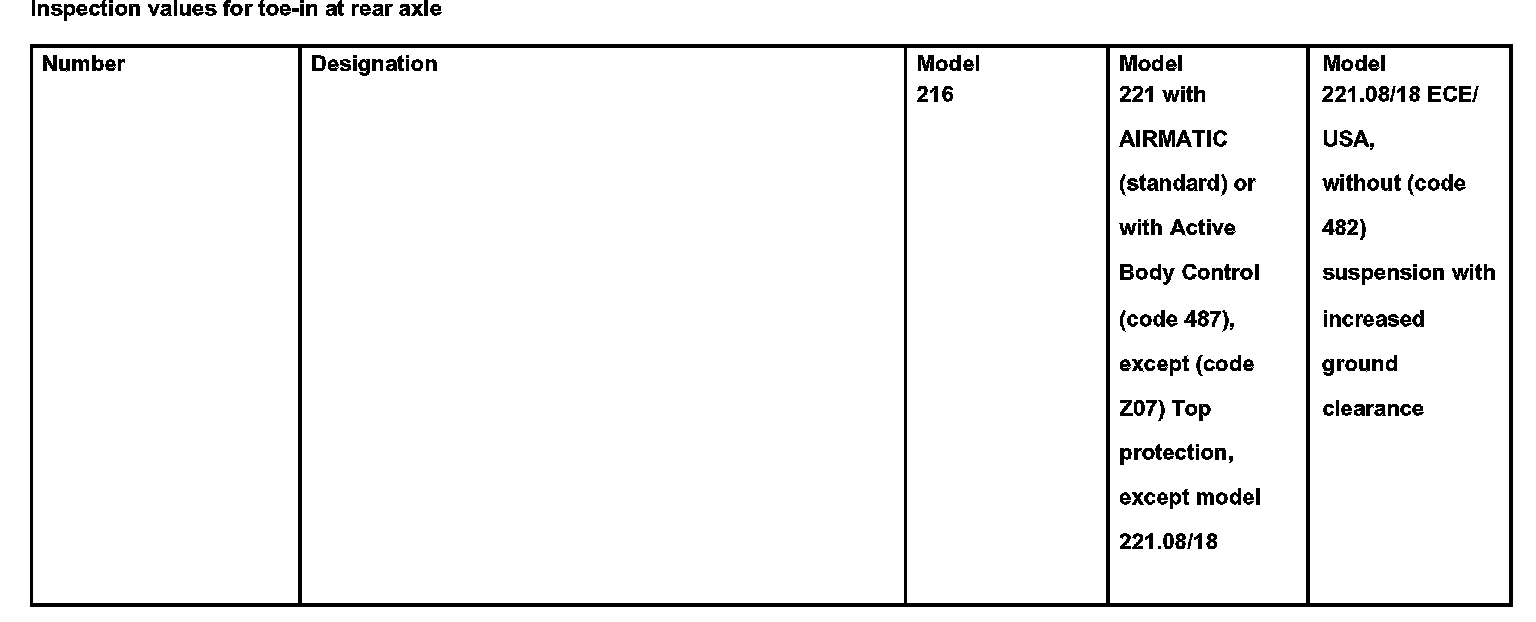

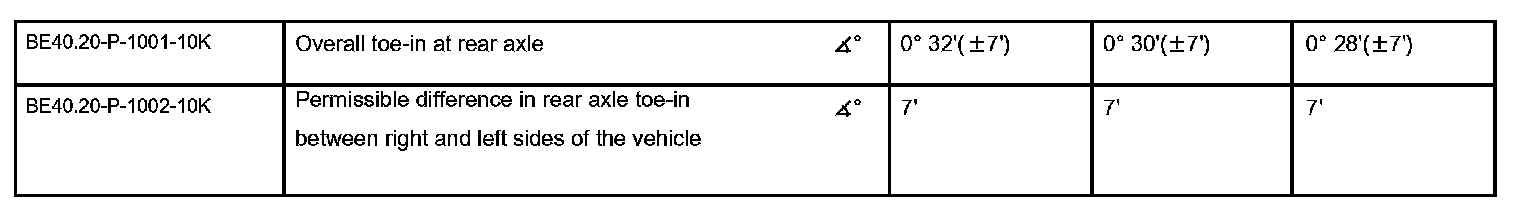

Inspection values for toe-in at rear axle:

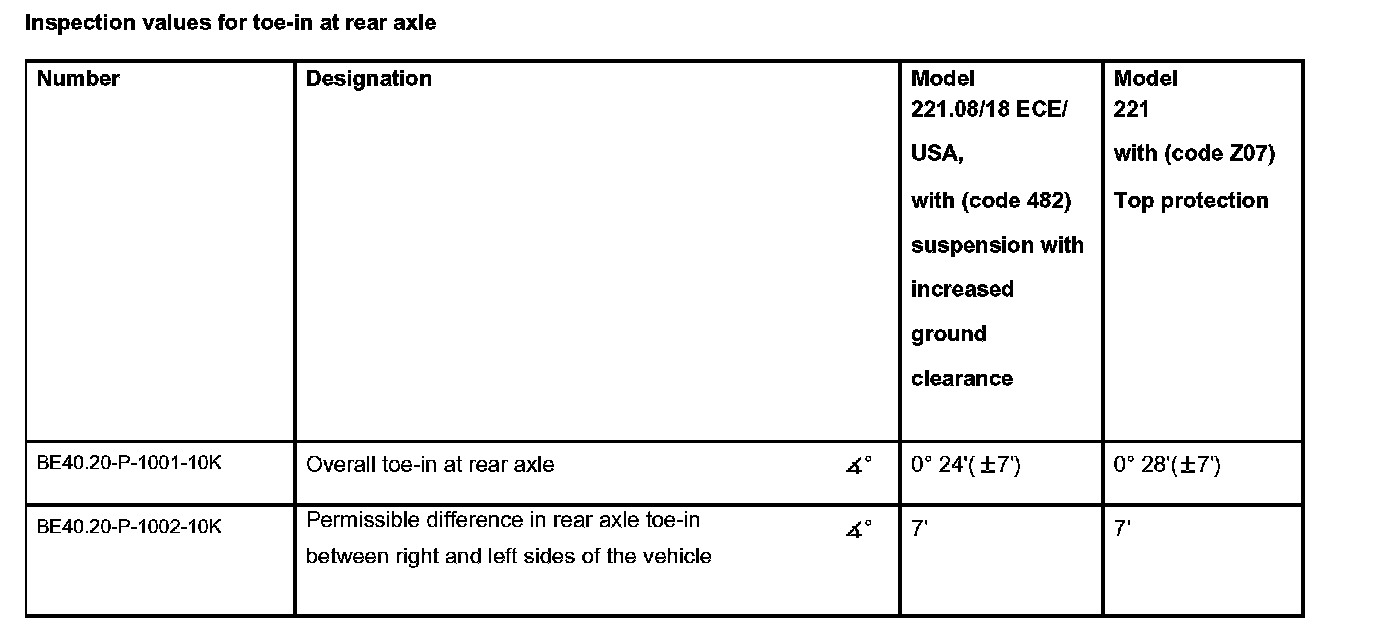

Inspection values for toe-in at rear axle:
Inspection values for toe-in at rear axle:
