AN54.30-P-1000SX Retrofit SPLITVIEW Display



AN54.30-P-1000SX Retrofit Splitview Display
- except CODE (Z07) Top protection

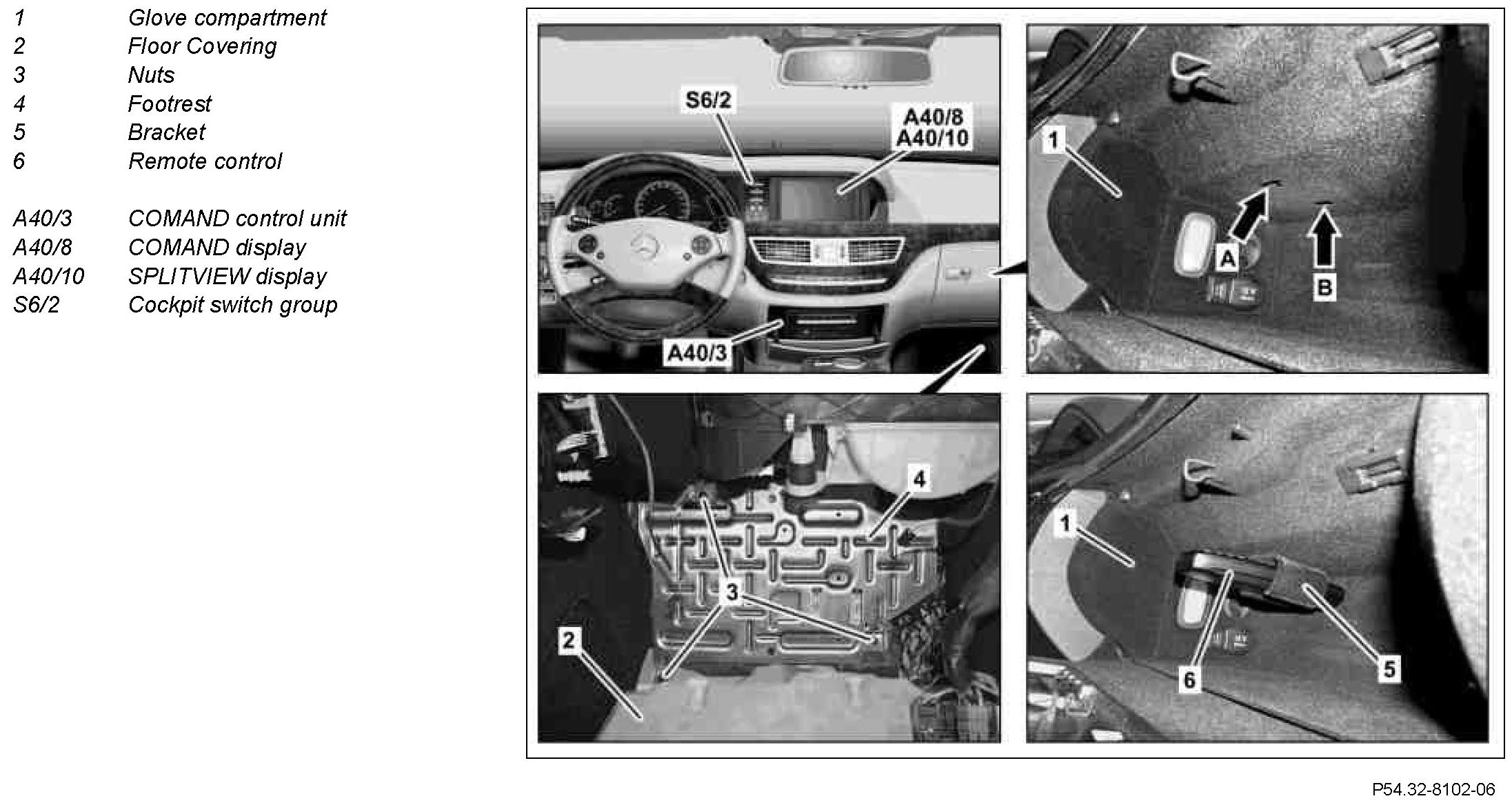

Component Identification:

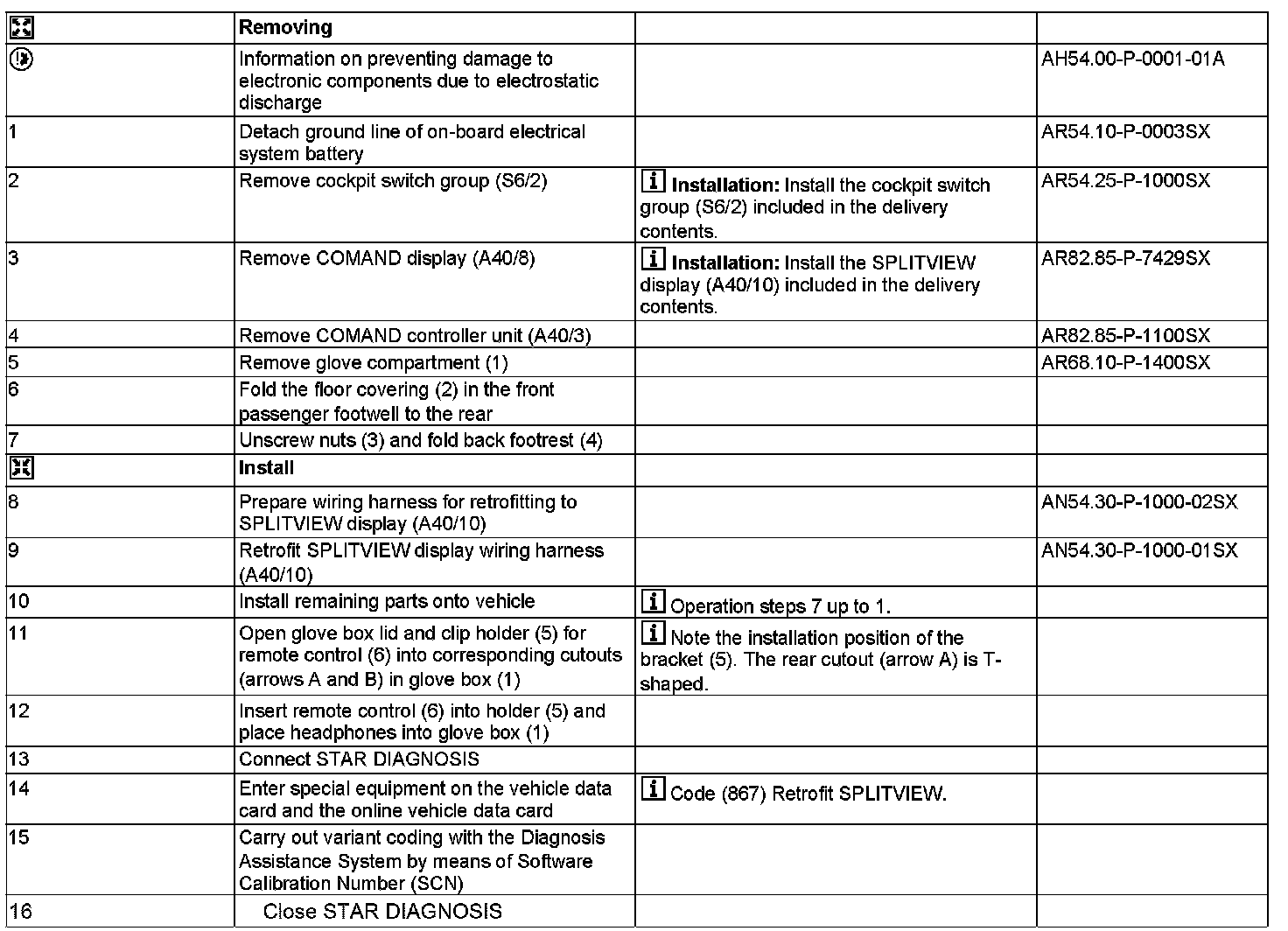

Steps 1-16:

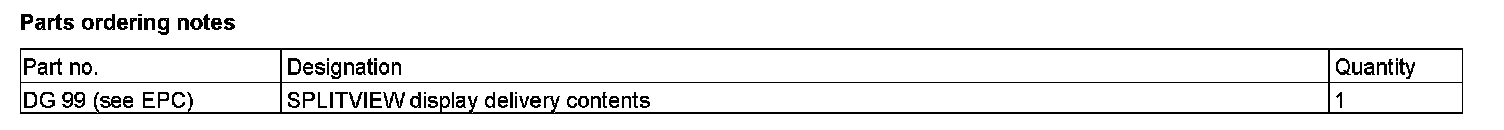

Parts Ordering Notes:
