Home
>>
Mercedes Benz
>>
2009
>>
E 550 4MATIC (211.090) V8-5.5L (273.962)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Engine
>>
Cylinder Block Assembly
>>
System Specifications
>>

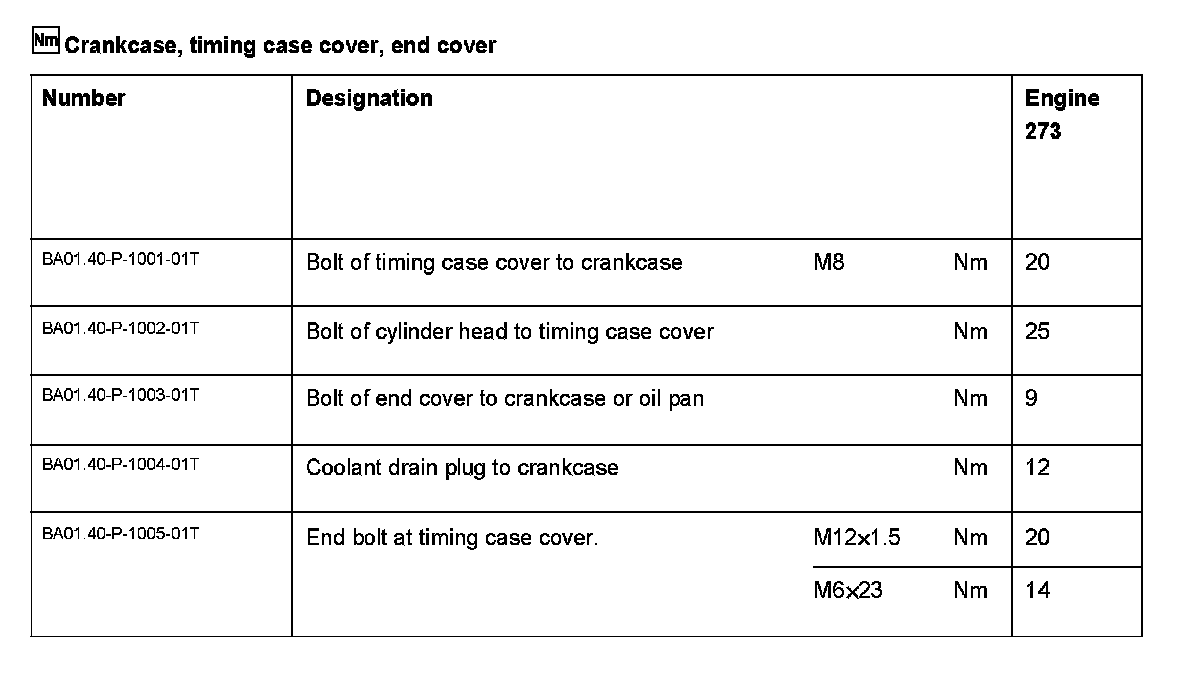

BA01.40-P-1000-01T Crankcase, Timing Case Cover, End Cover
BA01.40-P-1000-01T Crankcase, Timing Case Cover, End Cover
BA01.40-P-1000-01T Crankcase, Timing Case Cover, End Cover
ENGINE 273
