AR91.16-P-0050CW Remove/Install Head Restraint Guide on Front Seat



AR91.16-P-0050CW Remove/Install Head Restraint Guide On Front Seat

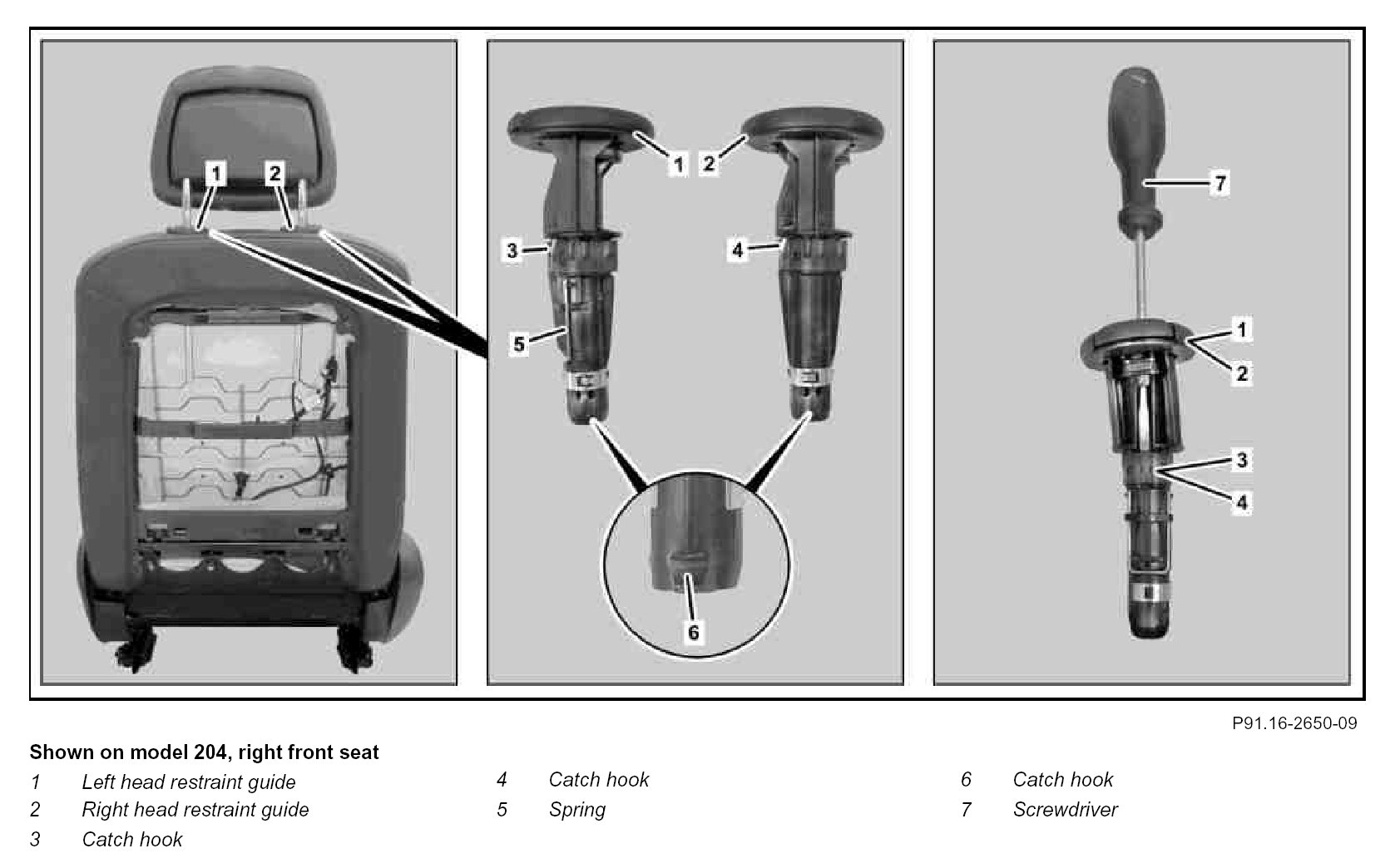

Component Identification:




Modification Notes:

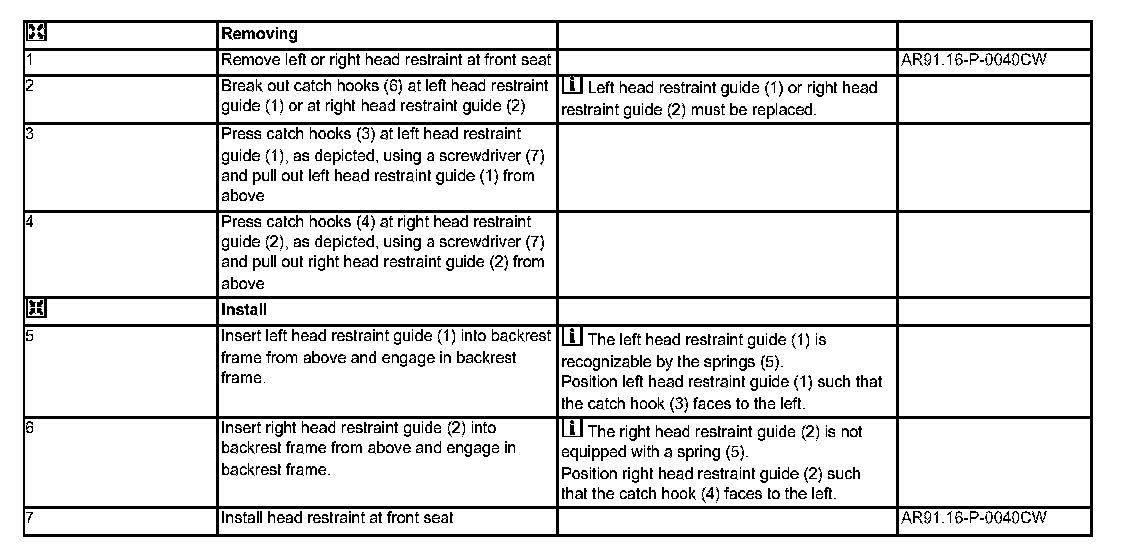

Steps 1 - 7:
