Air Diverter Valve: Service and Repair
AR14.30-P-7200TS Remove/Install Air Shutoff Valve

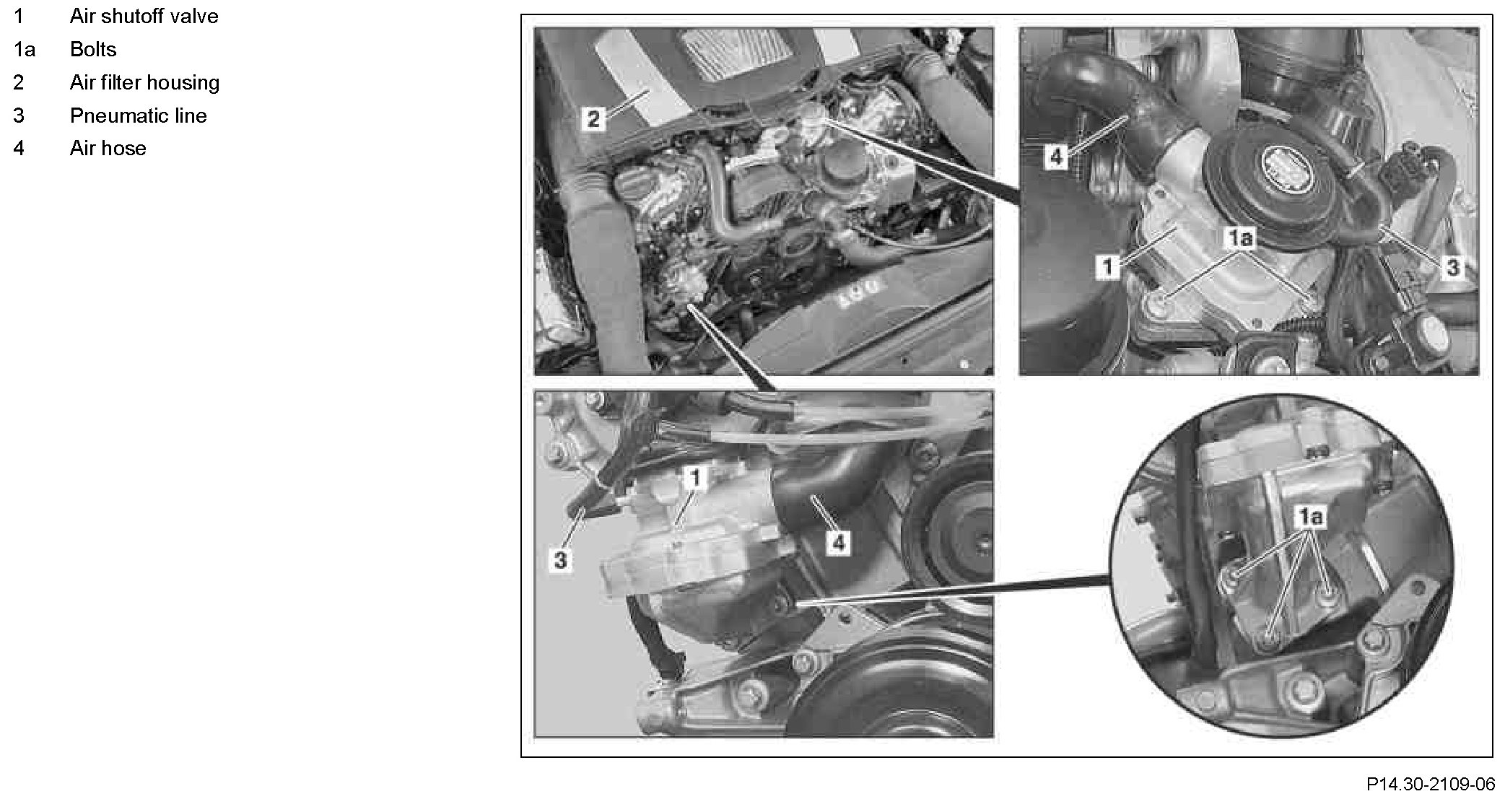

Component Identification:
Modification Notes:

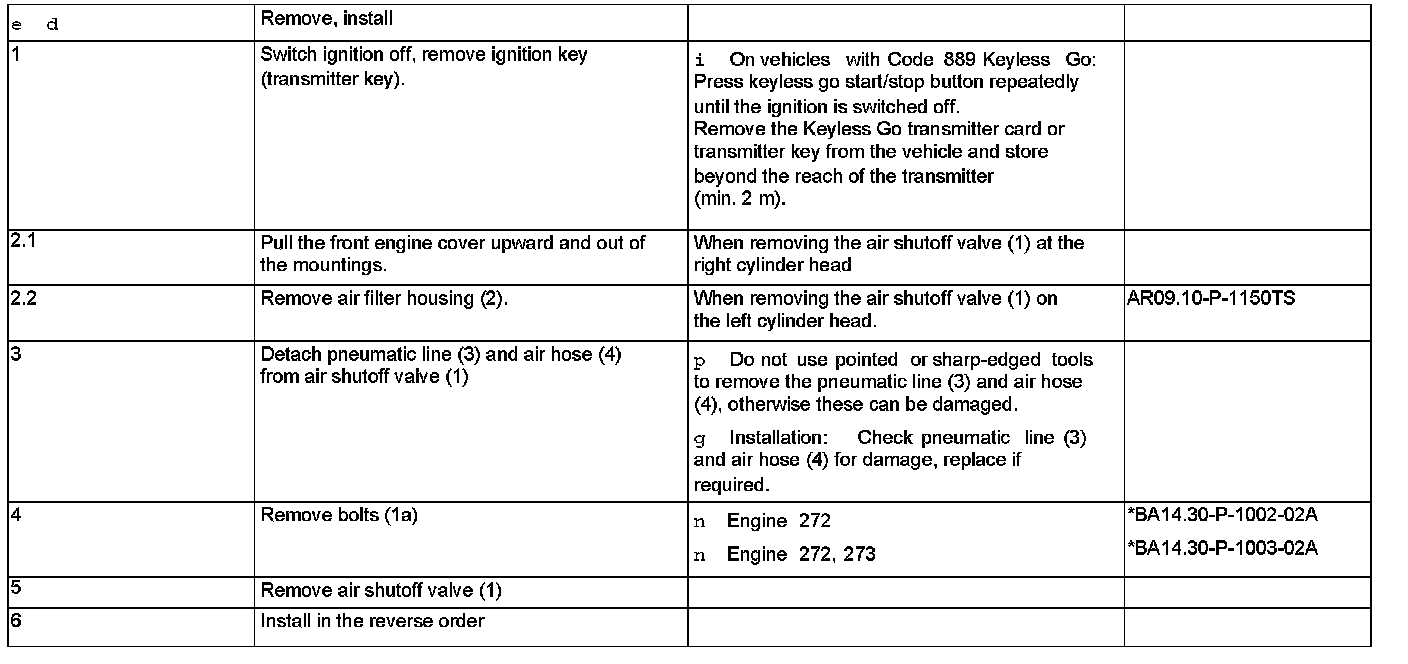

Steps 1 - 6:

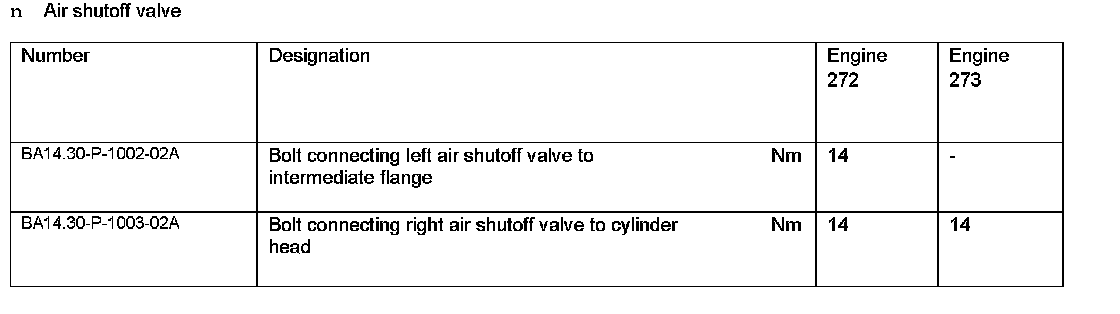

Air Shutoff Valve:
