GF54.15-P-1256-08TM Fuse Assignment of Rear Prefuse Box
GF54.15-P-1256-08TM Fuse Assignment of Rear Prefuse Box

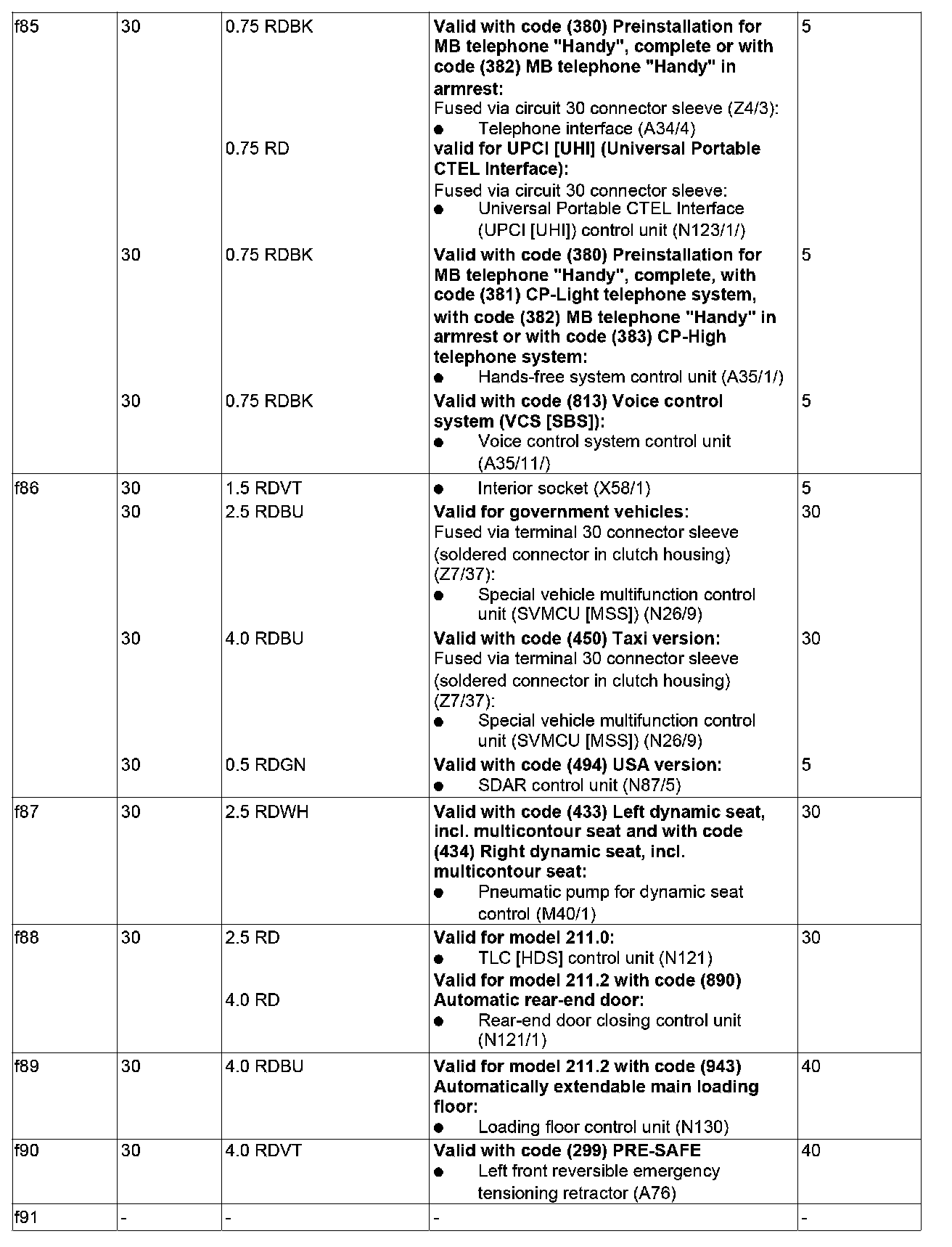

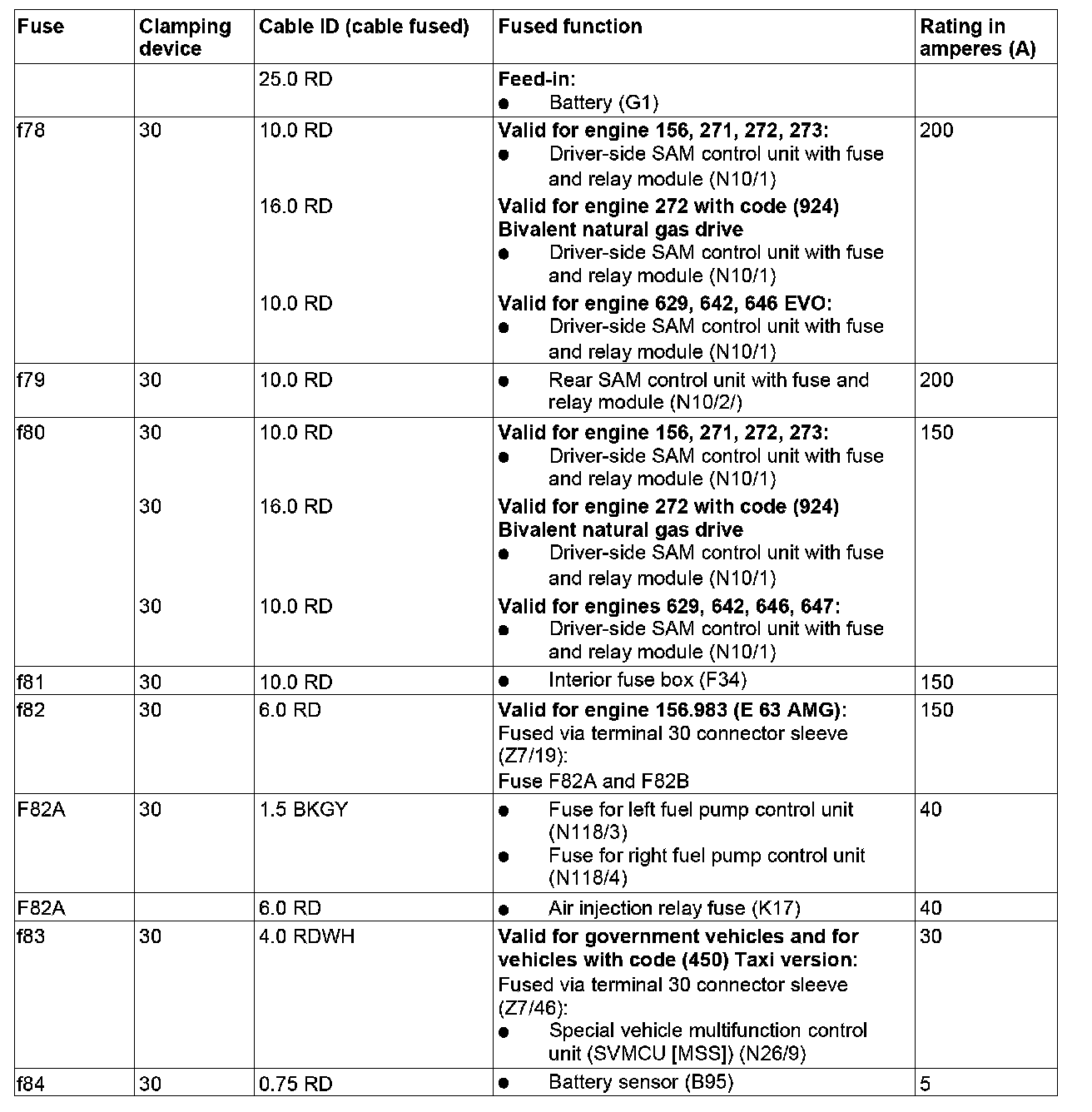

GF54.15-P-1256-08TM Fuse assignment of rear prefuse box
- as of model year 07

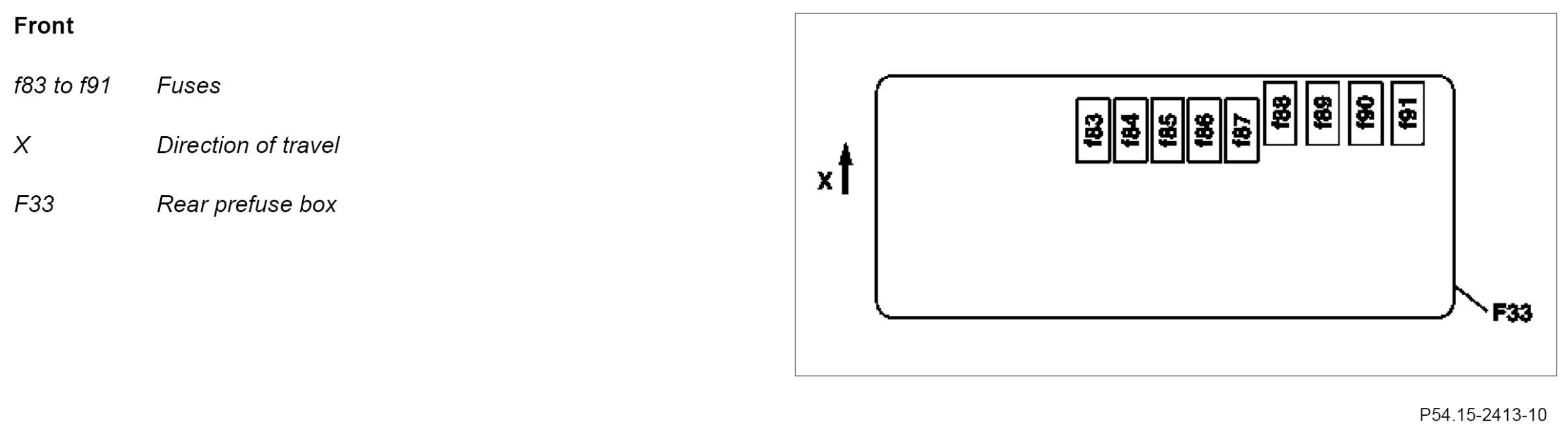

Component Identification:

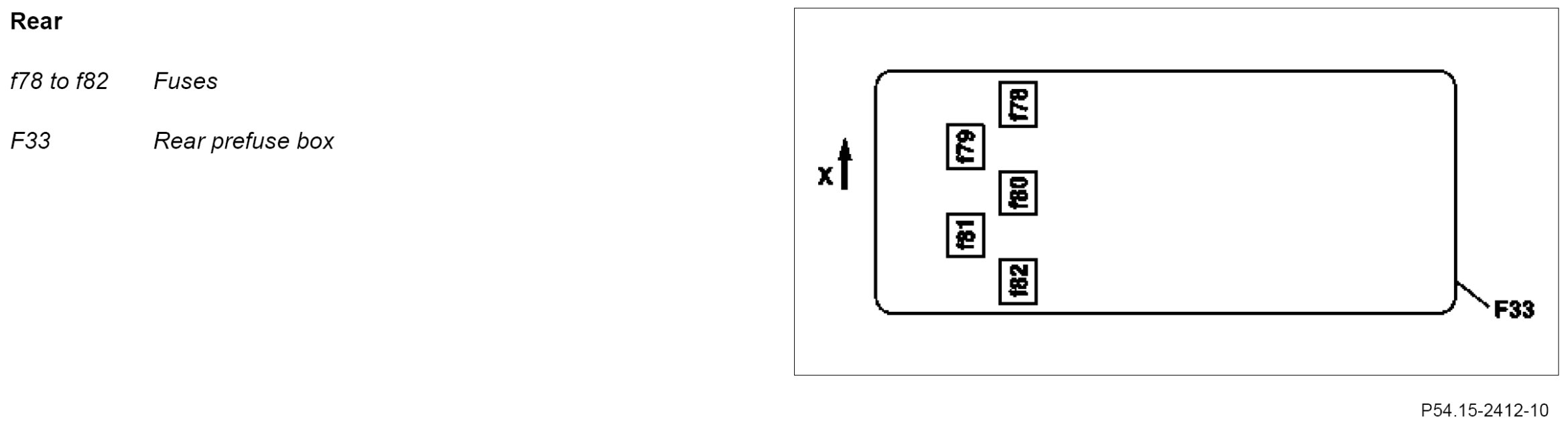

Component Identification:
