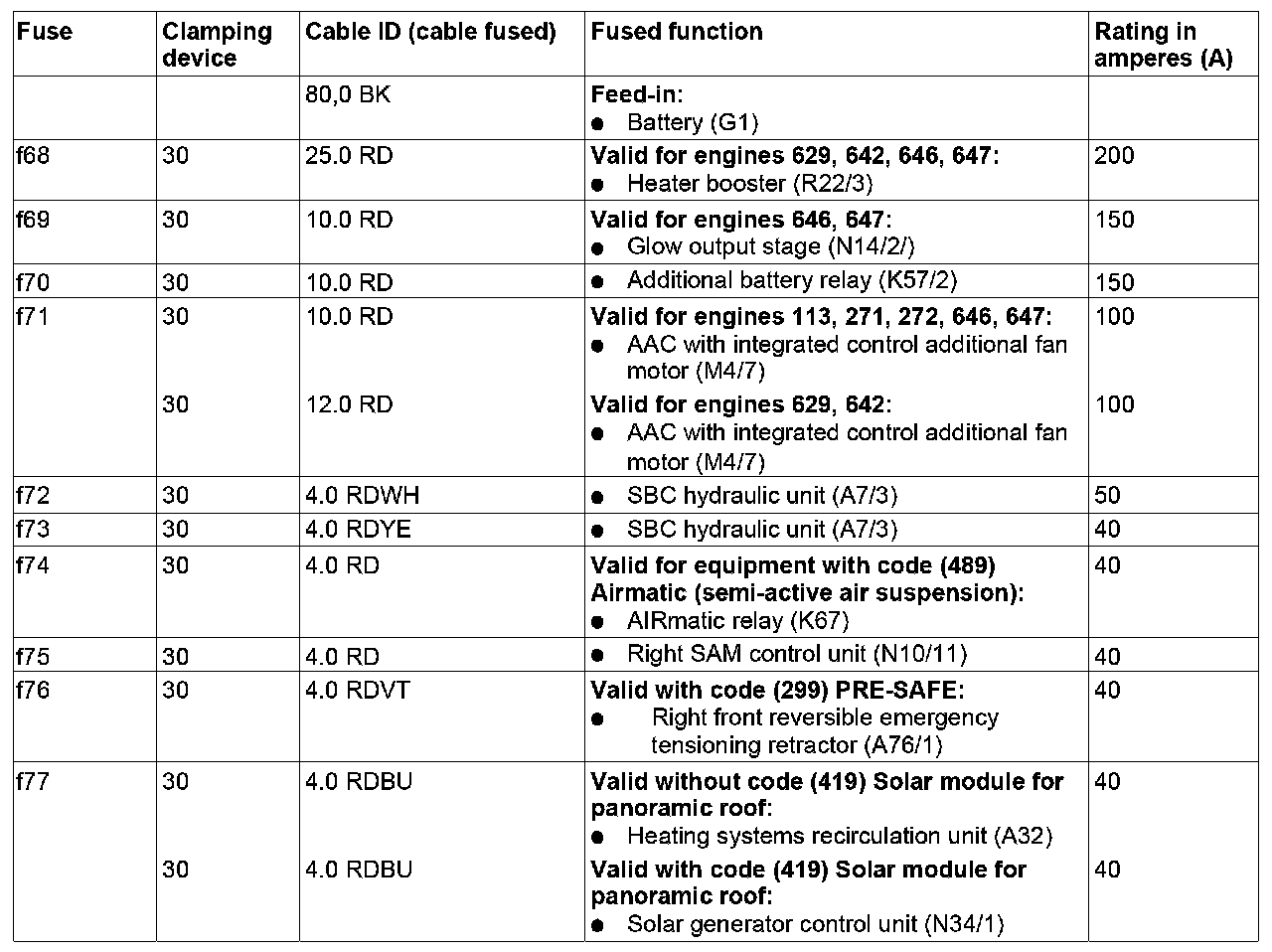

GF54.15-P-1256-07TA Fuse Assignment of Front Prefuse Box
GF54.15-P-1256-07TA Fuse Assignment Of Front Prefuse Box
Component Identification:

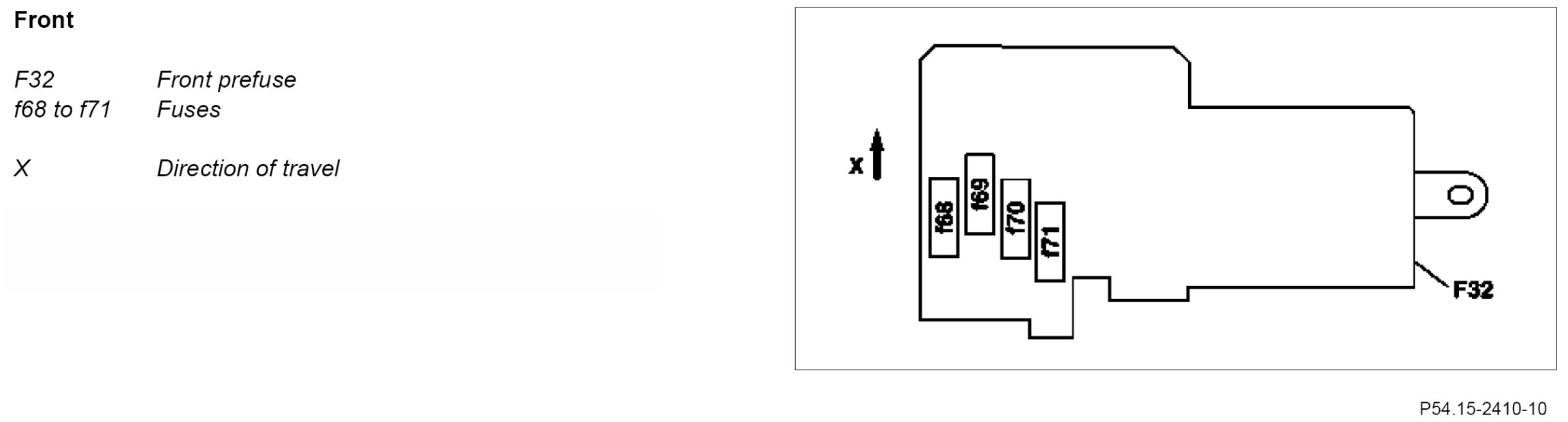

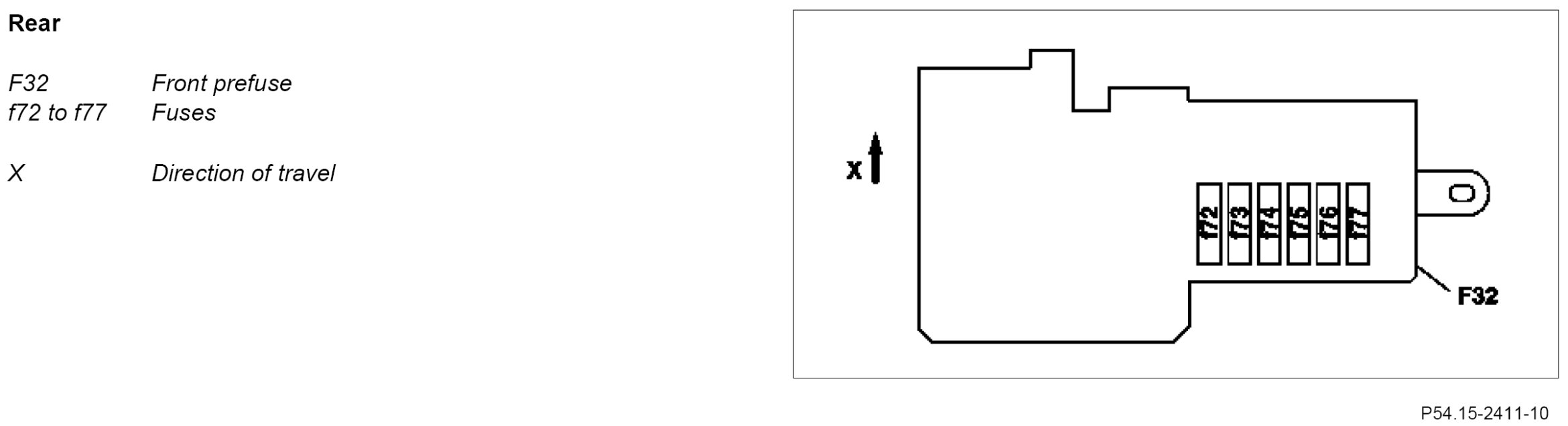

The front prefuse (F32) is located in the footwell on the passenger-side.
Component Identification:
GF54.15-P-1256-07TA Fuse Assignment Of Front Prefuse Box
The front prefuse (F32) is located in the footwell on the passenger-side.
