AR01.10-P-2500TW Remove/Install Engine With Front Axle Carrier

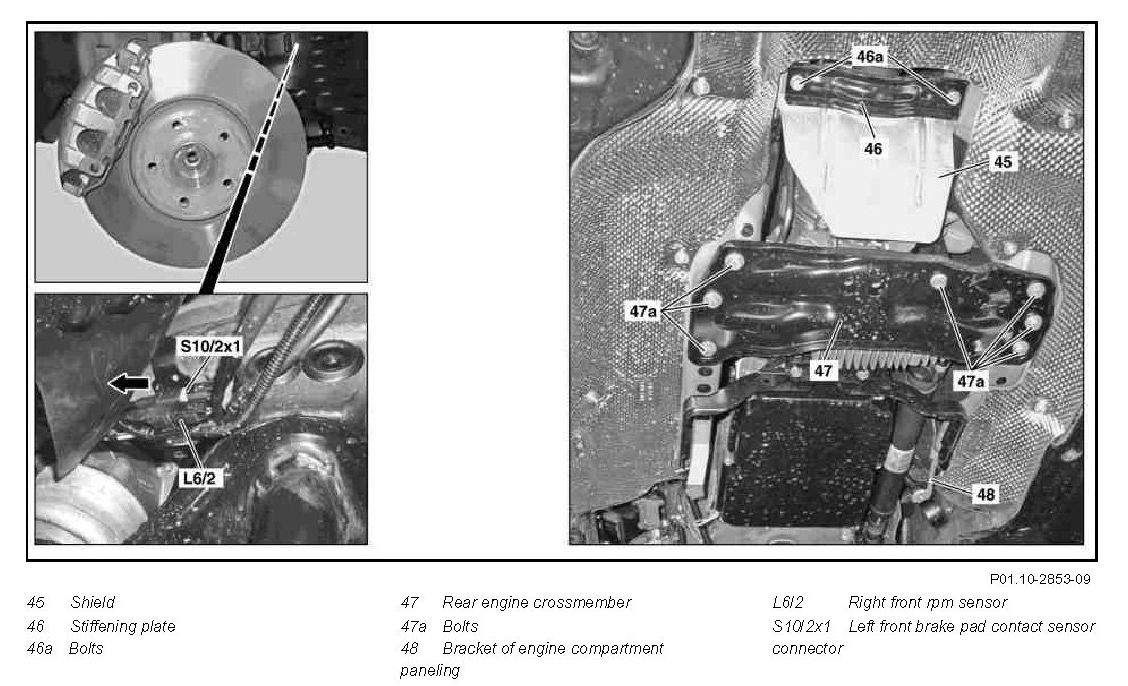

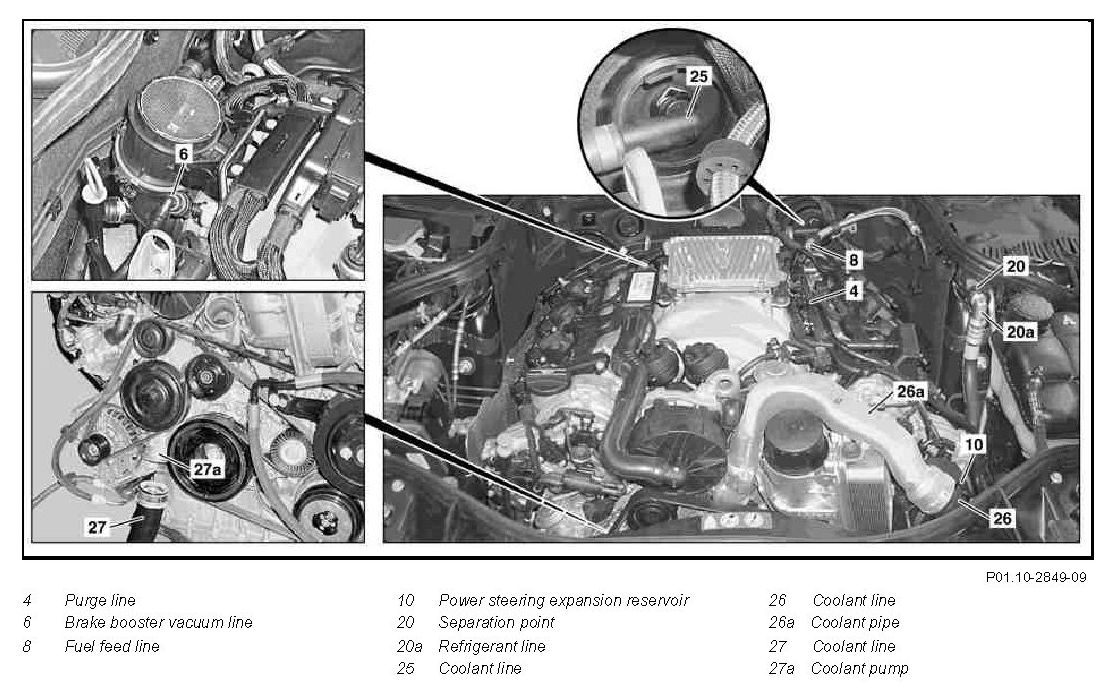

Component Identification:

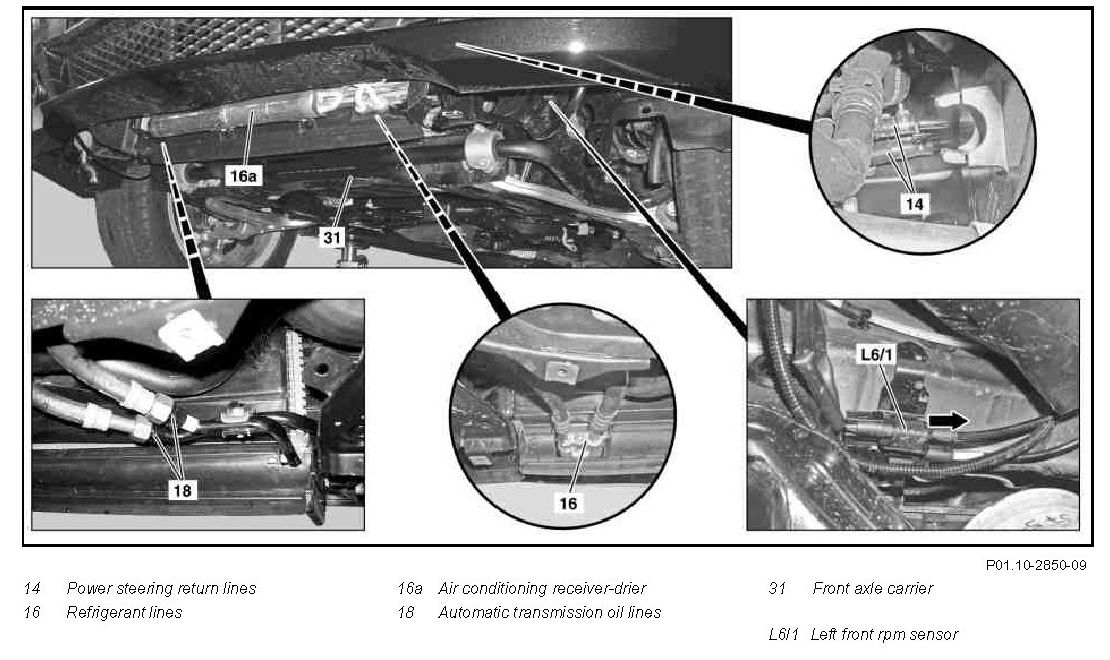

Component Identification:

Component Identification:

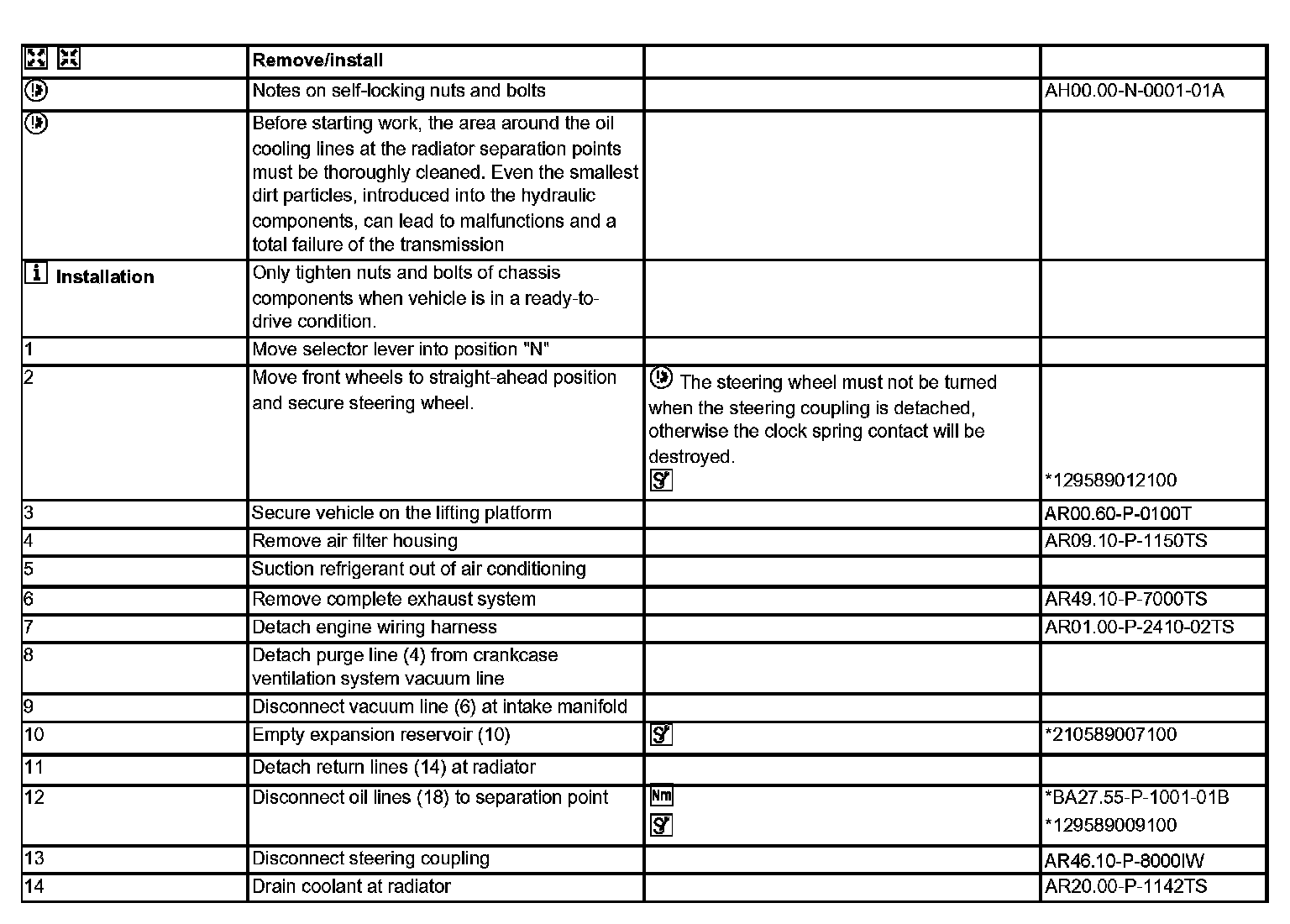

Remove/install Steps 1-14:

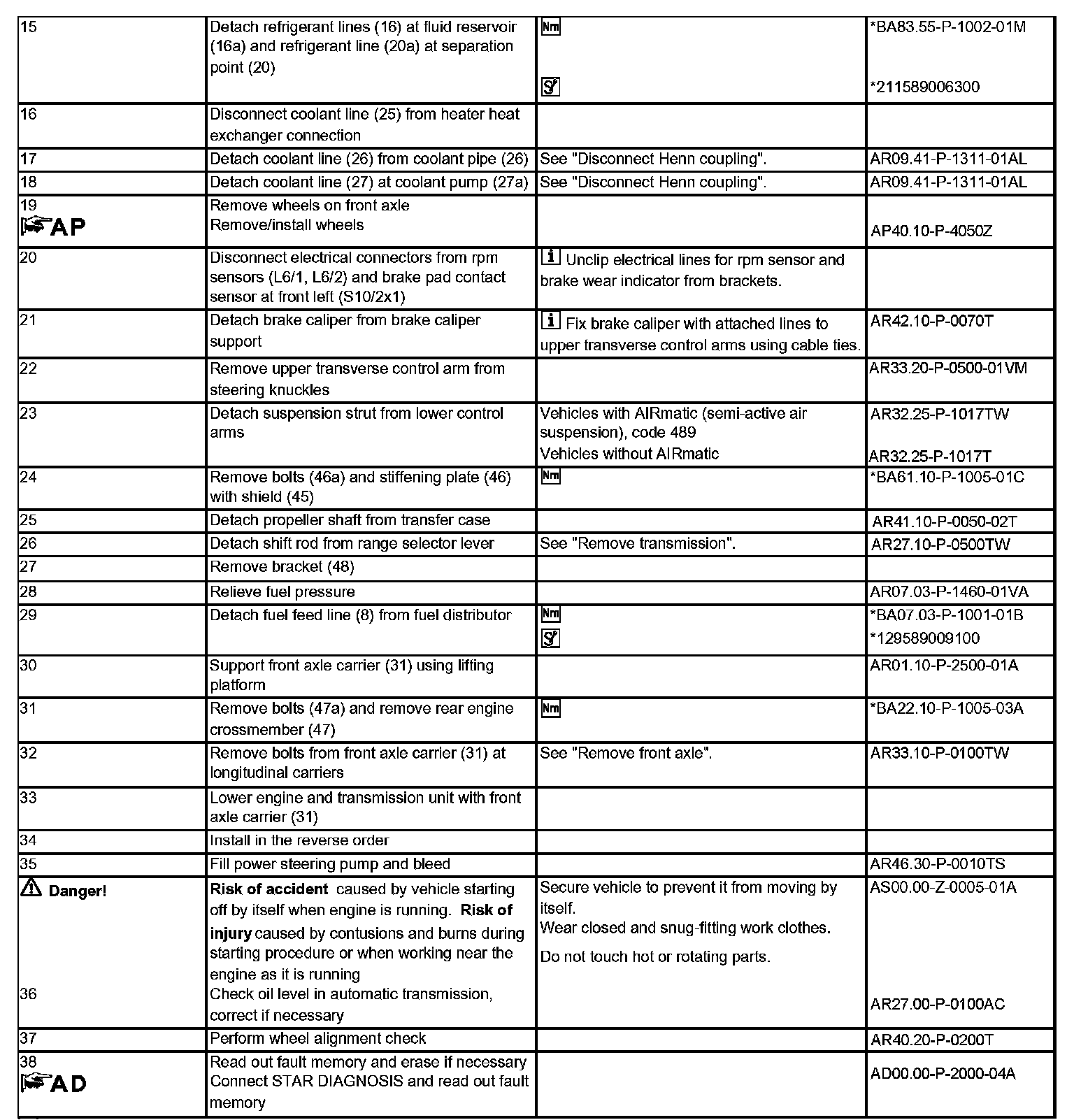

Remove/install Steps 15-38:

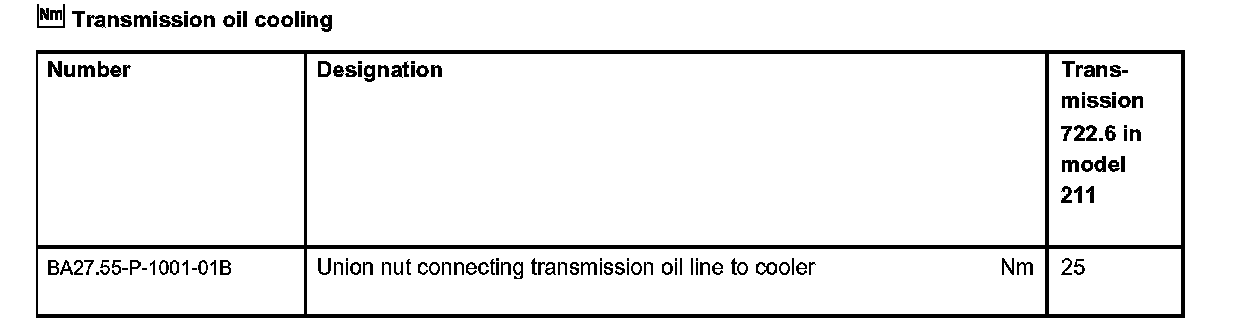

Transmission oil cooling:

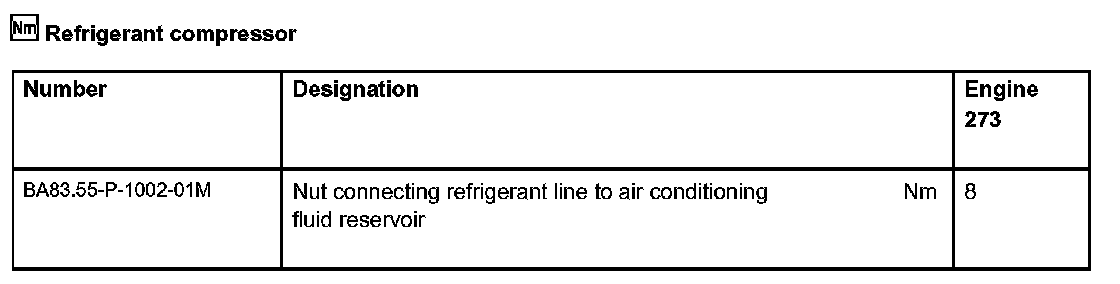

Refrigerant compressor:

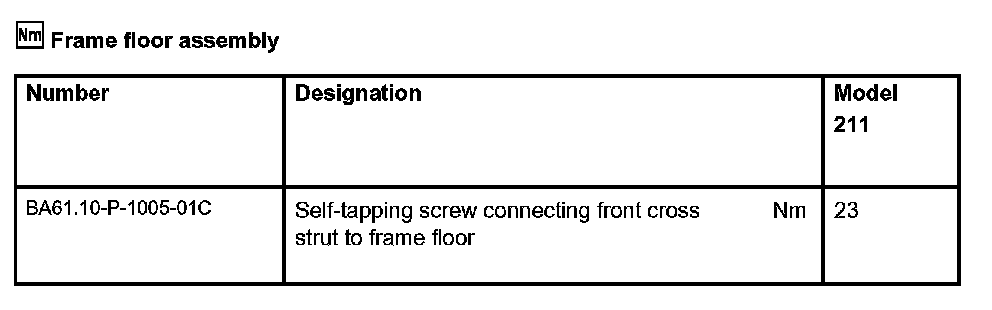

Frame floor assembly:

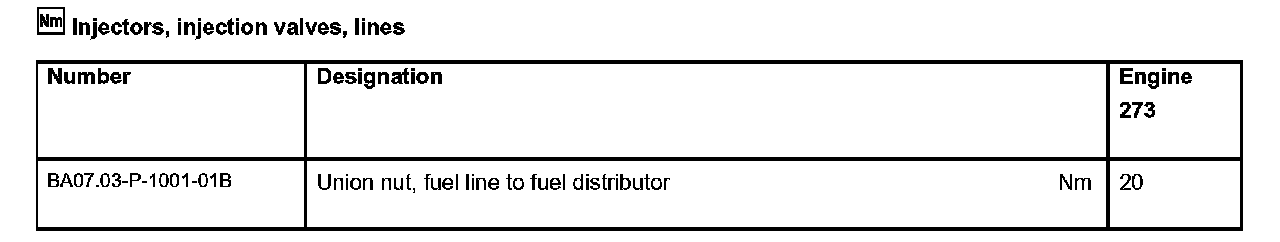

Injectors, injection valves, lines:

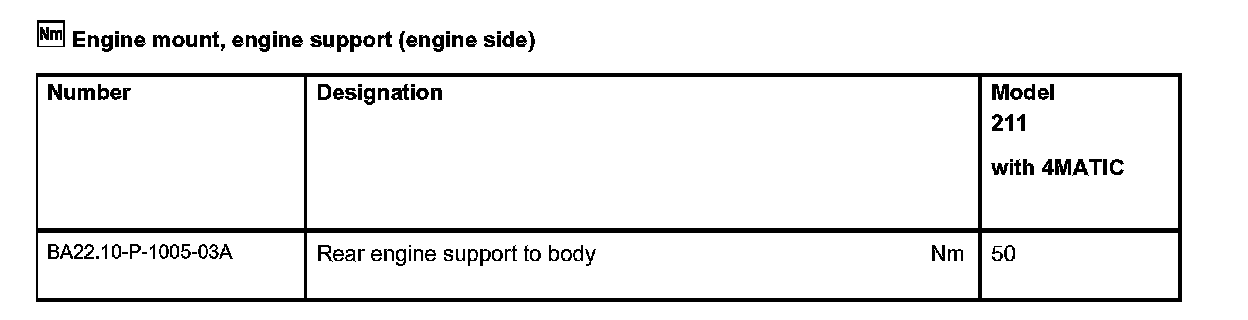

Engine mount, engine support (engine side):

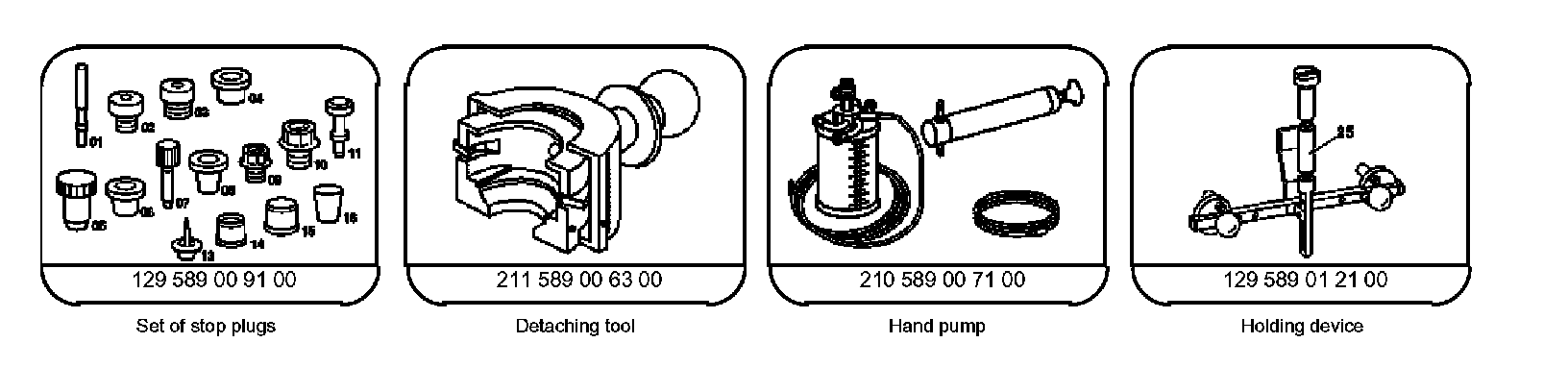

Special Tools:
