Mercedes Benz
>>
2009
>>
E 550 4MATIC (211.090) V8-5.5L (273.962)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Disc Brake System
>>
Brake Caliper
>>
Service and Repair
>>
Procedures
>>

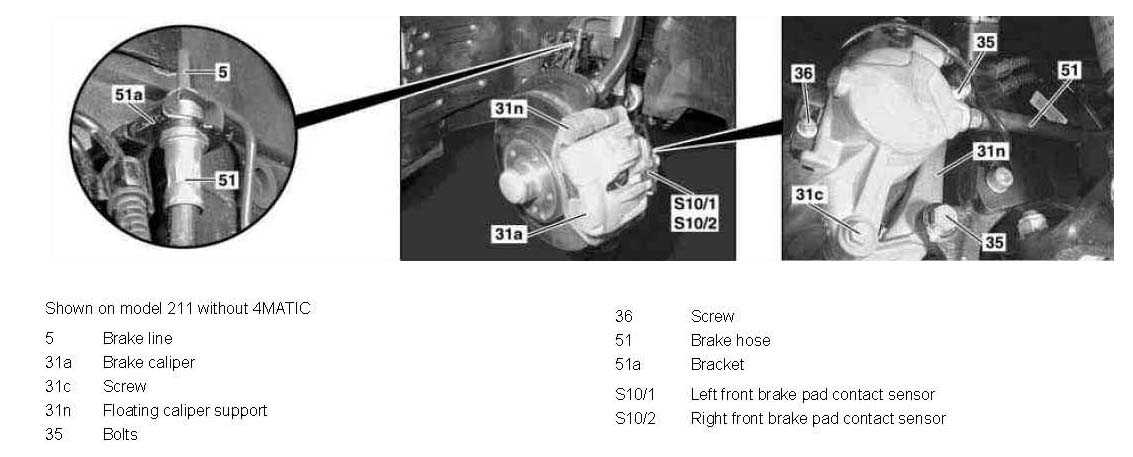

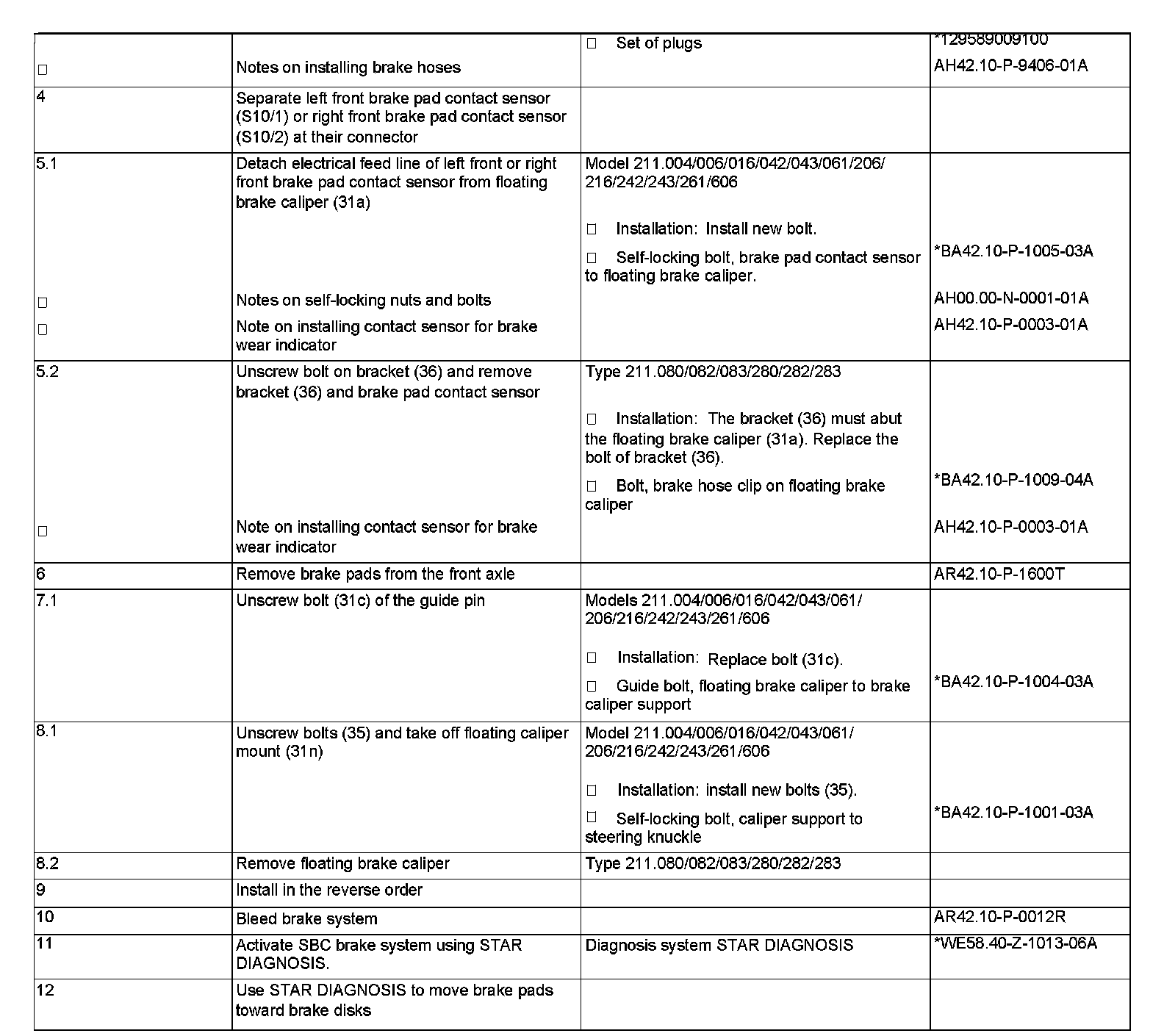

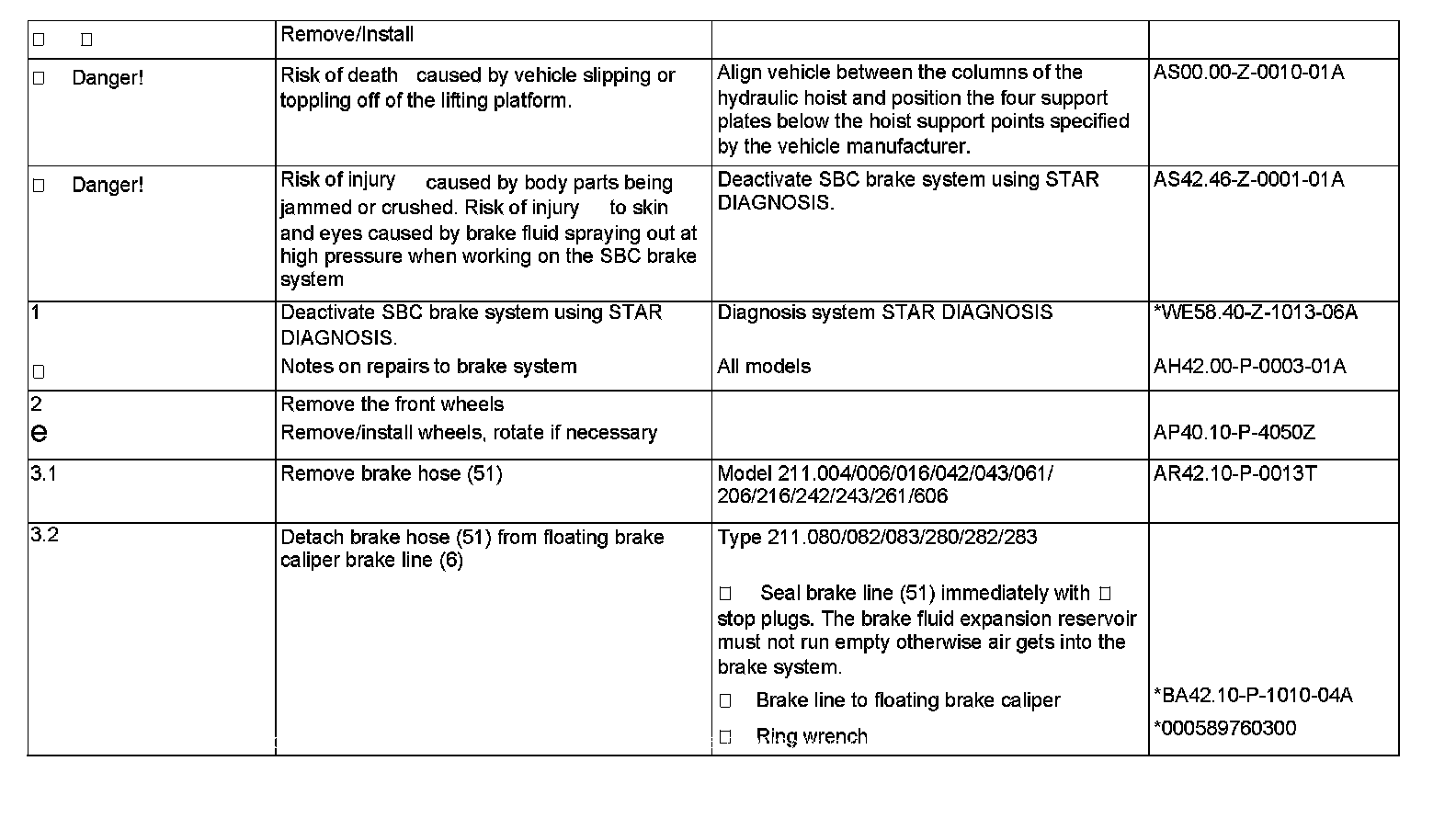

AR42.10-P-0070T Remove/Install Front Axle Brake Caliper
AR42.10-P-0070T Remove/Install Front Axle Brake Caliper
Remove/install front axle
brake caliper
Brake lines, brake hoses:
