AR67.10-P-1050T Remove, Install Detachable Parts When Replacing Windshield



AR67.10-P-1050T Remove, Install Detachable Parts When Replacing Windshield

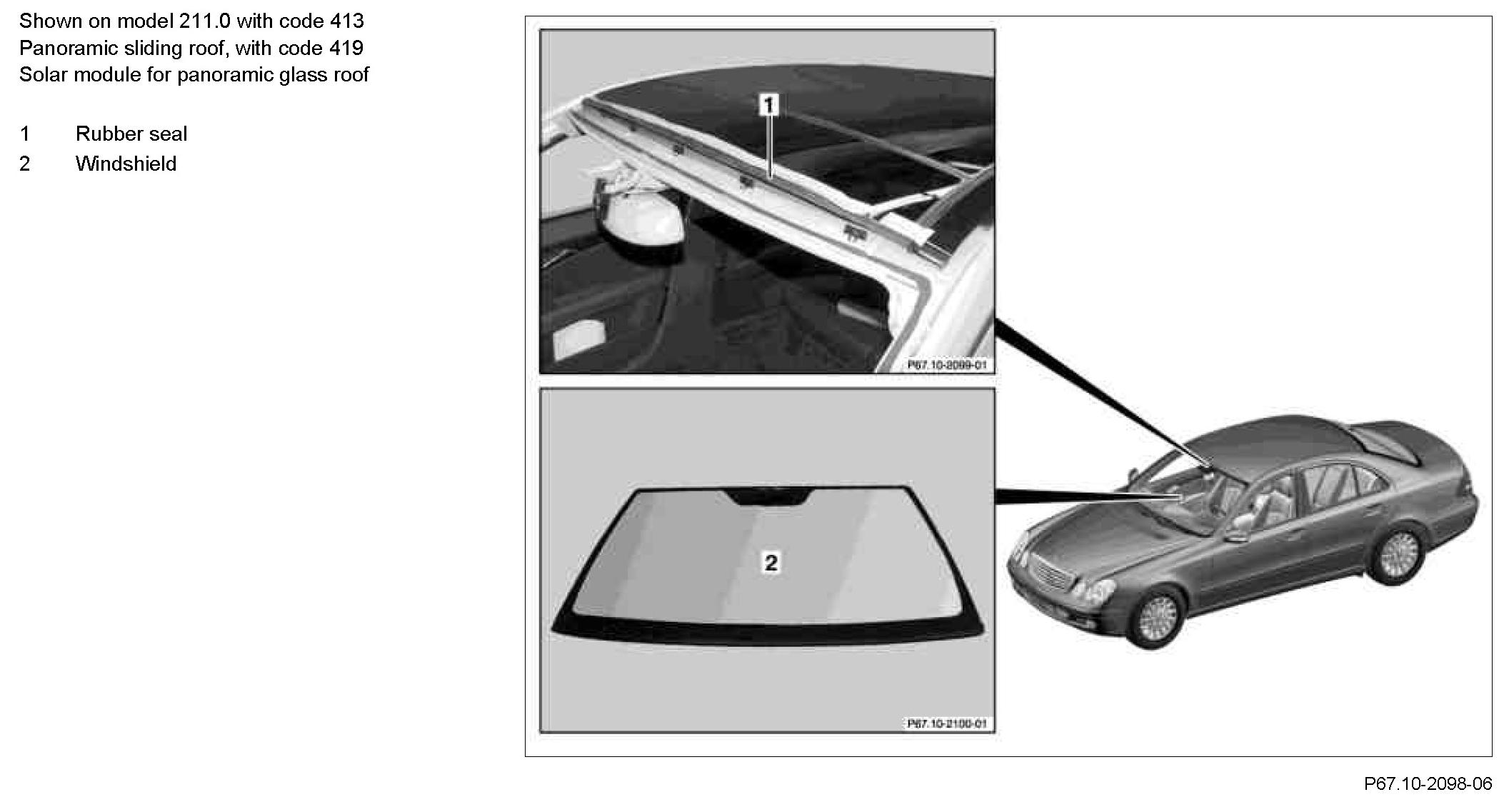

Component Identification:

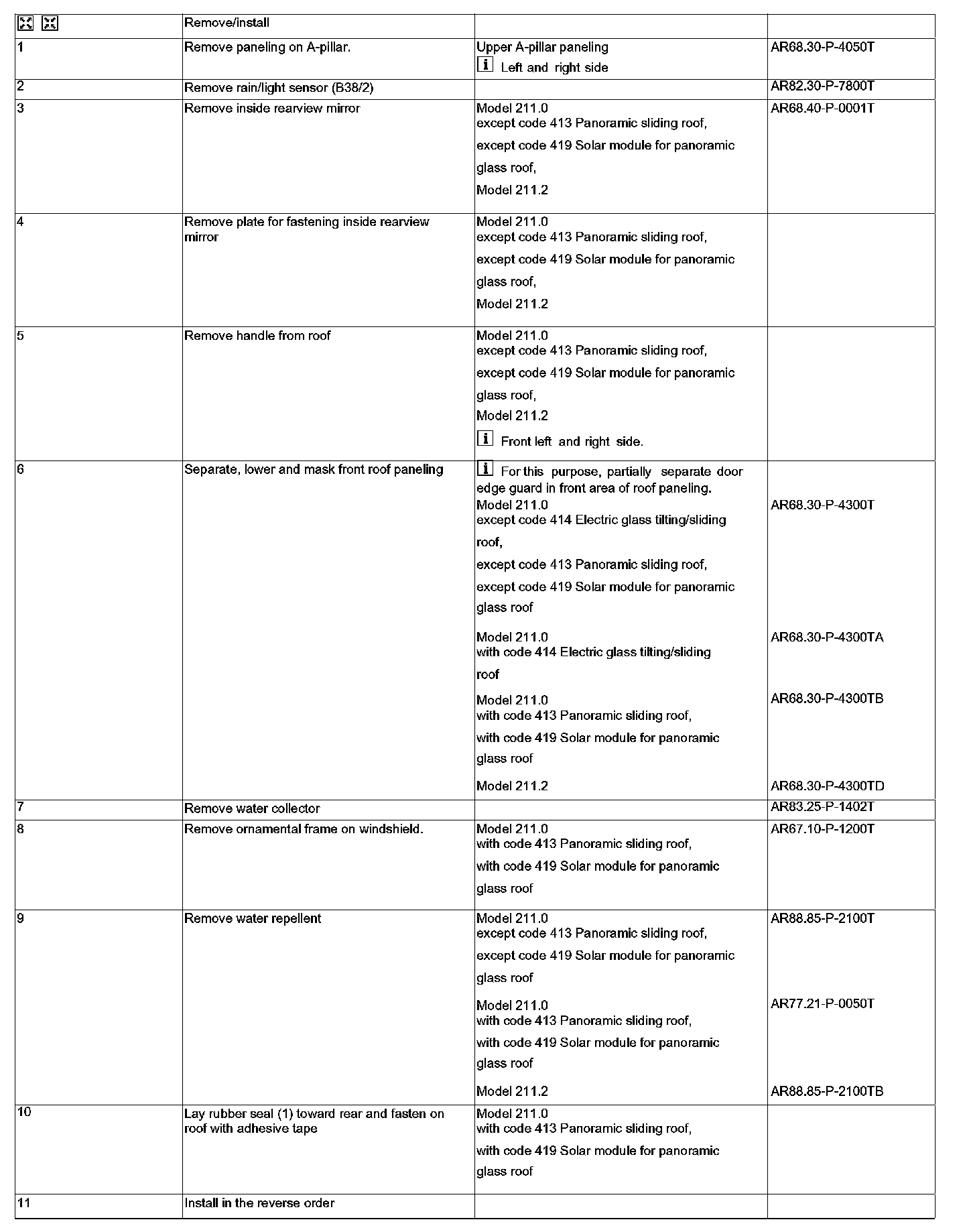

Steps 1 - 11:
