Mirrors: Service and Repair



AR88.70-P-9020TX Remove/install Mirror Lens

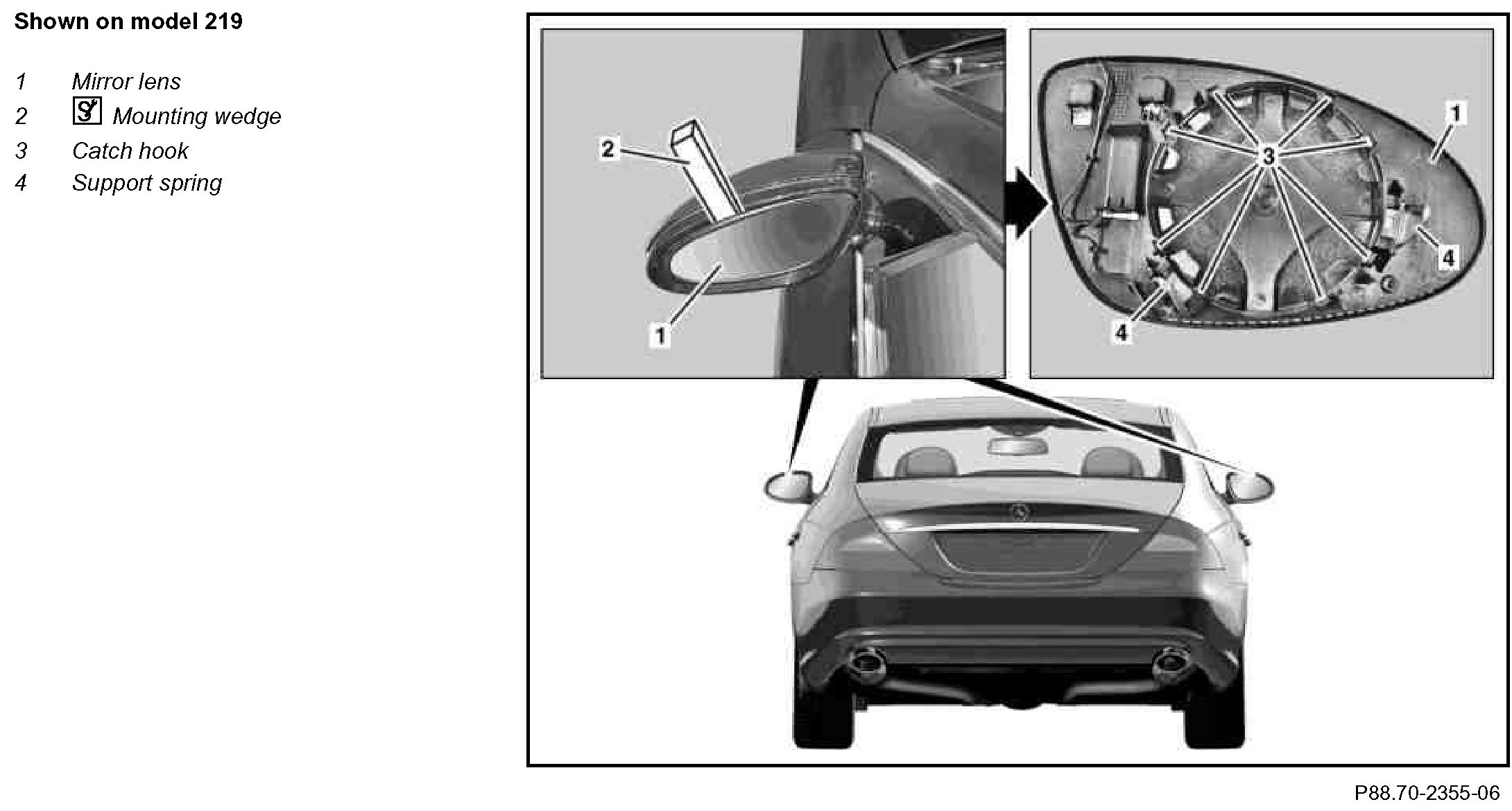

Component Identification:

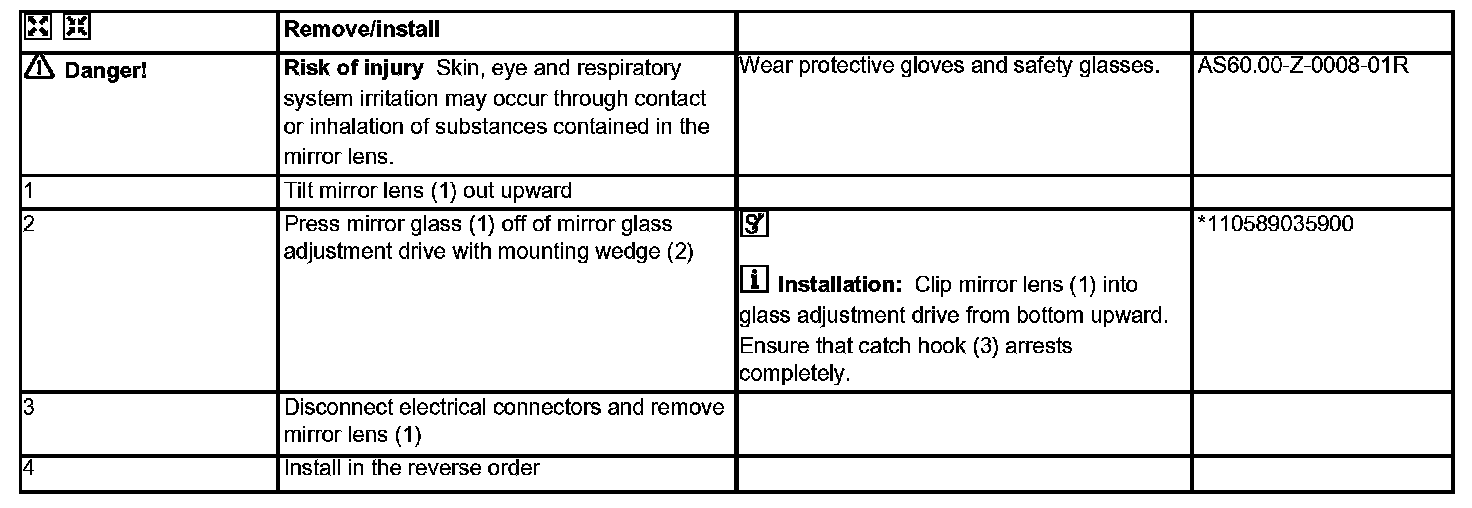

Steps 1-4:




Special Tool:
