Water Pump: Service and Repair



AR20.10-P-1271TMG Remove/install coolant pump

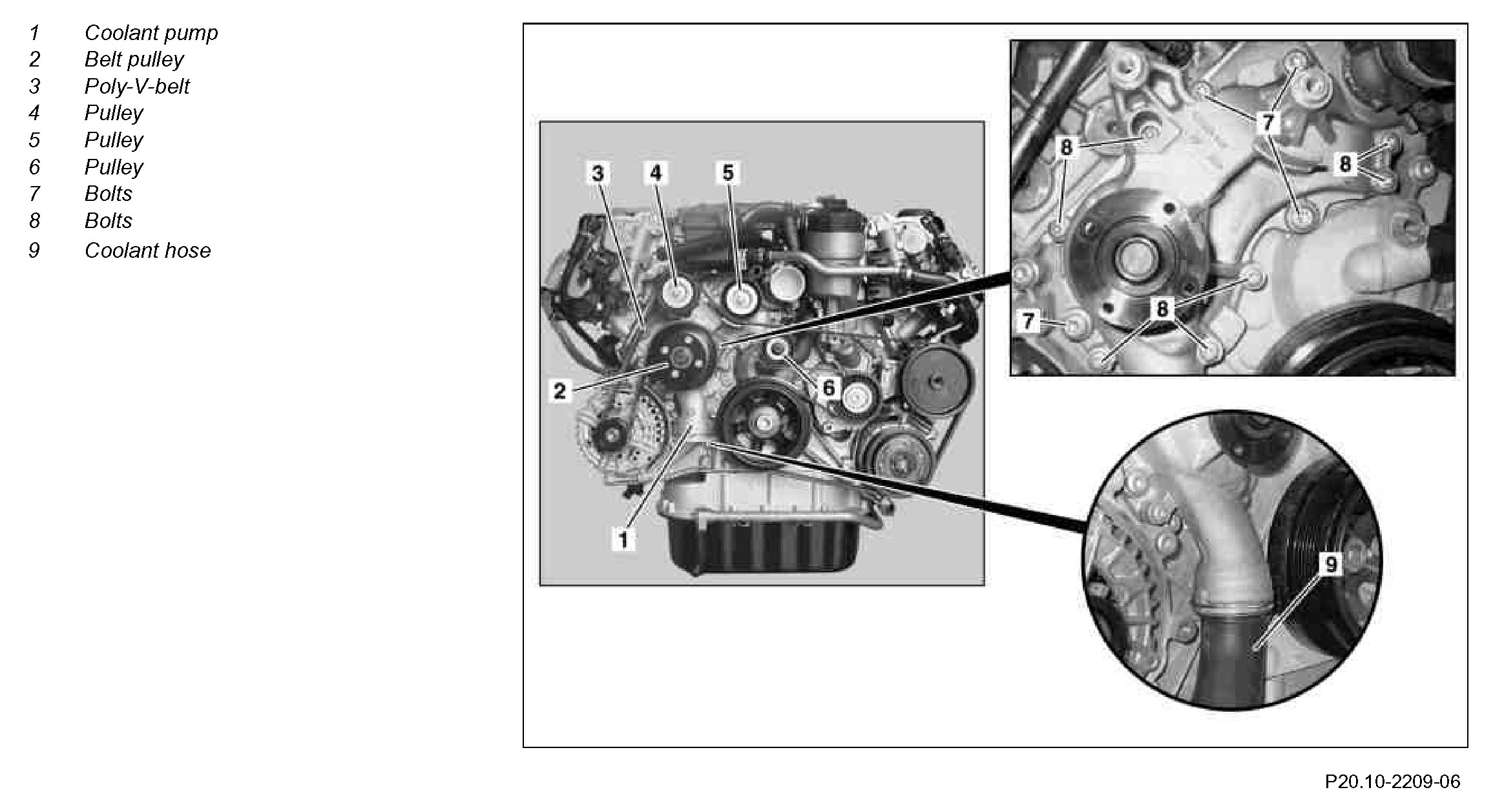

Component Identification:

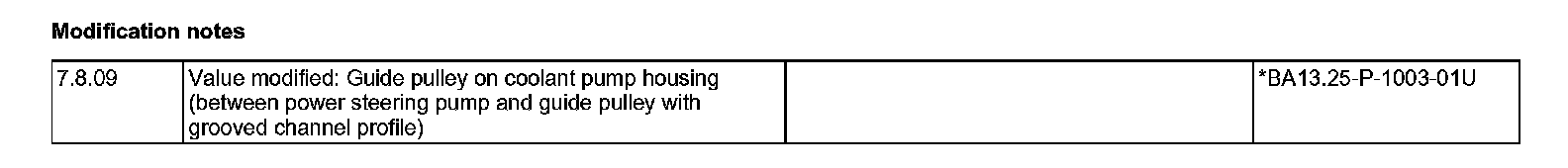

Modification notes:

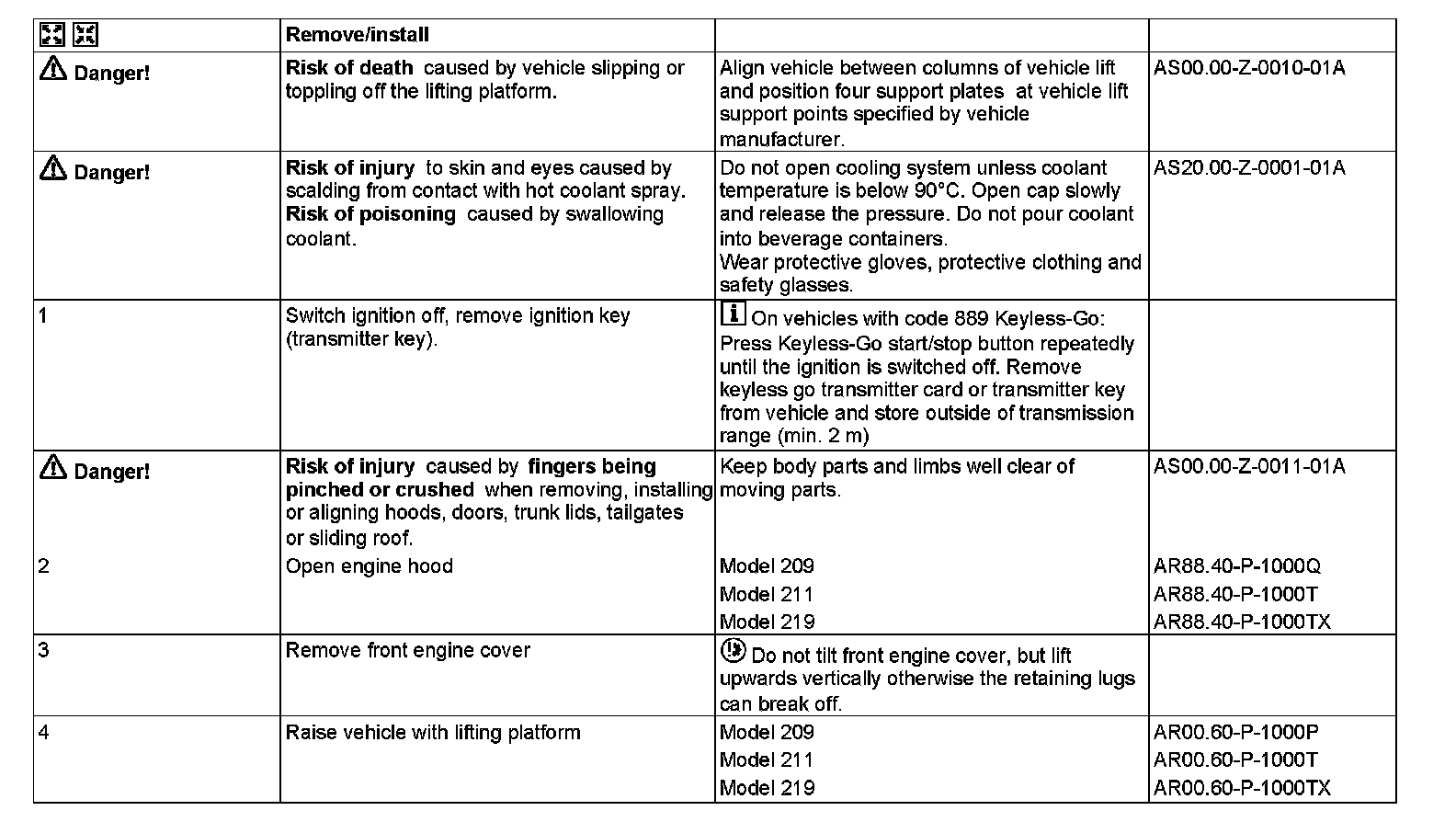

Steps 1-4:

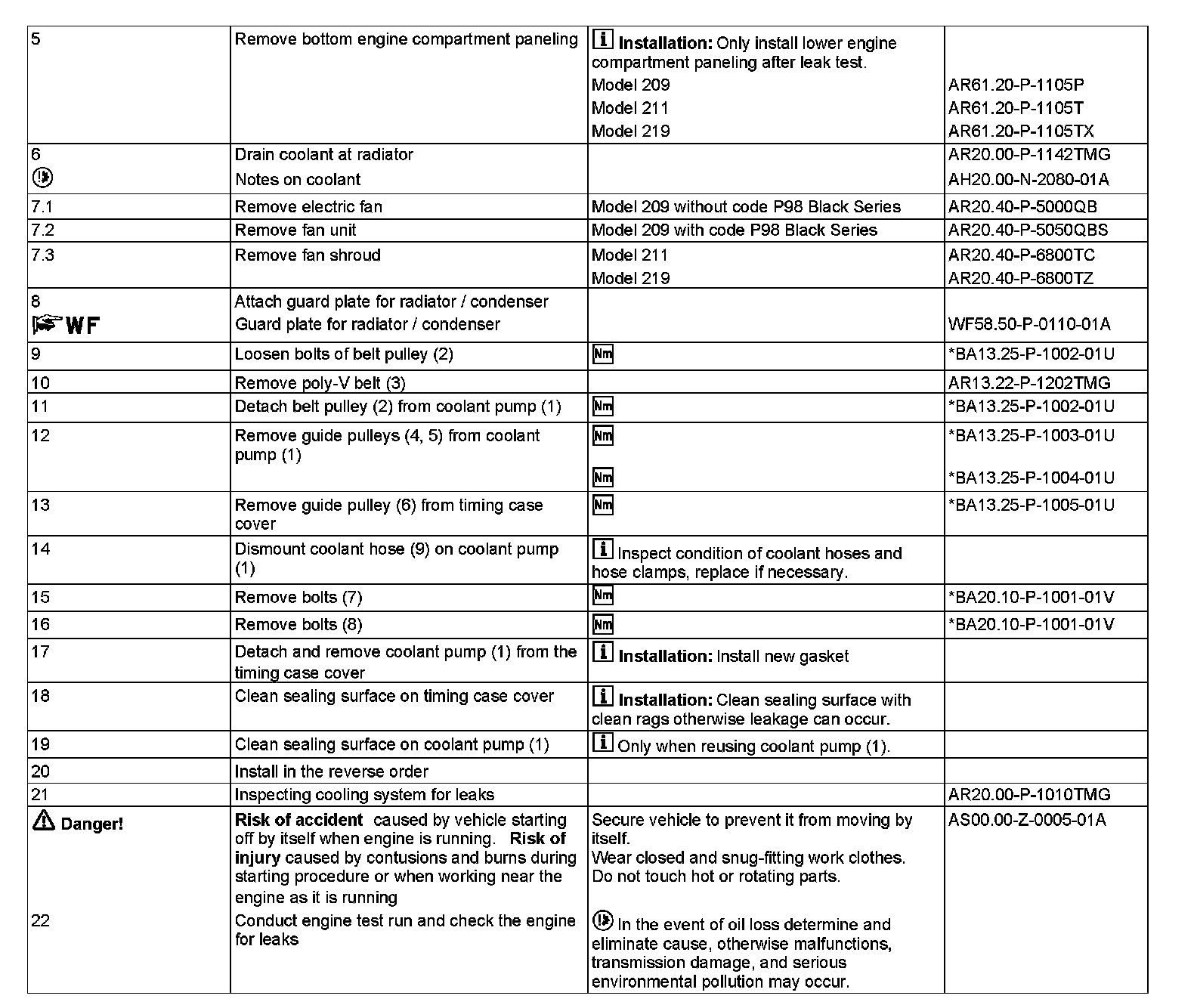

Steps 5-22:

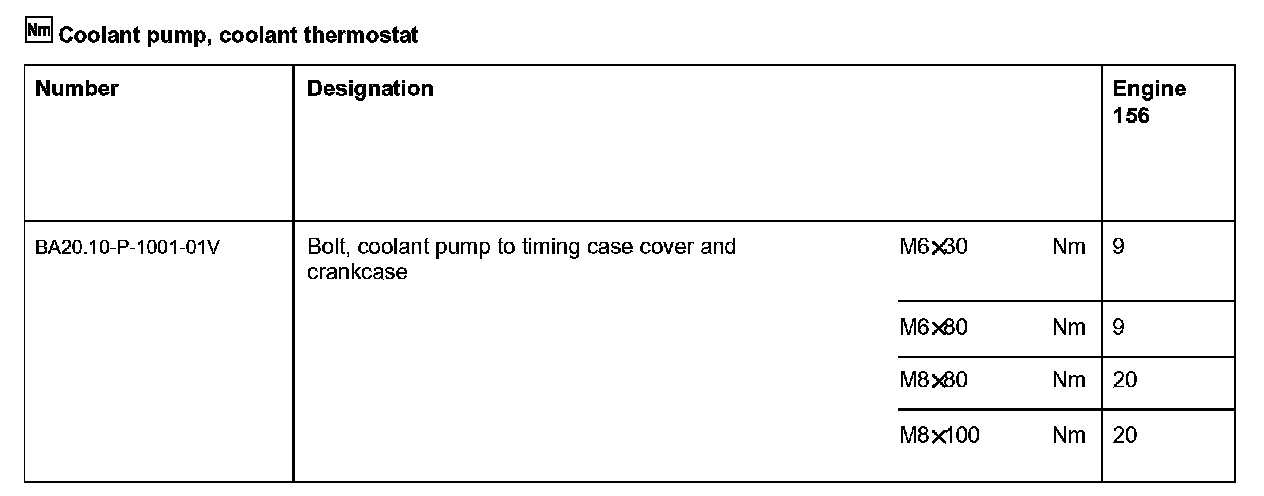

Coolant pump, coolant thermostat:

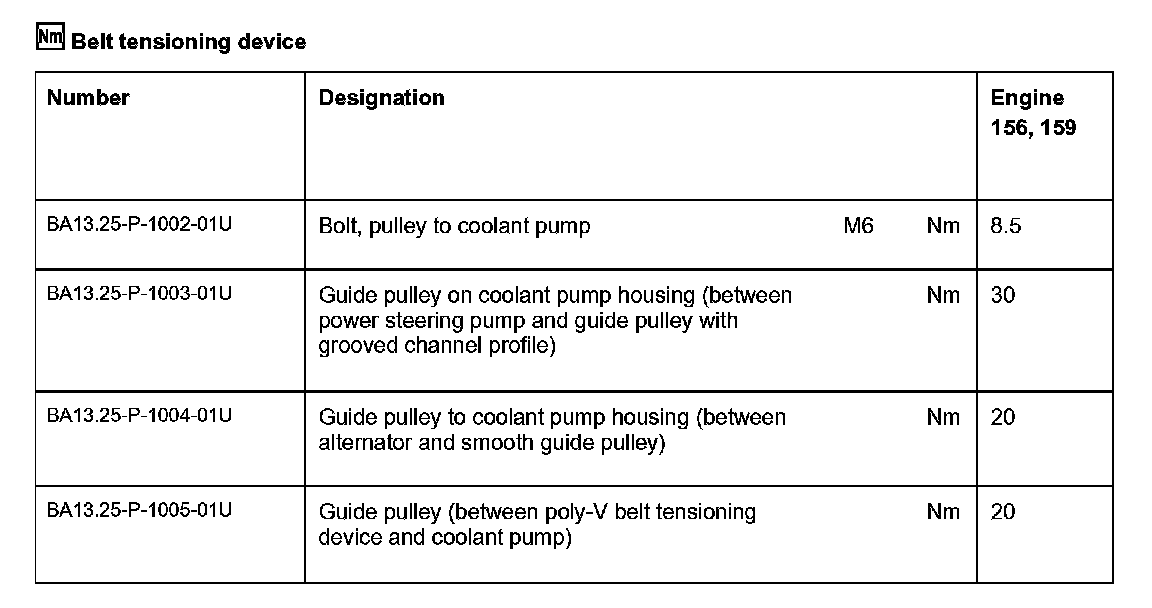

Belt tensioning device:
