Crankshaft: Service and Repair



AR03.20-P-4351AMG Remove/install crankshaft

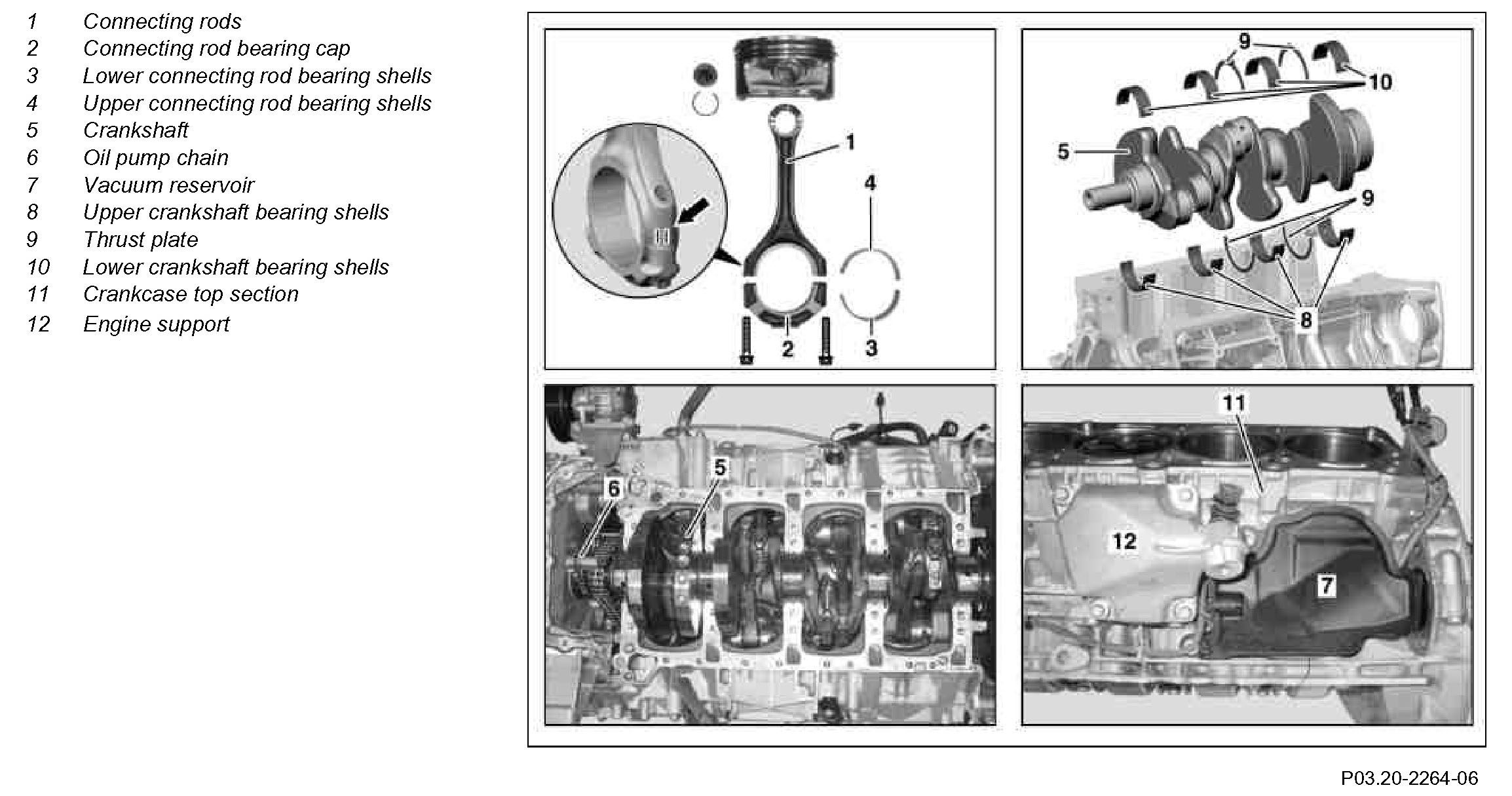

Component Identification:

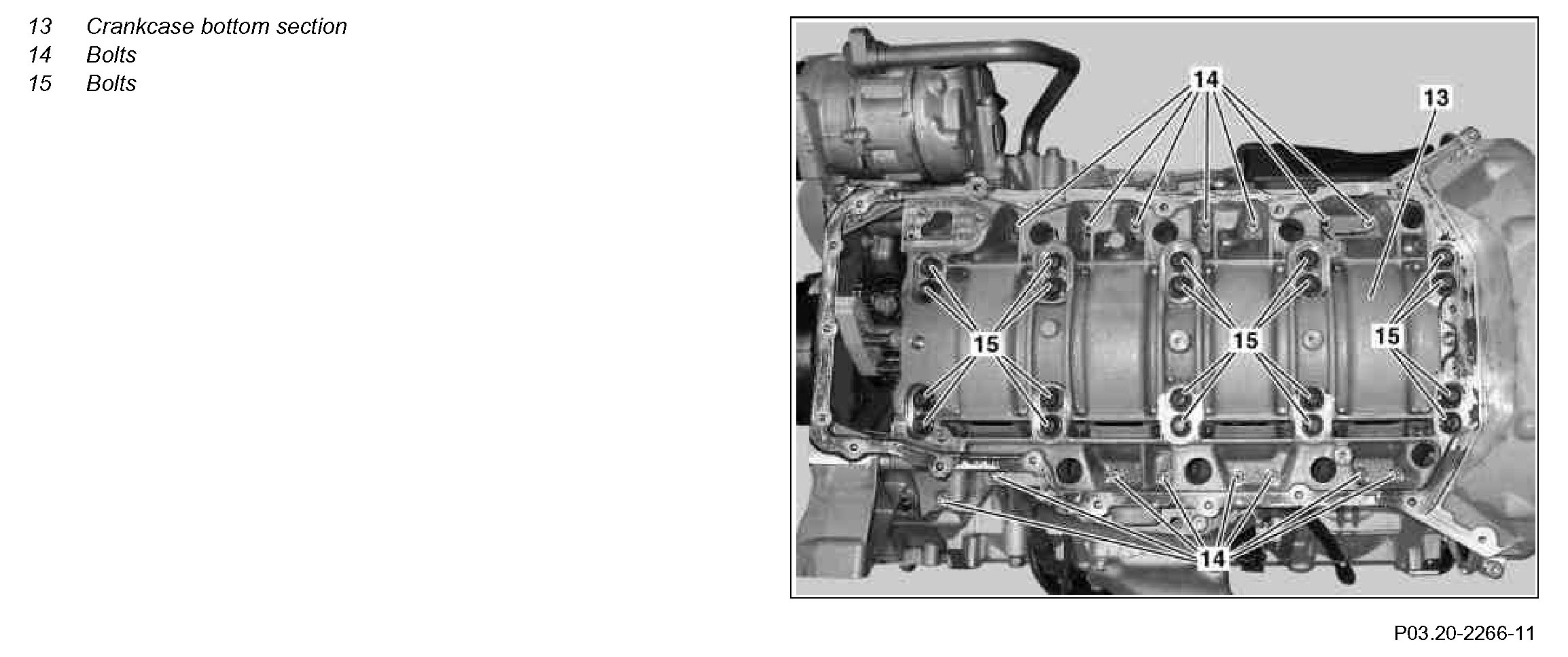

Component Identification:

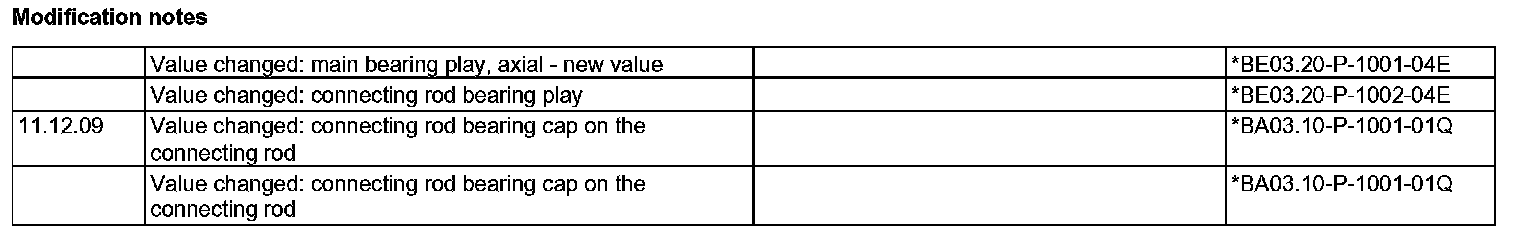

Modification notes:

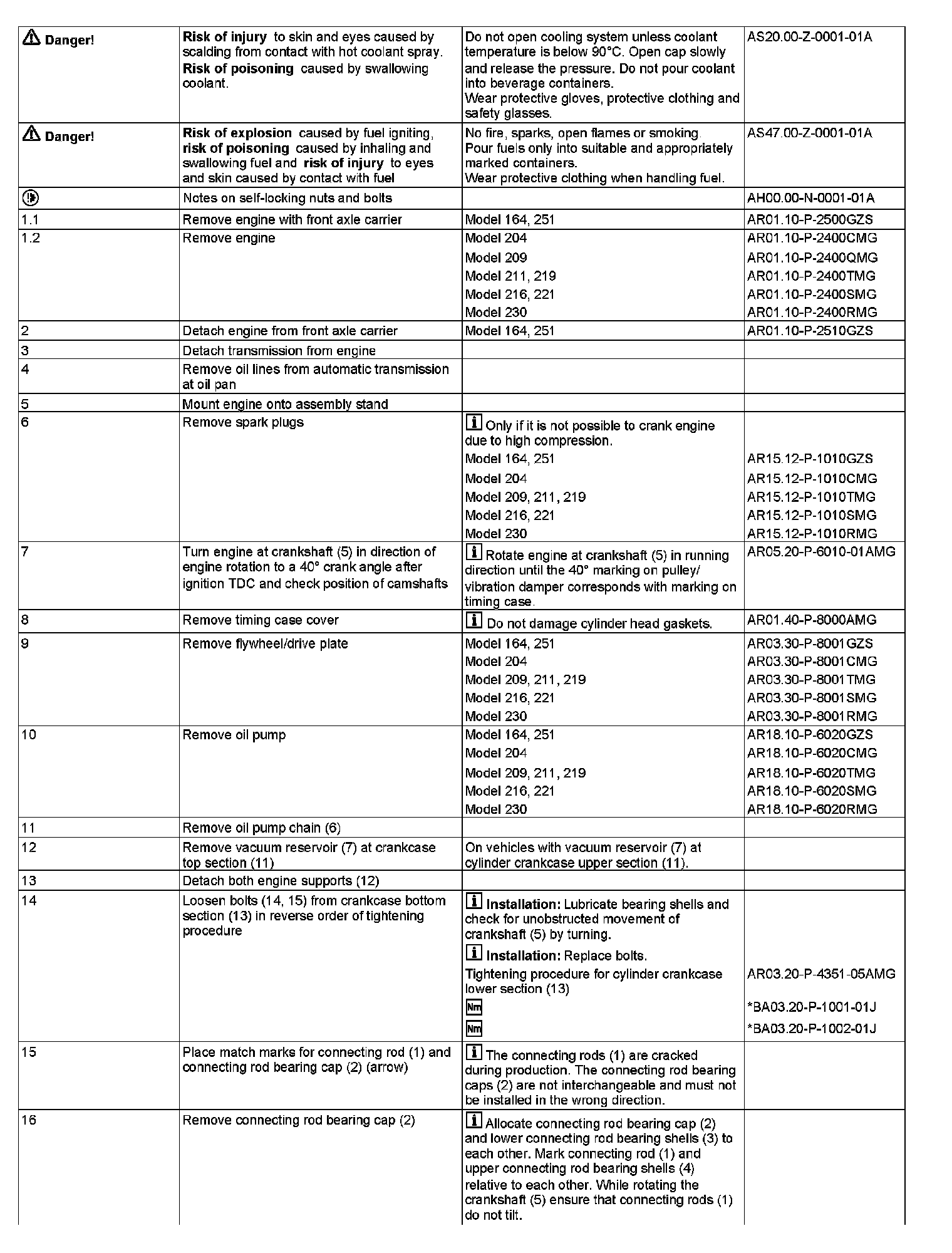

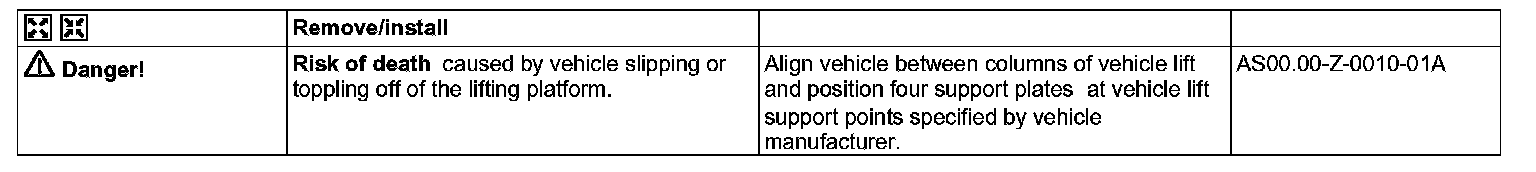

Remove/install Steps:

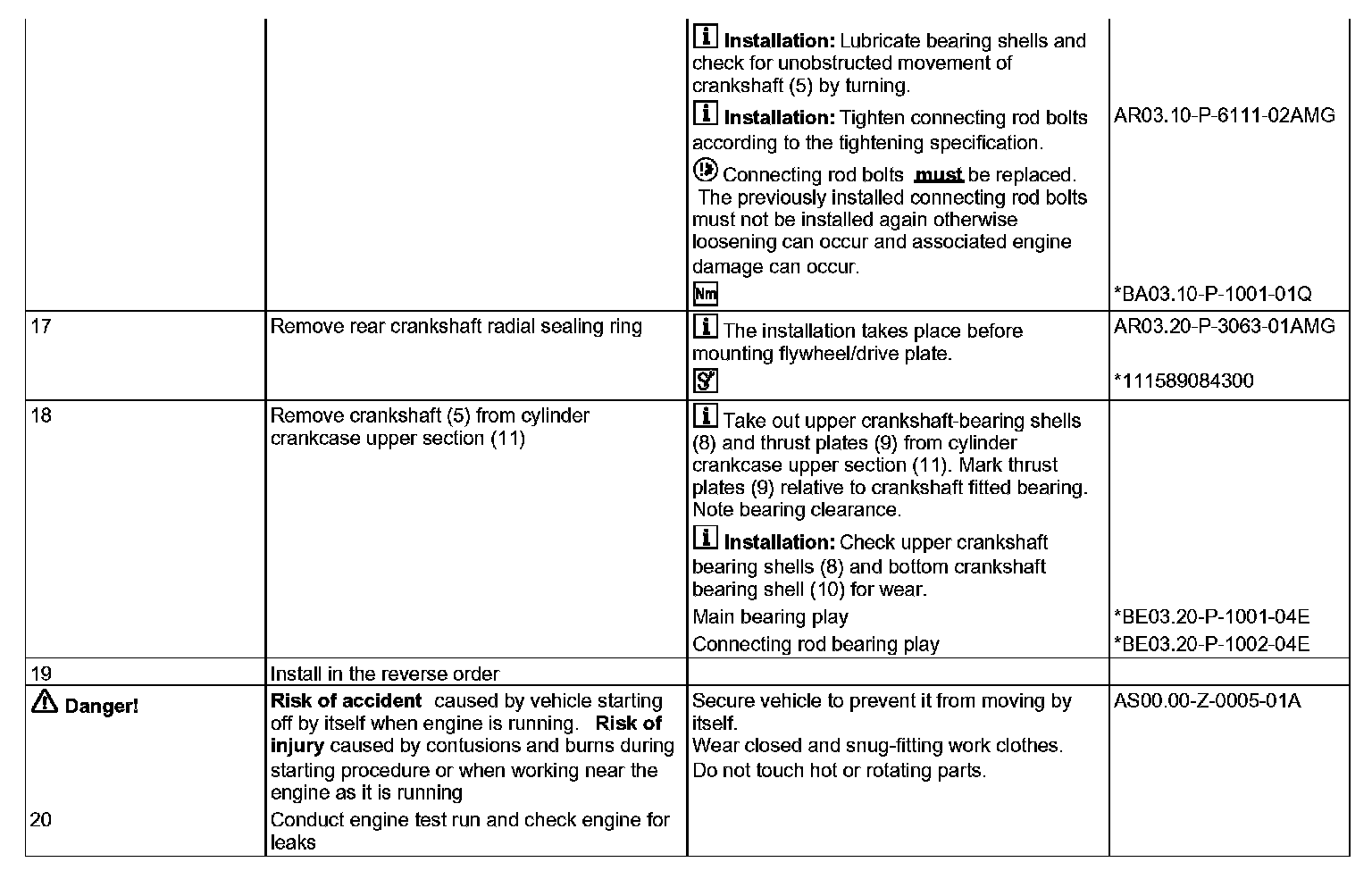

Remove/install Steps (Continued) - Step 16:




Steps 17-20:

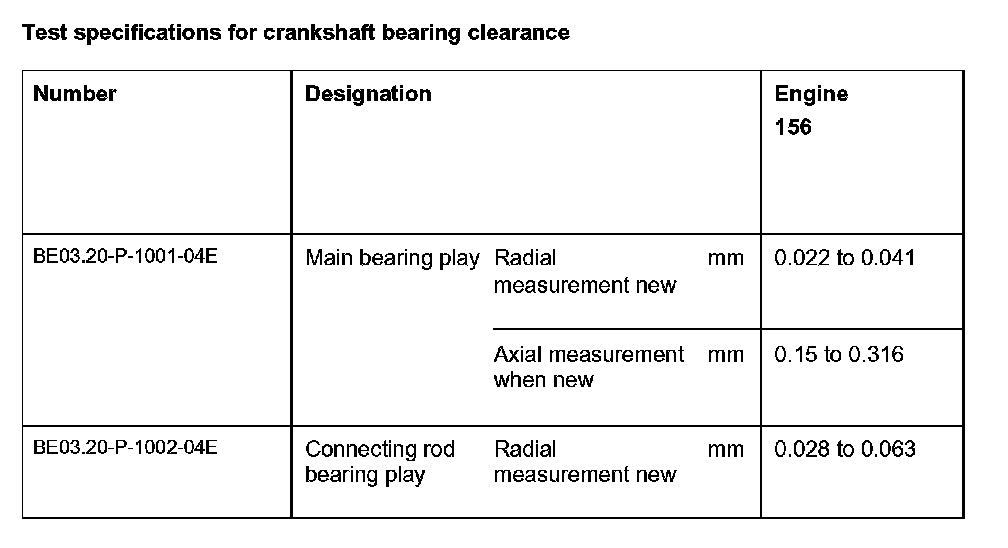

Test specifications for crankshaft bearing clearance:

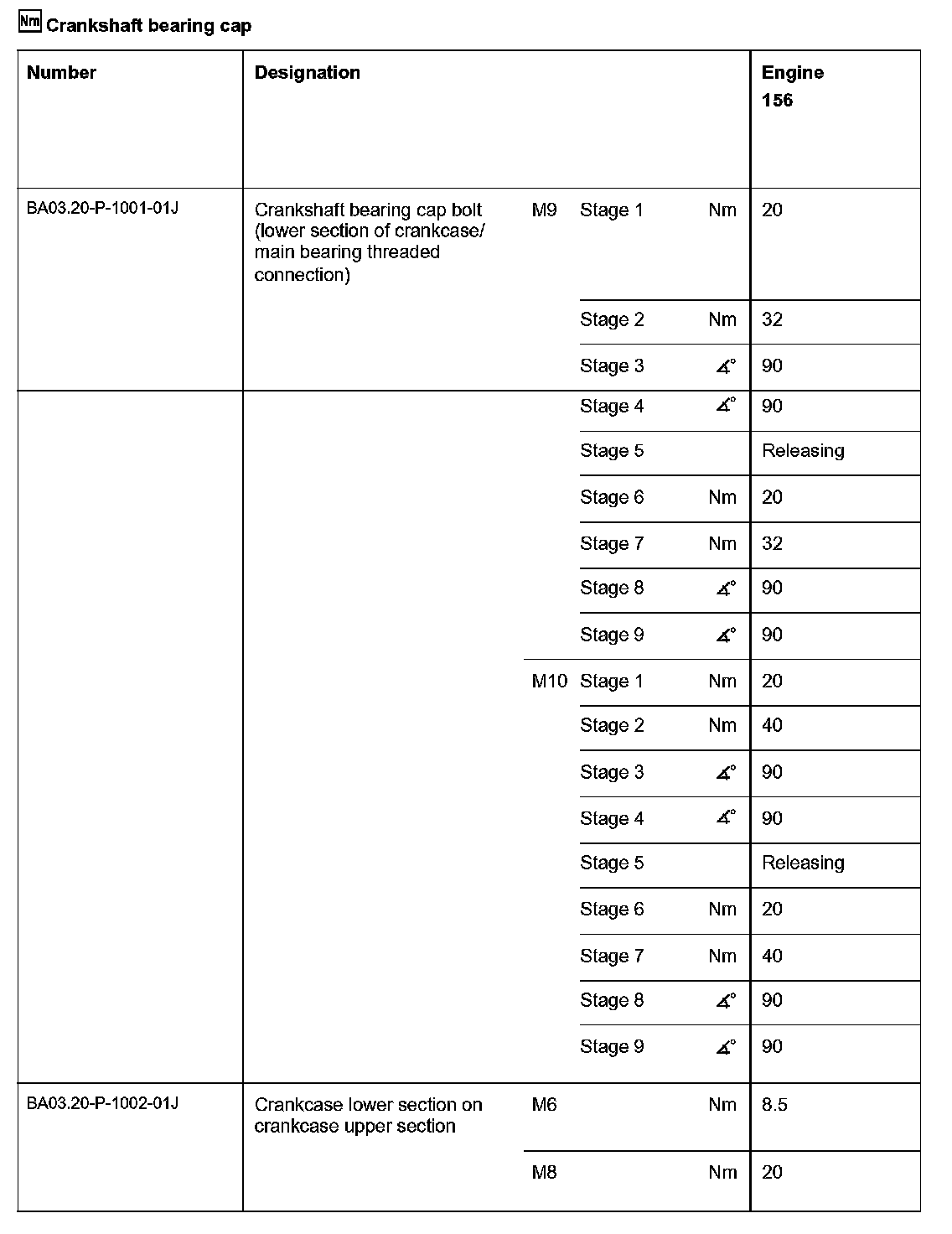

Crankshaft bearing cap:

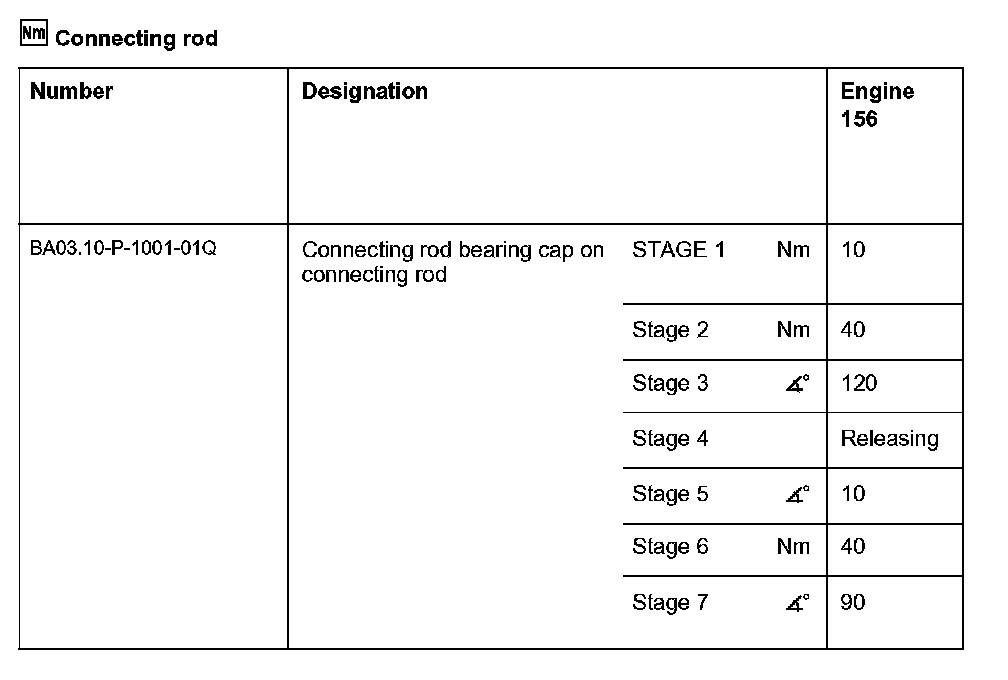

Connecting rod:




Special Tools:
