Starter Motor: Service and Repair
AR15.30-P-7100TX Remove, install starter

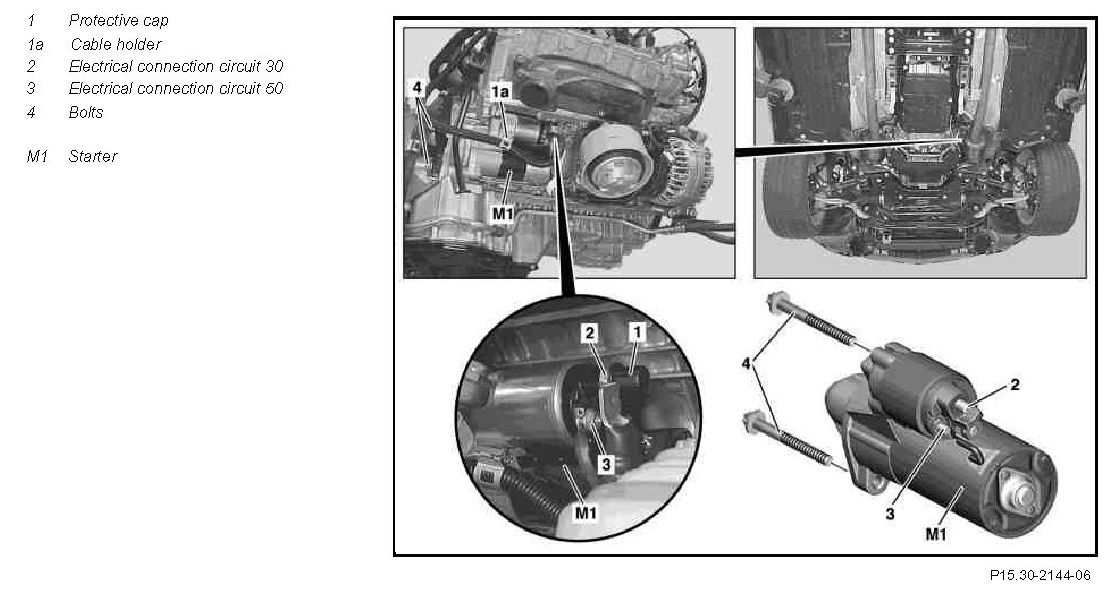

Component Identification:

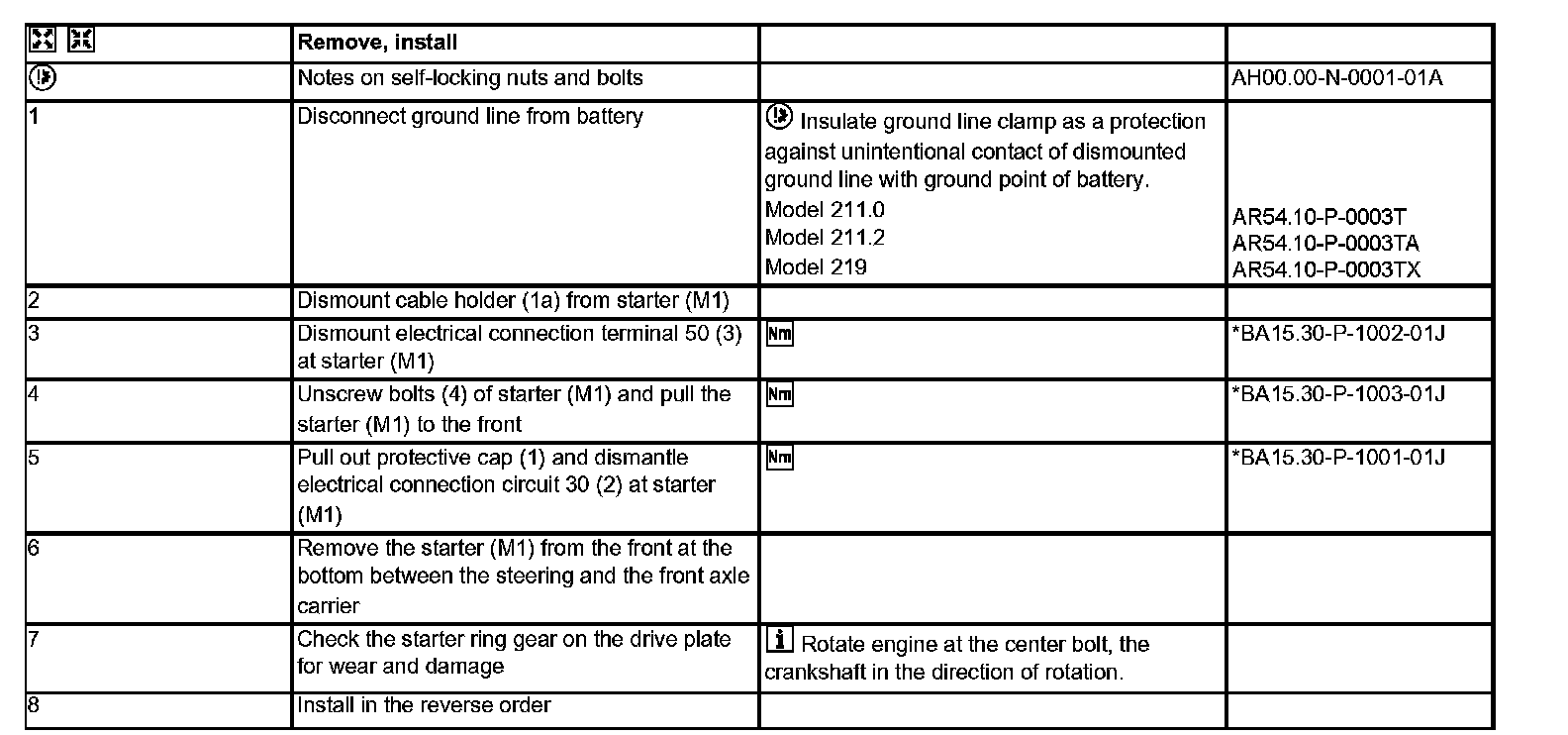

Remove/install Steps 1-8:

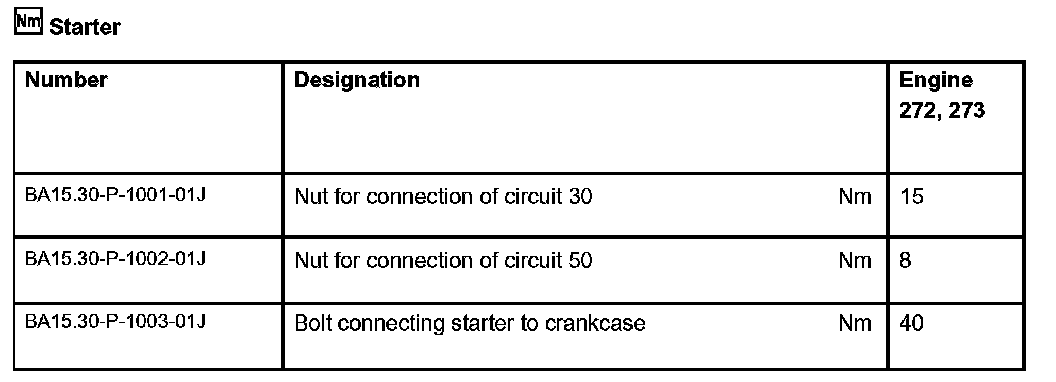

Starter:
