Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2009
>>
CLK 63 AMG Cabriolet (209.477) V8-6.3L (156.982)
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Head Restraint System
>>
Head Rest
>>
Service and Repair
>>
Removal and Replacement
Removal and Replacement
AR91.16-P-0040Q Remove/Install Head Restraint On Front Seat
- except CODE (P98) Black Series

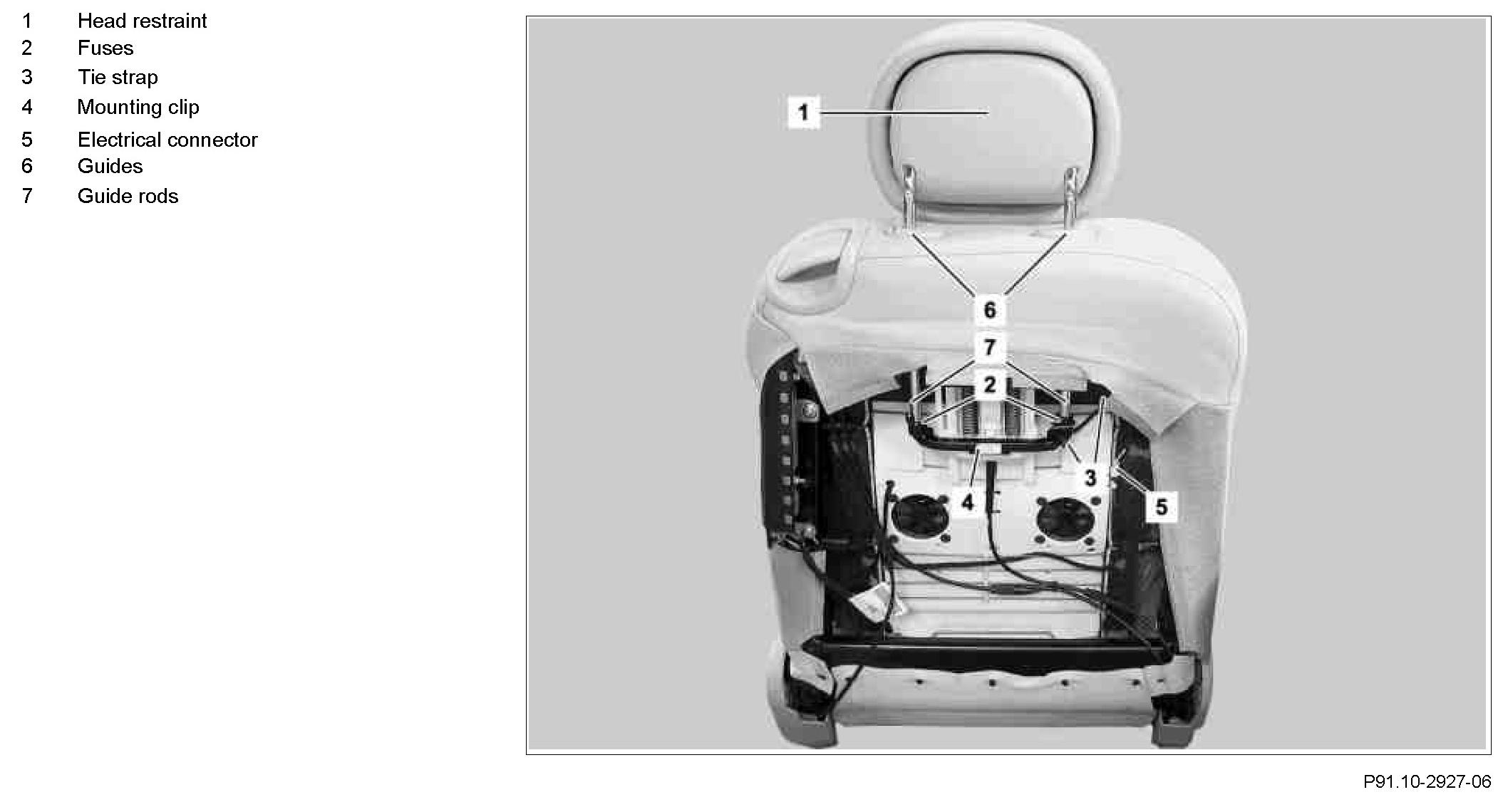

Component Identification:

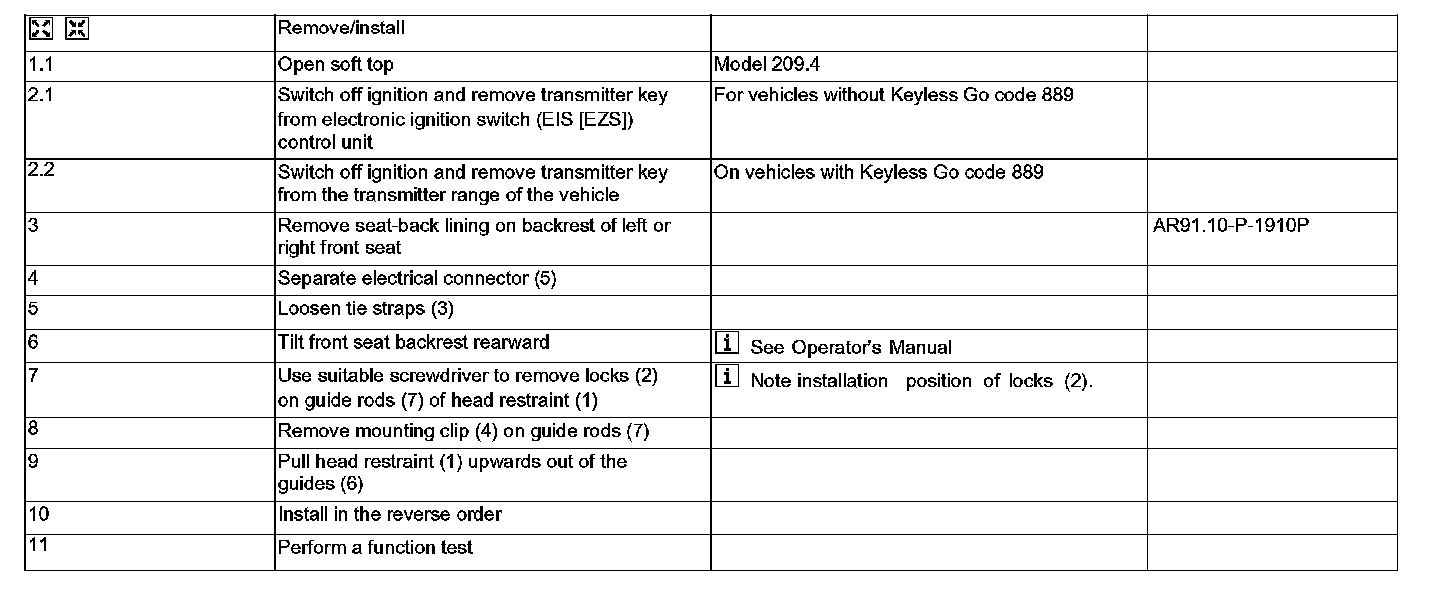

Steps 1 - 11:
