Transmission 722.6
Transmission 722.6
AP27.00-P-2702P Automatic transmission - oil and filter change

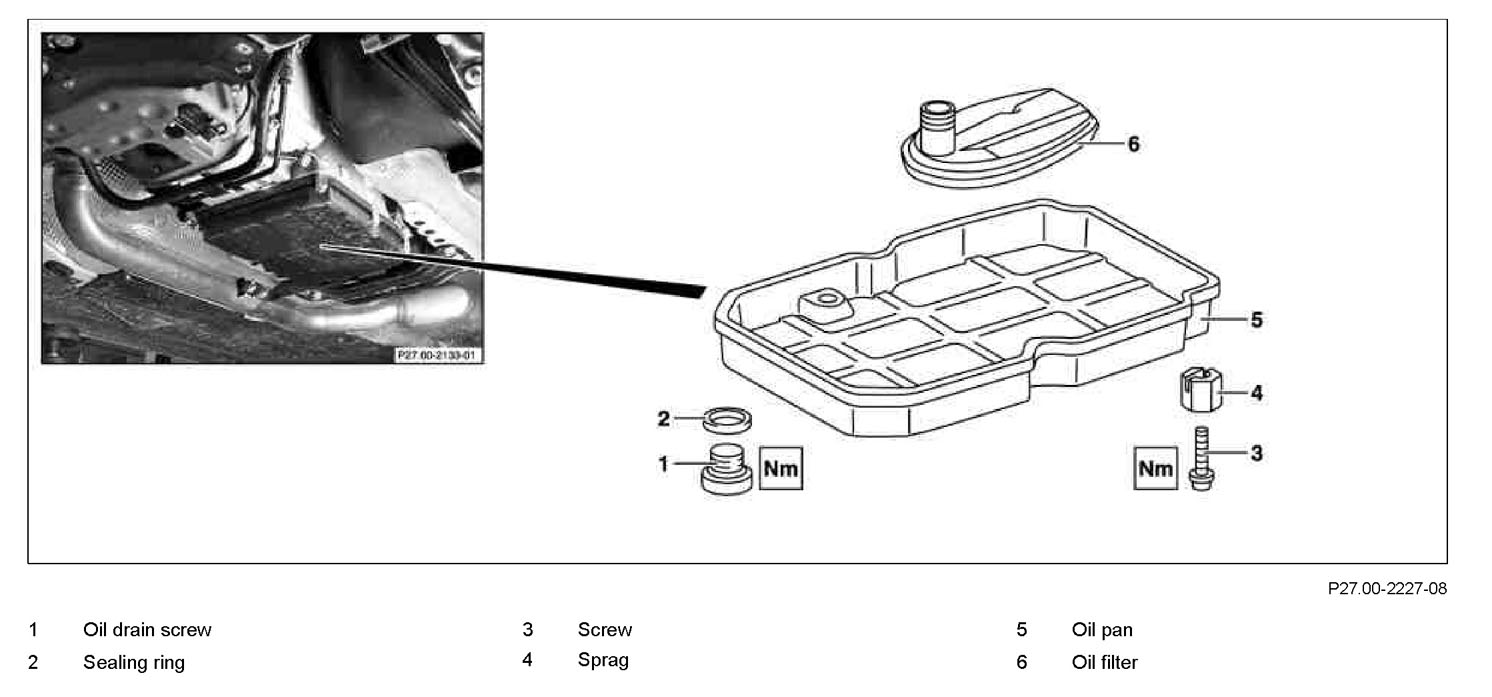

Component Identification:

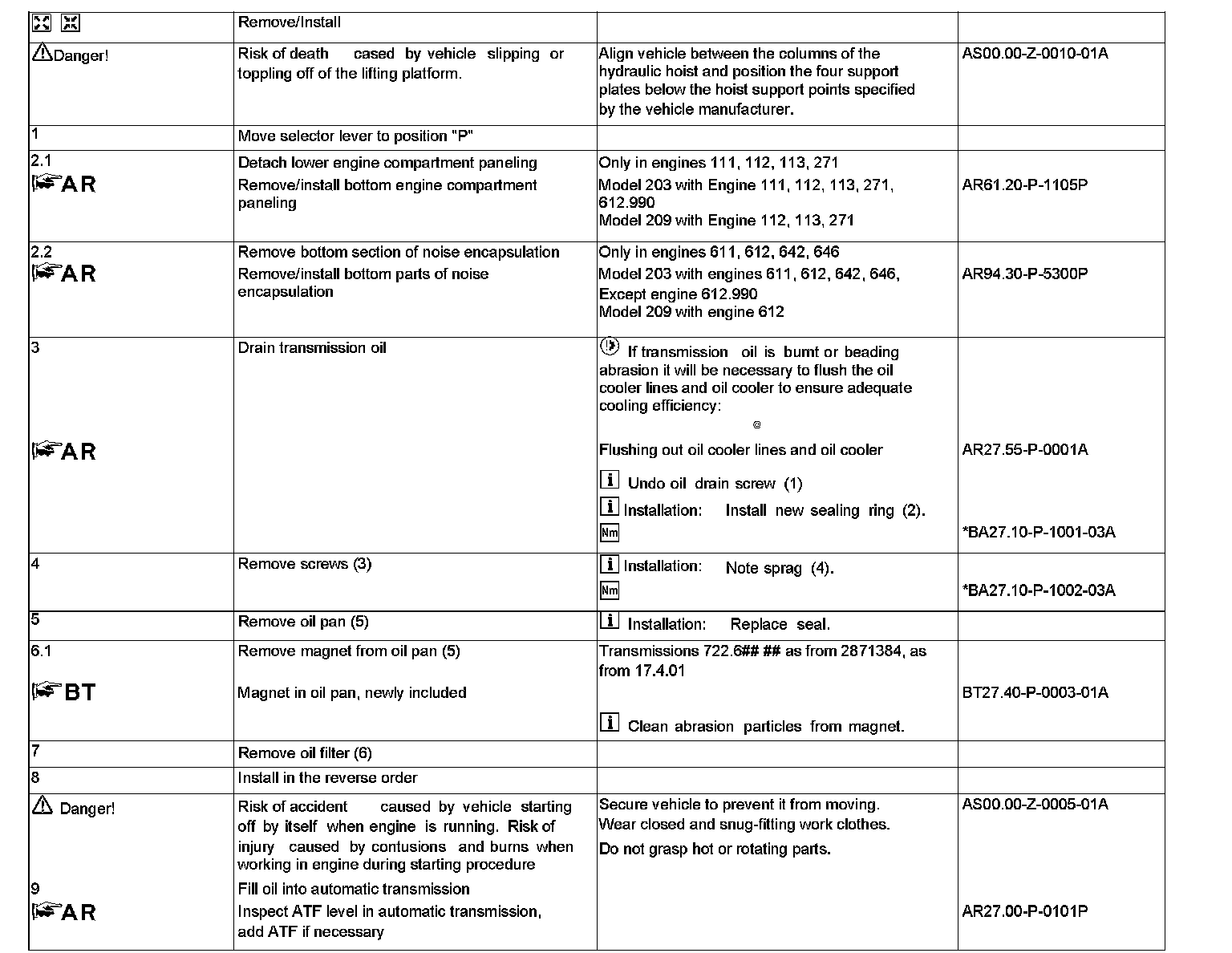

Steps 1 - 9:
Drain Plug, Trans Oil Pan:
