Seals and Gaskets: Service and Repair



AR27.30-P-4970QB Remove/install radial shaft sealing ring on front transmission cover
- Transmission 722.9

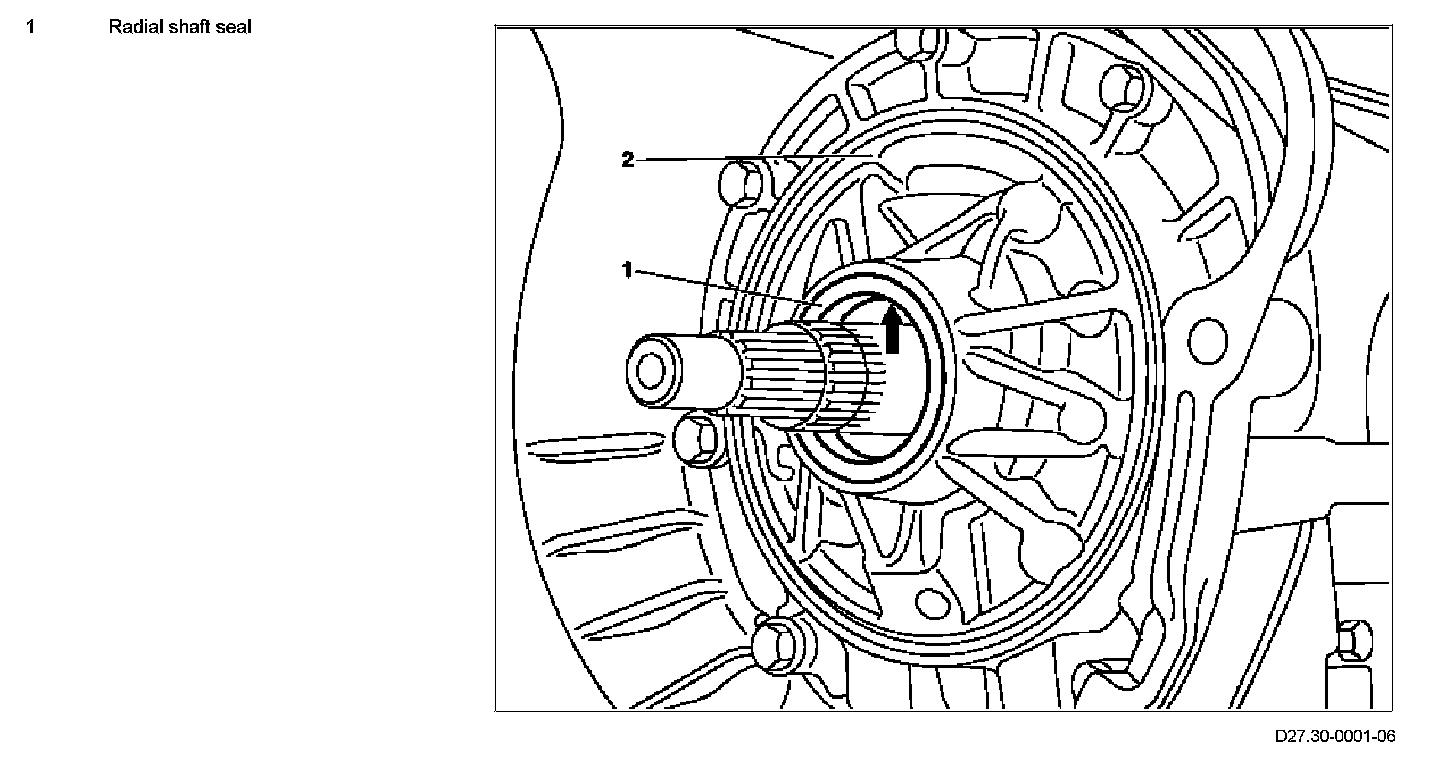

Component Identification:




Modification notes:

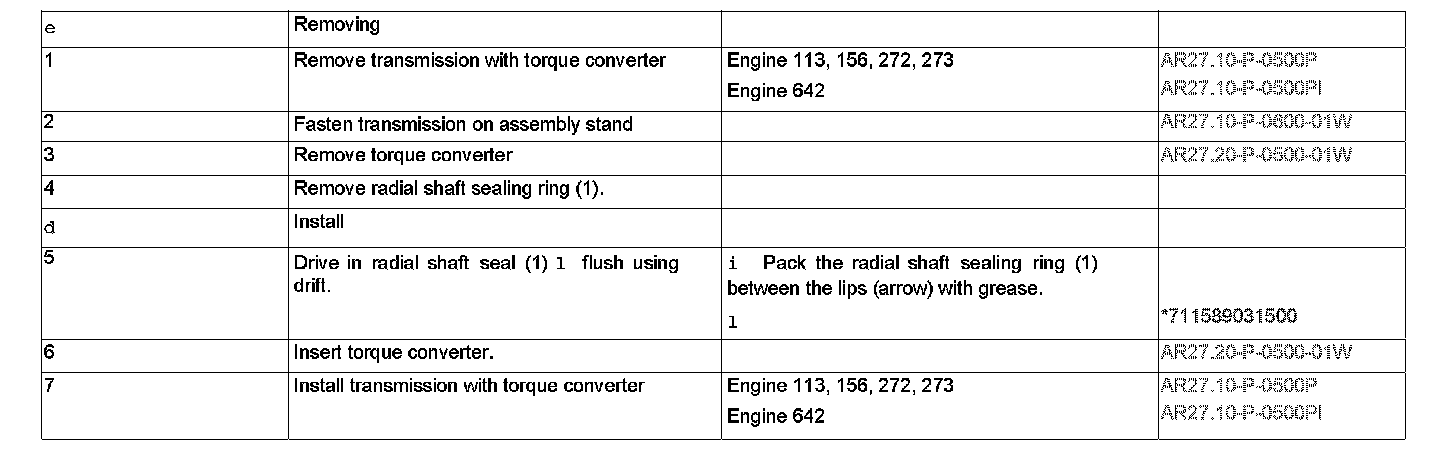

Steps 1-7:




Special Tools:
