AR15.40-P-5011QMG Test Alternator Charging Current



AR15.40-P-5011QMG Test alternator charging current

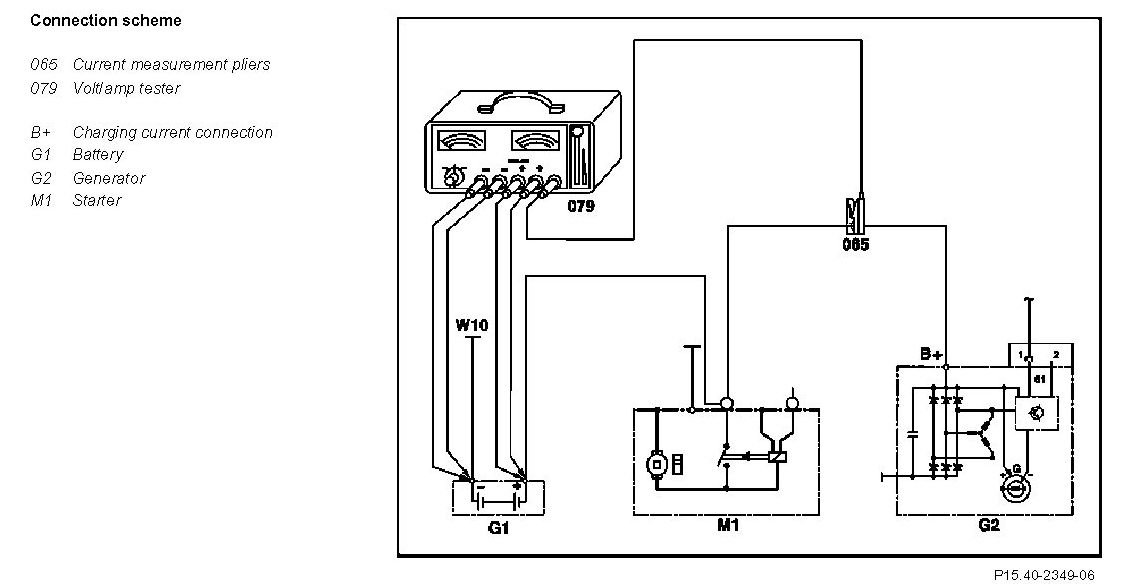

Component Identification:

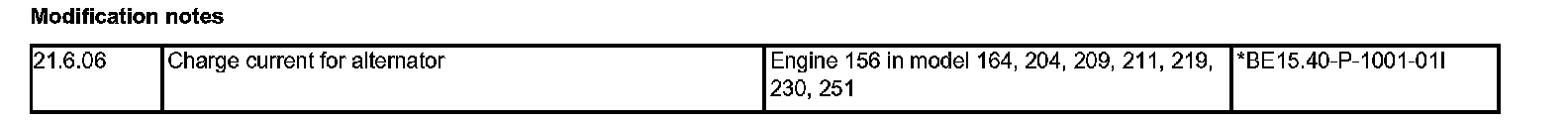

Modification notes:

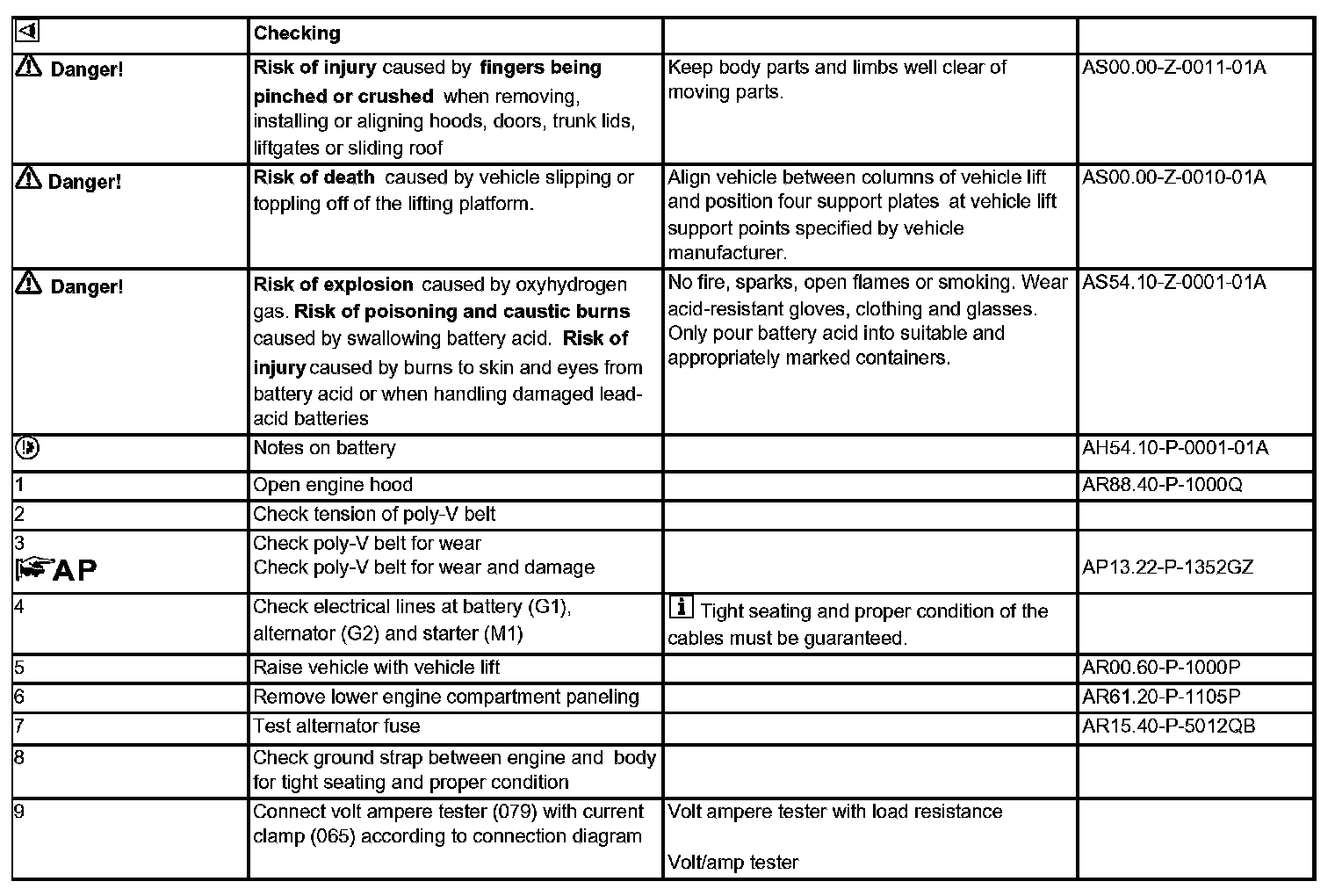

Steps 1-9:

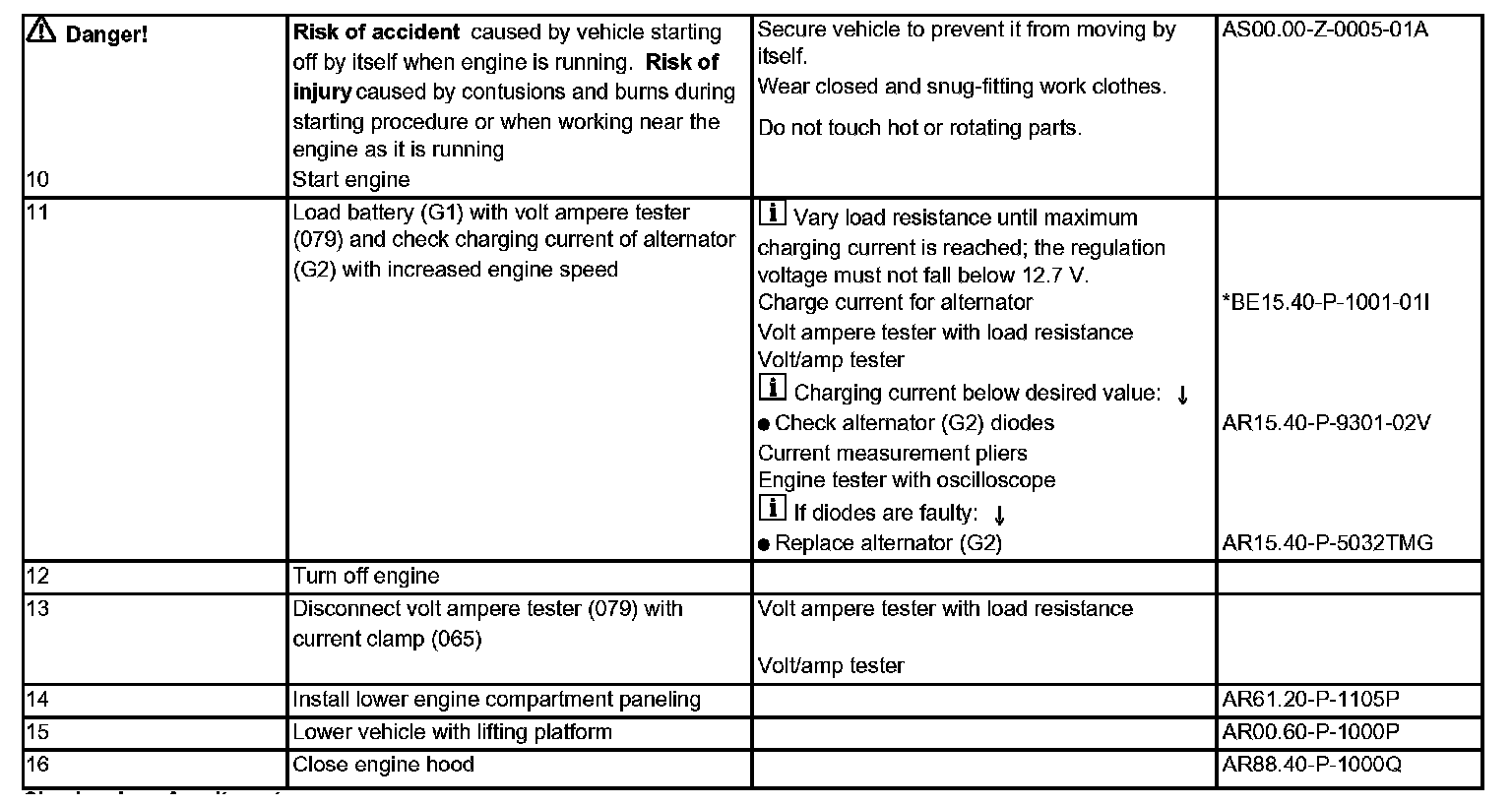

Steps 10-16:

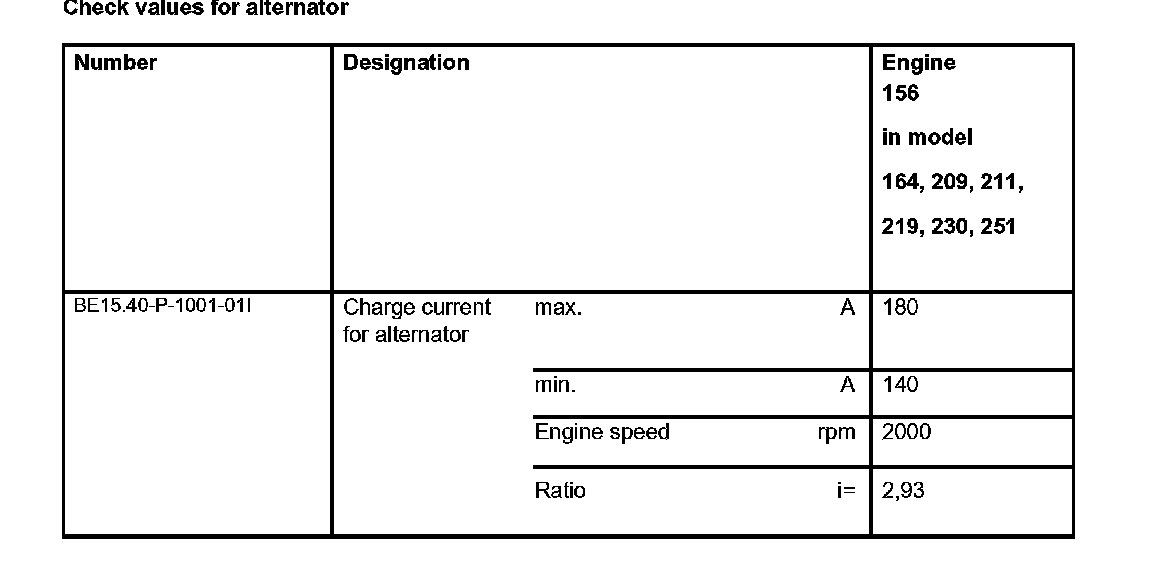

Check values for alternator:
