Door Switch: Service and Repair
AR54.25-P-2000P Remove/Install Contact Switch For Door

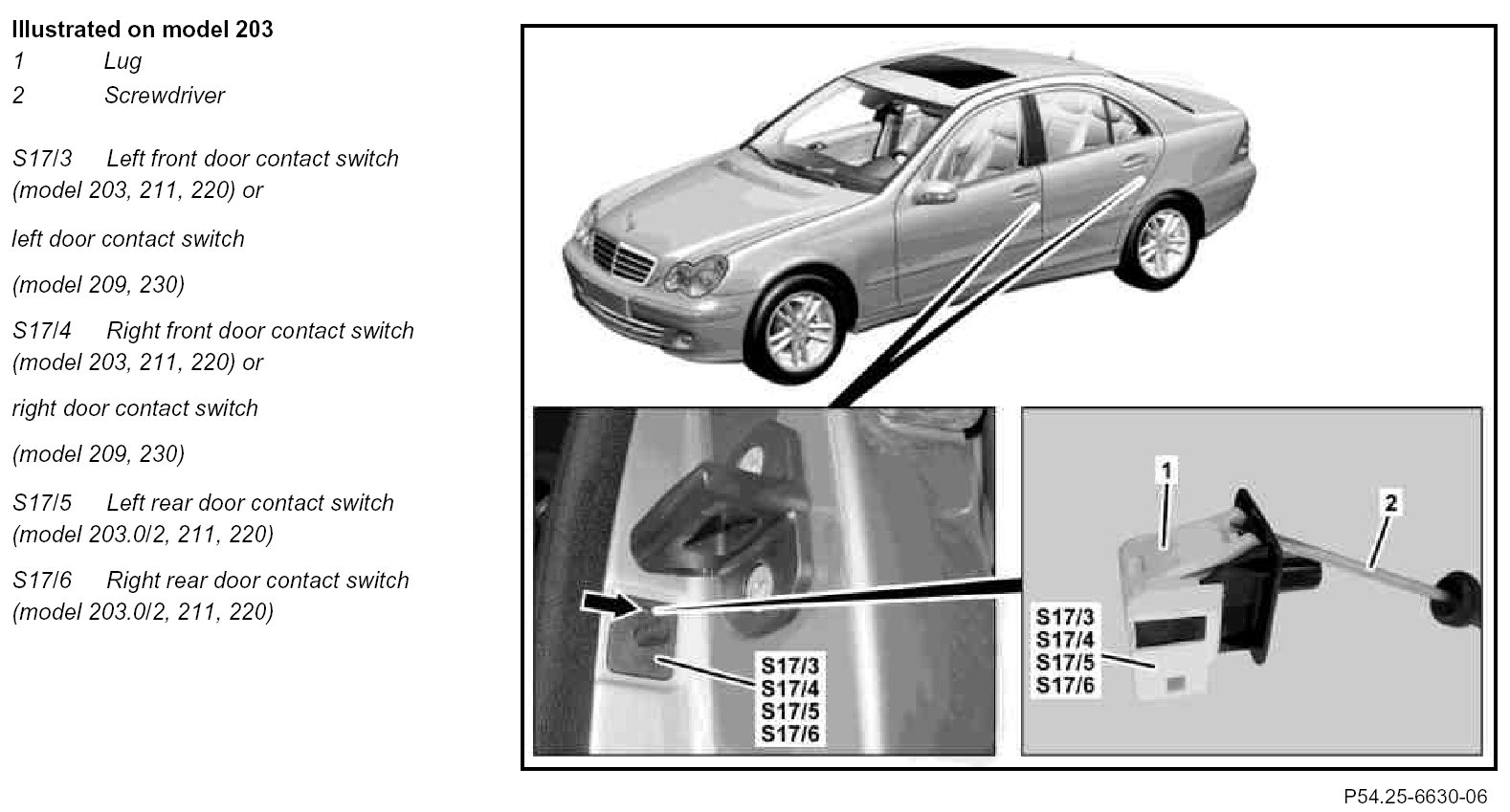

Component Identification:

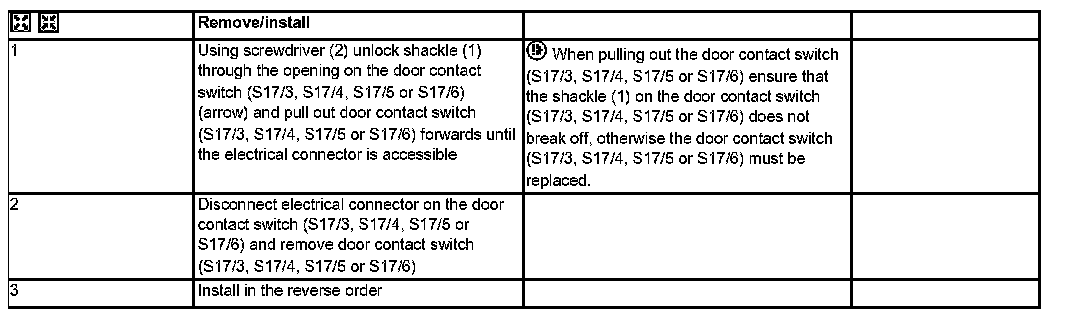

Steps 1 - 3:
