Auxiliary Water Pump: Service and Repair

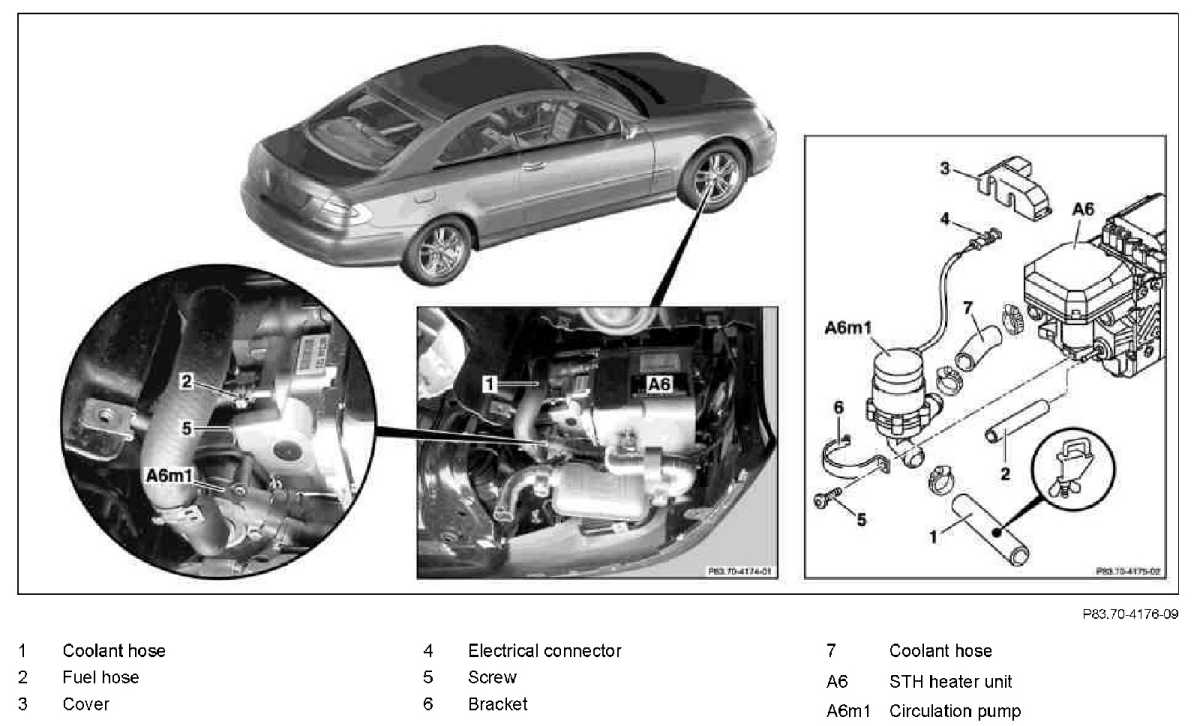

AR83.70-P-5700Q Remove/Install Coolant Circulation Pump
- with CODE (228) Stationary heater or retrofitted stationary heater

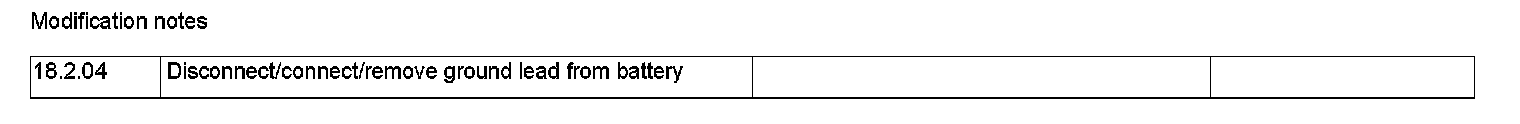

Modification Notes:

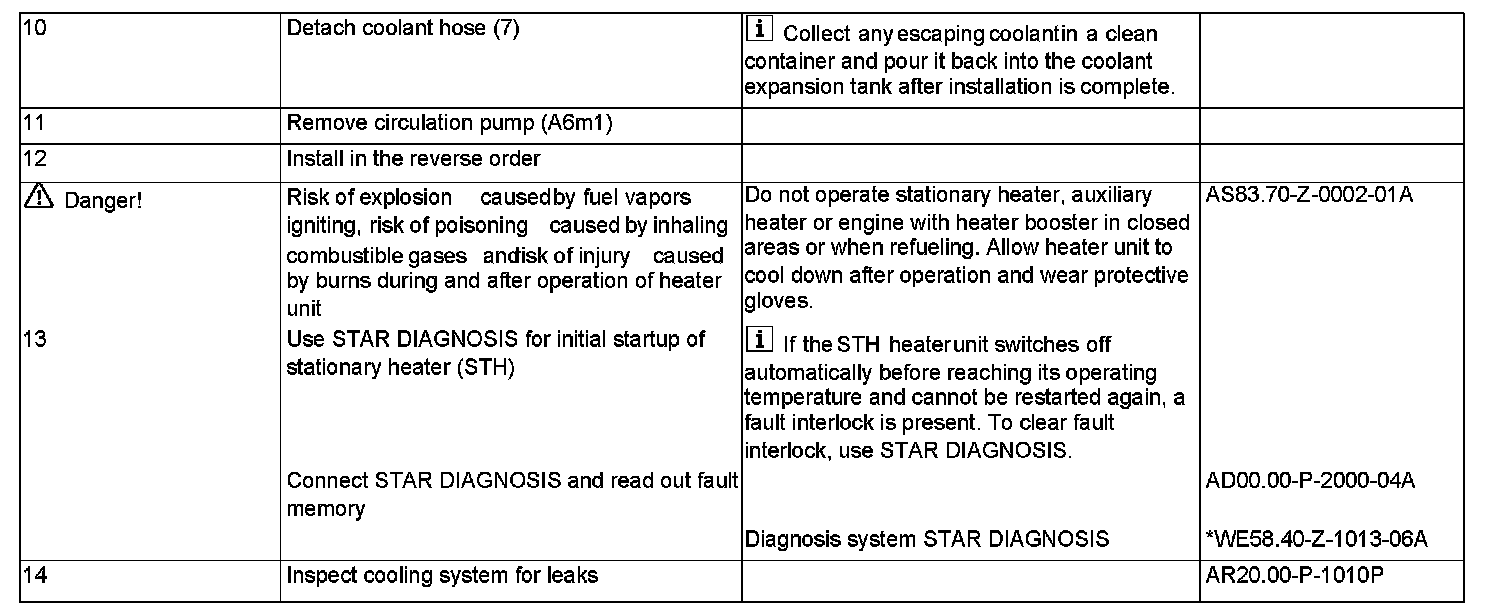

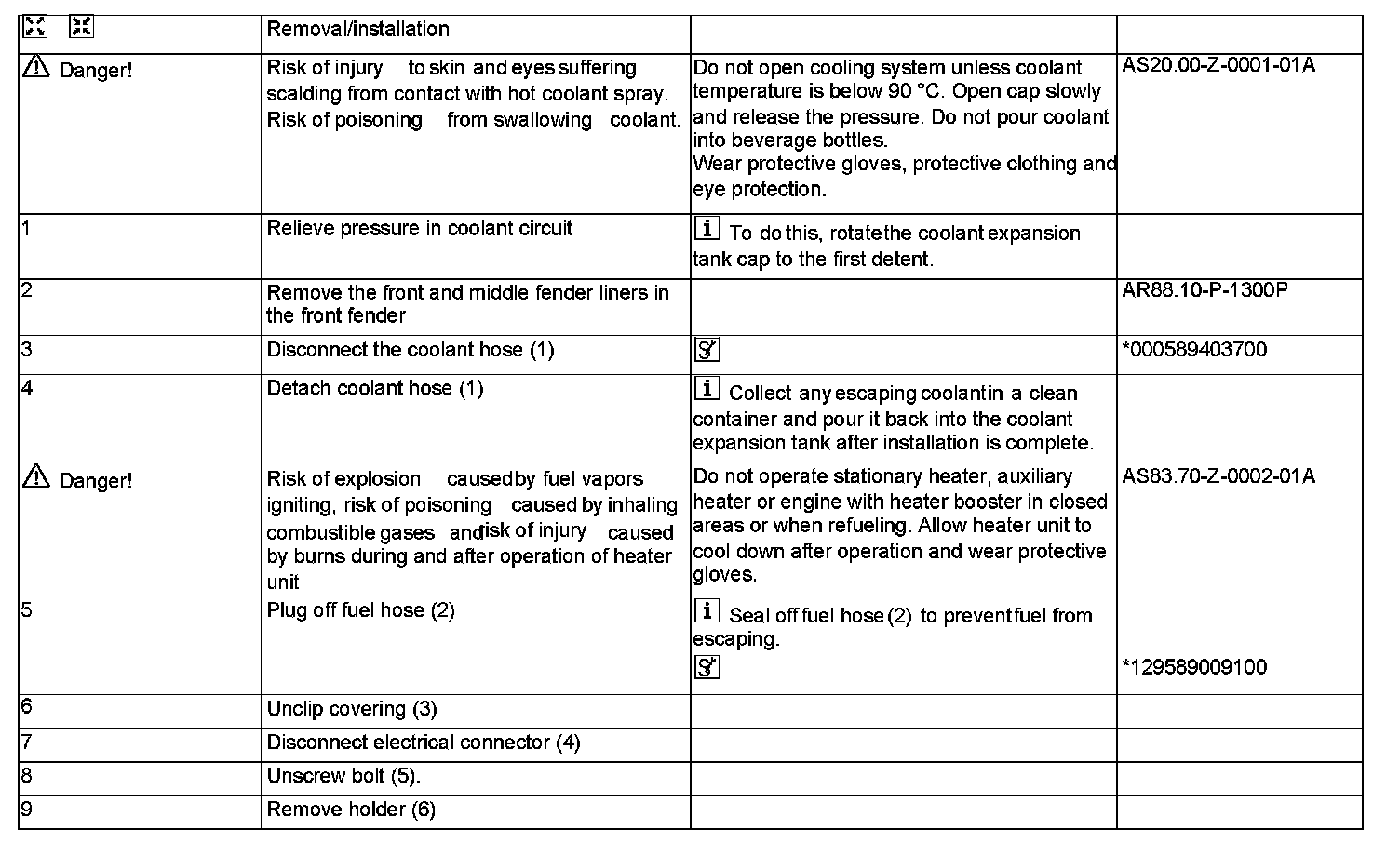

Part 1:
Part 2:
