Symptom Related Diagnostic Procedures

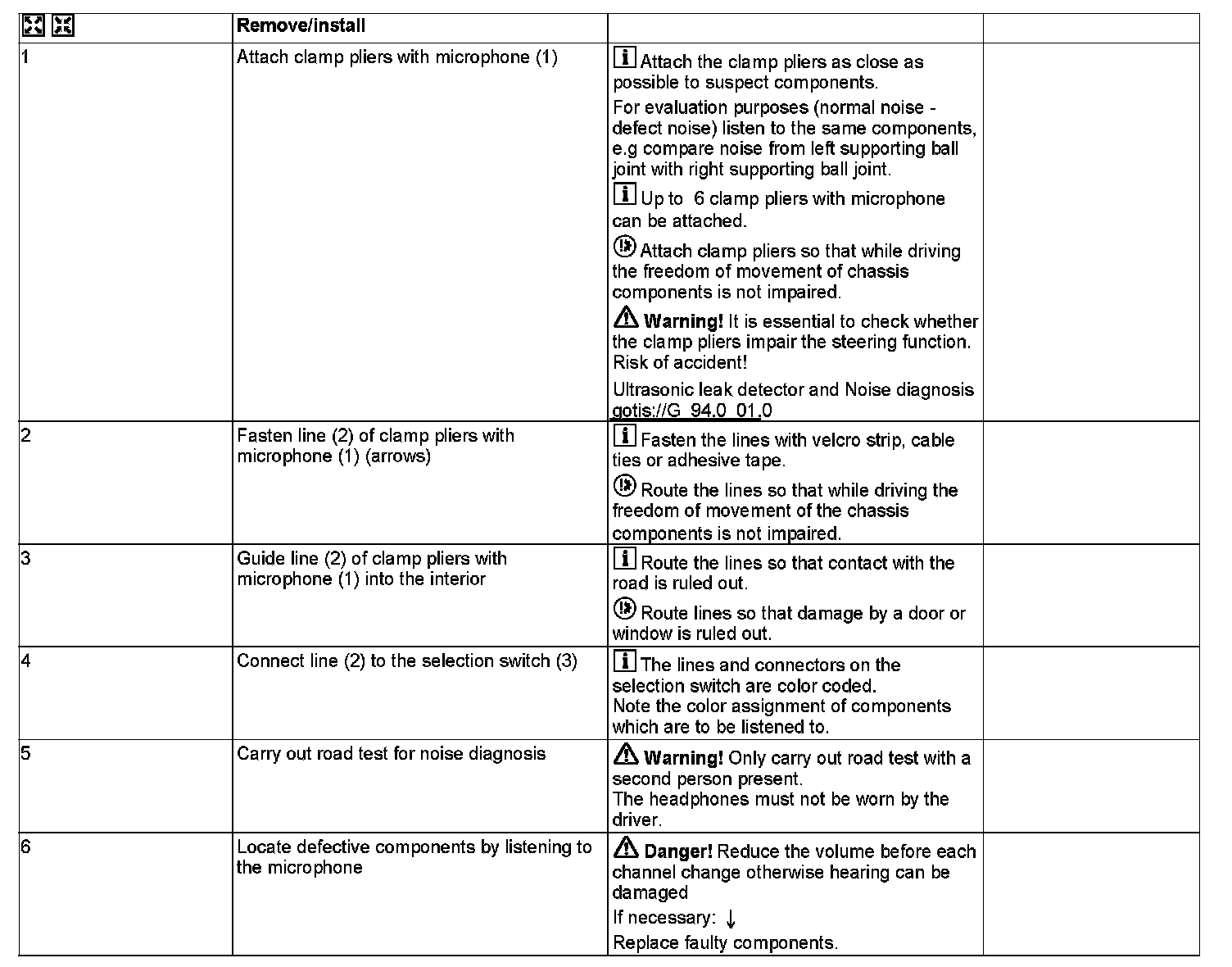

AR42.00-P-2000A Locate Noises From the Brake
MODEL all

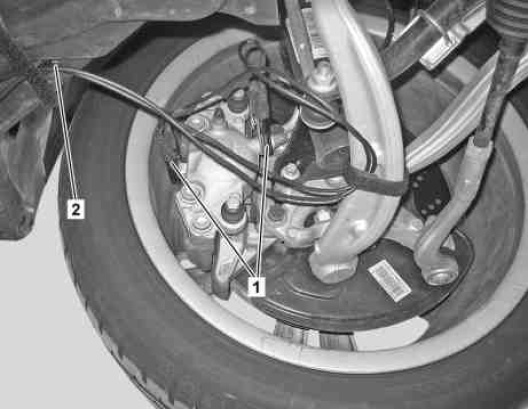

Example shown on model 204

1 Clamp pliers with microphone
2 Cable





Example shown on model 211 front axle

2 Cable
3 Selection switch
