Ignition Coil: Service and Repair



Remove/Install Ignition Coils

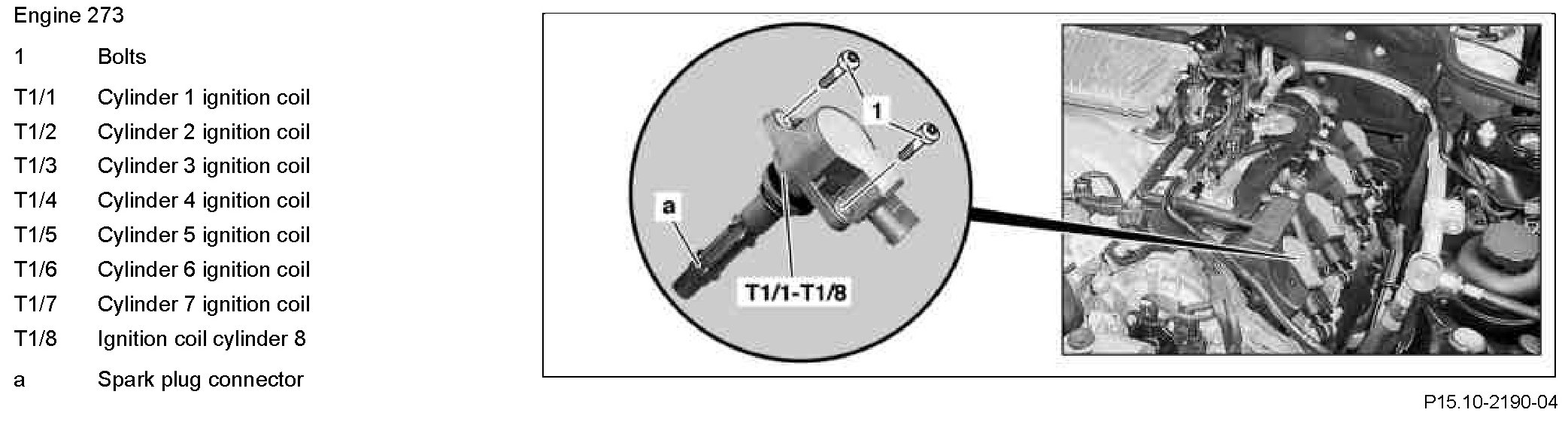

Component Identification:

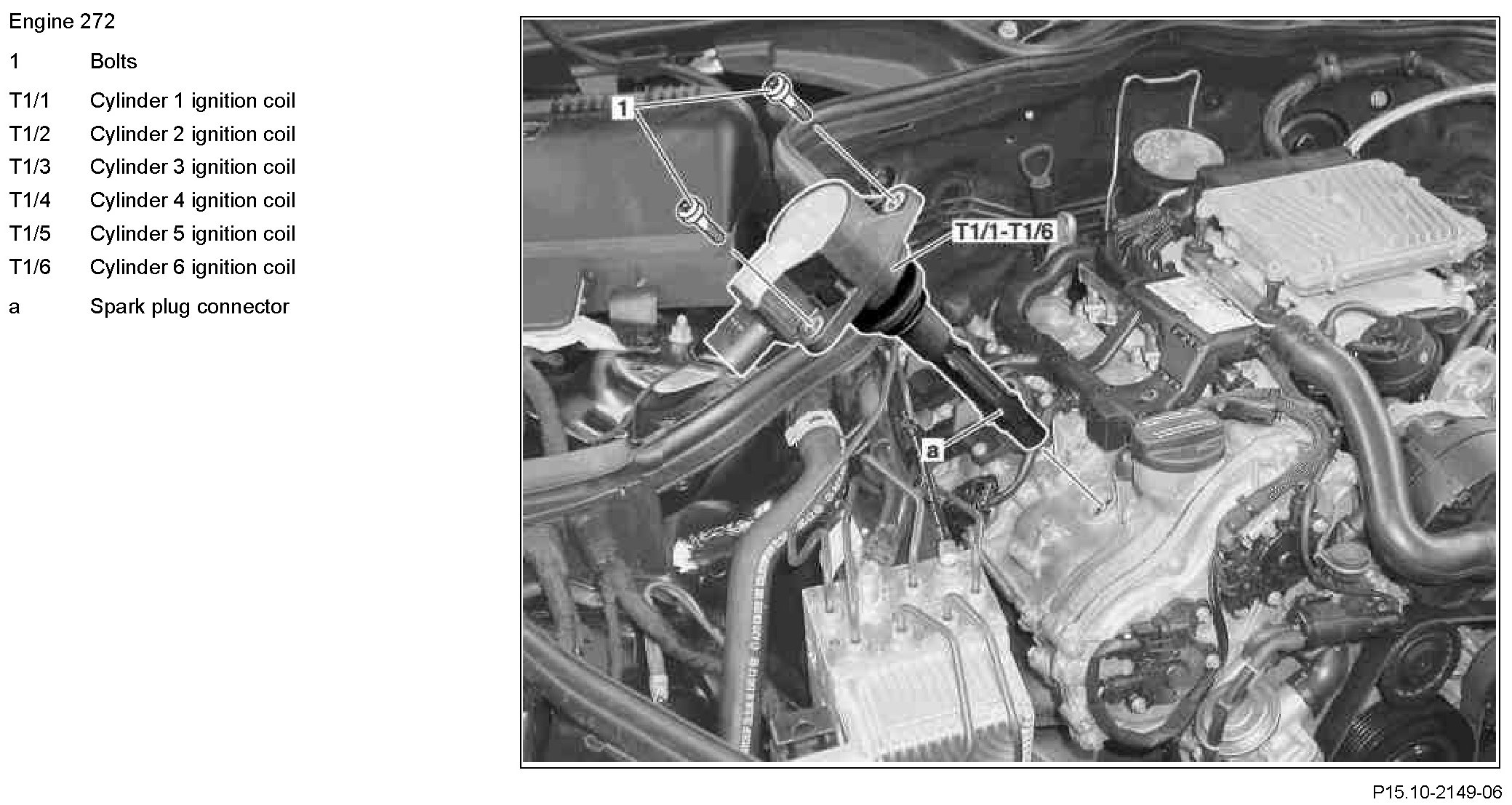

Component Identification:

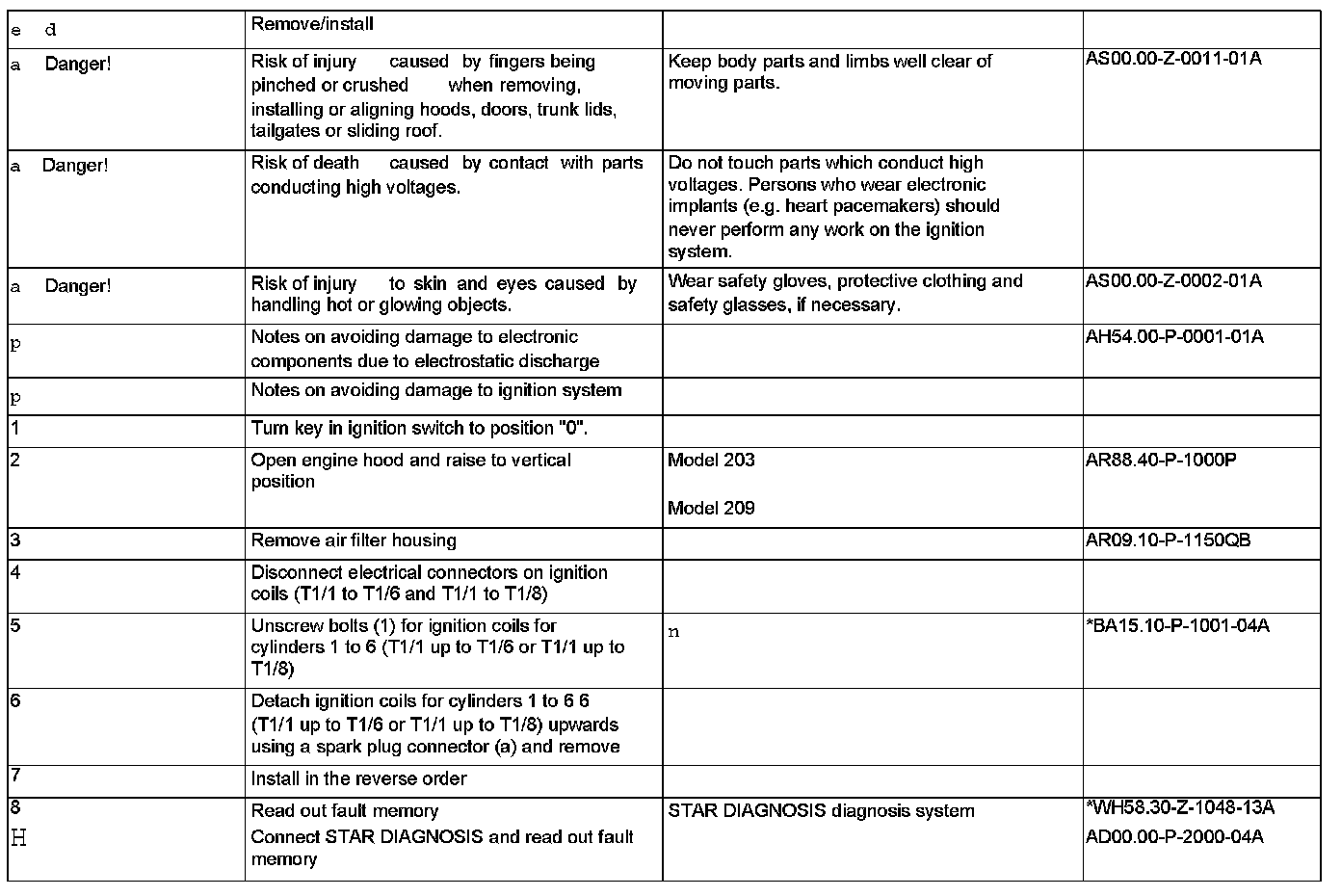

Steps 1 - 8:

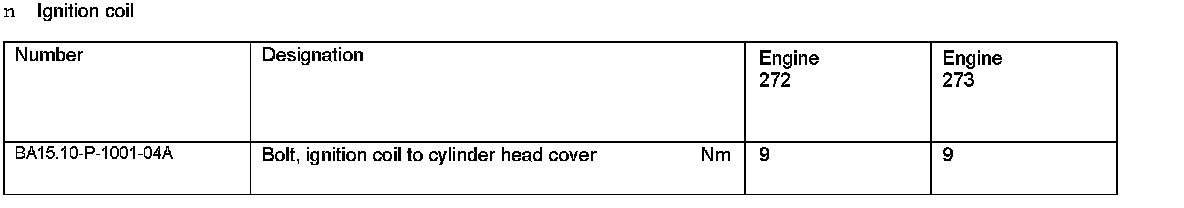

Ignition Coil:

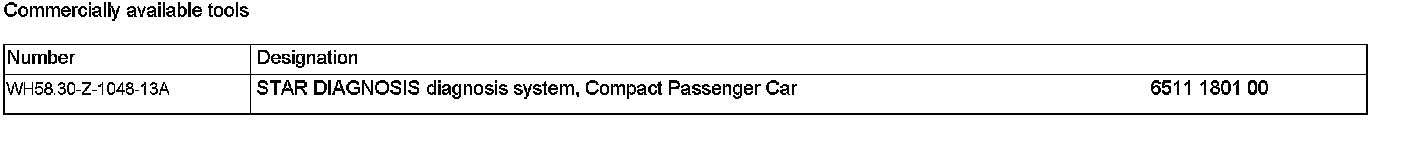

Commercially Available Tools:
