AR03.30-P-8001SX Remove/Install Flywheel/Drive Plate



AR03.30-P-8001SX Remove/install flywheel/drive plate

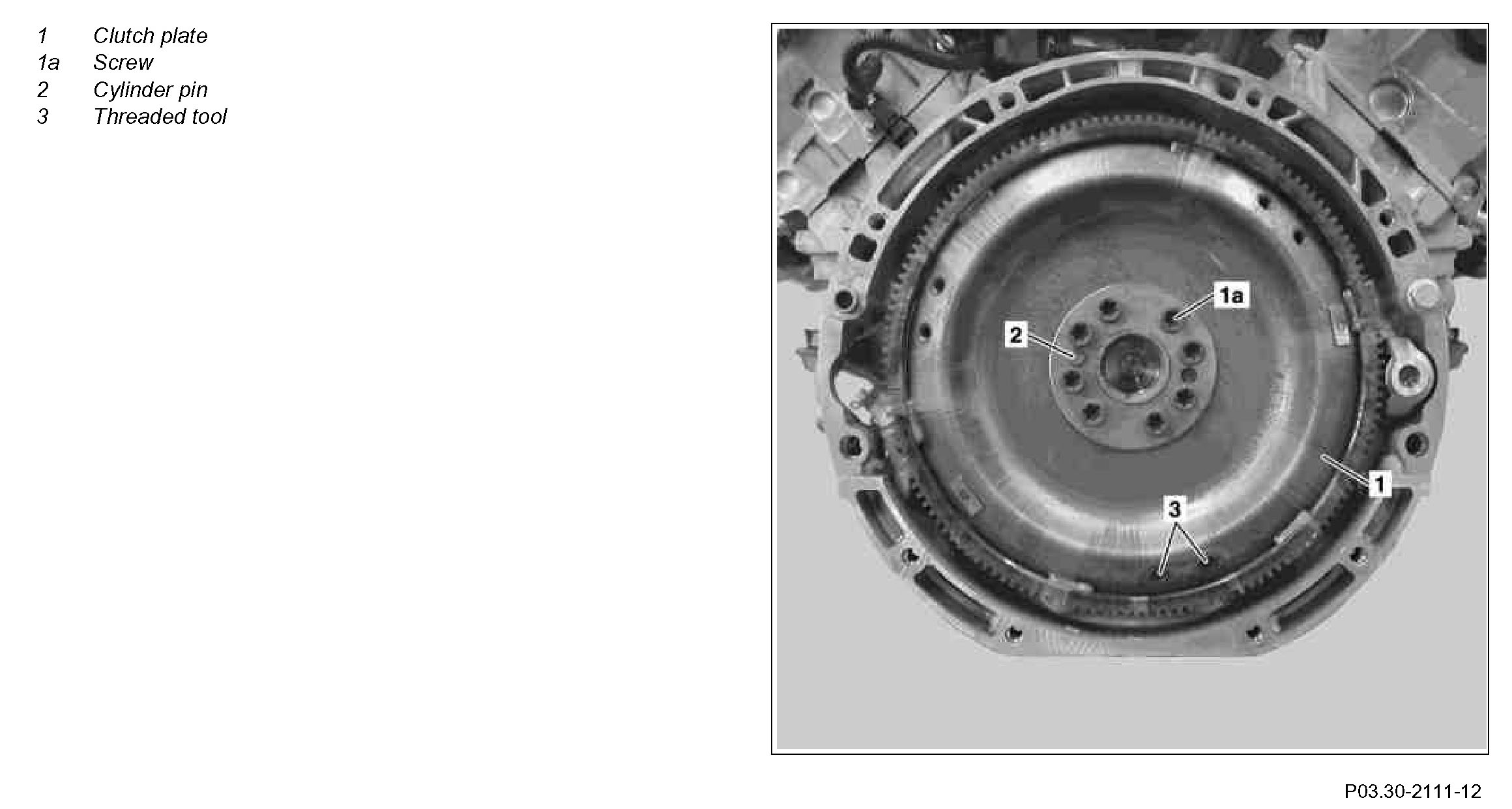

Component Identification:

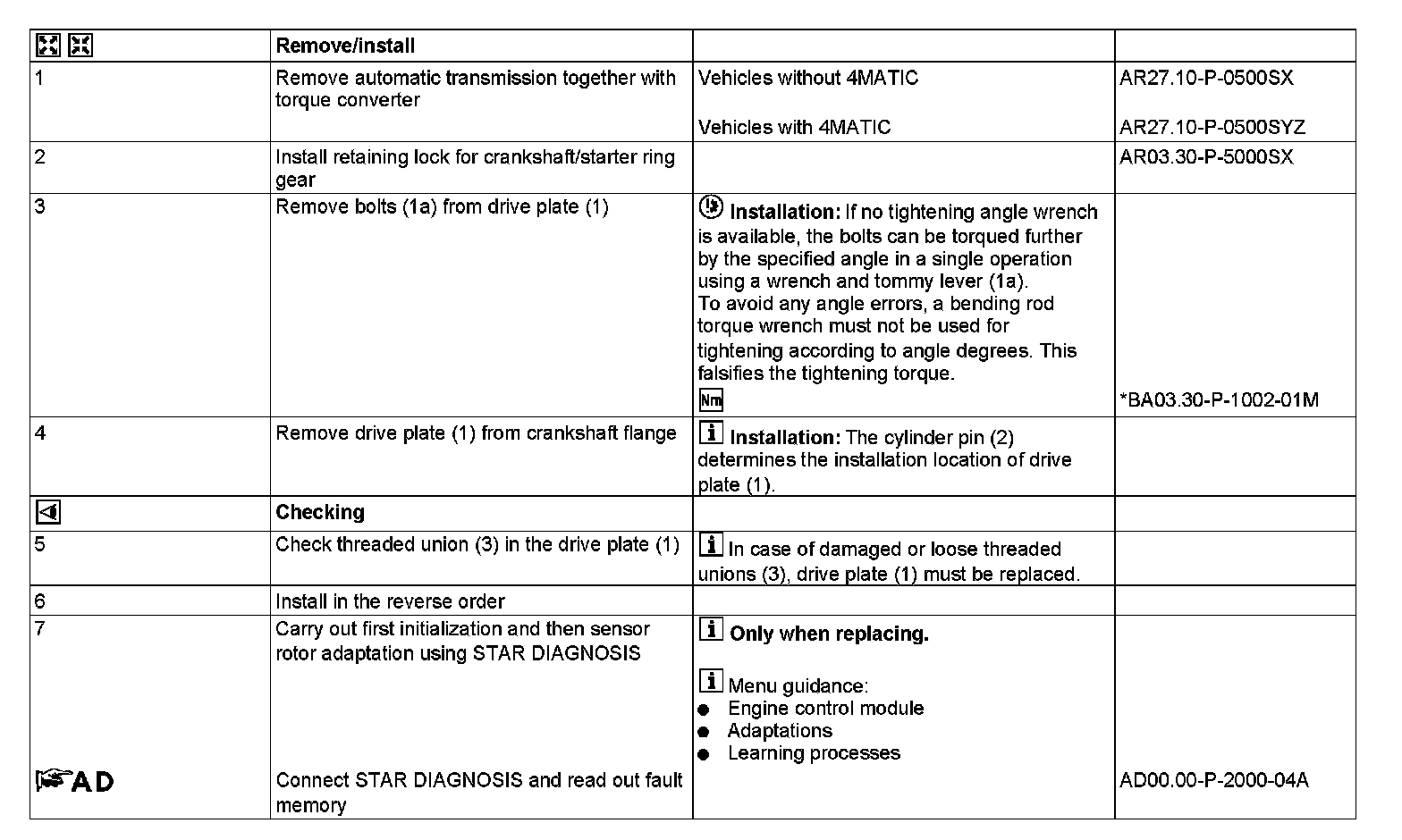

Steps 1-7:

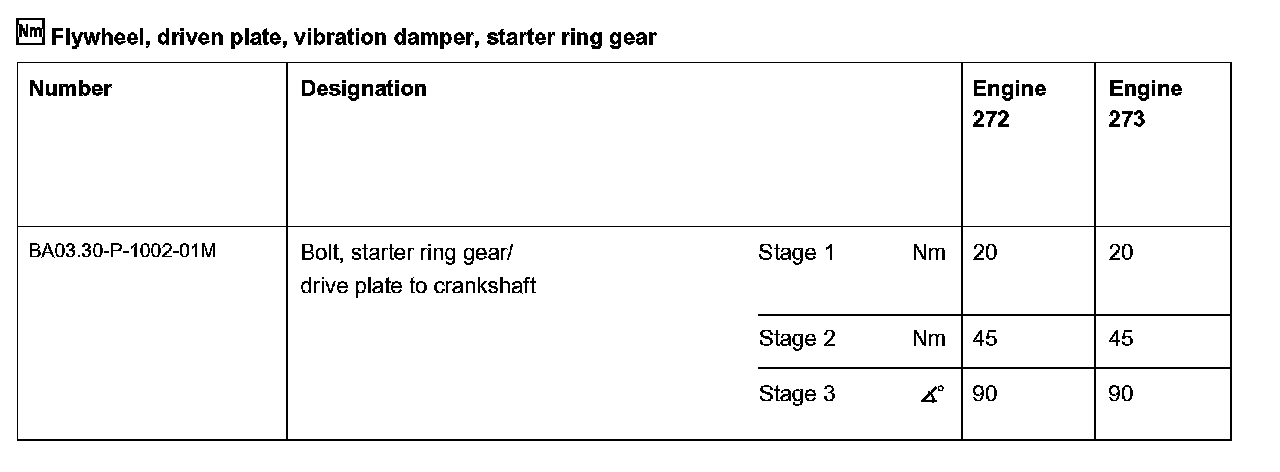

Flywheel, driven plate, vibration damper, starter ring gear:
