Alternator Pulley / Clutch: Service and Repair



AR15.40-P-5710SX Remove/install alternator belt pulley

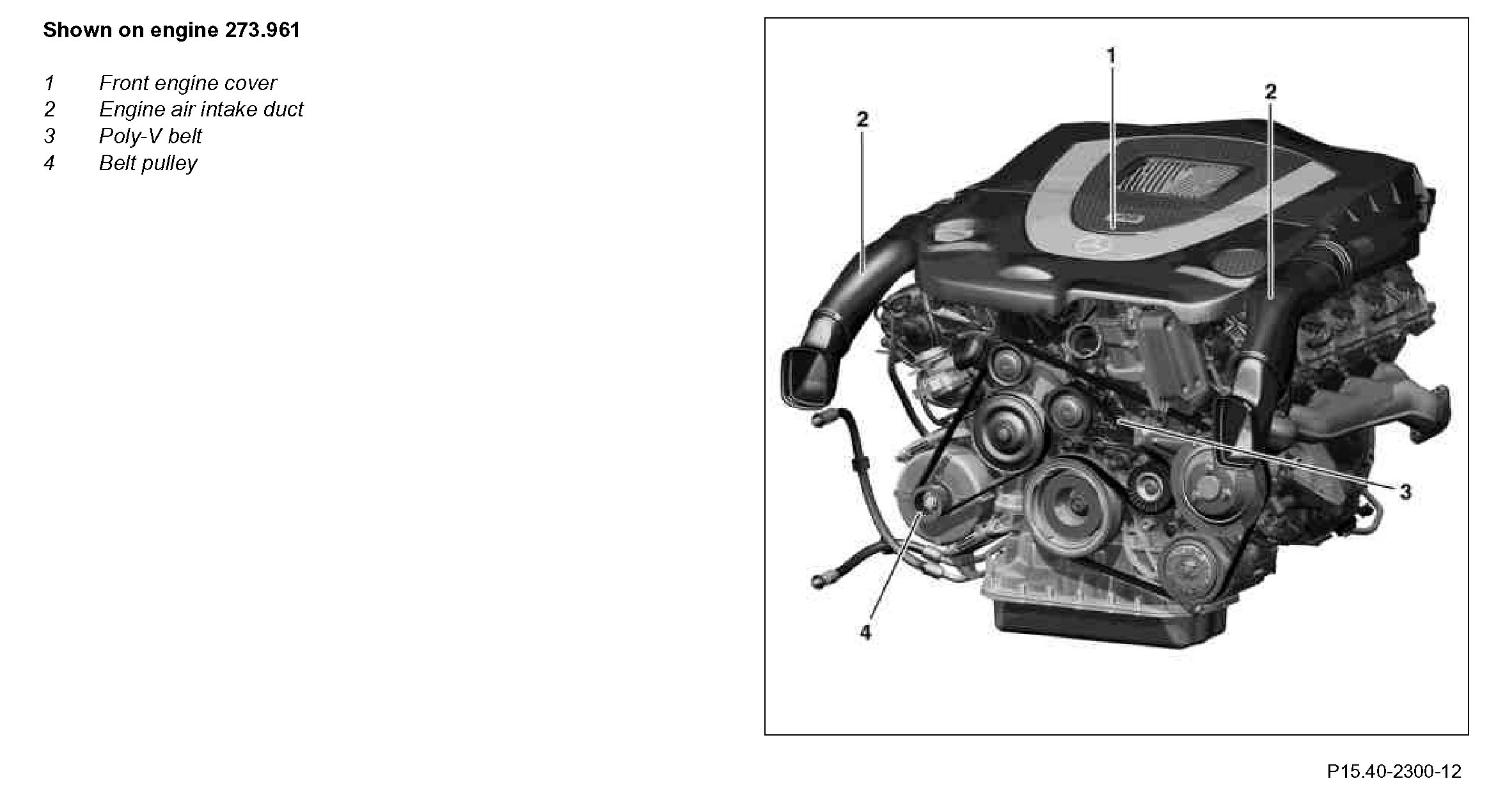

Component Identification:

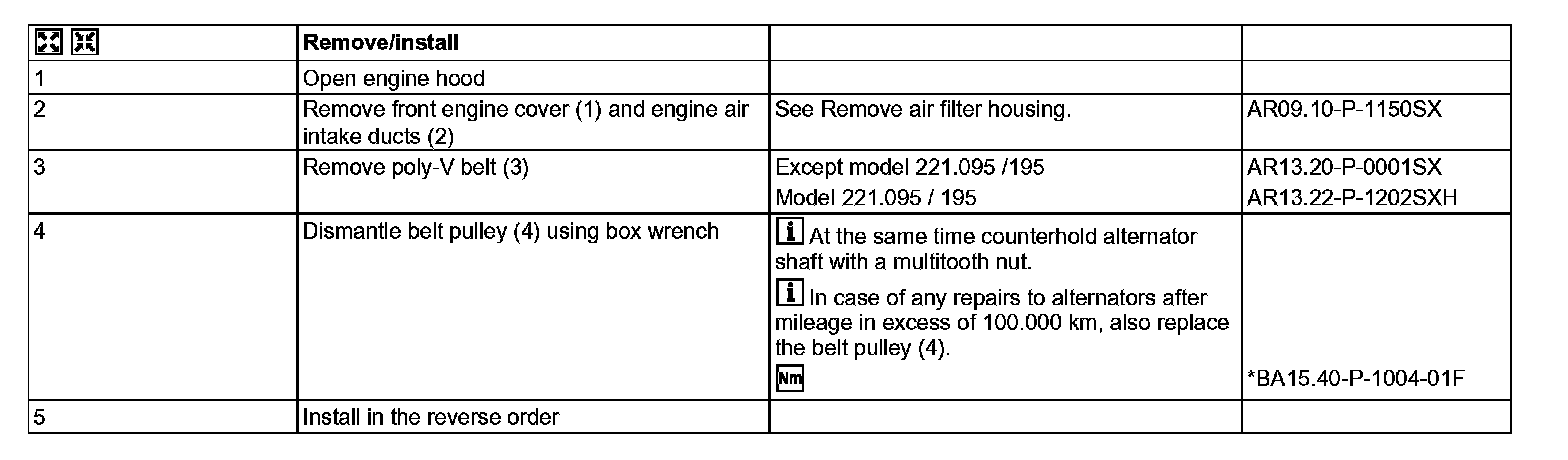

Steps 1-5:

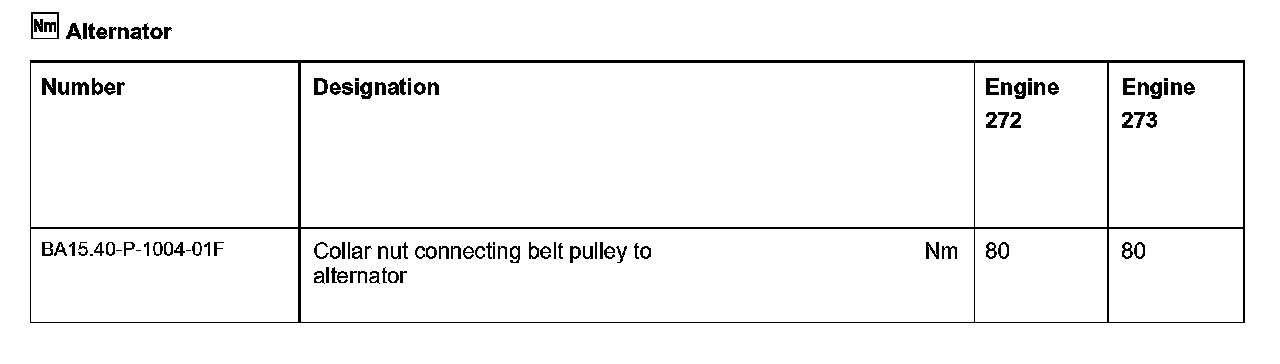

Alternator:
